2011 INFINITI QX ECO mode

When performing any inspection or mainte-
nance work on your vehicle, always take care to
prevent serious accidental injury to yourself or
damage to the vehicle. The following are gen-
eral precautions which should be closely ob-
served.
WARNING
●Park the vehicle on a level surface, apply the
parking brake securely and block the wheels
to prevent the vehicle from moving. Move
the selector lever to P (Park).
● Be sure the ignition switch is in the OFF or
LOCK position when performing any parts
replacement or repairs.
● Never connect or disconnect the battery or
any transistorized component while the ig-
nition switch is in the ON position.
● Never leave the engine or automatic trans-
mission related component harnesses dis-
connected while the ignition switch is in the
ON position.
● If you must work with the engine running,
keep your hands, clothing, hair and tools
away from moving fans, belts and any other
moving parts. ●
It is advisable to secure or remove any loose
clothing and remove any jewelry, such as
rings, watches, etc. before working on your
vehicle.
● Always wear eye protection whenever you
work on your vehicle.
● If you must run the engine in an enclosed
space such as a garage, be sure there is
proper ventilation for exhaust gases to
escape.
● Never get under the vehicle while it is sup-
ported only by a jack. If it is necessary to
work under the vehicle, support it with
safety stands.
● Keep smoking materials, flame and sparks
away from fuel tank and the battery.
● Your vehicle is equipped with an automatic
engine cooling fan. It may come on at any
time without warning, even if the ignition
key is in the OFF position and the engine is
not running. To avoid injury, always discon-
nect the negative battery cable before work-
ing near the fan.
● On gasoline engine models, the fuel filter or
fuel lines should be serviced by an INFINITI
retailer because the fuel lines are under high
pressure even when the engine is off.
CAUTION
● Do not work under the hood while the engine
is hot. Turn the engine off and wait until it
cools down.
● Avoid direct contact with used engine oil and
coolant. Improperly disposed engine oil,
coolant, and/or other vehicle fluids can dam-
age the environment. Always conform to lo-
cal regulations for disposal of vehicle fluid.
This “8. Maintenance and do-it-yourself” sec-
tion gives instructions regarding only those
items which are relatively easy for an owner to
perform.
A genuine INFINITI Service Manual is also avail-
able. (See “OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION” in the “9. Tech-
nical and consumer information” section.)
You should be aware that incomplete or im-
proper servicing may result in operating diffi-
culties or excessive emissions, and could affect
your warranty coverage. If in doubt about any
servicing, we recommend that it be done by an
INFINITI retailer.
MAINTENANCE PRECAUTIONS
Maintenance and do-it-yourself8-5

Under some driving or climate conditions, occa-
sional brake squeak, squeal or other noise may
be heard. Occasional brake noise during light to
moderate stops is normal and does not affect
the function or performance of the brake sys-
tem.
Proper brake inspection intervals should be fol-
lowed.For additional information, see the main-
tenance log section of your “INFINITI Service
and Maintenance Guide” for maintenance inter-
vals.
BRAKE BOOSTER
Check the brake booster function as follows:
1. With the engine off, depress and release the foot brake pedal more than 20 times.
When the foot brake pedal movement
(distance of travel) remains the same from
one pedal application to the next, con-
tinue on to the next step.
2. While depressing the foot brake pedal, start the engine.
3. With the foot brake pedal depressed, stop the engine. Keep the pedal depressed for
about 30 seconds. 4. Run the engine for 1 minute without de-
pressing the foot brake pedal, then turn it
off. Depress the foot brake pedal several
times. The pedal travel distance will de-
crease gradually with each depression as
the hydraulic pressure decreases.
If the brakes do not operate properly, have the
brakes checked by an INFINITI retailer.
SDI2518
SDI2532
FUSES
Maintenance and do-it-yourself8-21

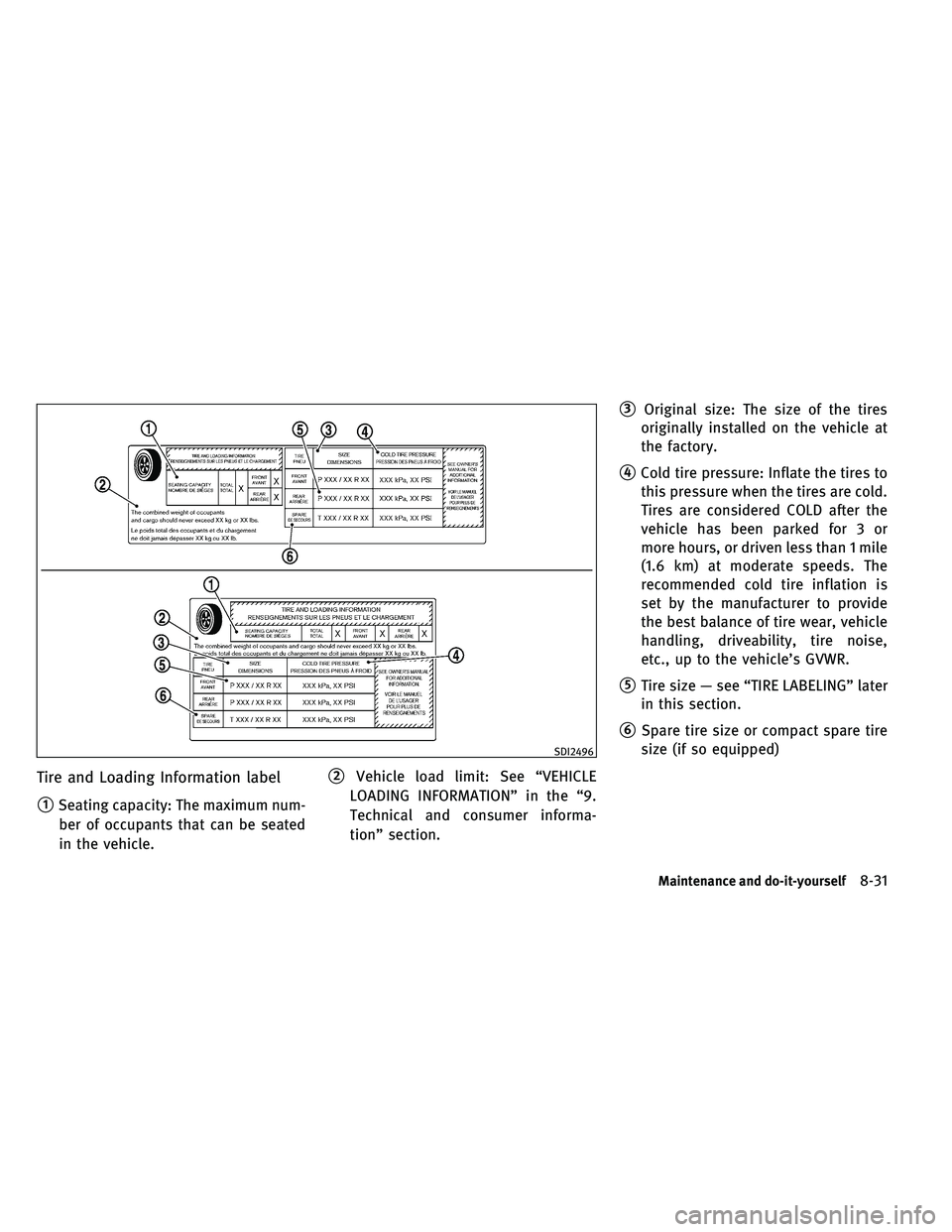

Tire and Loading Information label
1Seating capacity: The maximum num-ber of occupants that can be seated
in the vehicle.
2Vehicle load limit: See “VEHICLE
LOADING INFORMATION” in the “9.
Technical and consumer informa-
tion” section.
3Original size: The size of the tires
originally installed on the vehicle at
the factory.
4Cold tire pressure: Inflate the tires to this pressure when the tires are cold.
Tires are considered COLD after the
vehicle has been parked for 3 or
more hours, or driven less than 1 mile
(1.6 km) at moderate speeds. The
recommended cold tire inflation is
set by the manufacturer to provide
the best balance of tire wear, vehicle
handling, driveability, tire noise,
etc., up to the vehicle’s GVWR.
5Tire size — see “TIRE LABELING” later
in this section.
6Spare tire size or compact spare tire
size (if so equipped)
SDI2496
Maintenance and do-it-yourself8-31

TYPES OF TIRES
WARNING
●When changing or replacing tires, be sure all
four tires are of the same type (Example:
Summer, All Season or Snow) and construc-
tion. An INFINITI retailer may be able to help
you with information about tire type, size,
speed rating and availability.
● Replacement tires may have a lower speed
rating than the factory equipped tires, and
may not match the potential maximum ve-
hicle speed. Never exceed the maximum
speed rating of the tire.
● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
● For additional information regarding tires,
refer to “Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada) in
the Warranty Information Booklet.
All season tires
INFINITI specifies all season tires on some
models to provide good performance all year,
including snowy and icy road conditions. All
Season tires are identified by ALL SEASON
and/or M&S (Mud and Snow) on the tire side- wall. Snow tires have better snow traction than
All Season tires and may be more appropriate in
some areas.
Summer tires
INFINITI specifies summer tires on some models
to provide superior performance on dry roads.
Summer tire performance is substantially re-
duced in snow and ice. Summer tires do not
have the tire traction rating M&S on the tire
sidewall.
If you plan to operate your vehicle in snowy or
icy conditions, INFINITI recommends the use of
SNOW tires or ALL SEASON tires on all four
wheels.
Snow tires
If snow tires are needed, it is necessary to
select tires equivalent in size and load rating to
the original equipment tires. If you do not, it can
adversely affect the safety and handling of your
vehicle.
Generally, snow tires will have lower speed
ratings than factory equipped tires and may not
match the potential maximum vehicle speed.
Never exceed the maximum speed rating of the
tire.
If you install snow tires, they must be the same
size, brand, construction and tread pattern on
all four wheels.
For additional traction on icy roads, studded
tires may be used. However, some U.S. states
and Canadian provinces prohibit their use.
Check local, state and provincial laws before
installing studded tires. Skid and traction capa-
bilities of studded snow tires, on wet or dry
surfaces, may be poorer than that of non-
studded snow tires.
TIRE CHAINS
Use of tire chains may be prohibited according
to location. Check the local laws before install-
ing tire chains. When installing tire chains,
make sure they are the proper size for the tires
on your vehicle and are installed according to
the chain manufacturer’s suggestions.
Use only
SAE Class S chains. Class “S” chains are used
on vehicles with restricted tire to vehicle clear-
ance. Vehicles that can use Class “S” chains are
designed to meet the SAE standard minimum
clearances between the tire and the closest
vehicle suspension or body component re-
quired to accommodate the use of a winter
traction device (tire chains or cables). The mini-
mum clearances are determined using the fac-
tory equipped tire size. Other types may dam-
age your vehicle. Use chain tensioners when
Maintenance and do-it-yourself8-35

●If the wheels are changed for any reason,
always replace with wheels which have the
same off-set dimension. Wheels of a differ-
ent off-set could cause premature tire wear,
degrade vehicle handling characteristics
and/or interference with the brake
discs/drums. Such interference can lead to
decreased braking efficiency and/or early
brake pad/shoe wear. See “WHEELS AND
TIRES” in the “9. Technical and consumer
information” section of this manual for
wheel off-set dimensions.
● When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after 1 minute. Contact your INFINITI
retailer as soon as possible for tire replace-
ment and/or system resetting.
● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
● Do not install a damaged or deformed wheel
or tire even if it has been repaired. Such
wheels or tires could have structural damage
and could fail without warning.
● The use of retread tire is not recommended. ●
For additional information regarding tires,
refer to “Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada) in
the Warranty Information Booklet.
Four-wheel Drive (4WD) models
CAUTION
● Always use tires of the same type, size,
brand, construction (bias, bias-belted or ra-
dial), and tread pattern on all four wheels.
Failure to do so may result in a circumference
difference between tires on the front and
rear axles which will cause excessive tire
wear and may damage the transmission,
transfer case and differential gears.
● ONLY use spare tires specified for the 4WD
model.
If excessive tire wear is found, it is recom-
mended that all four tires be replaced with tires
of the same size, brand, construction and tread
pattern. The tire pressure and wheel alignment
should also be checked and corrected as nec-
essary. Contact an INFINITI retailer.
Wheel balance
Unbalanced wheels may affect vehicle handling
and tire life. Even with regular use, wheels can
get out of balance. Therefore, they should be
balanced as required.
Wheel balance service should be performed with
the wheels off the vehicle. Spin balancing the
wheels on the vehicle could lead to mechanical
damage.
For additional information regarding tires, refer
to “Important Tire Safety Information” (US) or
“Tire Safety Information” (Canada) in the
INFINITI Warranty Information Booklet.
Care of wheels
See “CLEANING EXTERIOR” in the “7. Appear-
ance and care” section for details about care of
the wheels.
Spare tire
When a spare tire is mounted (TEMPORARY USE
ONLY or conventional), the TPMS will not func-
tion.
8-38Maintenance and do-it-yourself

Temperature conditions can also affect towing.
For example, towing a heavy trailer in high
outside temperatures on graded roads can af-
fect engine performance and cause overheat-
ing. The transmission high fluid temperature
and engine protection mode, which helps re-
duce the chance of transmission and engine
damage, could activate and automatically de-
crease engine power. Vehicle speed may de-
crease under high load. Plan your trip carefully
to account for trailer and vehicle load, weather
and road conditions.
WARNING
Overheating can result in reduced engine
power and vehicle speed. The reduced speed
may be lower than other traffic, which could
increase the chance of a collision. Be especially
careful when driving. If the vehicle cannot
maintain a safe driving speed, pull to the side
of the road in a safe area. Allow the engine to
cool and return to normal operation. See “IF
YOUR VEHICLE OVERHEATS” in the “6. In case of
emergency” section of this manual.
CAUTION
Vehicle damage resulting from improper tow-
ing procedures is not covered by INFINITI
warranties.
Tongue load
When using a weight carrying or a weight
distributing hitch, keep the tongue load be-
tween 10 to 15% of the total trailer load or use
the trailer tongue load specified by the trailer
manufacturer. The tongue load must be within
the maximum tongue load limits shown in the
following “Towing Load/Specification” chart. If
the tongue load becomes excessive, rearrange
cargo to allow for proper tongue load.
STI0542
9-18Technical and consumer information

TOWING LOAD/SPECIFICATION
TOWING LOAD/SPECIFICATION CHARTUnit: lb (kg)
US Canada
Two-Wheel Drive (2WD) model Four-Wheel Drive
(4WD) model Four-Wheel Drive
(4WD) model
MAXIMUM TOWING CAPACITY*1, *2 8,500 (3,856)8,500 (3,856)
MAXIMUM TONGUE LOAD 850 (385)850 (385)
GROSS COMBINED WEIGHT RATING 14,300 (6,486) 14,480 (6,568) 14,480 (6,568)
1: The towing capacity values are calculated assuming a base vehicle with driver and any options required to achieve the rating. Additional passengers, cargo and/or optional equipment will add
weight to the vehicle and reduce your vehicle’s maximum towing capacity.
2: Use of a weight-distributing hitch system is recommended when towing over 5,000 lb (2,267 kg).
TOWING SAFETY
Trailer hitch
Your vehicle is equipped with a trailer tow
package. The trailer tow package includes a
receiver-type frame mounted hitch. This hitch is
rated for the maximum towing capacity of this
vehicle when the proper towing equipment is
used. Choose a proper ball mount and hitch ball
that is rated for the trailer to be towed. Genuine
INFINITI ball mounts and hitch balls are avail-
able from an INFINITI retailer.
Technical and consumer information9-21

Several types of braking systems are available.
Surge Brakes -The surge brake actuator is
mounted on the trailer tongue with a hydraulic
line running to each trailer wheel. Surge brakes
are activated by the trailer pushing against the
hitch ball when the tow vehicle is braking.
Hydraulic surge brakes are common on rental
trailers and some boat trailers. In this type of
system, there is no hydraulic or electric connec-
tion for brake operation between the tow ve-
hicle and the trailer.
Electric Trailer Brakes - Electric braking systems
are activated by an electronic signal sent from a
trailer brake controller (special brake sensing
module).
Have a professional supplier of towing equip-
ment make sure the trailer brakes are properly
installed and demonstrate proper brake func-
tion testing.
WARNING
Never connect a trailer brake system directly to
the vehicle brake system.
Pre-towing tips
● Be certain your vehicle maintains a level
position when a loaded or unloaded trailer is
hitched. Do not drive the vehicle if it has an
abnormal nose-up or nose-down condition;
check for improper tongue load, overload,
worn suspension or other possible causes of
either condition.
● Always secure items in the trailer to prevent
load shift while driving.
● Keep the cargo load as low as possible in the
trailer to keep the trailer center of gravity
low.
● Load the trailer so approximately 60% of the
trailer load is in the front half and 40% is in
the back half. Also make sure the load is
balanced side to side.
● Check your hitch, trailer tire pressure, ve-
hicle tire pressure, trailer light operation,
and trailer wheel lug nuts every time you
attach a trailer to the vehicle.
● Be certain your rearview mirrors conform to
all federal, state or local regulations. If not,
install any mirrors required for towing before
driving the vehicle.
● Determine the overall height of the vehicle
and trailer so the required clearance is
known.
Trailer towing tips
In order to gain skill and an understanding of
the vehicle’s behavior, you should practice turn-
ing, stopping and backing up in an area which
is free from traffic. Steering stability, and brak-
ing performance will be somewhat different
than under normal driving conditions.
● Always secure items in the trailer to prevent
load shift while driving.
● Lock the trailer hitch coupler with a pin or
lock to prevent the coupler from inadver-
tently becoming unlatched.
● Avoid abrupt starts, acceleration or stops.
● Avoid sharp turns or lane changes.
● Always drive your vehicle at a moderate
speed. Some states or provinces have spe-
cific speed limits for vehicles that are towing
trailers. Obey the local speed limits.
● When backing up, hold the bottom of the
steering wheel with one hand. Move your
hand in the direction in which you want the
trailer to go. Make small corrections and
back up slowly. If possible, have someone
guide you when you are backing up.
Technical and consumer information9-25
