2011 INFINITI M bluetooth

WARNING
●Use a phone after stopping your vehicle in a
safe location. If you have to use a phone
while driving, exercise extreme caution at all
times so full attention may be given to ve-
hicle operation.
● If you find yourself unable to devote full at-
tention to vehicle operation while talking on
the phone, pull off the road to a safe location
and stop your vehicle before doing so.
CAUTION
To avoid draining the vehicle battery, use a
phone after starting the engine.
Your INFINITI is equipped with Bluetooth
Hands-Free Phone System. If you are an owner
of a compatible Bluetooth enabled cellular
phone, you can set up the wireless connection
between your cellular phone and the in-vehicle
phone module. With Bluetooth wireless tech-
nology, you can make or receive a telephone
call with your cellular phone in your pocket.
Once a cellular phone is connected to the
in-vehicle phone module, no phone connecting
procedure is required anymore. Your phone is
automatically connected with the in-vehicle phone module when the ignition switch is
pushed to the ON position with the registered
cellular phone turned on and carried in the
vehicle.
You can register up to 5 different Bluetooth
cellular phones in the in-vehicle phone module.
However, you can talk on only one cellular
phone at a time.
The INFINITI Voice Recognition system supports
the phone commands, so dialing a phone num-
ber using your voice is possible. For more
details, see “INFINITI VOICE RECOGNITION SYS-
TEM (models with navigation system)” later in
this section; page 4-109.
Before using the Bluetooth
Hands-Free Phone
System, refer to the following notes.
● Set up the wireless connection between a
compatible cellular phone and the in-vehicle
phone module before using the Bluetooth
Hands-Free Phone System.
● Some Bluetooth enabled cellular phones
may not be recognized by the in-vehicle
phone module. Please visit
www.InfinitiUSA.com/bluetooth for a recom-
mended phone list. ●
You will not be able to use a hands-free
phone under the following conditions:
– Your vehicle is outside of the telephone service area.
– Your vehicle is in an area where it is difficult to receive radio waves; such as in
a tunnel, in an underground parking ga-
rage, behind a tall building or in a moun-
tainous area.
– Your cellular phone is locked in order not to be dialed.
● When the radio wave condition is not ideal
or ambient sound is too loud, it may be
difficult to hear the other person’s voice
during a call.
● Immediately after the ignition switch is
pushed to the ON position, it may be impos-
sible to receive a call for a short period of
time.
● Do not place the cellular phone in an area
surrounded by metal or far away from the
in-vehicle phone module to prevent tone
quality degradation and wireless connection
disruption.
● While a cellular phone is connected through
the Bluetooth wireless connection, the bat-
tery power of the cellular phone may dis-
charge quicker than usual.
BLUETOOTH HANDS-FREE PHONE SYSTEM
(models with navigation system)
4-86Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks


●If the Bluetooth Hands-Free Phone System
seems to be malfunctioning, please visit
www.InfinitiUSA.com/bluetooth for trouble-
shooting help.
● Some cellular phones or other devices may
cause interference or a buzzing noise to
come from the audio system speakers. Stor-
ing the device in a different location may
reduce or eliminate the noise.
● Refer to the cellular phone Owner’s Manual
regarding the telephone pairing procedure
specific to your phone, battery charging,
cellular phone antenna, etc.
● The antenna display on the monitor will not
coincide with the antenna display of some
cellular phones.
● Keep the interior of the vehicle as quiet as
possible to hear the caller’s voice clearly as
well as to minimize its echoes.
● If reception between callers is unclear, ad-
justing the incoming or outgoing call volume
may improve the clarity.REGULATORY INFORMATION
FCC Regulatory information
– CAUTION: To maintain compliance with FCC’s RF exposure guidelines, use only the sup-
plied antenna. Unauthorized antenna, modi-
fication, or attachments could damage the
transmitter and may violate FCC regulations.
– Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause un-
desired operation of the device
IC Regulatory information
– Operation is subject to the following twoconditions: (1) this device may not cause
interference, and (2) this device must accept
any interference, including interference that
may cause undesired operation of the device.
– This Class B digital apparatus meets all requirements of the Canadian Interference-
Causing Equipment Regulations. Bluetooth trademark:
Bluetooth
is a trademark
owned by Bluetooth SIG,
Inc., U.S.A. and licensed to
Clarion Co., Ltd.
VOICE COMMANDS
You can use voice commands to operate various
Bluetooth Hands-Free Phone System features
using the INFINITI Voice Recognition system.
For more details, see “INFINITI VOICE RECOGNI-
TION SYSTEM (models with navigation system)”
later in this section; page 4-109.
Monitor, climate, audio, phone and voice recognition systems4-87
—
—
07/15/10—tbrooks

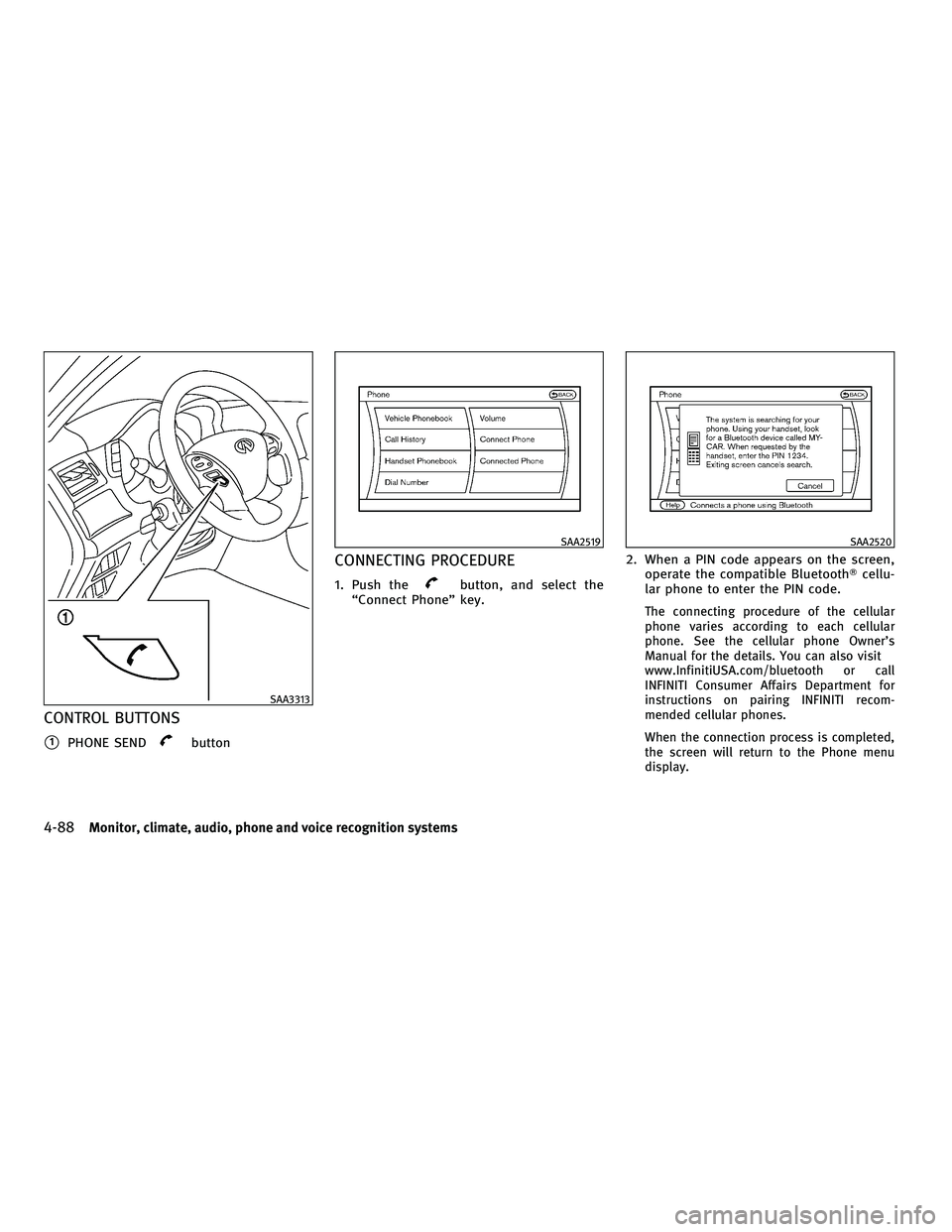

CONTROL BUTTONS
1PHONE SENDbutton
CONNECTING PROCEDURE
1. Push thebutton, and select the
“Connect Phone” key. 2. When a PIN code appears on the screen,
operate the compatible Bluetooth cellu-
lar phone to enter the PIN code.
The connecting procedure of the cellular
phone varies according to each cellular
phone. See the cellular phone Owner’s
Manual for the details. You can also visit
www.InfinitiUSA.com/bluetooth or call
INFINITI Consumer Affairs Department for
instructions on pairing INFINITI recom-
mended cellular phones.
When the connection process is completed,
the screen will return to the Phone menu
display.
SAA3313
SAA2519SAA2520
4-88Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks


PHONE SETTING
To set up the BluetoothHands-Free Phone
System to your preferred settings, push the
SETTING button on the instrument panel and
select the “PHONE” key.
Edit Vehicle Phonebook
To edit the vehicle phonebook, use the same
procedure as described in “VEHICLE PHONE-
BOOK” earlier in this section.
Delete Phonebook
The vehicle phonebook entries can be deleted
all at the same time or one by one.
Download Handset Phonebook
Download the contacts registered in a
Bluetooth cellular phone. Availability of this
function depends on each cellular phone. The
memory downloading procedure from the cellu-
lar phone also varies according to each cellular
phone. See cellular phone Owner’s Manual for
details.
When “Auto Download” is active, the system
will automatically re-download the entries reg-
istered in the phone everytime it is paired with
the vehicle, even after you delete the entries
from your vehicle’s Handset Memory.
Volume
The following kinds of phone volume can be set.
Pushing the
button and selecting the
“Volume” key can also operate the same set-
tings.
● Ringtone/Incoming Call/Outgoing Call
To increase or decrease the volume, select
the “Ringtone”, “Incoming Call” or “Outgo-
ing Call” key and adjust it with the INFINITI
controller.
● Automatic Hold
When this function is activated, an incoming
phone call is automatically held. ●
Vehicle Ringtone
When this function is activated, a specific
ringtone that is different from the cellular
phone will sound when receiving a call.
Auto Download
When this item is activated, the phonebook of a
hands-free phone is automatically downloaded
at the same time that the hands-free phone is
connected.
When this item is active, the system will auto-
matically re-download the entries registered in
the connected phone even if you attempt to
delete the entries.
SAA2898
4-94Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks


WARNING
●Use a phone after stopping your vehicle in a
safe location. If you have to use a phone
while driving, exercise extreme caution at all
times so full attention may be given to ve-
hicle operation.
● If you find yourself unable to devote full at-
tention to vehicle operation while talking on
the phone, pull off the road to a safe location
and stop your vehicle before doing so.
CAUTION
To avoid draining the vehicle battery, use a
phone after starting the engine.
Your vehicle is equipped with Bluetooth
Hands-Free Phone System. If you are an owner
of a Bluetooth enabled cellular phone, you can
set up the wireless connection between your
cellular phone and the in-vehicle phone mod-
ule. With Bluetooth wireless technology, you
can make or receive a telephone call with your
cellular phone in your pocket.
Once your cellular phone is paired to the in-
vehicle phone module, no phone connecting
procedure is required. Your phone is automati-
cally connected with the in-vehicle phone mod- ule when the ignition switch is pushed to the
“ON” position with the registered cellular
phone turned on and carried in the vehicle.
You can register up to 5 different Bluetooth
cellular phones in the in-vehicle phone module.
However, you can talk on only one cellular
phone at a time.
When a call is active, the audio system and
microphone (located in the ceiling in front of the
rearview mirror) are used for the handsfree
communications.
If the audio system is being used at the time,
the audio mode will mute and will stay muted
until the active call is ended.
The INFINITI Voice Recognition system supports
the phone commands, so dialing a phone num-
ber using your voice is possible.
Before using the Bluetooth
Hands-Free Phone
System, refer to the following notes.
● Set up the wireless connection between a
cellular phone and the in-vehicle phone
module before using the Bluetooth Hands-
Free Phone System.
● Some Bluetooth enabled cellular phones
may not be recognized by the in-vehicle
phone module. ●
You will not be able to use a hands-free
phone under the following conditions:
– Your vehicle is outside of the telephone service area.
– Your vehicle is in an area where it is difficult to receive radio waves; such as in
a tunnel, in an underground parking ga-
rage, behind a tall building or in a moun-
tainous area.
– Your cellular phone is locked in order not to be dialed.
● When the radio wave condition is not ideal
or ambient sound is too loud, it may be
difficult to hear the other person’s voice
during a call.
● Immediately after the ignition switch is
pushed to the “ON” position, it may be
impossible to receive a call for a short period
of time.
● Do not place the cellular phone in an area
surrounded by metal or far away from the
in-vehicle phone module to prevent tone
quality degradation and wireless connection
disruption.
● While a cellular phone is connected through
the Bluetooth wireless connection, the bat-
tery power of the cellular phone may dis-
charge quicker than usual.
BLUETOOTH HANDS-FREE PHONE SYSTEM
(models without navigation system)
4-96Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks


●If the Bluetooth Hands-Free Phone System
seems to be malfunctioning, please contact
an INFINITI retailer.
● Some cellular phones or other devices may
cause interference or a buzzing noise to
come from the audio system speakers. Stor-
ing the device in a different location may
reduce or eliminate the noise.
● Refer to the cellular phone Owner’s Manual
regarding the telephone pairing procedure
specific to your phone, battery charging,
cellular phone antenna, etc.
● The antenna display on the monitor will not
coincide with the antenna display of some
cellular phones.
● Keep the interior of the vehicle as quiet as
possible to hear the caller’s voice clearly as
well as to minimize its echoes.
● If reception between callers is unclear, ad-
justing the incoming or outgoing call volume
may improve the clarity.
● This wireless hands free car kit is based on
Bluetooth technology,
– Frequency: 2402 MHz - 2480 MHz
– Output Power: 4.14 dBm E.I.R.P
– Modulation: FHSS GFSK 8DPSK, /4DQPSK – Number of Channel: 79
– This wireless equipment can’t be used for
any services related to safety because
there is the possibility of radio interfer-
ence.
REGULATORY INFORMATION
Bluetooth is a trademark
owned by Bluetooth SIG,
Inc., U.S.A. and licensed to
Visteon Corporation.
CONTROL BUTTONS
1. PHONE SENDbutton
Push the button to initiate a VR session or
answer an incoming call. You can also use
the button to skip through system feed-
back and to enter commands during a call.
2. PHONE END
button
Push the button to cancel a VR session or
end a call.
SAA2969
Monitor, climate, audio, phone and voice recognition systems4-97
—
—
07/15/10—tbrooks

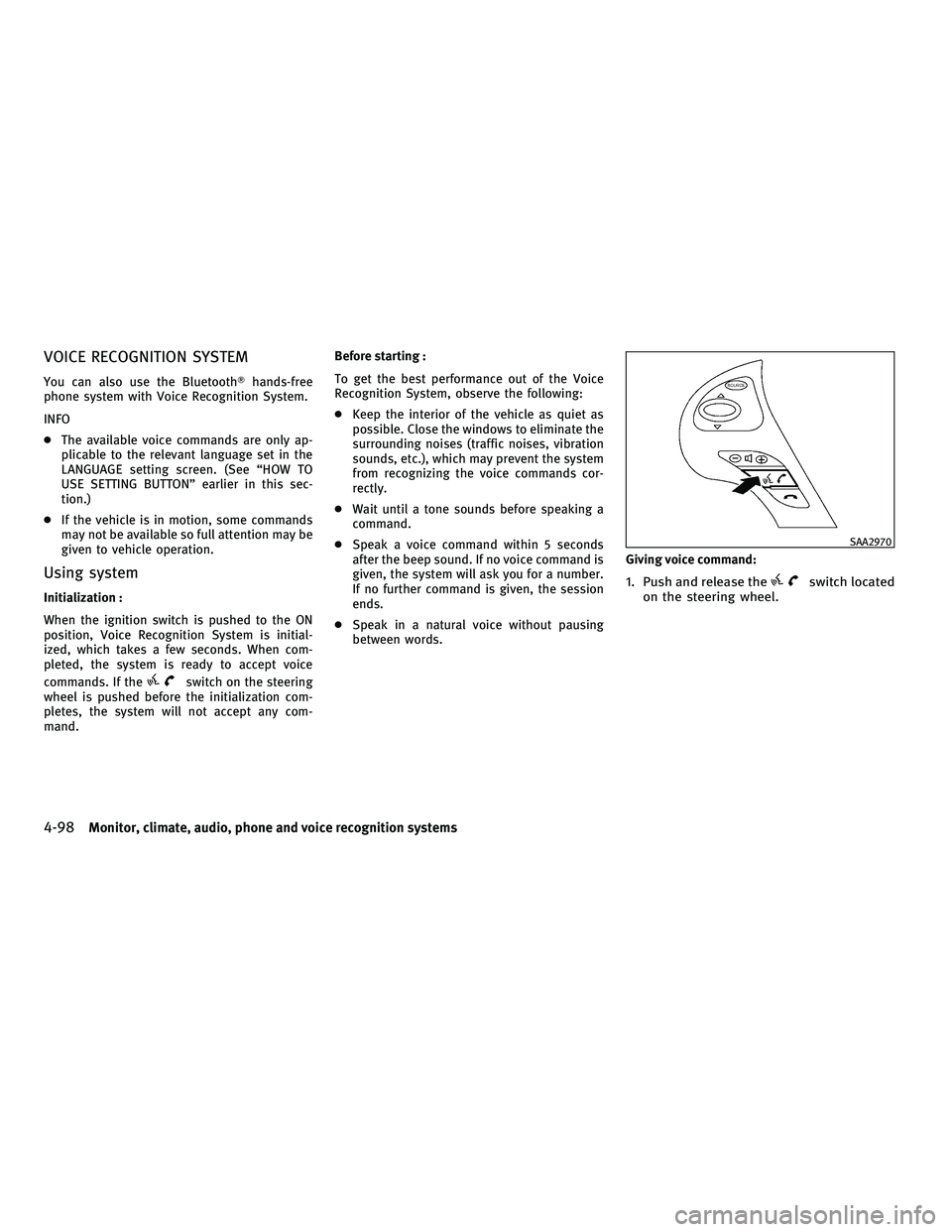

VOICE RECOGNITION SYSTEM
You can also use the Bluetoothhands-free
phone system with Voice Recognition System.
INFO
● The available voice commands are only ap-
plicable to the relevant language set in the
LANGUAGE setting screen. (See “HOW TO
USE SETTING BUTTON” earlier in this sec-
tion.)
● If the vehicle is in motion, some commands
may not be available so full attention may be
given to vehicle operation.
Using system
Initialization :
When the ignition switch is pushed to the ON
position, Voice Recognition System is initial-
ized, which takes a few seconds. When com-
pleted, the system is ready to accept voice
commands. If the
switch on the steering
wheel is pushed before the initialization com-
pletes, the system will not accept any com-
mand. Before starting :
To get the best performance out of the Voice
Recognition System, observe the following:
●
Keep the interior of the vehicle as quiet as
possible. Close the windows to eliminate the
surrounding noises (traffic noises, vibration
sounds, etc.), which may prevent the system
from recognizing the voice commands cor-
rectly.
● Wait until a tone sounds before speaking a
command.
● Speak a voice command within 5 seconds
after the beep sound. If no voice command is
given, the system will ask you for a number.
If no further command is given, the session
ends.
● Speak in a natural voice without pausing
between words. Giving voice command:
1. Push and release theswitch located
on the steering wheel.
SAA2970
4-98Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks


List of voice commands:
COMMANDACTION
“Call/Dial” “” Dials the specified .
“Call/Dial” “Redial” Dials the last number.
“Call” “” Dials the specified .
“Phonebook” “” Displays the specified in the phonebook.
“Phonebook” “List Names” Displays all the names in the phonebook.
“Phonebook” “Transfer Entry” Transfers the phonebook data to the system.
“Phonebook” “Delete Entry” Deletes the phonebook registered in the system.
“Connect Phone” “Software Version” Displays the software version of the system to be connected.
“Connect Phone” “Add Phone” Connects a cellular phone to the system.
“Connect Phone” “Select Phone” Selects a registered cellular phone.
“Connect Phone” “Delete Phone” Deletes a registered cellular phone.
“Connect Phone” “Bluetooth Off” Turns the Bluetoothconnection off.
“Connect Phone” “Replace Phone” Changes the registered order of the cellular phones.
“Connect Phone” “Delete Phone” “All Phones” Deletes all registered cellular phones.
“Connect Phone” “Delete Phone” “List Phones” Selects a registered cellular phone and deletes it.
Monitor, climate, audio, phone and voice recognition systems4-101
—
—
07/15/10—tbrooks
