2011 INFINITI M buttons

●Any of the buttons on the Intelligent Key
are pushed. (Note: Panic button should be
pushed for more than 1 second.)

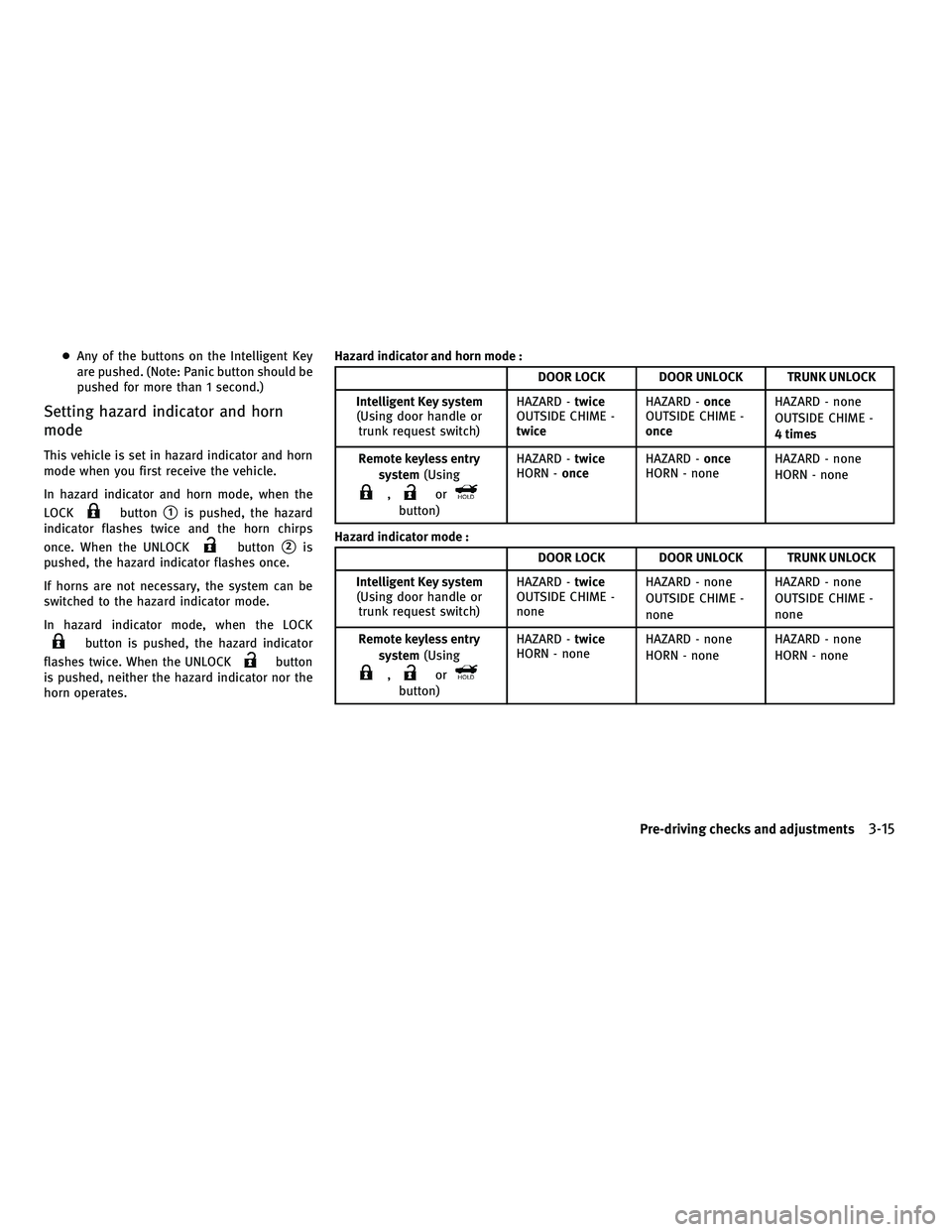

Setting hazard indicator and horn
mode
This vehicle is set in hazard indicator and horn
mode when you first receive the vehicle.
In hazard indicator and horn mode, when the
LOCK
button1is pushed, the hazard
indicator flashes twice and the horn chirps
once. When the UNLOCK
button2is
pushed, the hazard indicator flashes once.
If horns are not necessary, the system can be
switched to the hazard indicator mode.
In hazard indicator mode, when the LOCK
button is pushed, the hazard indicator
flashes twice. When the UNLOCK
button
is pushed, neither the hazard indicator nor the
horn operates. Hazard indicator and horn mode :
DOOR LOCK DOOR UNLOCK TRUNK UNLOCK
Intelligent Key system (Using door handle or trunk request switch) HAZARD -
twice
OUTSIDE CHIME -
twice HAZARD -
once
OUTSIDE CHIME -
once HAZARD - none
OUTSIDE CHIME -
4 times
Remote keyless entry system (Using
,or
button) HAZARD -
twice
HORN - once HAZARD -
once
HORN - none HAZARD - none
HORN - none
Hazard indicator mode :
DOOR LOCK DOOR UNLOCK TRUNK UNLOCK
Intelligent Key system (Using door handle or trunk request switch) HAZARD -
twice
OUTSIDE CHIME -
none HAZARD - none
OUTSIDE CHIME -
noneHAZARD - none
OUTSIDE CHIME -
none
Remote keyless entry system (Using
,or
button) HAZARD -
twice
HORN - none HAZARD - none
HORN - noneHAZARD - none
HORN - none
Pre-driving checks and adjustments3-15
—
—
01/12/10—pattie


Switching procedure :
To switch the hazard indicator and horn (chime)
operation, push the LOCK
1and UN-
LOCK
2buttons on the Intelligent Key
simultaneously for more than 2 seconds.
● When the hazard indicator mode is set, the
hazard indicator flashes 3 times.
● When the hazard indicator and horn mode is
set, the hazard indicator flashes once and
the horn chirps once.
1. Pull the hood lock release handle1
located below the instrument panel; the
hood will then spring up slightly.
2. Pull the lever
2up at the front of the
hood with your fingertips and raise the
hood.
3. When closing the hood, slowly close the hood down to latch both the right and left
locks. Push the hood down to lock the
hood securely into place.
WARNING
●Make sure the hood is completely closed and
latched before driving. Failure to do so could
cause the hood to fly open and result in an
accident.
● If you see steam or smoke coming from the
engine compartment, to avoid injury do not
open the hood.
SPA2733
HOOD
3-16Pre-driving checks and adjustments
—
—
01/12/10—pattie


Steering-wheel-mounted controls for audio......4-83
Antenna ...................................... 4-85
Car phone or CB radio ............................ 4-85
Bluetooth Hands-Free Phone System
(models with navigation system) ...................4-86
Regulatory information ......................... 4-87
Voice commands .............................. 4-87
Control buttons ............................... 4-88
Connecting procedure ......................... 4-88
Phone selection ............................... 4-89
Vehicle phonebook ............................ 4-89
Making a call ................................. 4-91
Receiving a call ............................... 4-92
During a call .................................. 4-93
Phone setting ................................. 4-94
Troubleshooting guide ......................... 4-95
Bluetooth Hands-Free Phone System
(models without navigation system) ................4-96Regulatory information
......................... 4-97
Control buttons ............................... 4-97
Voice recognition system ......................4-98
Pairing procedure ............................ 4-102
Phonebook registration ....................... 4-103
Making a call ................................ 4-103
Receiving a call .............................. 4-104
During a call ................................. 4-104
Phone settings ............................... 4-105
Voice adaptation mode ....................... 4-108
INFINITI Voice Recognition system
(models with navigation system) ..................4-109
INFINITI Voice Recognition standard mode ......4-109
Using the system .............................. 4-112
INFINITI Voice Recognition alternate
command mode .............................. 4-122
Using the system ............................. 4-128
Troubleshooting guide ........................ 4-133
—
—
07/15/10—tbrooks


2. Push the temperature control button(driver side) to set the desired tempera-
ture.
●The temperature can be set within the
following range.
– For U.S.: 60 to 90°F (16 to 32°C)
– For Canada: 64 to 90°F (18 to 32°C)
● The temperature of the passenger com-
partment will be maintained automati-
cally. Air flow distribution and fan speed
will also be controlled automatically.
3. To turn off the climate control system, push the “OFF” button.
A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air is
cooled rapidly. This does not indicate a mal-
function.
Dehumidified defrosting or defogging:
1. Push the front defroster “” button.
(The indicator light on the button will
come on.)
2. Push the temperature control button to set the desired temperature.
●To quickly remove ice from the outside of the
windows, push the fan speed increase
“
” button and set it to the maximum
position. ●
As soon as possible after the windshield is
clean, push the “AUTO” button to return to
the auto mode.
● When the front defroster “
” button is
pushed, the air conditioner will automati-
cally be turned on at outside temperatures
above 23°F (5°C) to defog the windshield,
and the air recirculate mode will automati-
cally be turned off.
Outside air is drawn into the passenger
compartment to improve the defogging per-
formance.
Manual operation
Fan speed control :
Push the fan speed increase “
”or
decrease “
” buttons to manually control
the fan speed.
Push the “AUTO” button to return to automatic
control of the fan speed. Air recirculation :
Push the air recirculation “
” button to
change the air circulation mode. When the
indicator light illuminates, the flowing air is
recirculated inside the vehicle.
The air recirculation mode cannot be activated
when the air conditioner is in the front defrost-
ing mode “
”.
Outside air circulation :
Push the outside air circulation “
” button
to change the air circulation mode. When the
indicator light illuminates, the flowing air is
drawn from outside the vehicle.
Automatic air intake control :
To set the automatic control mode, perform one
of the following operations.
● When the outside air circulation mode is on,
push and hold the outside air circulation
“
” button for more than 2 seconds.
● When the air recirculation mode is on, push
and hold the air recirculation “
” but-
ton for more than 2 seconds.
When setting the automatic control mode, both
indicator lights will blink twice indicating that
the system is in the automatic control mode.
Monitor, climate, audio, phone and voice recognition systems4-33
—
—
01/12/10—pattie


1. ON·OFF/VOLUME control knob
2. Radio CAT (category)/REW (rewind) buttonfor SEEK/TRACK
3. Radio CAT(category)/FF (fast forward) but- ton for SEEK/TRACK
4. AM·FM radio band select button 5. XM radio band select button
6. DISC·AUX selector button
7. RDM (random) RPT (repeat) play button
8. Radio SCAN (tuning) button
9. CD EJECT button10. Radio tuning / MP3/WMA/AAC folder se-
lector / AUDIO control knob
11. Radio station preset buttons
No satellite radio reception is available unless
an XM Satellite Radio subscription is active.
FM-AM-SAT RADIO WITH COMPACT
DISC (CD) PLAYER
For all operation precautions, see “AUDIO OP-
ERATION PRECAUTIONS” earlier in this section.
The satellite radio mode requires an active XM
Satellite Radio subscription. The satellite radio
is not available in Alaska, Hawaii and Guam.
It may take some time to receive the activation
signal after subscribing the XM Satellite Radio.
After receiving the activation signal, an avail-
able channel list will be automatically updated
in the radio. For XM, push the ignition switch
from LOCK to ACC to update the channel list.
Audio main operation
Head unit :
The auto loudness circuit enhances the low and
high frequency ranges automatically in both
radio reception and CD playback.
SAA2957
4-58Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks


SEEK tuning/CATEGORY (CAT) :
● For AM and FM radio
Push the SEEK button
orto
tune from low to high or high to low frequen-
cies and to stop at the next broadcasting
station.
● For XM Satellite Radio
Push the SEEK button
orto
tune to the first channel of the next or
previous category.
During satellite radio reception, the following
notices will be displayed under certain condi-
tions.
● NO SIGNAL (No signal is received while the
SAT tuner is connected.)
● OFF AIR (Broadcasting signed off)
● CHECK ANTENNA (Antenna connection error)
● LOADING (When the initial setting is per-
formed)
● UPDATING (When the satellite radio sub-
scription is not active)
SCAN tuning :
Push the SCAN tuning button to tune from low
to high frequencies and stop at each broadcast- ing station/channel for 5 seconds. Pushing the
button again during this 5 seconds period will
stop SCAN tuning and the radio will remain
tuned to that station/channel.
If the SCAN tuning button is not pushed within
5 seconds, SCAN tuning moves to the next
station/channel.
toStation memory operations :
12 stations/channels can be set for the FM band
(6 each for FM1 and FM2), 18 for XM radio (6
each for XM1, XM2 and XM3) and 6 stations can
be set for the AM band.
1. Choose the radio band using the radio band select button.
2. Tune to the desired station/channel using the
, SCAN button or the radio
TUNE knob.
3. Push and hold the desired station preset button
tountil the radio mutes.
4. The station indicator will then come on and the sound will resume. Memorizing is
now complete.
5. Other buttons can be set in the same manner.
If the battery cable is disconnected, or if the
fuse opens, the radio memory will be erased. In
that case, reset the desired stations/channels. Menu (XM Satellite Radio) (models with naviga-
tion system) :
When the “Menu” key on the display is selected
while the XM Satellite Radio is being played,
the menu list will be displayed.
The following items are available.
●
Preset List
Displays the preset channel list. If 1 of the 6
preset stations listed is touched and held,
the current station will be stored as the new
preset.
● Customize Channel List
Selects specific channels to skip while using
the TUNE, SEEK/CATEGORY or Menu-
Categories feature.
● Favorite Artists & Songs
Stores the current artist or song that is being
played. Touch the “Alert” key to be reminded
when the stored artist or song is playing on
a station while listening to XM.
● Categories
Selecting a category will go to the first
channel in that category as defined by XM
Radio.
4-60Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks


Compatibility
The following models are available:
Models with navigation system :
●Fifth generation iPod (version 1.2.3 or later)
● iPod Classic (version 1.1.1 or later)
● First generation iPod touch (version 2.0.0
or later)
● Second generation iPod touch (firmware
version 1.2.3 or later)
● First generation iPod nano (firmware ver-
sion 1.3.1 or later)
● Second generation iPod nano (firmware
version 1.1.3 or later)
● Third generation iPod nano (firmware ver-
sion 1.1 or later)
● Fourth generation iPod nano (firmware ver-
sion 1.0.2 or later)
Models without navigation system :
● Fifth generation iPod (firmware version 1.3)
● First generation iPod Classic (firmware ver-
sion 1.1.2 PC)
● Second generation iPod Classic (firmware
version 2.0 PC) ●
First generation iPod touch (firmware ver-
sion 2.1)
● Second generation iPod touch (firmware
version 2.1.1)
● First generation iPod nano (firmware ver-
sion 1.3.1)
● Second generation iPod nano (firmware
version 1.1.3)
● Third generation iPod nano (firmware ver-
sion 1.1 PC)
Make sure that the iPod version is updated.
Audio main operation
Push the ignition switch to the ACC or ON
position. Then, push the DISC·AUX button re-
peatedly to switch to the iPod mode.
If the system has been turned off while the
iPod was playing, pushing the ON·OFF button
will start the iPod.
PLAY :
When the DISC·AUX button is pushed with the
system off and the iPod connected, the system
will turn on. If another audio source is playing
and the iPod is connected, push the DISC·AUX
button repeatedly until the center display
changes to the iPod mode. Interface :
The interface for iPod
operation shown on the
vehicle center display is similar to the iPod
interface. Use the INFINITI controller and the
ENTER or BACK button to play the iPod with
your favorite settings.
The following items can be chosen from the
menu list screen. For further information about
each item, see the iPod Owner’s Manual.
● Now Playing
● Playlists
● Artists
● Albums
● Songs
● Podcasts
● Genres
● Composers
● Audiobooks
● Shuffle Songs
The following touch-panel buttons shown on
the screen are also available:
●
: returns to the previous screen.
●
: plays/pauses the music selected.
Monitor, climate, audio, phone and voice recognition systems4-75
—
—
07/15/10—tbrooks


CONTROL BUTTONS
1PHONE SENDbutton
CONNECTING PROCEDURE
1. Push thebutton, and select the
“Connect Phone” key. 2. When a PIN code appears on the screen,
operate the compatible Bluetooth cellu-
lar phone to enter the PIN code.
The connecting procedure of the cellular
phone varies according to each cellular
phone. See the cellular phone Owner’s
Manual for the details. You can also visit
www.InfinitiUSA.com/bluetooth or call
INFINITI Consumer Affairs Department for
instructions on pairing INFINITI recom-
mended cellular phones.
When the connection process is completed,
the screen will return to the Phone menu
display.
SAA3313
SAA2519SAA2520
4-88Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks
