2011 INFINITI G key

Clock settings (models with
navigation system)
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Clock” key.
On-screen Clock :
When this item is turned to ON, a clock is
always displayed in the upper right corner of
the screen.
This clock will indicate the time almost exactly
because it is always adjusted by the GPS sys-
tem.Clock Format (24h) :
When this item is turned to ON, the 24-hour
clock is displayed. When this item is not turned
to ON, the 12-hour clock is displayed.
Offset (hour)/(min) :
Adjust the time by increasing or decreasing per
hour or per minute.
Daylight Saving Time :
Turn this item to ON for daylight saving time
application.
Time Zone :
Choose the time zone from the following
●
Pacific
● Mountain
● Central
● Eastern
● Atlantic
● Newfoundland
● Hawaii
● Alaska
Others settings (models with
navigation system)
The Others settings display will appear when
pushing the SETTING button and selecting the
“Others” key.
The following items are available:
●Comfort
● Language & Units
● Voice Recognition
● Camera (if so equipped)
● Sonar
● Image Viewer
SAA2487SAA3019
4-16Monitor, climate, audio, phone and voice recognition systems

Comfort settings
Models with navigation system
The display as illustrated will appear when
pushing the SETTING button, selecting the “Oth-
ers” key and then selecting the “Comfort” key.
This key does not appear on the display until
the ignition switch is pushed to the ON posi-
tion.
Models without navigation system
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Comfort” key. This key does not appear on the
display until the ignition switch is pushed to the
ON position.
Auto Interior Illumination :
When this item is turned to ON, the interior
lights will illuminate if any door is unlocked.
Light Sensitivity :
Adjust the sensitivity of the automatic head-
lights higher (right) or lower (left).
Lift Steering Wheel on Exit (if so equipped) :
When this item is turned to ON, the steering
wheel moves upward for easy exit if the ignition
switch is in the LOCK position and the driver’s
door is opened. After getting into the vehicleand pushing the ignition switch to the ACC
position, the steering wheel moves to the pre-
vious position.
Slide Driver Seat Back on Exit (if so equipped) :
When this item is turned to ON, the driver’s seat
moves backward for easy exit if the ignition
switch is in the OFF position and the driver’s
door is opened. After getting into the vehicle
and pushing the ignition switch to the ACC
position, the driver’s seat moves to the previous
position.
Light Off Delay :
Choose the duration of the automatic headlight
off timer from 0, 30, 45, 60, 90, 120, 150 and
180 second periods.
Speed Sensing Wiper Interval :
When this item is turned to ON, the wiper
interval is adjusted automatically according to
the vehicle speed.
Selective Door Unlock :
When this item is turned to ON, only the driver’s
door is unlocked first after the door unlock
operation. When the door handle request
switch on the driver’s or front passenger’s side
door is pushed to be unlocked, only the corre-
Models with navigation system
SAA2488
Models without navigation system
SAA3150
Monitor, climate, audio, phone and voice recognition systems4-17

sponding door is unlocked first. All the doors
can be unlocked if the door unlock operation is
performed again within 60 seconds.
When this item is turned to OFF, all the doors
will be unlocked after the door unlock operation
is performed once.
Intelligent Key Lock/Unlock :
When this item is turned to ON, door
lock/unlock function by pushing the door
handle request switch will be activated.
Return All Settings to Default :
Select this item and then select “YES” to return
all settings to the default.

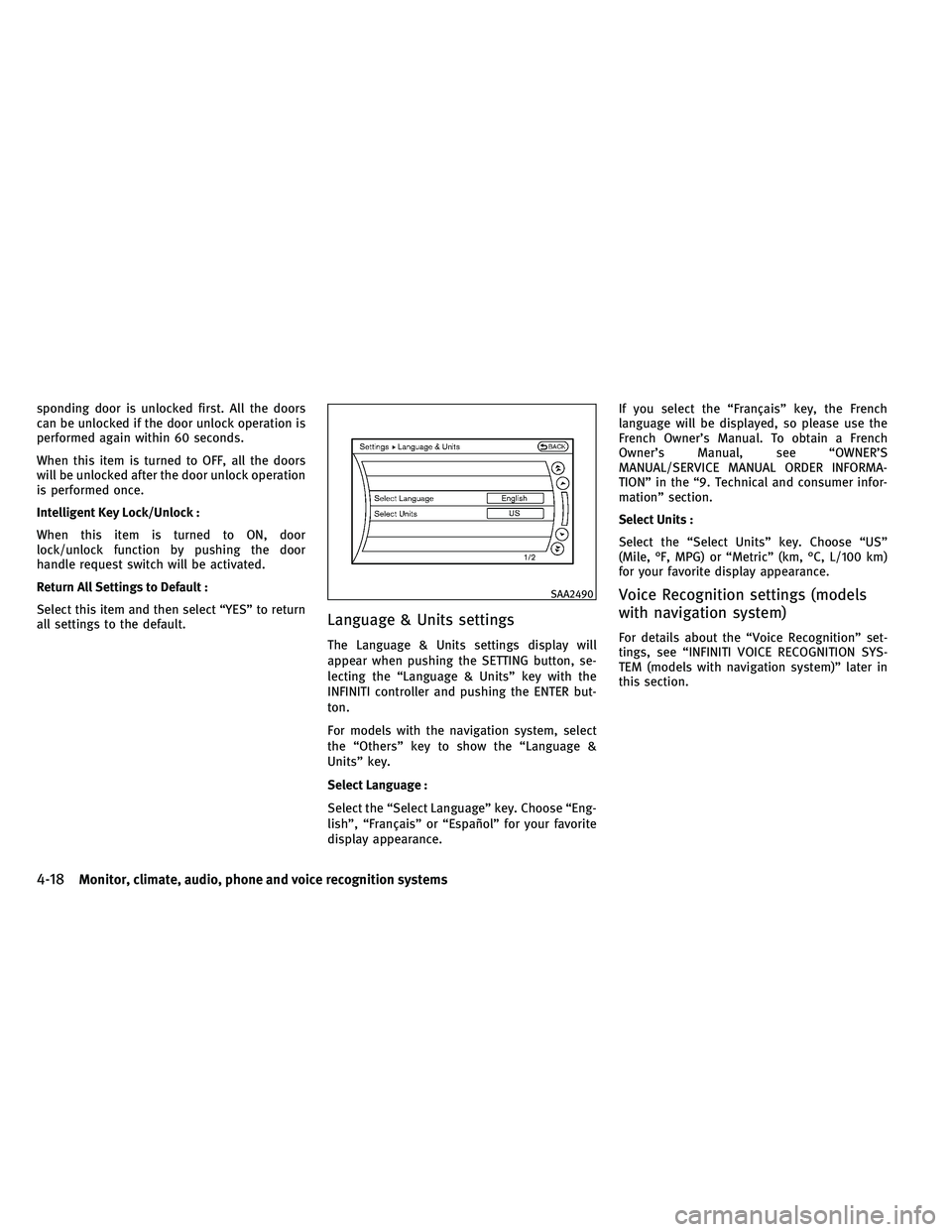

Language & Units settings
The Language & Units settings display will
appear when pushing the SETTING button, se-
lecting the “Language & Units” key with the
INFINITI controller and pushing the ENTER but-
ton.
For models with the navigation system, select
the “Others” key to show the “Language &
Units” key.
Select Language :
Select the “Select Language” key. Choose “Eng-
lish”, “Français” or “Español” for your favorite
display appearance.If you select the “Français” key, the French
language will be displayed, so please use the
French Owner’s Manual. To obtain a French
Owner’s Manual, see “OWNER’S
MANUAL/SERVICE MANUAL ORDER INFORMA-
TION” in the “9. Technical and consumer infor-
mation” section.
Select Units :
Select the “Select Units” key. Choose “US”
(Mile, °F, MPG) or “Metric” (km, °C, L/100 km)
for your favorite display appearance.
Voice Recognition settings (models
with navigation system)
For details about the “Voice Recognition” set-
tings, see “INFINITI VOICE RECOGNITION SYS-
TEM (models with navigation system)” later in
this section.
SAA2490
4-18Monitor, climate, audio, phone and voice recognition systems

Camera settings (if so equipped)
The “CAMERA” screen will appear when select-
ing the “Camera” key with the INFINITI control-
ler and pushing theENTERbutton.
For the details about the camera system opera-
tion, see “REARVIEW MONITOR” later in this
section.
Predictive Course Lines :
When this item is turned to ON, the predicted
course lines will be displayed on the monitor
when the selector/shift lever is in the “R”
(Reverse) position.
Models with navigation system
SAA2404
Models without navigation system
SAA2606
Models with navigation system
SAA2971
Models without navigation system
SAA2920
Monitor, climate, audio, phone and voice recognition systems4-19

Sonar settings (if so equipped)
The “Sonar” screen will appear when selecting
the “Sonar” key with the INFINITI controller and
pushing theENTERbutton.
For the details of the sonar system operation,
see “SONAR SYSTEM” in the “5. Starting and
driving” section.
Sonar Display :
When this item is turned ON, the corner/center
sonar indicator will appear when the parking
sensors detect front or rear obstacles near the
bumper.
Corner Sonar Sensitivity :
Adjust the sensitivity level of the corner sonar
higher (right) or lower (left).
Centre Sonar Sensitivity :
Adjust the sensitivity level of the center sonar
higher (right) or lower (left).
Image Viewer (models with
navigation system)
The image files in the USB memory will be
displayed. To display the Image Viewer, push
the SETTING button, select the “Other” key and
then select the “Image Viewer” key. The image
of the selected file is displayed on the right side
of the screen.
When a number of folders are included in the
USB memory, select a folder from the list to
display the file list.
Images will not be shown on the display while
the vehicle is in any drive position to reduce
driver distraction. To view images, stop the
vehicle in a safe location and apply the parking
brake. Full Screen Display :
The full screen display will appear when select-
ing the “Full Screen Display” key.
To operate the Image Viewer or to change the
settings, select the desired key using the
INFINITI controller.
●
(Start)
Select the “
” key to start playing the
slideshow.
●
(Stop)
Select the “
” key to stop the slide-
show.
SAA2491SAA2492
4-20Monitor, climate, audio, phone and voice recognition systems

●(Next)
Select the “
” key to display the next
file.
●
(Previous)
Select the “
” key to display the previ-
ous file.
Setting the Image Viewer :
The Image Viewer setting display will appear
when selecting the “Settings” key on the full
screen display. The following settings are avail-
able for the full screen display.
● Slideshow Speed
Select the “Slideshow Speed” key. From the
following display, select the changing time
from 5, 10, 30, 60 seconds or “No Auto
Change”.
● Slideshow Order
Select the “Slideshow Order” key. From the
following display, select “Random” or “Or-
der List”. For “Order List”, the image order is
the order of the files as stored on the USB
memory. Operating tips :
●
Only files that meet the following conditions
will be displayed.
– Image type: JPEG
– File Extensions: *.jpg, *jpeg
– Maximum Resolution: 2048 × 1536 pixels
– Maximum Size: 2-MB
– Colors: 32768 (15-bit)
– Maximum File Name lengths: 253-Bytes
– Maximum Folders: 500
– Maximum Images per Folder: 1024
● If an electronic device (such as a digital
camera) is directly connected to the vehicle
using a USB cable, no image will be dis-
played on the screen.
● If the file name is too long, some file names
may not be entirely displayed.
● When the total number of characters in the
file name exceeds 100 or if 1 file name in a
directory exceeds 100 characters, all files
will show a shortened 8-character version.
The image will still be displayed when se-
lected. When the selector lever is shifted into the “R”
(Reverse) position, the monitor display shows
view to the rear of the vehicle.
The system is designed as an aid to the driver in
detecting large stationary objects to help avoid
damaging the vehicle. The system will not de-
tect small objects below the bumper and may
not detect objects close to the bumper or on the
ground.
WARNING
●
The rearview camera is a convenience but it
is not a substitute for proper backing up.
Always turn and check that it is safe to do so
before backing up. Always back up slowly.
● Objects viewed in the RearView Monitor dif-
fer from actual distance because a wide-
angle lens is used. Objects in the RearView
Monitor will appear visually opposite like
ones viewed in the inside and outside
mirrors.
● Make sure that the back door is securely
closed when backing up.
● Underneath the bumper and the corner areas
of the bumper cannot be viewed on the rear-
view monitor because of its monitoring
range limitation.
REARVIEW MONITOR (if so equipped)
Monitor, climate, audio, phone and voice recognition systems4-21

Backing up behind a projecting
object
The positionCis shown further than the
position
Bin the display. However, the posi-
tion
Cis actually at the same distance as the position
A. The vehicle may hit the object
when backing up to the position
Aif the object
projects over the actual backing up course.
HOW TO ADJUST SCREEN
To adjust the Display ON/OFF, Brightness, Tint,
Color, Contrast and Black Level of the rearview
monitor, push the SETTINGbutton with the
rearview monitor on, select the “Display” key
on the screen and select the item key and
adjust the level using the INFINITI controller.
Do not adjust the Brightness, Tint, Color, Con-
trast and Black Level of the rearview monitor
while the vehicle is moving. Make sure the
parking brake is firmly applied and the engine
is not running.
The display of the predicted course lines can be
set to ON or OFF. For details, see “Camera
settings” earlier in this section.
OPERATING TIPS
● When the selector lever is shifted to the “R”
(Reverse) position, the monitor screen auto-
matically changes to the rearview monitor
mode. However, the radio can be heard.
● It may take some time until the rearview
monitor is displayed after the selector lever
has been shifted to “R” from another posi-
tion or to another position from “R”. Objects may be distorted momentarily until the rear-
view monitor screen is displayed completely.
● When the temperature is extremely high or
low, the screen may not clearly display
objects. This is not a malfunction.
● When strong light directly enters the cam-
era, objects may not be displayed clearly.
This is not a malfunction.
● Vertical lines may be seen in objects on the
screen. This is due to strong reflected light
from the bumper. This is not a malfunction.
● The screen may flicker under fluorescent
light. This is not a malfunction.
● The colors of objects on the rearview monitor
may differ somewhat from those of the ac-
tual object.
● Objects on the monitor may not be clear in a
dark place or at night. This is not a malfunc-
tion.
● If dirt, rain or snow attaches to the camera,
the rearview monitor may not clearly display
objects. Clean the camera.
● Do not use alcohol, benzine or thinner to
clean the camera. This will cause discolor-
ation. To clean the camera, wipe with a cloth
dampened with diluted mild cleaning agent
and then wipe with a dry cloth.SAA1924
4-26Monitor, climate, audio, phone and voice recognition systems

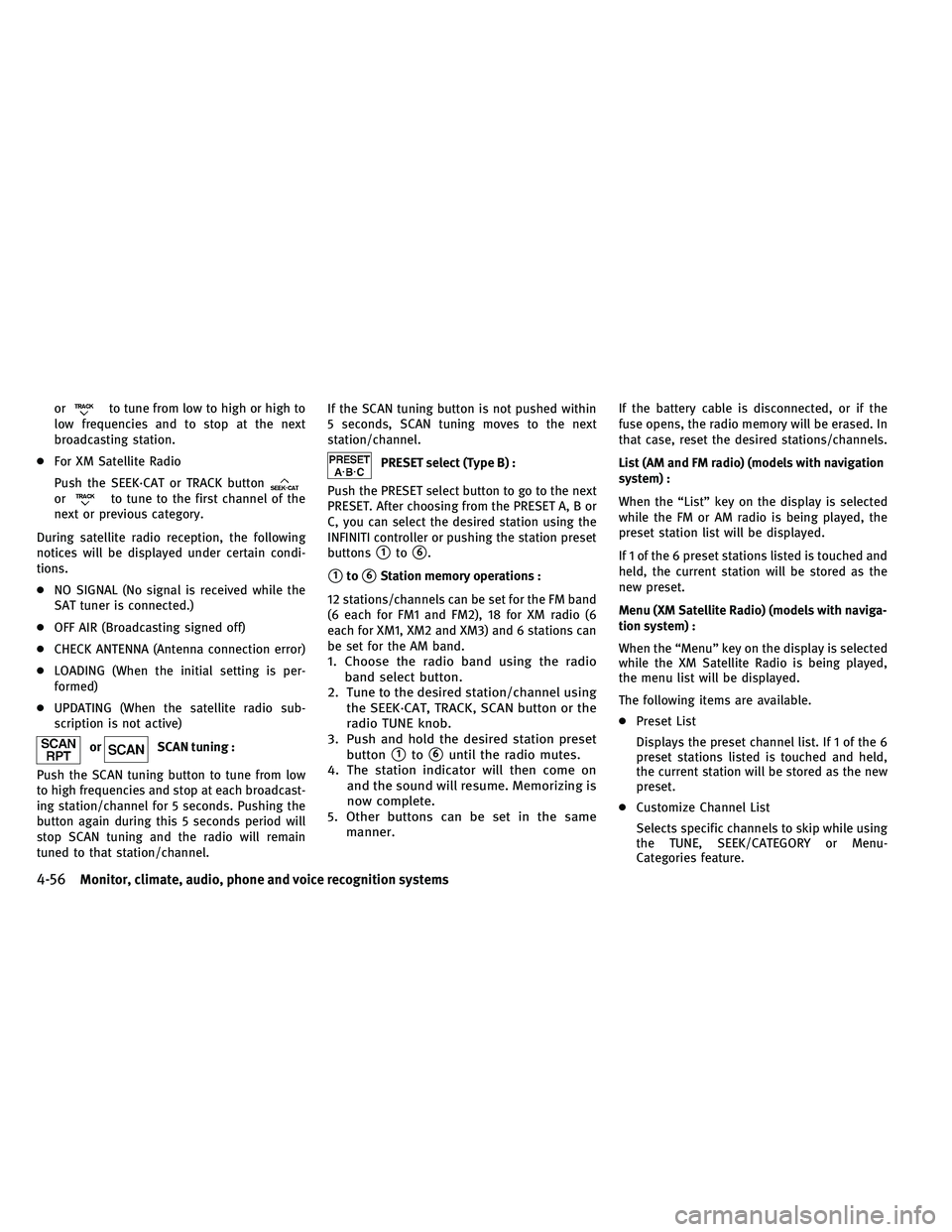

orto tune from low to high or high to
low frequencies and to stop at the next
broadcasting station.
● For XM Satellite Radio
Push the SEEK·CAT or TRACK button
orto tune to the first channel of the
next or previous category.
During satellite radio reception, the following
notices will be displayed under certain condi-
tions.
● NO SIGNAL (No signal is received while the
SAT tuner is connected.)
● OFF AIR (Broadcasting signed off)
● CHECK ANTENNA (Antenna connection error)
● LOADING (When the initial setting is per-
formed)
● UPDATING (When the satellite radio sub-
scription is not active)
orSCAN tuning :
Push the SCAN tuning button to tune from low
to high frequencies and stop at each broadcast-
ing station/channel for 5 seconds. Pushing the
button again during this 5 seconds period will
stop SCAN tuning and the radio will remain
tuned to that station/channel. If the SCAN tuning button is not pushed within
5 seconds, SCAN tuning moves to the next
station/channel.
PRESET select (Type B) :
Push the PRESET select button to go to the next
PRESET. After choosing from the PRESET A, B or
C, you can select the desired station using the
INFINITI controller or pushing the station preset
buttons
1to6.
1to6Station memory operations :
12 stations/channels can be set for the FM band
(6 each for FM1 and FM2), 18 for XM radio (6
each for XM1, XM2 and XM3) and 6 stations can
be set for the AM band.
1. Choose the radio band using the radio band select button.
2. Tune to the desired station/channel using the SEEK·CAT, TRACK, SCAN button or the
radio TUNE knob.
3. Push and hold the desired station preset button
1to6until the radio mutes.
4. The station indicator will then come on and the sound will resume. Memorizing is
now complete.
5. Other buttons can be set in the same manner.
If the battery cable is disconnected, or if the
fuse opens, the radio memory will be erased. In
that case, reset the desired stations/channels.
List (AM and FM radio) (models with navigation
system) :
When the “List” key on the display is selected
while the FM or AM radio is being played, the
preset station list will be displayed.
If 1 of the 6 preset stations listed is touched and
held, the current station will be stored as the
new preset.
Menu (XM Satellite Radio) (models with naviga-
tion system) :
When the “Menu” key on the display is selected
while the XM Satellite Radio is being played,
the menu list will be displayed.
The following items are available.
● Preset List
Displays the preset channel list. If 1 of the 6
preset stations listed is touched and held,
the current station will be stored as the new
preset.
● Customize Channel List
Selects specific channels to skip while using
the TUNE, SEEK/CATEGORY or Menu-
Categories feature.
4-56Monitor, climate, audio, phone and voice recognition systems
