2011 INFINITI G-COUPE ECO mode

SEDAN
1. High-mounted stop light (model with arear spoiler) (Bulb replacement)
(P. 8-26)
2. High-mounted stop light (model without a rear spoiler) (Bulb replacement) (P. 8-26) 3. Rear window defroster (P. 2-31)
4. Rear combination light (Bulb replace-
ment) (P. 8-26)
5. Satellite antenna (P. 4-39) 6. Fuel-filler door
— Operation (P. 3-22)
— Fuel recommendation (P. 9-4)
7. Rear view camera (if so equipped) (P. 4-21)
8. Sonar system (if so equipped) (P. 5-47)
9. Trunk — Intelligent Key system (P. 3-6)
— Remote keyless entry system (P. 3-14)
— Trunk lid (P. 3-18)
10. Child safety rear door locks (P. 3-6)
SSI0684
EXTERIOR REAR
Illustrated table of contents0-5

COUPE
1. High-mounted stop light (model with arear spoiler) (Bulb replacement)
(P. 8-26)
2. High-mounted stop light (model without a rear spoiler) (Bulb replacement) (P. 8-26) 3. Rear window defroster (P. 2-31)
4. Satellite antenna (P. 4-39)
5. Rear view camera (if so equipped)
(P. 4-21) 6. Trunk
— Intelligent Key system (P. 3-6)
— Remote keyless entry system (P. 3-14)
— Trunk lid (P. 3-18)
7. Sonar system (if so equipped) (P. 5-47)
8. Rear combination light (Bulb replace- ment) (P. 8-18)
9. Fuel-filler door — Operation (P. 3-22)
— Fuel recommendation (P. 9-4)
SSI0685
0-6Illustrated table of contents

For INFINITI Coupe/INFINITI Performance Line,
Aerodynamic Package models, the vehicle parts
listed below require special care or caution for
treating. Refer to additional information in each
section.
1. Recovery hook (P. 6-14)2. Exhaust pipes (for INFINITI Performance
Line model) (P. 3-21)
SSI0807
EXTERIOR (Coupe/INFINITI Performance
Line, Aerodynamic Package models)
Illustrated table of contents0-7

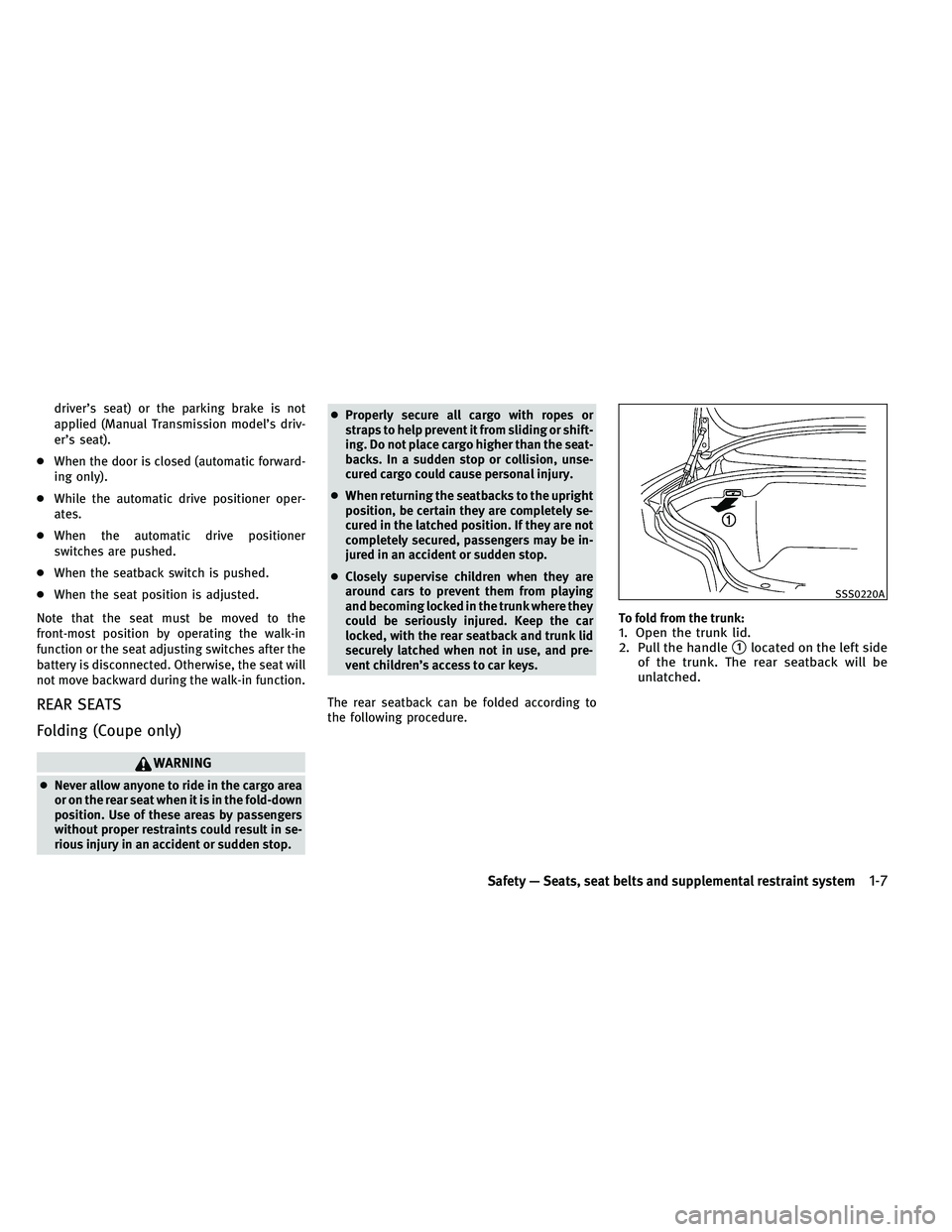

driver’s seat) or the parking brake is not
applied (Manual Transmission model’s driv-
er’s seat).
● When the door is closed (automatic forward-
ing only).
● While the automatic drive positioner oper-
ates.
● When the automatic drive positioner
switches are pushed.
● When the seatback switch is pushed.
● When the seat position is adjusted.
Note that the seat must be moved to the
front-most position by operating the walk-in
function or the seat adjusting switches after the
battery is disconnected. Otherwise, the seat will
not move backward during the walk-in function.
REAR SEATS
Folding (Coupe only)
WARNING
● Never allow anyone to ride in the cargo area
or on the rear seat when it is in the fold-down
position. Use of these areas by passengers
without proper restraints could result in se-
rious injury in an accident or sudden stop. ●
Properly secure all cargo with ropes or
straps to help prevent it from sliding or shift-
ing. Do not place cargo higher than the seat-
backs. In a sudden stop or collision, unse-
cured cargo could cause personal injury.
● When returning the seatbacks to the upright
position, be certain they are completely se-
cured in the latched position. If they are not
completely secured, passengers may be in-
jured in an accident or sudden stop.
● Closely supervise children when they are
around cars to prevent them from playing
and becoming locked in the trunk where they
could be seriously injured. Keep the car
locked, with the rear seatback and trunk lid
securely latched when not in use, and pre-
vent children’s access to car keys.
The rear seatback can be folded according to
the following procedure. To fold from the trunk:
1. Open the trunk lid.
2. Pull the handle
1located on the left side
of the trunk. The rear seatback will be
unlatched.
SSS0220A
Safety — Seats, seat belts and supplemental restraint system1-7

●If the booster seat is compatible with your
vehicle, place your child in the booster seat
and check the various adjustments to be
sure the booster seat is compatible with
your child. Always follow all recommended
procedures.
All U.S. states and Canadian provinces or territo-
ries require that infants and small children be
restrained in an approved child restraint at all
times while the vehicle is being operated.
The instructions in this section apply to booster
seat installation in the rear seats or the front
passenger seat.
BOOSTER SEAT INSTALLATION
WARNING
INFINITI recommends that booster seats be in-
stalled in the rear seat. However, if you must
install a booster seat in the front passenger
seat, move the passenger’s seat to the rear-
most position.
CAUTION
Do not use the lap/shoulder belt Automatic
Locking Retractor (ALR) mode when using a
booster seat with the seat belts.
Follow these steps to install a booster seat in
the rear seat or in the front passenger seat:
1. If you must install a booster seat in the
front seat, adjust the seatback so that it is
upright and then move the seat to the rear-
most position. Do not move the seat with
the booster seat attached to it.
2. Position the booster seat on the seat. Only place it in a front-facing direction.
Always follow the booster seat manufac-
turer’s instructions.
LRS0464SSS0640
1-38Safety — Seats, seat belts and supplemental restraint system

Status light :
The front passenger air bag status light
is located on the instrument panel. After the
ignition switch is placed in theONposition,
the front passenger air bag status light on the
instrument panel illuminates for about 7 sec-
onds and then turns off or operates depending
on the front passenger occupied status. The
light operates as follows:
● Unoccupied passenger seat: The
is
OFF and the front passenger air bag is OFF
and will not inflate in a crash.
● Passenger seat occupied by a small adult,
child or child restraint as outlined in this
section: The
illuminates to indicate
that the front passenger air bag is OFF and
will not inflate in a crash.
● Occupied passenger seat and the passenger
meets the conditions outlined in this sec-
tion: The light
is OFF to indicate that
the front passenger air bag is operational.
Front passenger air bag :
The front passenger air bag is designed to
automatically turn OFF when the vehicle is
operated under some conditions as described
below as permitted by U.S. regulations. If the
front passenger air bag is OFF, it will not inflate in a crash. The driver air bag and other air bags
in your vehicle are not part of this system.
The purpose of the regulation is to help reduce
the risk of injury or death from an inflating air
bag to certain front passenger seat occupants,
such as children, by requiring the air bag to be
automatically turned OFF.
The occupant classification sensor (pattern sen-
sor) is in the front passenger seat cushion and
is designed to detect an occupant and objects
on the seat. For example, if a child is in the front
passenger seat, the Advanced Air Bag System is
designed to turn the passenger air bag OFF in
accordance with the regulations. Also, if a child
restraint of the type specified in the regulations
is on the seat, the occupant classification sen-
sor can detect it and cause the air bag to turn
OFF.
Front passenger seat adult occupants who are
properly seated and using the seat belt as
outlined in this manual should not cause the
passenger air bag to be automatically turned
OFF. For small adults it may be turned OFF,
however, if the occupant does not sit in the seat
properly (for example, by not sitting upright, by
sitting on an edge of the seat, or by otherwise
being out of position), this could cause the
sensor to turn the air bag OFF. Always be sure to
be seated and wearing the seat belt properly forthe most effective protection by the seat belt
and supplemental air bag.
INFINITI recommends that pre-teens and chil-
dren be properly restrained in a rear seat.
INFINITI also recommends that appropriate
child restraints and booster seats be properly
installed in a rear seat. If this is not possible,
the occupant classification sensor is designed
to operate as described above to turn the front
passenger air bag OFF for specified child re-
straints. Failing to properly secure child re-
straints and to use the ALR mode (child restraint
mode) may allow the restraint to tip or move in
an accident or sudden stop. This can also result
in the passenger air bag inflating in a crash
instead of being OFF. (See “CHILD RESTRAINTS”
earlier in this section for proper use and instal-
lation.)
If the front passenger seat is not occupied, the
passenger air bag is designed not to inflate in a
crash. However, heavy objects placed on the
seat could result in air bag inflation, because of
the object being detected by the occupant
classification sensor. Other conditions could
also result in air bag inflation, such as if a child
is standing on the seat, or if two children are on
the seat, contrary to the instructions in this
manual. Always be sure that you and all vehicle
occupants are seated and restrained properly.
1-48Safety — Seats, seat belts and supplemental restraint system

WARNING LIGHTS
All-Wheel Drive (AWD)
warning light (AWD models)
(if so equipped)
Thewarning light comes on when the
ignition switch is pushed to ON. It turns off
soon after the engine is started.
If the AWD system malfunctions, or the diam-
eter of the front and the rear wheels are differ-
ent, the warning light will either remain illumi-
nated or blink. (See “ALL-WHEEL DRIVE (AWD)”
in the “5. Starting and driving” section.)
CAUTION
● If the warning light comes on while driving
there may be a malfunction in the AWD sys-
tem. Reduce the vehicle speed and have your
vehicle checked by an INFINITI retailer as
soon as possible.
● If the AWD warning light blinks on when you
are driving:
– blinks rapidly (about twice a second): Pull off the road in a safe area, and idle the
engine. The driving mode will change to
2WD to prevent the AWD system from
malfunctioning. If the warning light turns
off, you can drive again. – blinks slowly (about once every 2 sec-
onds):
Pull off the road in a safe area, and idle the
engine. Check that all tire sizes are the
same, tire pressure is correct and tires are
not worn.
● If the warning light is still on after the above
operations, have your vehicle checked by an
INFINITI retailer as soon as possible.
orAnti-lock Braking
System (ABS)
warning light
When the ignition switch is in the ON position,
the Anti-lock Braking System (ABS) warning
light illuminates and then turns off. This indi-
cates the ABS is operational.
If the ABS warning light illuminates while the
engine is running, or while driving, it may
indicate the ABS is not functioning properly.
Have the system checked by an INFINITI retailer.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock assis-
tance. (See “BRAKE SYSTEM” in the “5. Starting
and driving” section.)
Automatic transmission check
warning light (if so equipped)
When the ignition switch is pushed to the ON
position, the light comes on for 2 seconds. If
the light comes on at any other time, it may
indicate the transmission is not functioning
properly. Have your INFINITI retailer check and
repair the transmission.
orBrake warning
light
This light functions for both the parking brake
and the foot brake systems.
Parking brake indicator :
When the ignition switch is in the ON position,
the light comes on when the parking brake is
applied.
Low brake fluid warning light :
When the ignition switch is in the ON position,
the light warns of a low brake fluid level. If the
light comes on while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:
1. Check the brake fluid level. If brake fluid is necessary, add fluid and have the system
checked by your INFINITI retailer. (See
“BRAKE AND CLUTCH FLUID” in the “8.
Maintenance and do-it-yourself” section.)
Instruments and controls2-11

switch is in the ON position, the system does
not activate the warning light for the front
passenger.
See “SEAT BELTS” in the “1. Safety — Seats,
seat belts and supplemental restraint system”
section for precautions on seat belt usage.
Supplemental air bag
warning light
After pushing the ignition switch to the ON
position, the supplemental air bag warning
light will illuminate. The supplemental air bag
warning light will turn off after about 7 seconds
if the supplemental front air bag and supple-
mental side air bag, curtain side-impact air bag
systems and/or pretensioner seat belt are op-
erational.
If any of the following conditions occur, the
supplemental front air bag, supplemental side
air bag, supplemental curtain side-impact air
bag and pretensioner seat belt needs servicing
and your vehicle must be taken to your nearest
INFINITI retailer.
●The supplemental air bag warning light re-
mains on after approximately 7 seconds.
● The supplemental air bag warning light
flashes intermittently. ●
The supplemental air bag warning light does
not come on at all.
Unless checked and repaired, the Supplemental
Restraint Systems and/or the pretensioner seat
belt may not function properly.
For additional information, see “SUPPLEMENTAL
RESTRAINT SYSTEM” in the “1. Safety — Seats,
seat belts and supplemental restraint system”
section.
WARNING
If the supplemental air bag warning light is on,
it could mean that the supplemental front air
bag, supplemental side air bag, curtain side-
impact air bag systems and/or pretensioner
seat belt will not operate in an accident. To help
avoid injury to yourself or others, have your
vehicle checked by a retailer as soon as
possible.
Vehicle Dynamic Control
(VDC) warning light
The light will blink when the VDC system or the
traction control system is operating, thus alert-
ing the driver that the vehicle is nearing its
traction limits. The road surface may be slip-
pery. When the vehicle dynamic control warning light
illuminates, the vehicle dynamic control system
is turned on, this light alerts the driver that the
vehicle dynamic control system’s fail-safe mode
is operating. For example, the vehicle dynamic
control system may not be functioning properly.
Have the system checked by an INFINITI retailer.
If a malfunction occurs in the system, the
vehicle dynamic control system function will be
canceled but the vehicle is still driveable. Have
the system checked by an INFINITI retailer. For
additional information, see “VEHICLE DYNAMIC
CONTROL (VDC) SYSTEM” in the “5. Starting and
driving” section of this manual.
INDICATOR LIGHTS
Automatic Transmission (AT)
position indicator light (if so
equipped)
When the ignition switch is pushed to the “ON”
position, the indicator shows the automatic
selector position.
In the manual shift mode, when the transmis-
sion does not shift to the selected gear due to a
transmission protection mode, the AT position
indicator light will blink and a chime will sound.
See “AUTOMATIC TRANSMISSION” in the “5.
Starting and driving” section for further details.
Instruments and controls2-15
