WARNING
●Do not stop or park the vehicle over flam-
mable materials such as dry grass, waste
paper or rags. They may ignite and cause a
fire.
● Never leave the engine running while the
vehicle is unattended.
● Do not leave children unattended inside the
vehicle. They could unknowingly activate
switches or controls. Unattended children
could become involved in serious accidents. ●
Safe parking procedures require that both
the parking brake be applied and the trans-
mission placed into P (Park) for Automatic
Transmission (AT) model or in an appropri-
ate gear for Manual Transmission (MT)
model. Failure to do so could cause the ve-
hicle to move unexpectedly or roll away and
result in an accident.
● Make sure the automatic transmission se-
lector lever has been pushed as far forward
as it can go and cannot be moved without
depressing the foot brake pedal.
1. Firmly apply the parking brake.
2. Automatic transmission models:
Move the selector lever to the P (Park)
position.
Manual transmission models:
Place the shift lever in the R (Reverse) gear.
When parking on an uphill grade, place the
shift lever in the 1st gear.
3. To help prevent the vehicle from rolling
into the street when parked on a sloping
drive way, it is a good practice to turn the
wheels as illustrated.
●HEADED DOWNHILL WITH CURB:1
Turn the wheels into the curb and move
the vehicle forward until the curb side
wheel gently touches the curb.
● HEADED UPHILL WITH CURB:
2
Turn the wheels away from the curb and
move the vehicle back until the curb side
wheel gently touches the curb.
● HEADED UPHILL OR DOWNHILL, NO CURB:
3
Turn the wheels toward the side of the
road so the vehicle will move away from
the center of the road if it moves.
SD1006MA
PARKING/PARKING ON HILLS
5-44Starting and driving

When an object is detected, the indicator
(green) appears and blinks (the tone sounds
intermittently). When the vehicle moves closer
to the object, the color of the indicator turns
yellow and the rate of blinking increases (the
rate of the tone increases). When the corner of
the vehicle is very close to the object, less than
11.8 in (30 cm) away, the indicator stops blink-
ing and turns red (the tone sounds continu-
ously).
When the rear view monitor is displayed, the
colors of the sonar indicator and the distance
guide lines in the rear view indicate different
distances to the object.
The sonar indicator can be turned off in the
SONAR setting display. (See “HOW TO USE
SETTING BUTTON” in the “4. Monitor, climate,
audio, phone and voice recognition systems”
section for the “Sonar” settings.) When the
sonar indicator is off, only a tone sounds when
the sonar detects obstacles.
SONAR SYSTEM OFF SWITCH
The sonar system OFF switch on the instrument
panel allows the driver to turn the sonar system
on and off. To turn the sonar system on and off,
the ignition switch must be in the “ON” posi-
tion. The indicator light
1on the switch will
illuminate when the system is turned off. If the
indicator light flashes when the sonar system is
not turned off, it may indicate a malfunction in
the sonar system.
WARNING
If the engine is not running or is turned off while
driving, the power assist for the steering will
not work. Steering will be harder to operate.
The power assisted steering uses a hydraulic
pump, driven by the engine, to assist steering.
If the engine stops or the drive belt breaks, you
will still have control of the vehicle. However,
much greater steering effort is needed, espe-
cially in sharp turns and at low speeds.
SSD0929
POWER STEERING
Starting and driving5-47

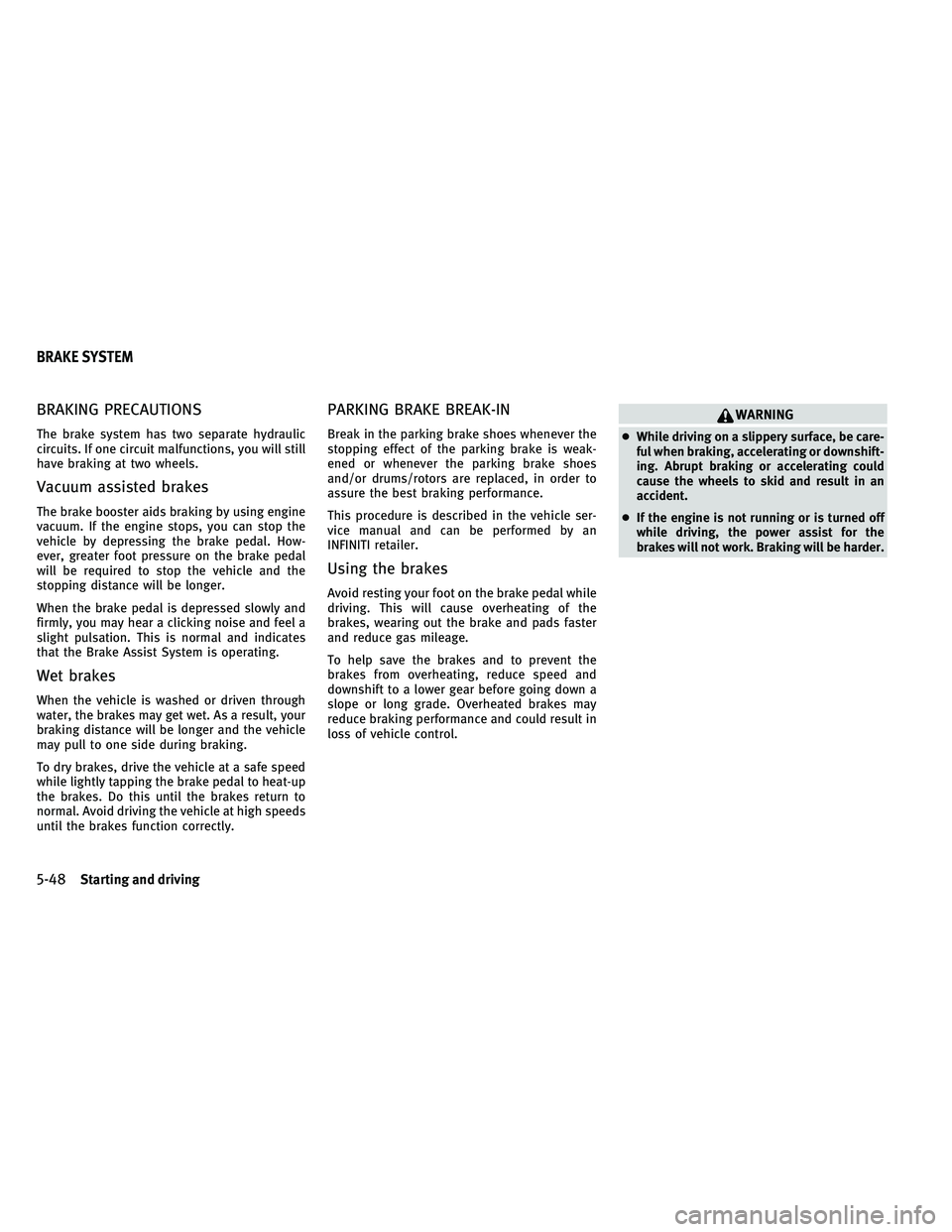

BRAKING PRECAUTIONS
The brake system has two separate hydraulic
circuits. If one circuit malfunctions, you will still
have braking at two wheels.
Vacuum assisted brakes
The brake booster aids braking by using engine
vacuum. If the engine stops, you can stop the
vehicle by depressing the brake pedal. How-
ever, greater foot pressure on the brake pedal
will be required to stop the vehicle and the
stopping distance will be longer.
When the brake pedal is depressed slowly and
firmly, you may hear a clicking noise and feel a
slight pulsation. This is normal and indicates
that the Brake Assist System is operating.
Wet brakes
When the vehicle is washed or driven through
water, the brakes may get wet. As a result, your
braking distance will be longer and the vehicle
may pull to one side during braking.
To dry brakes, drive the vehicle at a safe speed
while lightly tapping the brake pedal to heat-up
the brakes. Do this until the brakes return to
normal. Avoid driving the vehicle at high speeds
until the brakes function correctly.
PARKING BRAKE BREAK-IN
Break in the parking brake shoes whenever the
stopping effect of the parking brake is weak-
ened or whenever the parking brake shoes
and/or drums/rotors are replaced, in order to
assure the best braking performance.
This procedure is described in the vehicle ser-
vice manual and can be performed by an
INFINITI retailer.
Using the brakes
Avoid resting your foot on the brake pedal while
driving. This will cause overheating of the
brakes, wearing out the brake and pads faster
and reduce gas mileage.
To help save the brakes and to prevent the
brakes from overheating, reduce speed and
downshift to a lower gear before going down a
slope or long grade. Overheated brakes may
reduce braking performance and could result in
loss of vehicle control.
WARNING
●While driving on a slippery surface, be care-
ful when braking, accelerating or downshift-
ing. Abrupt braking or accelerating could
cause the wheels to skid and result in an
accident.
● If the engine is not running or is turned off
while driving, the power assist for the
brakes will not work. Braking will be harder.
BRAKE SYSTEM
5-48Starting and driving

How to handle the sensor
The sensor for the Preview Function is common
with Intelligent Cruise Control and is located
below the front bumper.
To keep the Preview Function operating prop-
erly, be sure to observe the following:
●Always keep the sensor clean. Wipe with a
soft cloth carefully so as not to damage the
sensor.
● Do not strike or damage the areas around
the sensor. Do not touch or remove the
screw located on the sensor. Doing so could
cause failure or malfunction. If the sensor is
damaged due to an accident, contact an
INFINITI retailer.
●
Do not attach a sticker (including transparent
material) or install an accessory near the sen-
sor. This could cause failure or malfunction.
ANTI-LOCK BRAKING SYSTEM (ABS)
WARNING
● The Anti-lock Braking System (ABS) is a so-
phisticated device, but it cannot prevent ac-
cidents resulting from careless or dangerous driving techniques. It can help maintain ve-
hicle control during braking on slippery sur-
faces. Remember that stopping distances on
slippery surfaces will be longer than on nor-
mal surfaces even with ABS. Stopping dis-
tances may also be longer on rough, gravel
or snow covered roads, or if you are using
tire chains. Always maintain a safe distance
from the vehicle in front of you. Ultimately,
the driver is responsible for safety.
● Tire type and condition may also affect brak-
ing effectiveness.
– When replacing tires, install the specified size of tires on all four wheels.
–
When installing a spare tire, make sure that
it is the proper size and type as specified on
the Tire and Loading Information label. See
“TIRE AND LOADING INFORMATION LABEL”
in the “9. Technical and consumer informa-
tion” section of this manual.
– For detailed information, see “WHEELS AND TIRES” in the “8. Maintenance and
do-it-yourself” section of this manual.
The Anti-lock Braking System (ABS) controls the
brakes so the wheels do not lock during hard
braking or when braking on slippery surfaces.
The system detects the rotation speed at each wheel and varies the brake fluid pressure to
prevent each wheel from locking and sliding. By
preventing each wheel from locking, the system
helps the driver maintain steering control and
helps to minimize swerving and spinning on
slippery surfaces.
Using the system
Depress the brake pedal and hold it down.
Depress the brake pedal with firm steady pres-
sure, but do not pump the brakes. The ABS will
operate to prevent the wheels from locking up.
Steer the vehicle to avoid obstacles.
WARNING
Do not pump the brake pedal. Doing so may
result in increased stopping distances.
Self-test feature
The ABS includes electronic sensors, electric
pumps, hydraulic solenoids and a computer.
The computer has a built-in diagnostic feature
that tests the system each time you start the
engine and move the vehicle at a low speed in
forward or reverse. When the self-test occurs,
you may hear a “clunk” noise and/or feel a
pulsation in the brake pedal. This is normal and
does not indicate a malfunction. If the computer
senses a malfunction, it switches the ABS off
Starting and driving5-51

FREEING A FROZEN DOOR LOCK
To prevent a door lock from freezing, apply
deicer through the key hole. If the lock becomes
frozen, heat the key before inserting it into the
key hole or use the Intelligent Key system.
ANTIFREEZE
In the winter when it is anticipated that the
outside temperature will drop below 32°F (0°C),
check antifreeze to assure proper winter protec-
tion. For additional information, see “ENGINE
COOLING SYSTEM” in the “8. Maintenance and
do-it-yourself” section.
BATTERY
If the battery is not fully charged during ex-
tremely cold weather conditions, the battery
fluid may freeze and damage the battery. To
maintain maximum efficiency, the battery
should be checked regularly. For additional
information, see “BATTERY” in the “8. Mainte-
nance and do-it-yourself” section.
DRAINING OF COOLANT WATER
If the vehicle is to be left outside without
antifreeze, drain the cooling system, including
the engine block. Refill before operating the
vehicle. For details, see “ENGINE COOLING SYS-
TEM” in the “8. Maintenance and do-it-yourself”
section.
TIRE EQUIPMENT
SUMMER tires have a tread designed to provide
superior performance on dry pavement. How-
ever, the performance of these tires will be
substantially reduced in snowy and icy condi-
tions. If you operate your vehicle on snowy or
icy roads, INFINITI recommends the use of MUD
& SNOW or ALL SEASON tires on all four wheels.
Consult an INFINITI retailer for the tire type,
size, speed rating and availability information.
For additional traction on icy roads, studded
tires may be used. However, some U.S. states
and Canadian provinces prohibit their use.
Check local, state and provincial laws before
installing studded tires.
Skid and traction capabilities of studded snow
tires, on wet or dry surfaces, may be poorer than
that of non-studded snow tires.
Tire chains may be used. For details, see “TIRE
CHAINS” in the “8. Maintenance and do-it-
yourself” section of this manual.
SPECIAL WINTER EQUIPMENT
It is recommended that the following items be
carried in the vehicle during winter:
●A scraper and stiff-bristled brush to remove
ice and snow from the windows and wiper
blades. ●
A sturdy, flat board to be placed under the
jack to give it firm support.
● A shovel to dig the vehicle out of snowdrifts.
● Extra window washer fluid to refill the reser-
voir tank.
DRIVING ON SNOW OR ICE
WARNING
● Wet ice (32°F, 0°C and freezing rain), very
cold snow or ice can be slick and very hard to
drive on. The vehicle will have much less
traction or “grip” under these conditions.
Try to avoid driving on wet ice until the road
is salted or sanded.
● Whatever the condition, drive with caution.
Accelerate and slow down with care. If accel-
erating or downshifting too fast, the drive
wheels will lose even more traction.
● Allow more stopping distance under these
conditions. Braking should be started
sooner than on dry pavement.
● Allow greater following distances on slip-
pery roads.
COLD WEATHER DRIVING
5-54Starting and driving

CAUTION
Do not keep the starter motor engaged for more
than 10 seconds. If the engine does not start
right away, push the ignition switch to the OFF
position and wait 10 seconds before trying
again.
9. After starting your engine, carefully dis-connect the negative cable and then the
positive cable (
4→3→2→1).
10. Replace the vent caps (if so equipped). Be sure to dispose of the cloth used to
cover the vent holes as it may be con-
taminated with corrosive acid.
Do not attempt to start the engine by pushing.
CAUTION
●Automatic transmission models cannot be
push-started or tow-started. Attempting to
do so may cause transmission damage.
● Three way catalyst equipped models should
not be started by pushing since the three
way catalyst may be damaged.
● Never try to start the vehicle by towing it;
when the engine starts, the forward surge
could cause the vehicle to collide with the
tow vehicle.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada).
CAUTION
● Do not continue to drive if your vehicle over-
heats. Doing so could cause engine damage
or a vehicle fire.
● To avoid the danger of being scalded, never
remove the radiator cap while the engine is
still hot. When the radiator cap is removed,
pressurized hot water will spurt out, possi-
bly causing serious injury.
● Do not open the hood if steam is coming out.
If your vehicle is overheating (indicated by an
extremely high temperature gauge reading), or
if you feel a lack of engine power, detect
abnormal noise, etc., take the following steps:
1. Move the vehicle safely off the road, apply the parking brake.
2. Automatic Transmission model:
Move the selector lever to the P (Park)
position.
Manual Transmission model:
Move the shift lever to the N (Neutral) posi-
tion.
Do not stop the engine.
PUSH STARTING IF YOUR VEHICLE OVERHEATS
6-16In case of emergency

3. Turn off the air conditioner. Open all thewindows, move the heater or air condi-
tioner temperature control to maximum
hot and fan control to high speed.
4. If engine overheating is caused by climb- ing a long hill on a hot day, run the engine
at a fast idle (approximately 1,500 rpm)
until the temperature gauge indication
returns to normal.
5. Get out of the vehicle. Look and listen for steam or coolant escaping from the radia-
tor before opening the hood. (If steam or
coolant is escaping, turn off the engine.)
Do not open the hood further until no
steam or coolant can be seen.
6. Open the engine hood.
WARNING
If steam or water is coming from the engine,
stand clear to prevent getting burned.
7. Visually check the drive belt for damage or looseness. Also check if the cooling fan
is running. The radiator hoses and radia-
tor should not leak water. If coolant is
leaking or the cooling fan does not run,
stop the engine.
WARNING
Be careful not to allow your hands, hair, jewelry
or clothing to come into contact with, or get
caught in, engine belts or the engine cooling
fan. The engine cooling fan can start at any
time.
8. After the engine cools down, check the coolant level in the reservoir with the
engine running. Add coolant to the reser-
voir if necessary. Have your vehicle re-
paired at the nearest INFINITI retailer.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada). When towing your vehicle, all State (Provincial
in Canada) and local regulations for towing
must be followed. Incorrect towing equipment
could damage your vehicle. Towing instructions
are available from an INFINITI retailer. Local
service operators are familiar with the appli-
cable laws and procedures for towing. To assure
proper towing and to prevent accidental dam-
age to your vehicle, INFINITI recommends that
you have a service operator tow your vehicle. It
is advisable to have the service operator care-
fully read the following precautions.WARNING
●
Never ride in a vehicle that is being towed.
● Never get under your vehicle after it has been
lifted by a tow truck.
CAUTION
● When towing, make sure that the transmis-
sion, axles, steering system and drivetrain
are in working condition. If any unit is dam-
aged, dollies must be used.
● Always attach safety chains before towing.
TOWING YOUR VEHICLE
In case of emergency6-17

REPLACING SPARK PLUGS
If replacement is required, see an INFINITI re-
tailer for servicing.
Iridium-tipped spark plugs
It is not necessary to replace the iridium-tipped
spark plugs as frequently as the conventional
type spark plugs since they will last much
longer. Follow the maintenance schedule in
“INFINITI Service and Maintenance Guide”, but
do not reuse them by cleaning or regapping.
Always replace spark plugs with recommended
or equivalent ones.Remove the retainers
1as illustrated and pull
out the filter element
2.
The filter element should not be cleaned and
reused. Replace it according to the mainte-
nance intervals. See “INFINITI Service and Main-
tenance Guide” for maintenance intervals. When replacing the filter, wipe the inside of the
air cleaner housing and the cover with a damp
cloth.
WARNING
●
Operating the engine with the air cleaner
removed can cause you or others to be
burned. The air cleaner not only cleans the
air, it stops flame if the engine backfires. If it
is not there, and the engine backfires, you
could be burned. Do not drive with the air
cleaner removed, and be careful when work-
ing on the engine with the air cleaner
removed.
● Never pour fuel into the throttle body or at-
tempt to start the engine with the air cleaner
removed. Doing so could result in serious
injury.
SDI2020
SDI2363
AIR CLEANER
Maintenance and do-it-yourself8-17
