2011 INFINITI G-CONVERTIBLE bluetooth

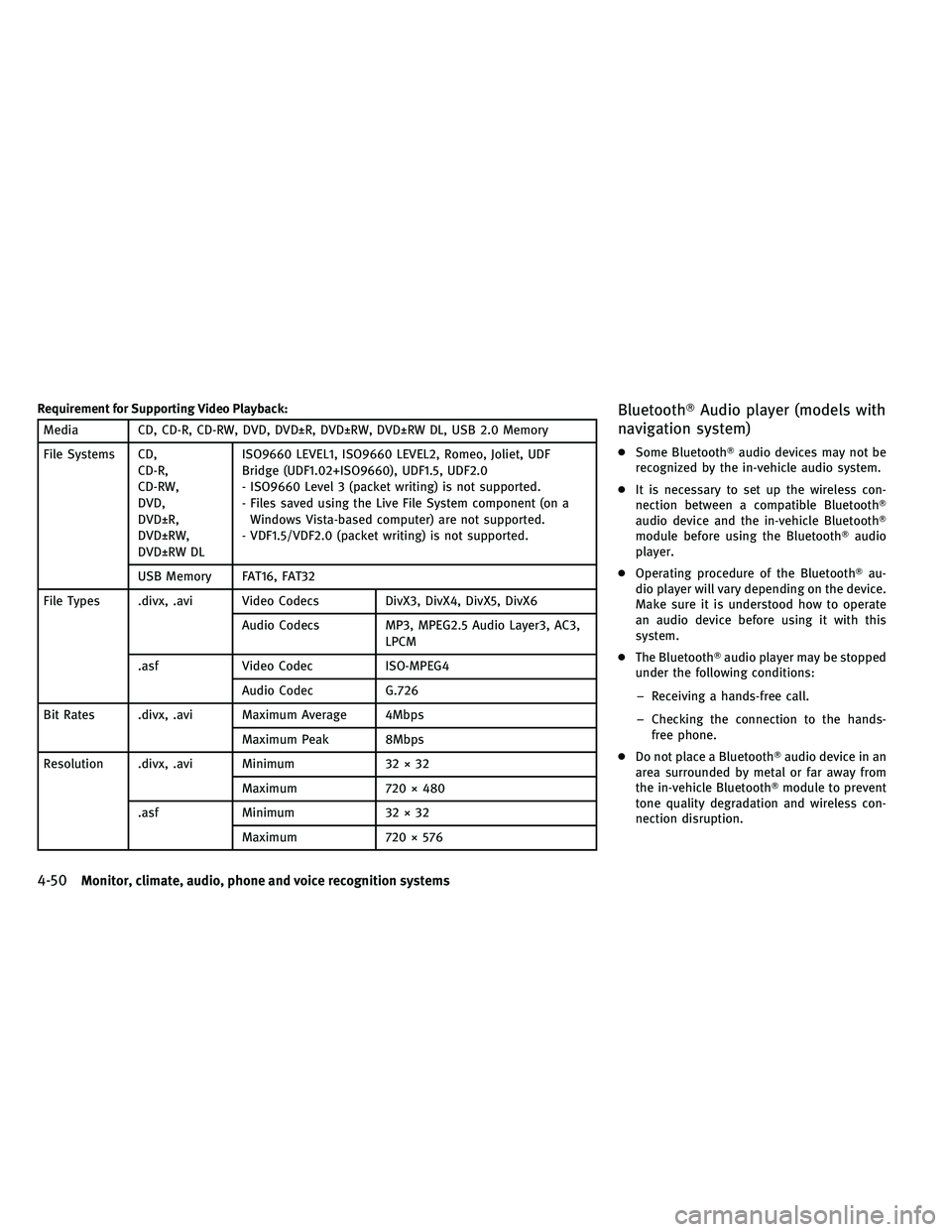

Requirement for Supporting Video Playback:
Media CD, CD-R, CD-RW, DVD, DVD±R, DVD±RW, DVD±RW DL, USB 2.0 Memory
File Systems CD,CD-R,
CD-RW,
DVD,
DVD±R,
DVD±RW,
DVD±RW DL ISO9660 LEVEL1, ISO9660 LEVEL2, Romeo, Joliet, UDF
Bridge (UDF1.02+ISO9660), UDF1.5, UDF2.0
- ISO9660 Level 3 (packet writing) is not supported.
- Files saved using the Live File System component (on a
Windows Vista-based computer) are not supported.
- VDF1.5/VDF2.0 (packet writing) is not supported.
USB Memory FAT16, FAT32
File Types .divx, .avi Video Codecs DivX3, DivX4, DivX5, DivX6 Audio Codecs MP3, MPEG2.5 Audio Layer3, AC3,LPCM
.asf Video Codec ISO-MPEG4
Audio Codec G.726
Bit Rates .divx, .avi Maximum Average 4Mbps Maximum Peak 8Mbps
Resolution .divx, .avi Minimum 32 × 32
Maximum 720 × 480
.asf Minimum 32 × 32
Maximum 720 × 576
BluetoothAudio player (models with
navigation system)
● Some Bluetooth audio devices may not be
recognized by the in-vehicle audio system.
● It is necessary to set up the wireless con-
nection between a compatible Bluetooth
audio device and the in-vehicle Bluetooth
module before using the Bluetooth audio
player.
● Operating procedure of the Bluetooth au-
dio player will vary depending on the device.
Make sure it is understood how to operate
an audio device before using it with this
system.
● The Bluetooth audio player may be stopped
under the following conditions:
– Receiving a hands-free call.
– Checking the connection to the hands- free phone.
● Do not place a Bluetooth audio device in an
area surrounded by metal or far away from
the in-vehicle Bluetooth module to prevent
tone quality degradation and wireless con-
nection disruption.
4-50Monitor, climate, audio, phone and voice recognition systems

●While an audio device is connected through
a Bluetooth wireless connection, the bat-
tery power of the device may discharge
quicker than usual.
● This system supports the Bluetooth Audio
Distribution Profile (A2DP, AVRCP).
● Bluetooth is a trademark owned by
Bluetooth SIG, Inc. and licensed to Clarion
Co., Ltd.
Music Box (if so equipped)
Recording :
●Note that data that is lost and not stored on
the hard drive/flash memory due to system
damage, improper operation or malfunction
is not under warranty.
● Vehicle owners are not permitted to record
music without permission of the owner of
the copyright except for personal use.
● If there are problems recording a CD, first
check if it has been recorded in the system
properly.
● Due to high speed recording, some CDs may
not be recordable, depending on the condi-
tion of the disc. ●
Jumping sounds may be recorded when a
compact disc is recorded while driving on
rough roads and excessive vibration occurs.
● A mark indicating jumping sounds is dis-
played if jumping sounds are recorded.
● No sounds may be recorded if jumping
sounds occurs or the disc is in poor condi-
tion.
● Tracks that include Serial Copy Management
System (SCMS) are not recorded.
● If a compact disc is scratched or dirty, it may
not be recorded, jumping sounds may occur
or it may take a long time to record.
Automatic title download :
● The title information that is automatically
downloaded may differ from the actual title.
● When newly released compact discs are
recorded, their title information may not be
downloaded.
● The title information in the hard drive/flash
memory can be updated. (See “Playing re-
corded songs” later in this section.)
Monitor, climate, audio, phone and voice recognition systems4-51

This vehicle has some sound effect functions as
follows:
●Speed Sensitive Vol. (if so equipped)
● Precision Phased Audio (if so equipped)
For more details, see “HOW TO USE SETTING
BUTTON” earlier in this section.
For models with BOSE Sound System, tone
qualities are adjusted automatically according
to the roof condition (open/close). The output
from the audio system may be interrupted
during adjustment. This is not a malfunction.
Switching the display :
● Models with navigation system
Pushing the DISC·AUX button will switch the
displays as follows:
iPod/USB →CD/DVD →Music Box →
Bluetooth Audio→iPod/USB
● Models without navigation system
Pushing the DISC button will switch the display
as follows:
CD →Music Box →CD
Pushing the AUX button will switch the display
as follows:
USB/iPod →XM1 →XM2 →XM3 →
USB/iPodFM-AM-SAT radio operation
When the radio band select button is pushed
while the ignition switch is in the ACC or ON
position, the radio will come on at the channel
last played.
The last channel played will also come on when
the ON·OFF button is pushed to ON.
The satellite radio is not available in Alaska,
Hawaii and Guam.
If another audio source is playing when the
radio band select button is turned to ON, the
audio source will automatically be turned off
and the last radio channel played will come on.
When the stereo broadcast signal is weak, the
radio will automatically change from stereo to
monaural reception.
radio (FM/AM/SAT) band select (mod-
els with navigation system) :
Pushing the AM·FM or SAT radio band select
button will change the band as follows:
AM →FM1 →FM2 →XM1 →XM2 →XM3 →AM
radio (FM/AM) band select (models
without navigation system) :
Pushing the RADIO AM·FM radio band select
button will change the band as follows:
AM →FM1 →FM2 →AM
radio (SAT) band select (models
without navigation system) :
Push the satellite band select button to select
the satellite radio mode XM1, XM2 or XM3.
TUNE (Tuning) :
● For AM and FM radio
Turn the radio TUNE knob for manual tuning.
● For XM Satellite Radio
Turn the radio TUNE knob to seek channels
from all of the categories when any category
is not selected.
SEEK tuning/CATEGORY
(CAT) :
● For AM and FM radio
Push the SEEK·CAT or TRACK button
orto tune from low to high or high to
low frequencies and to stop at the next
broadcasting station.
4-54Monitor, climate, audio, phone and voice recognition systems

●10 Key Search
Select the “10 Key Search” key to open the
number entry screen.
Input the number to be searched and select
the “OK” key.
The specified folder/file will be played.
● Display
To adjust the image quality of the screen,
select the preferred adjustment items.
● DRC
DRC (Dynamic Range Compression) auto-
matically adjusts the soundtrack volume
level to maintain a more even sound to the
speakers.
● Audio
Select the preferred language for audio.
● Subtitle
Select the preferred language for subtitle.
● Display Mode
Select the “Normal”, “Wide”, “Cinema” or
“Full” mode.BLUETOOTH STREAMING AUDIO
(models with navigation system)
Your INFINITI is equipped with Bluetooth
Streaming Audio. If you have a compatible
Bluetooth device with streaming audio (A2DP
profile), you can set up the wireless connection
between your Bluetooth device and the in-
vehicle audio system. This connection allows
you to listen to the audio from the Bluetooth
device using your vehicle speakers. It also may
allow basic control of the device for playing and
skipping audio files using the AVRCP Bluetooth
profile. All Bluetooth Devices do not have the
same level of controls for AVRCP. Please consult
the manual for your Bluetooth Device for more
details.
Once your Bluetooth device is connected to
the in-vehicle audio system, it will automati-
cally reconnect whenever the device is present
in the vehicle and you select Bluetooth Audio
from your audio system. You do not need to
manually reconnect for each usage.
Regulatory information
FCC Regulatory information :
– CAUTION: To maintain compliance with FCC’s RF exposure guidelines, use only the sup-
plied antenna. Unauthorized antenna, modi-
fication, or attachments could damage the
transmitter and may violate FCC regulations.
– Operation is subject to the following two conditions:
1) This device may not cause interference and
2) This device must accept any interference, including interference that may cause
undesired operation of the device
IC Regulatory information :
– Operation is subject to the following two conditions:
1) This device may not cause interference, and
2) This device must accept any interference, including interference that may cause
undesired operation of the device.
4-66Monitor, climate, audio, phone and voice recognition systems

– This Class B digital apparatus meets allrequirements of the Canadian Interference-
Causing Equipment Regulations.
Bluetooth trademark:
Bluetooth is a trademark
owned by Bluetooth SIG,
Inc. and licensed to
Clarion Co., Ltd.
Connecting procedure
1. Push the SETTING button and select the “Bluetooth” key. 2. Select the “Connect Bluetooth” key.
SAA2505SAA2506
Monitor, climate, audio, phone and voice recognition systems4-67

3. A confirmation screen will be displayed.Select “No”.
Note: Selecting “Yes” will only connect the
hands free phone portion of a Bluetooth
device.
4. Choose a PIN code to use with the com- patible Bluetooth audio device using the
number input screen. The PIN code will
need to be entered into the Bluetooth
audio device after step 5. Select the “OK”
key. 5. The standby message screen will appear.
Operate the compatible Bluetooth audio
device. For the connecting procedure of
the audio device, see the Bluetooth au-
dio instructions.
When the connecting is completed, the
screen will return to the Bluetooth setup
display.
SAA2507SAA3005SAA3006
4-68Monitor, climate, audio, phone and voice recognition systems

Audio main operation
Push the ignition switch to the ACC or ON
position. Then, push the DISC·AUX button re-
peatedly to switch to the Bluetoothaudio
mode. If the system has been turned off while
the Bluetooth audio device was playing, push-
ing the ON·OFF/VOL control knob will start the
Bluetooth audio device.
Some of the functions, such as pause, change
track, fast forward, etc., may not be used
depending on the paired Bluetooth device.
DISC·AUX button :
When the DISC·AUX button is pushed with the
system off and the Bluetooth audio device
connected, the system will turn on. If another
audio source is playing and the Bluetooth
audio device is connected, push the DISC·AUX
button repeatedly until the display changes to
the Bluetooth audio mode.
Next/Previous Track and
Fast Forward/Rewind :
Push the FF or REW button for more than 1.5
seconds while a Bluetooth file is being played
to fast forward or rewind through the track.
When the button is released, the Bluetooth
audio device will return to the normal play
speed.
When the FF button is pushed for less than 1.5
seconds while the Bluetooth audio device is
being played, the next track will be played.
When the REW button is pushed for less than 1.5
seconds within 3 seconds after the current track
started playing, the previous track will be
played.
When the REW button is pushed for less than 1.5
seconds after 3 seconds from when the current
track started playing, the beginning of the
current track will be played. The INFINITI controller can also be used to
select tracks when the Bluetooth
audio is
playing.
REPEAT (RPT), RANDOM (RDM) :
To change the play mode, push the
button repeatedly and the mode changes as
follows.
Normal →Shuffle All Tracks →Shuffle Group →
Repeat 1 Track →Repeat All Tracks →Repeat
Group →Normal
Operation keys :
To operate a Bluetooth audio device, select a
key displayed on the operation screen using the
INFINITI controller.
Play
Select the “
” key to start playing when
pausing. Select this key again to pause the
audio play.
Pause
Select the “
” key to pause the Bluetooth
audio device. Select this key again to resume
playing.
SAA2510
Monitor, climate, audio, phone and voice recognition systems4-69

Play Mode :
The play mode setting display will appear when
the “Menu” key is selected.
Choose the preferred play mode from the fol-
lowing items.
●Shuffle
Choose “Shuffle OFF”, “Shuffle All Tracks”
and “Shuffle Group”.
● Repeat
Choose from “Repeat OFF”, “Repeat 1 Track”,
“Repeat All Tracks” and “Repeat Group”.
Bluetooth settings
To set up the Bluetooth device system to the
preferred settings, push the SETTING button
and select the “Bluetooth” key.
Bluetooth :
If this setting is turned off, the connection
between the Bluetooth devices and the in-
vehicle Bluetooth module will be canceled.
Connect Bluetooth :
Connects to the Bluetooth device. See “Con-
necting procedure” earlier in this section. Up to
5 devices can be registered. Connected Devices :
Registered devices are shown on the list. Select
a Bluetooth
device from the list, the following
options will be available.
● Select
Select “Select” to connect the selected de-
vice to the vehicle. If there is a different
device currently connected, the selected de-
vice will replace the current device.
● Edit
Rename the selected Bluetooth device us-
ing the keypad displayed on the screen. (See
“HOW TO USE TOUCH SCREEN (models with
navigation system)” earlier in this section.)
● Delete
Delete the selected Bluetooth device.
Edit Bluetooth Info :
Change the name broadcasted by this system
over Bluetooth. Change the PIN code that is
entered when connecting a hands free device to
this system.
SAA2511
4-70Monitor, climate, audio, phone and voice recognition systems
