When the selector lever is shifted into the R
(Reverse) position, the monitor display shows
view to the rear of the vehicle.
The system is designed as an aid to the driver in
detecting large stationary objects to help avoid
damaging the vehicle. The system will not de-
tect small objects below the bumper and may
not detect objects close to the bumper or on the
ground.
WARNING
●The rearview camera is a convenience but it
is not a substitute for proper backing up.
Always turn and check that it is safe to do so
before backing up. Always back up slowly.
● Objects viewed in the RearView Monitor dif-
fer from actual distance because a wide-
angle lens is used. Objects in the RearView
Monitor will appear visually opposite like
ones viewed in the inside and outside
mirrors.
● Make sure that the back door is securely
closed when backing up.
● Underneath the bumper and the corner areas
of the bumper cannot be viewed on the rear-
view monitor because of its monitoring
range limitation. ●
Do not put anything on the rearview camera.
The rearview camera is installed above the
license plate.
● When washing the vehicle with high-
pressure water, be sure not to spray it
around the camera. Otherwise, water may
enter the camera unit causing water conden-
sation on the lens, a malfunction, fire or an
electric shock.
● Do not strike the camera. It is a precision
instrument. Otherwise, it may malfunction
or cause damage resulting in a fire or an
electric shock.
CAUTION
There is a plastic cover over the camera. Do not
scratch the cover when cleaning dirt or snow
from the cover.
HOW TO READ DISPLAYED LINES
Guiding lines which indicate the vehicle width
and distances to objects with reference to the
bumper line
Aare displayed on the monitor.
Distance guide lines:
Indicate distances from the bumper.
● Red line
1: approx. 1.5 ft (0.5 m)
● Yellow line
2: approx. 3 ft (1 m)
● Green line
3: approx. 7 ft (2 m)
● Green line
4: approx. 10 ft (3 m)
Vehicle width guide lines
5:
Indicate the vehicle width when backing up.
SAA1896
REARVIEW MONITOR
4-22Monitor, climate, audio, phone and voice recognition systems
Predicted course lines6:
Indicate the predicted course when backing up.
The predicted course lines will be displayed on
the monitor when the selector lever is in the R
(Reverse) position and the steering wheel is
turned. The predicted course lines will move
depending on how much the steering wheel is
turned and will not be displayed while the
steering wheel is in the neutral position.
HOW TO PARK WITH PREDICTED
COURSE LINES
WARNING
● Always turn and check that it is safe to park
your car before backing up. Always back up
slowly.
● Use the displayed lines as a reference. The
lines are highly affected by the number of
occupants, fuel level, vehicle position, road
condition and road grade.
● If the tires are replaced with different sized
tires, the predicted course line may not be
displayed correctly.
● On a snow-covered or slippery road, there
may be a difference between the predicted
course line and the actual course line. ●
If predicted course lines are displayed incor-
rectly, drive the vehicle on a straight road for
100 m at a speed of above 30 km/h.
● When the steering wheel is turned with the
ignition switch in the “ACC” position, the
predicted course lines may not be displayed
correctly.
● The displayed lines will appear slightly off to
the right because the rearview camera is not
installed in the rear center of the vehicle.
● The distance guide line and the vehicle
width guide line should be used as a refer-
ence only when the vehicle is on a level
paved surface. The distance viewed on the
monitor is for reference only and may be
different than the actual distance between
the vehicle and displayed objects.
● When backing up the vehicle up a hill, ob-
jects viewed in the monitor are further than
they appear. When backing up the vehicle
down a hill, objects viewed in the monitor
are closer than they appear. Use the inside
mirror or glance over your shoulder to prop-
erly judge distances to other objects.
The vehicle width and predicted course lines are
wider than the actual width and course.
1. Visually check that the parking space is safe before parking your vehicle.
2. The rearview of the vehicle is displayed on the screen
Aas illustrated when the
selector lever is moved to the R (Reverse)
position.
SAA1897
Monitor, climate, audio, phone and voice recognition systems4-23
3. Slowly back up the vehicle adjusting thesteering wheel so that the predicted
course lines
Benter the parking space
C. 4. Maneuver the steering wheel to make the
vehicle width guide lines
Dparallel to
the parking space
Cwhile referring to
the predicted course lines.
5. When the vehicle is parked in the space completely, move the selector lever to the
P (Park) position and apply the parking
brake.
DIFFERENCE BETWEEN PREDICTED AND
ACTUAL DISTANCES
The distance guide line and the vehicle width
guide line should be used as a reference only
when the vehicle is on a level, paved surface.
The distance viewed on the monitor is for
reference only and may be different from the
actual distance between the vehicle and dis-
played objects.

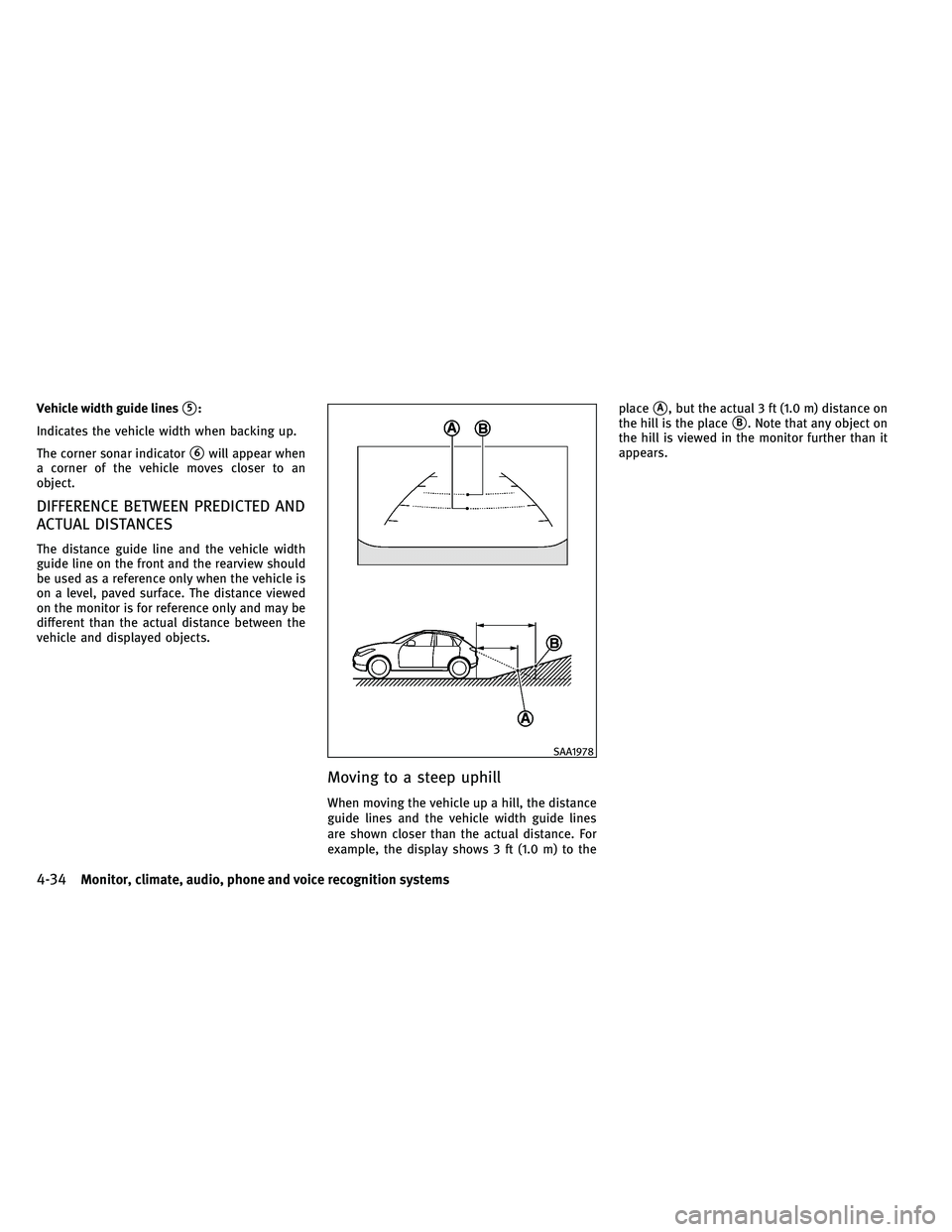

Backing up on a steep uphill
When backing up the vehicle up a hill, the
distance guide lines and the vehicle width
guide lines are shown closer than the actual
distance. For example, the display shows 3 ft
SAA1898SAA1978
4-24Monitor, climate, audio, phone and voice recognition systems
(1 m) to the placeA, but the actual 3 ft (1 m)
distance on the hill is the place
B. Note that
any object on the hill is further than it appears
on the monitor.
Backing up on a steep downhill
When backing up the vehicle down a hill, the
distance guide lines and the vehicle width
guide lines are shown further than the actual
distance. For example, the display shows 3 ft (1 m) to the place
A, but the actual 3 ft (1 m)
distance on the hill is the place
B. Note that
any object on the hill is closer than it appears
on the monitor.
SAA1979
Monitor, climate, audio, phone and voice recognition systems4-25
●The view on the screen on the passenger’s
side switches to the front-side view
Cwhen
the CAMERA button is pushed
3. When the
CAMERA button is pushed again
5, the
rear-wide view
Dis displayed. When the
CAMERA button is pushed again
7, the
view on the screen on the passenger’s side
switches to the bird-eye view
B.
The passenger’s side screen returns to an-
other by operating the same procedures
again.
When selecting the “Wide”, “Side” or “Top”
key on the screen using the INFINITI control-
ler and pushing the ENTERbutton, the view
on the screen will change to the one previ-
ously selected
4,6,8.
● Once you have changed the view on the
screen on the passenger’s side, the view on
the driver’s side will change to the front view
by shifting the selector lever out of the R
(Reverse) position
12,14.
When the selector lever is moved to any
other position than the R (Reverse) position
while the rear-wide view
Dis displayed,
another view that is set to a higher priority
will be displayed
16.
Starting with the CAMERA button
operation
● When the CAMERAbutton is pushed9
while another screenAis displayed,
Around View Monitor operates and the front
view and bird-eye view
Eare displayed.
● The view on the screen on the passenger’s
side switches to the front-side view
Fwhen
the CAMERA button is pushed
10. When the
CAMERA button is pushed again
17, the
screen
Ais displayed.
● When selecting the “Side” or “Top” key on
the screen using the INFINITI controller and
pushing the ENTER button, the view on the
screen will change to the one previously
selected
11.
● The left screen switches to the rearview
B,
Cwhen the selector lever is shifted into the
R (Reverse) position
13,15and returns to
the front view
E,Fwhen the selector lever
is shifted out of the R (Reverse) position
12,
14.
● Push another button on the control panel to
quit the Around View Monitor.
HOW TO SEE EACH VIEW
WARNING
● The distance guide line and the vehicle
width line should be used as a reference only
when the vehicle is on a paved, level surface.
The distance viewed on the monitor is for
reference only and may be different than the
actual distance between the vehicle and dis-
played objects.
● Use the displayed lines and the bird-eye
view as a reference. The lines and the bird-
eye view are greatly affected by the number
of occupants, fuel level, vehicle position,
road condition and road grade.
● If the tires are replaced with different sized
tires, the predicted course line and the bird-
eye view may be displayed incorrectly.
● When driving the vehicle up a hill, objects
viewed in the monitor are further than they
appear. When driving the vehicle down a hill,
objects viewed in the monitor are closer than
they appear. Use the mirrors or actually look
to properly judge distances to other objects.
The vehicle width and predicted course lines
are wider than the actual width and course.
4-30Monitor, climate, audio, phone and voice recognition systems
Front and rearview
Guiding lines, which indicate the vehicle width
and distances to objects with reference to the
vehicle body line
A, are displayed on the
monitor.
Distance guide lines:
Indicate distances from the vehicle body.
● Red line
1: approx. 1.5 ft (0.5 m)
● Yellow line
2: approx. 3 ft (1 m)
● Green line
3: approx. 7 ft (2 m)
● Green line
4: approx. 10 ft (3 m)
Vehicle width guide lines
5:
Indicate the vehicle width when backing up.
Predicted course lines
6:
Indicate the predicted course when operating
the vehicle. The predicted course lines will be
displayed on the monitor when the steering
wheel is turned. The predicted course lines will
move depending on how much the steering
wheel is turned and will not be displayed while
the steering wheel is in the neutral position.
The front view will not be displayed when the
vehicle speed is above 6 MPH (10 km/h).
WARNING
● The distance between objects viewed in the
rearview differs from actual distance be-
cause a wide-angle lens is used. Objects in
the rearview will appear visually opposite
than when viewed in the rearview and out-
side mirrors.
● On a snow-covered or slippery road, there
may be a difference between the predicted
course line and the actual course line.
● If predicted course line are displayed incor-
rectly, perform the following procedure:
– Drive the vehicle on a straight road for 100 m at a speed of above 30 km/h.
● When the steering wheel is turned with the
ignition switch in the “ACC” position, the
predicted course lines may be displayed
incorrectly.
● The displayed lines on the rearview will ap-
pear slightly off to the right because the
rearview camera is not installed in the rear
center of the vehicle.
Front view
SAA1840
Rearview
SAA1896
Monitor, climate, audio, phone and voice recognition systems4-31
Front-side view
Guiding lines:
Guiding lines that indicate the width and the
front end of the vehicle are displayed on the
monitor.
The front-of-vehicle line
1shows the front part
of the vehicle.
The side-of-vehicle line
2shows the vehicle
width including the outside mirror.
The extensions
3of both the front1and side
2lines are shown with a green dotted line. The corner sonar indicator
4will appear when
a corner of the vehicle moves closer to an
object.
The corner sonar indicator
4can be turned off.
See “AROUND VIEW MONITOR SETTINGS” later
in this section.
CAUTION
The turn signal light may overlap with the side-
of-vehicle line. This is not a malfunction.
Infrared illumination:
The images on the front-side view can be dis-
played at night using the infrared illumination
on the outside mirror.
Rear-wide view
The rear-wide view shows a wider area on the
entire screen and allows the checking of the
blind corners on the right and left sides. The
rear-wide view displays an approximately 180-
degree area while the front view and the rear-
view display an approximately 150-degree area.
The predicted course lines are not displayed on
the rear-wide view.
Distance guide lines:
Indicates distances from the vehicle body.
● Red line
1: approx. 1.5 ft (0.5 m)
● Yellow line
2: approx. 3 ft (1 m)
● Green line
3: approx. 7 ft (2 m)
● Green line
4: approx. 10 ft (3 m)
SAA1842SAA2629
Monitor, climate, audio, phone and voice recognition systems4-33
Vehicle width guide lines5:
Indicates the vehicle width when backing up.
The corner sonar indicator
6will appear when
a corner of the vehicle moves closer to an
object.
DIFFERENCE BETWEEN PREDICTED AND
ACTUAL DISTANCES
The distance guide line and the vehicle width
guide line on the front and the rearview should
be used as a reference only when the vehicle is
on a level, paved surface. The distance viewed
on the monitor is for reference only and may be
different than the actual distance between the
vehicle and displayed objects.
Moving to a steep uphill
When moving the vehicle up a hill, the distance
guide lines and the vehicle width guide lines
are shown closer than the actual distance. For
example, the display shows 3 ft (1.0 m) to the place
A, but the actual 3 ft (1.0 m) distance on
the hill is the place
B. Note that any object on
the hill is viewed in the monitor further than it
appears.
SAA1978
4-34Monitor, climate, audio, phone and voice recognition systems
