CONSOLE BOX
To open the console box, push the button1.
To close, push the lid down until latched.
The inner tray (if so equipped) can be posi-
tioned to the front or rear
2. Make sure that
the arrow mark on the tray points toward the
front and the bosses
Aare aligned in the slits.
CARD HOLDER
Pull the sun visor down1and slide a card in
the card holder
A.
SEAT-MOUNTED JACKET HANGER (if so
equipped)
The driver’s side head restraint is equipped
with a retractable jacket hanger. Pull the hanger
out as illustrated until it locks. Be sure to return
the hanger after use.
This hanger is designed to be used only for
clothes (maximum load limit: 7.7 lb (3.5 kg)).
To help avoid staining clothes or affecting the
comfort of the passenger behind, do not use the
seat-mounted jacket hanger while the seat be-
hind is occupied by a passenger or a child
restraint.
SIC4687SIC3663SSS0831
Instruments and controls2-47

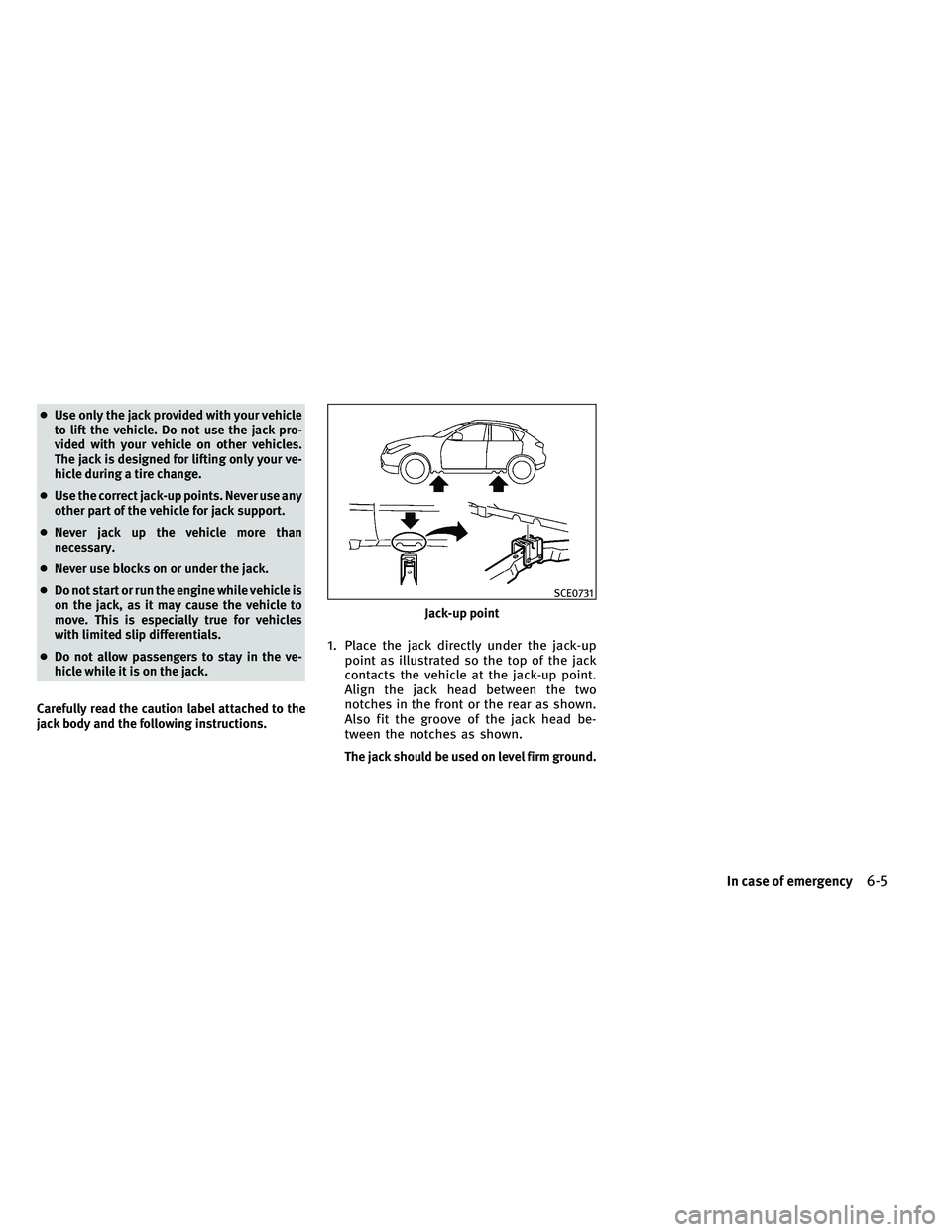

●Use only the jack provided with your vehicle
to lift the vehicle. Do not use the jack pro-
vided with your vehicle on other vehicles.
The jack is designed for lifting only your ve-
hicle during a tire change.
● Use the correct jack-up points. Never use any
other part of the vehicle for jack support.
● Never jack up the vehicle more than
necessary.
● Never use blocks on or under the jack.
● Do not start or run the engine while vehicle is
on the jack, as it may cause the vehicle to
move. This is especially true for vehicles
with limited slip differentials.
● Do not allow passengers to stay in the ve-
hicle while it is on the jack.
Carefully read the caution label attached to the
jack body and the following instructions.
1. Place the jack directly under the jack-up point as illustrated so the top of the jack
contacts the vehicle at the jack-up point.
Align the jack head between the two
notches in the front or the rear as shown.
Also fit the groove of the jack head be-
tween the notches as shown.
The jack should be used on level firm ground.
Jack-up point
SCE0731
In case of emergency6-5

of coolant or the use of non-distilled water will
reduce the life expectancy of the factory-fill
coolant. Refer to the INFINITI Service and Main-
tenance Guide for more details.
If the cooling system requires coolant fre-
quently, have it checked by an INFINITI retailer.
CHANGING ENGINE COOLANT
Major cooling system repairs should be per-
formed by an INFINITI retailer. The service pro-
cedures can be found in the appropriate INFINITI
Service Manual.
Improper servicing can result in reduced heater
performance and engine overheating.
WARNING
●To avoid the danger of being scalded, never
change the coolant when the engine is hot.
●
Never remove the radiator cap when the engine
is hot. Serious burns could be caused by high
pressure fluid escaping from the radiator.
●Avoid direct skin contact with used coolant. If
skin contact is made, wash thoroughly with
soap or hand cleaner as soon as possible.
● Keep coolant out of reach of children and
pets.
Engine coolant must be disposed of properly.
Check your local regulations.
CHECKING ENGINE OIL LEVEL
1. Park the vehicle on a level surface and apply the parking brake.
2. Run the engine until it reaches operating temperature.
3. Turn off the engine. Wait more than 15
minutes for the oil to drain back into the oil
pan.
4. Remove the dipstick and wipe it clean. Reinsert it all the way.
5. Remove the dipstick again and check the oil level. It should be within the range
1.
If the oil level is below
2, remove the oil
filler cap and pour recommended oil
through the opening. Do not overfill
3.
6. Recheck oil level with the dipstick.
It is normal to add some oil between oil mainte-
nance intervals or during the break-in period,
depending on the severity of operating condi-
tions.
CAUTION
Oil level should be checked regularly. Operat-
ing the engine with an insufficient amount of oil
can damage the engine, and such damage is
not covered by warranty.
CHANGING ENGINE OIL AND FILTER
Vehicle set-up
1. Park the vehicle on a level surface and apply the parking brake.
2. Run the engine until it reaches operating temperature.
3. Turn the engine off and wait more than 15 minutes.
4. Raise and support the vehicle using a suitable floor jack and safety jack stands.
●Place the safety jack stands under the
vehicle jack-up points.
● A suitable adapter should be attached to
the jack stand saddle.
SDI2045
ENGINE OIL
8-8Maintenance and do-it-yourself
