3. The booster seat should be positioned onthe vehicle seat so that it is stable.
If necessary, adjust or remove the head
restraint or headrest to obtain the correct
booster seat fit. If the head restraint or
headrest is removed, store it in a secure
place. Be sure to reinstall the head restraint
or headrest when the booster seat is re-
moved. See “HEAD RESTRAINTS” earlier in
this section or “ADJUSTABLE HEADREST” ear-
lier in this section for head restraint or
headrest adjustment, removal and installa-
tion information. If the seating position does not have an
adjustable head restraint or headrest and it
is interfering with the proper booster seat
fit, try another seating position or a different
booster seat.
4. Position the lap portion of the seat belt
low and snug on the child’s hips. Be sure
to follow the booster seat manufacturer’s
instructions for adjusting the seat belt
routing.
5. Pull the shoulder belt portion of the seat belt toward the retractor to take up extra
slack. Be sure the shoulder belt is posi-
tioned across the top, middle portion of
the child’s shoulder. Be sure to follow the
booster seat manufacturer’s instructions
for adjusting the seat belt routing.
6. Follow the warnings, cautions and in- structions for properly fastening a seat
belt shown in the “SEAT BELTS” earlier in
this section. 7. If the booster seat is installed in the front
passenger seat, push the ignition switch
to the ON position. The front passenger
air bag status light
may or may not
illuminate depending on the size of the
child and the type of booster seat used.
(See “Front passenger air bag and status
light” later in this section.)
Front passenger position
LRS0454SSS0676
1-36Safety — Seats, seat belts and supplemental restraint system

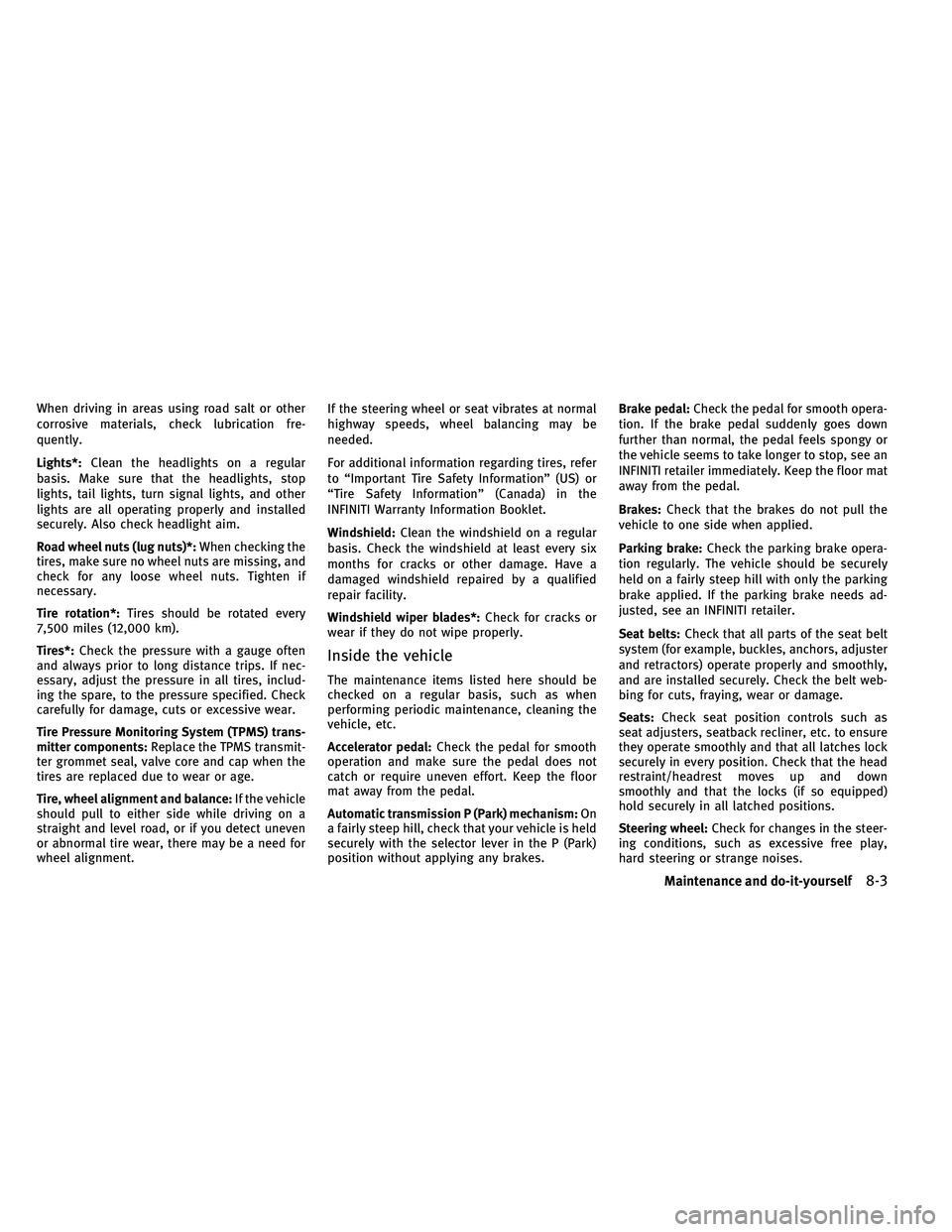

When driving in areas using road salt or other
corrosive materials, check lubrication fre-
quently.
Lights*:Clean the headlights on a regular
basis. Make sure that the headlights, stop
lights, tail lights, turn signal lights, and other
lights are all operating properly and installed
securely. Also check headlight aim.
Road wheel nuts (lug nuts)*: When checking the
tires, make sure no wheel nuts are missing, and
check for any loose wheel nuts. Tighten if
necessary.
Tire rotation*: Tires should be rotated every
7,500 miles (12,000 km).
Tires*: Check the pressure with a gauge often
and always prior to long distance trips. If nec-
essary, adjust the pressure in all tires, includ-
ing the spare, to the pressure specified. Check
carefully for damage, cuts or excessive wear.
Tire Pressure Monitoring System (TPMS) trans-
mitter components: Replace the TPMS transmit-
ter grommet seal, valve core and cap when the
tires are replaced due to wear or age.
Tire, wheel alignment and balance: If the vehicle
should pull to either side while driving on a
straight and level road, or if you detect uneven
or abnormal tire wear, there may be a need for
wheel alignment. If the steering wheel or seat vibrates at normal
highway speeds, wheel balancing may be
needed.
For additional information regarding tires, refer
to “Important Tire Safety Information” (US) or
“Tire Safety Information” (Canada) in the
INFINITI Warranty Information Booklet.
Windshield:
Clean the windshield on a regular
basis. Check the windshield at least every six
months for cracks or other damage. Have a
damaged windshield repaired by a qualified
repair facility.
Windshield wiper blades*: Check for cracks or
wear if they do not wipe properly.
Inside the vehicle
The maintenance items listed here should be
checked on a regular basis, such as when
performing periodic maintenance, cleaning the
vehicle, etc.
Accelerator pedal: Check the pedal for smooth
operation and make sure the pedal does not
catch or require uneven effort. Keep the floor
mat away from the pedal.
Automatic transmission P (Park) mechanism: On
a fairly steep hill, check that your vehicle is held
securely with the selector lever in the P (Park)
position without applying any brakes. Brake pedal:
Check the pedal for smooth opera-
tion. If the brake pedal suddenly goes down
further than normal, the pedal feels spongy or
the vehicle seems to take longer to stop, see an
INFINITI retailer immediately. Keep the floor mat
away from the pedal.
Brakes: Check that the brakes do not pull the
vehicle to one side when applied.
Parking brake: Check the parking brake opera-
tion regularly. The vehicle should be securely
held on a fairly steep hill with only the parking
brake applied. If the parking brake needs ad-
justed, see an INFINITI retailer.
Seat belts: Check that all parts of the seat belt
system (for example, buckles, anchors, adjuster
and retractors) operate properly and smoothly,
and are installed securely. Check the belt web-
bing for cuts, fraying, wear or damage.
Seats: Check seat position controls such as
seat adjusters, seatback recliner, etc. to ensure
they operate smoothly and that all latches lock
securely in every position. Check that the head
restraint/headrest moves up and down
smoothly and that the locks (if so equipped)
hold securely in all latched positions.
Steering wheel: Check for changes in the steer-
ing conditions, such as excessive free play,
hard steering or strange noises.
Maintenance and do-it-yourself8-3

10 Index
A
ABS (Anti-lock Braking System) ........5-80
Adaptive front lighting system (AFS) .....2-37
Adjustable headrest .............. .1-9
Advanced air bag system ............1-42
Aiming control, Adaptive front lighting
system (AFS) .................. .2-37
Air bag system Advanced air bag system ..........1-42
Front passenger air bag and
status light ................. .1-44
Front-seat mounted side-impact
supplemental air bag system .......1-47
Roof-mounted curtain side-impact
supplemental air bag system .......1-47
Air bag warning labels .............1-49
Air bag warning light ...........1-49, 2-16
Air cleaner housing filter ............8-16
Air conditioner Air conditioner service ...........4-47
Air conditioner specification label .....9-12
Air conditioning system refrigerant and
lubricant recommendations .....4-47, 9-6
Automatic climate control .........4-39
In-cabin microfilter .............4-47
Alarm, How to stop alarm (see vehicle
security system) ................ .2-31
Alcohol, drugs and driving ...........5-7
All-wheel drive (AWD) ............. .5-74
All-wheel drive (AWD) warning light ......2-12
Antenna .................... .4-91Anti-lock Braking System (ABS)
........5-80
Anti-lock braking system (ABS) warning
light ....................... .2-12
Appearance care Exterior appearance care ..........7-2
Interior appearance care ...........7-4
Armrest ..................... .1-12
Around view monitor ............. .4-27
Audible reminders .............. .2-20
Audio operation precautions .........4-48
Audio system ................. .4-48
Steering wheel audio controls ......4-90
Autolight system ............... .2-35
Automatic Automatic

climate control ......4-40, 4-43
Automatic transmission fluid (ATF) . . . .8-11
Climate control .............. .4-39
Door locks .................. .3-5
Drive positioner .............. .3-24
Driving with automatic transmission . . .5-12
Moonroof .................. .2-52
Seat positioner .............. .3-24
Average fuel consumption and speed . . . .2-27
Avoiding collision and rollover .........5-5
B
Back door (See lift gate) ............3-16
Battery ..................... .8-13
Battery saver system ............2-36
Intelligent Key ............... .8-22
Variable voltage control system ......8-15Before starting the engine
...........5-11
Belts (See drive belts) .............8-15
Blind Spot Warning (BSW) system ......5-25
Blind Spot Warning (BSW) system warning
light ....................... .2-13
Bluetooth hands-free phone system
(models with navigation system) . . . . . . .4-93
Bluetooth hands-free phone system
(models without navigation system) . . . . .4-103
Bluetooth streaming audio ..........4-74
Booster seats ................. .1-34
Brake Anti-lock Braking System (ABS) ......5-80
Brake fluid ................. .8-12
Brake system ............... .5-77
Parking brake operation ..........5-16
Warning light ............... .2-13
Break-in schedule ............... .5-73
Brightness control Display ON/OFF button ...........4-8
Instrument panel ............. .2-38
Bulb check/instrument panel .........2-12
Bulb replacement ............... .8-24
C
Cabin

air filter ................. .4-47
Capacities and recommended
fuel/lubricants ................. .9-2
Car phone or CB radio .............4-92
Card holder .................. .2-47
Cargo cover .................. .2-48

FilterAir cleaner housing filter ..........8-16
Changing engine oil and filter ........8-8
Flashers (See hazard warning flasher
switch) ..................... .2-39
Flat tire ...................... .6-2
Flat towing ................... .9-17
Floor mat cleaning ................ .7-5
Fluid Automatic transmission fluid (ATF) .....8-11
Brake fluid ................. .8-12
Capacities and recommended fuel/
lubricants .................. .9-2
Engine coolant ................ .8-6
Engine oil .................. .8-8
Power steering fluid .............8-11
Window washer fluid .............8-12
FM-AM-SAT radio with Compact Disc (CD)
player ...................... .4-62
Fog light switch ................ .2-39
Forward Collision Warning (FCW) system . . .5-66
Front passenger air bag and status light . . .1-44
Front power seat adjustment ...........1-2
Front seat, Front seat adjustment ........1-2
Front-seat active head restraint .........1-9
Fuel Capacities and recommended fuel/
lubricants .................. .9-2
Fuel economy ................ .5-73
Fuel economy information (display) . . . .4-10
Fuel octane rating .............. .9-3
Fuel recommendation .............9-3
Fuel-filler cap ................ .3-17
Fuel-filler door ............... .3-17
Gauge .................... .2-8
LOOSE FUEL CAP warning ..........3-19Fuses
...................... .8-20
Fusible links .................. .8-20
G
Garage door opener, HomeLink Universal
Transceiver ................... .2-57
Gascap..................... .3-17
Gauge ....................... .2-5
Engine coolant temperature gauge .....2-7
Fuel
gauge .................. .2-8
Odometer ................... .2-6
Speedometer ................. .2-6
Tachometer .................. .2-7
Trip computer ................ .2-27
General maintenance .............. .8-2
Glove box .................... .2-46
H
Hands-free phone system, Bluetooth
(models with navigation system) ........4-93
Hands-free phone system, Bluetooth
(models without navigation system) .....4-103
Hazard warning flasher switch .........2-39
Head restraints .................. .1-6
Headlights Aiming control (See adaptive front
lighting system (AFS)) ............2-37
Bulb replacement ............. .8-25
Headlight switch .............. .2-35
Xenon headlights ............. .2-34
Headrest, Adjustable headrest ..........1-9
Heated seats .................. .2-40Heater
Automatic climate control ..........4-39
Engine block heater .............5-85
HomeLink Universal Transceiver ........2-57
Hood release .................. .3-16
Hook Coat hooks ................. .2-48
Luggage hook ............... .2-48
Horn ....................... .2-40
I
Ignition switch (Push-button) ...........5-8
Immobilizer system .............. .2-31
In-cabin microfilter ............... .4-47
Indicator Dot matrix display ............. .2-20
Lights .................... .2-17
INFINITI

Vehicle Immobilizer System . .....2-31
INFINITI voice recognition system .......4-116
INFO button ................... .4-8
Inside mirror .................. .3-21
Inspection/maintenance (I/M) test . . . . . . .9-20
Instrument brightness control .........2-38
Instrument panel ................ .2-4
Intelligent Brake Assist (IBA) off indicator
light ....................... .2-18
Intelligent Brake Assist (IBA) system .....5-69
Intelligent cruise control (ICC) system,
Preview function ................ .5-54
Intelligent Cruise Control (ICC) system (Full
Speed Range) .................. .5-34
Intelligent Cruise Control (ICC) system
warning light .................. .2-14
Intelligent Key .................. .3-2
10-3
