2011 INFINITI EX buttons

4. All the doors, the lift gate and fuel-fillerdoor will lock.
5. The hazard indicator flashes twice and the horn chirps once.
*1: Doors will lock with the Intelligent Key while the ignition switch is in the ACC or ON
position.
*2: Doors will not lock with the Intelligent Key while any door is open.
Unlocking doors and fuel-filler door
1. Push the UNLOCKbutton2on the
Intelligent Key once.
2. The hazard indicator flashes once. The driver’s door and fuel-filler door will un-
lock.
3. Push the UNLOCK
button on the
Intelligent Key again within 60 seconds.
4. The hazard indicator flashes once again. All the doors and the lift gate will unlock.
All doors will be locked automatically unless
one of the following operations is performed
within 1 minute after pushing the UNLOCK
button on the Intelligent Key while the
doors are locked. If during this 1-minute time
period, the UNLOCK
button on the Intel-
ligent Key is pushed, all doors will be locked
automatically after another 1 minute.
● Opening any door ●
Pushing the ignition switch
Opening windows
The UNLOCKbutton operation also al-
lows you to open a window that is equipped
with the automatic open/close function. (See
“POWER WINDOWS” in the “2. Instruments and
controls” section.)
To open the windows, push the door UNLOCK
button on the Intelligent Key for about 3
seconds after the door is unlocked.
To stop opening, release the UNLOCK
button.
Window cannot be closed using the Intelligent
Key.
The door window can be opened or closed by
turning the mechanical key in a door lock. (See
“DOORS” earlier in this section.)
Using panic alarm
If you are near your vehicle and feel threatened,
you may activate the alarm to call attention as
follows:
1. Push the PANICbutton3on the
Intelligent key for more than 1 second.
2. The theft warning alarm and headlights will stay on for 25 seconds. 3. The panic alarm stops when:
●
It has run for 25 seconds, or
● Any of the buttons on the Intelligent key
are pushed. (Note: Panic button should be
pushed for more than 1 second.)
Setting hazard indicator and horn
mode
This vehicle is set in hazard indicator and horn
mode when you first receive the vehicle.
In hazard indicator and horn mode, when the
LOCK
button1is pushed, the hazard
indicator flashes twice and the horn chirps
once. When the UNLOCK
button2is
pushed, the hazard indicator flashes once.
If horns are not necessary, the system can be
switched to the hazard indicator mode.
In hazard indicator mode, when the LOCK
button is pushed, the hazard indicator
flashes twice. When the UNLOCKbutton
is pushed, neither the hazard indicator nor the
horn operates.
3-14Pre-driving checks and adjustments

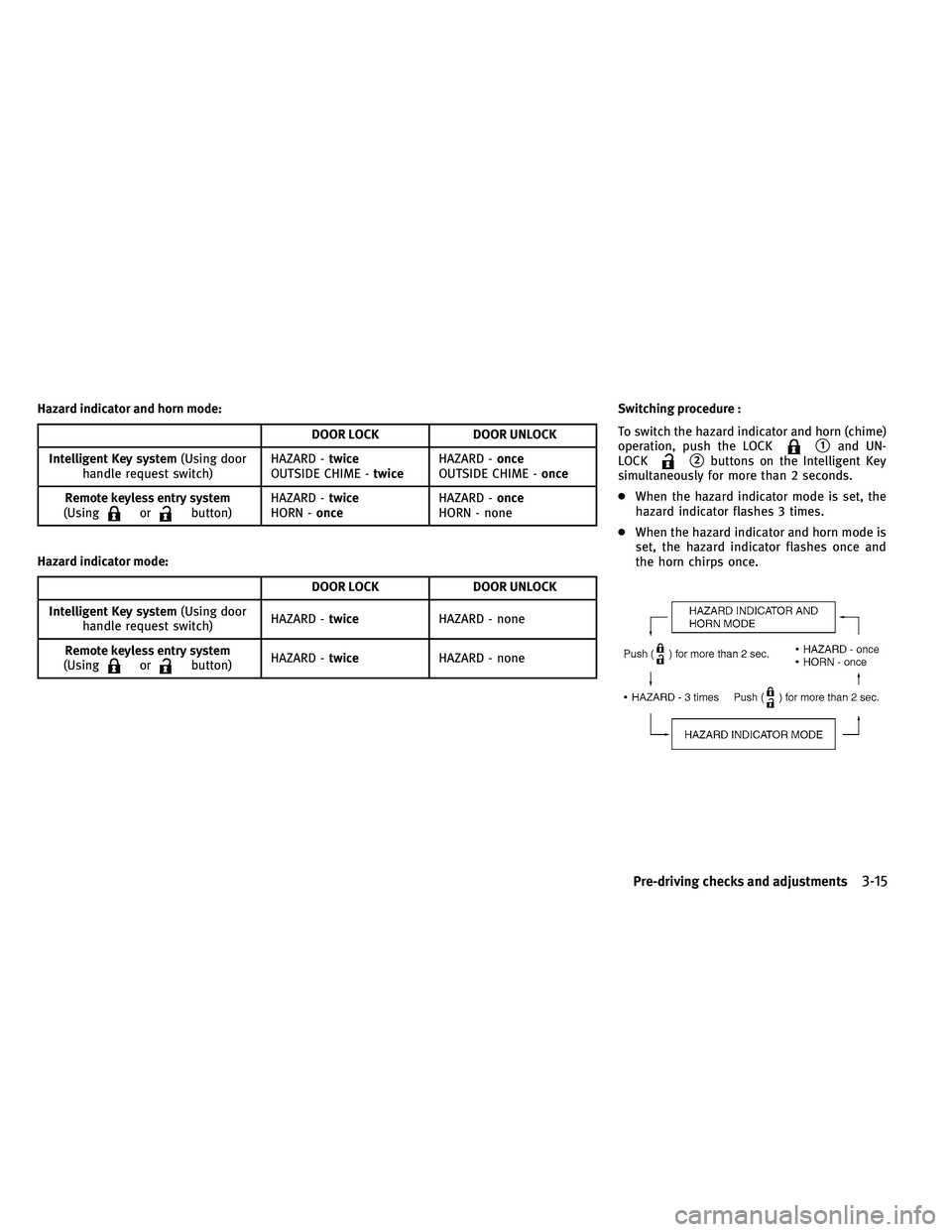

Hazard indicator and horn mode:
DOOR LOCKDOOR UNLOCK
Intelligent Key system (Using door
handle request switch) HAZARD -
twice
OUTSIDE CHIME - twiceHAZARD -
once
OUTSIDE CHIME - once
Remote keyless entry system
(Using
orbutton) HAZARD -
twice
HORN - once HAZARD -
once
HORN - none
Hazard indicator mode:
DOOR LOCK DOOR UNLOCK
Intelligent Key system (Using door
handle request switch) HAZARD -
twice HAZARD - none
Remote keyless entry system
(Using
orbutton) HAZARD -
twice HAZARD - none Switching procedure :
To switch the hazard indicator and horn (chime)
operation, push the LOCK
1and UN-
LOCK
2buttons on the Intelligent Key
simultaneously for more than 2 seconds.
● When the hazard indicator mode is set, the
hazard indicator flashes 3 times.
● When the hazard indicator and horn mode is
set, the hazard indicator flashes once and
the horn chirps once.
Pre-driving checks and adjustments3-15

Steering-wheel-mounted controls for audio......4-90
Antenna ...................................... 4-91
Car phone or CB radio ............................ 4-92
Bluetooth Hands-Free Phone System (models
with navigation system) ........................... 4-93
Regulatory information ......................... 4-94
Voice commands .............................. 4-94
Control buttons ............................... 4-95
Connecting procedure ......................... 4-95
Phone selection ............................... 4-96
Vehicle phonebook ............................ 4-96
Making a call ................................. 4-98
Receiving a call ............................... 4-99
During a call ................................. 4-100
Phone setting ................................ 4-101
Troubleshooting guide ........................ 4-102
Bluetooth Hands-Free Phone System (models
without navigation system) (if so equipped) .......4-103 Regulatory information
........................ 4-104
Control buttons .............................. 4-104
Voice recognition system .....................4-104
Pairing procedure ............................ 4-109
Phonebook registration ....................... 4-110
Making a call ................................ 4-110
Receiving a call ............................... 4-111
During a call .................................. 4-111
Phone settings ................................ 4-112
Voice adaptation mode ........................ 4-115
INFINITI Voice Recognition system (models with
navigation system) .............................. 4-116
INFINITI Voice Recognition standard mode ......4-116
Using the system .............................. 4-119
INFINITI Voice Recognition alternate
command mode .............................. 4-129
Using the system ............................. 4-135
Troubleshooting guide ........................ 4-140

WARNING
●Do not disassemble or modify this system. If
you do, it may result in accidents, fire, or
electric shock.
● Do not use this system if you notice any
abnormality, such as a frozen screen or lack
of sound. Continued use of the system may
result in accident, fire or electric shock.
● In case you notice any foreign object in the
system hardware, spill liquid on it, or notice
smoke or smell coming from it, stop using
the system immediately and contact your
nearest INFINITI retailer. Ignoring such con-
ditions may lead to accidents, fire, or electric
shock.
Do not attempt to operate the system in extreme
temperature conditions [below 4°F (20°C)
and above 158°F (70°C)]. Operating this system
under these conditions may result in system
malfunctions.
1. “CAMERA ” Around View Monitor display
button (P. 4-103)
2, 6, 7, 10, 11. For navigation system control buttons (Re-
fer to the separate Navigation System
Owner’s Manual.)
3. INFINITI controller (P. 4-5)
4. “STATUS ” status display button (P. 4-8)
5. “
OFF ” brightness control and dis-
play ON/OFF button (P. 4-8) 8. “AM·FM·SAT
” band selector button
(P. 4-48)
9. “DISC·AUX ” selector button (P. 4-48)
12. “INFO ” vehicle and navigation informa-
tion button (P. 4-8)
13. “SETTING ” button (P. 4-12)
With navigation system
SAA1836
SAFETY NOTE CENTER MULTI-FUNCTION CONTROL PANEL
4-2Monitor, climate, audio, phone and voice recognition systems

HOW TO USE INFINITI CONTROLLER
Choose an item on the display using the main
directional buttons
2(or additional directional
buttons
6with navigation system) or center
dial
3, and push the ENTERbutton1for
operation.
If you push the BACKbutton
4before the
setup is completed, the setup will be canceled
and/or the display will return to the previous
screen. This button can also be used to delete
characters that have been input.
After the setup is completed, push the BACK
button
4and return to the previous screen.
For the VOICEbutton
5functions, refer to the
separate Navigation System Owner’s Manual.
HOW TO USE TOUCH SCREEN (models
with navigation system)
CAUTION
● The glass screen on the liquid crystal display
may break if it is hit with a hard or sharp
object. If the glass screen breaks, do not
touch it. Doing so could result in an injury. ●
To clean the display, use a soft, dry cloth. If
additional cleaning is necessary, use a small
amount of neutral detergent with a soft
cloth. Never use a rough cloth, alcohol, ben-
zine, thinner or any kind of solvent or paper
towel with a chemical cleaning agent. They
will scratch or deteriorate the panel.
● Do not splash any liquid such as water or car
fragrance on the display. Contact with liquid
will cause the system to malfunction.
To ensure safe driving, some functions cannot
be operated while driving.
The on-screen functions that are not available
while driving will be “grayed out” or muted.
Park the vehicle in a safe location and then
operate the navigation system.
WARNING
● ALWAYS give your full attention to driving.
● Avoid using vehicle features that could dis-
tract you. If distracted, you could lose con-
trol of your vehicle and cause an accident.
Touch screen operation
With this system, the same operations as those
for the INFINITI controller are possible using the
touch screen operation.
Selecting the item :
Touch an item to select it. To select the “Audio”
settings, touch the “Audio” area
1on the
screen.
Touch the BACK
2button to return to the
previous screen.
SAA2473
Monitor, climate, audio, phone and voice recognition systems4-5

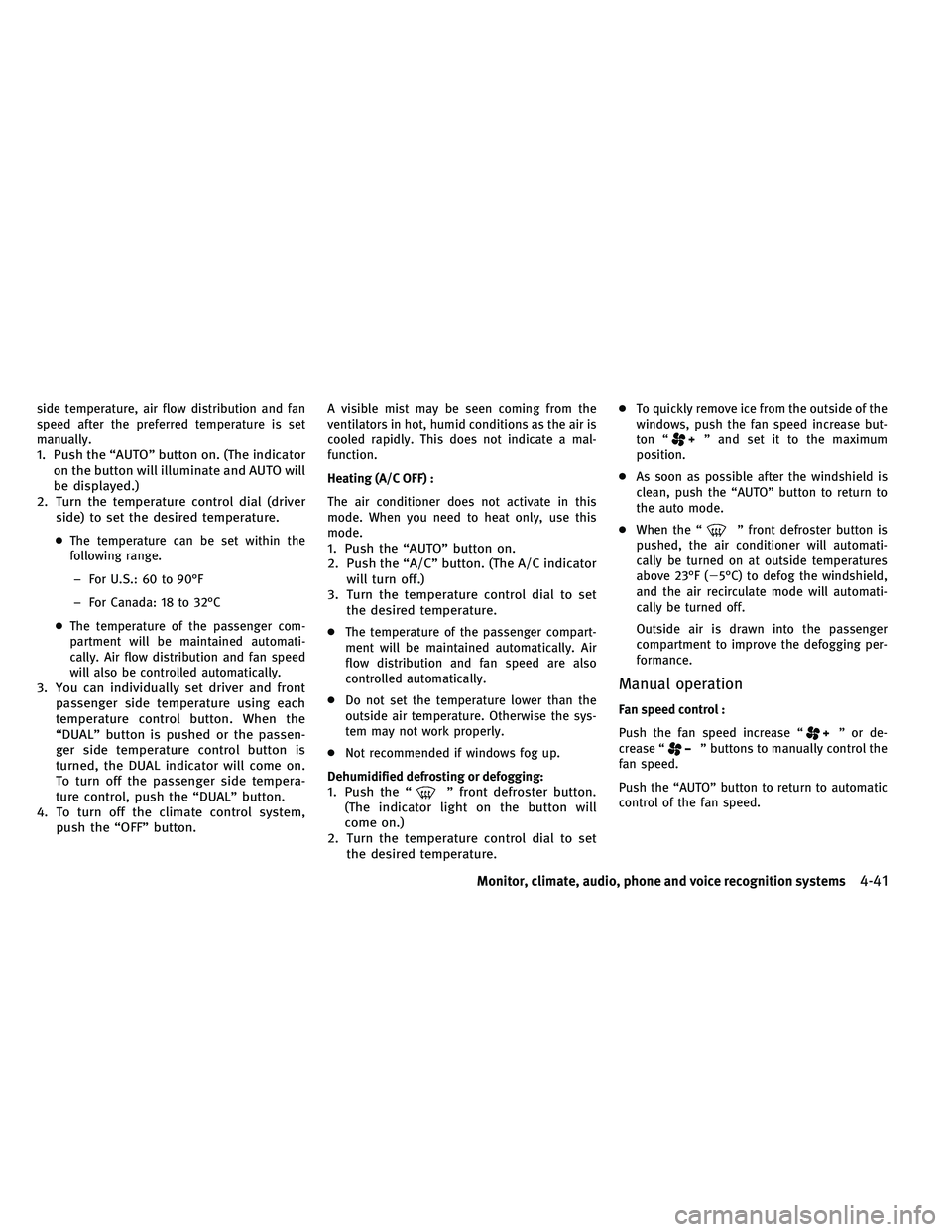

side temperature, air flow distribution and fan
speed after the preferred temperature is set
manually.
1. Push the “AUTO” button on. (The indicatoron the button will illuminate and AUTO will
be displayed.)
2. Turn the temperature control dial (driver side) to set the desired temperature.
●The temperature can be set within the
following range.
– For U.S.: 60 to 90°F
– For Canada: 18 to 32°C
● The temperature of the passenger com-
partment will be maintained automati-
cally. Air flow distribution and fan speed
will also be controlled automatically.
3. You can individually set driver and front passenger side temperature using each
temperature control button. When the
“DUAL” button is pushed or the passen-
ger side temperature control button is
turned, the DUAL indicator will come on.
To turn off the passenger side tempera-
ture control, push the “DUAL” button.
4. To turn off the climate control system, push the “OFF” button.
A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air is
cooled rapidly. This does not indicate a mal-
function.
Heating (A/C OFF) :
The air conditioner does not activate in this
mode. When you need to heat only, use this
mode.
1. Push the “AUTO” button on.
2. Push the “A/C” button. (The A/C indicatorwill turn off.)
3. Turn the temperature control dial to set the desired temperature.
●The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan speed are also
controlled automatically.
● Do not set the temperature lower than the
outside air temperature. Otherwise the sys-
tem may not work properly.
● Not recommended if windows fog up.
Dehumidified defrosting or defogging:
1. Push the “” front defroster button.
(The indicator light on the button will
come on.)
2. Turn the temperature control dial to set the desired temperature.
●To quickly remove ice from the outside of the
windows, push the fan speed increase but-
ton “
” and set it to the maximum
position.
● As soon as possible after the windshield is
clean, push the “AUTO” button to return to
the auto mode.
● When the “
” front defroster button is
pushed, the air conditioner will automati-
cally be turned on at outside temperatures
above 23°F (5°C) to defog the windshield,
and the air recirculate mode will automati-
cally be turned off.
Outside air is drawn into the passenger
compartment to improve the defogging per-
formance.
Manual operation
Fan speed control :
Push the fan speed increase “
”orde-
crease “” buttons to manually control the
fan speed.
Push the “AUTO” button to return to automatic
control of the fan speed.
Monitor, climate, audio, phone and voice recognition systems4-41

1. ON·OFF/VOLUME control knob
2. Radio SCAN (tuning) button
3. RDM (random) RPT (repeat) play button
4. Radio CAT (category)/REW (rewind) buttonfor SEEK/TRACK
5. FF (fast forward) button for SEEK/TRACK 6. Radio tuning / MP3/WMA/AAC folder se-
lector / AUDIO control knob
7. CD EJECT button
8. Radio station preset and CD selector but- tons
No satellite radio reception is available unless
an XM Satellite Radio subscription is active.
The audio control buttons are also located on
the center multi-function control panel.
SAA2724
Monitor, climate, audio, phone and voice recognition systems4-61

SCAN tuning :
Push the SCAN tuning button to tune from low
to high frequencies and stop at each broadcast-
ing station/channel for 5 seconds. Pushing the
button again during this 5 seconds period will
stop SCAN tuning and the radio will remain
tuned to that station/channel.
If the SCAN tuning button is not pushed within
5 seconds, SCAN tuning moves to the next
station/channel.
1to6Station memory operations :
12 stations/channels can be set for the FM band
(6 each for FM1 and FM2), 18 for XM radio (6
each for XM1, XM2 and XM3) and 6 stations can
be set for the AM band.
1. Choose the radio band using the radio band select button.
2. Tune to the desired station/channel using the SEEK·CAT, TRACK, SCAN button or the
radio TUNE knob.
3. Push and hold the desired station preset button
1to6until the radio mutes.
4. The station indicator will then come on and the sound will resume. Memorizing is
now complete.
5. Other buttons can be set in the same manner.
If the battery cable is disconnected, or if the
fuse opens, the radio memory will be erased. In
that case, reset the desired stations/channels.
List (AM and FM radio) (models with navigation
system) :
When the “List” key on the display is selected
while the FM or AM radio is being played, the
preset station list will be displayed.
If 1 of the 6 preset stations listed is touched and
held, the current station will be stored as the
new preset.
Menu (XM Satellite Radio) (models with naviga-
tion system) :
When the “Menu” key on the display is selected
while the XM Satellite Radio is being played,
the menu list will be displayed.
The following items are available.
● Preset List
Displays the preset channel list. If 1 of the 6
preset stations listed is touched and held,
the current station will be stored as the new
preset.
● Customize Channel List
Selects specific channels to skip while using
the TUNE, SEEK/CATEGORY or Menu-
Categories feature. ●
Favorite Artists & Songs
Stores the current artist or song that is being
played. Touch the “Alert” key to be reminded
when the stored artist or song is playing on
a station while listening to XM.
● Categories
Selecting a category will go to the first
channel in that category as defined by XM
Radio.
● Direct Tune
Inputs the channel number by using a key-
pad.
Text (models without navigation system) :
When the “Text” key is selected with the
INFINITI controller on the display and then the
ENTER button is pushed while the satellite radio
is being played, the text information listed
below will be displayed on the screen.
● CH Name
● Category
● Name
● Title
● Other
4-64Monitor, climate, audio, phone and voice recognition systems
