2011 HYUNDAI TUCSON center console

23
Your vehicle at a glance
INSTRUMENT PANEL OVERVIEW
1. Light control / Turn signals..................4-50
2. Steering wheel audio controls* ...........4-89
3. Bluetooth phone controls* ................4-110
4. Instrument cluster ...............................4-33
5. Horn ....................................................4-29
6. Driver’s front air bag ...........................3-49
7. Wiper/Washer (Front and Rear)* ........4-54
8. Auto cruise controls switches* ............5-36
9. Ignition switch ......................................5-5
10. Digital clock and Audio* ....................4-85
11. Hazard warning flasher switch ...4-49/6-2
12. PASSENGER AIR BAG OFF indicator..........................................................3-44
13. Climate control system*............4-61/4-70
14. Seat warmer* ....................................3-10
15. Cigar lighter* .....................................4-82
16. Aux, USB and iPod port* ..................4-90
17. Power outlet ......................................4-84
18. Ashtray* ............................................4-82
19. Cup holder ........................................4-83
20. Center console box...........................4-80
21. Shift lever ..........................................5-10
22. Passenger’s front air bag ..................3-49
23. Air vent..............................................4-64
24. Glove box ..........................................4-80
* : if equipped
OLM019002N

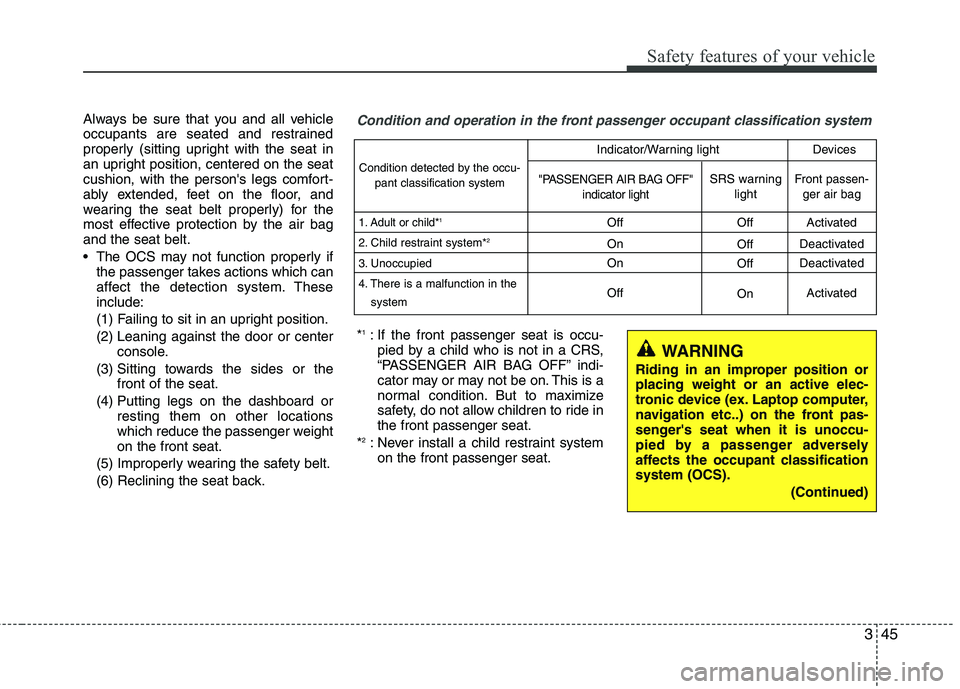

345
Safety features of your vehicle
Always be sure that you and all vehicle
occupants are seated and restrained
properly (sitting upright with the seat in
an upright position, centered on the seat
cushion, with the person's legs comfort-
ably extended, feet on the floor, and
wearing the seat belt properly) for the
most effective protection by the air bag and the seat belt.
The OCS may not function properly ifthe passenger takes actions which can
affect the detection system. These include:
(1) Failing to sit in an upright position.
(2) Leaning against the door or center console.
(3) Sitting towards the sides or the front of the seat.
(4) Putting legs on the dashboard or resting them on other locations
which reduce the passenger weighton the front seat.
(5) Improperly wearing the safety belt.
(6) Reclining the seat back.Condition and operation in the front passenger occupant classification system
* 1
: If the front passenger seat is occu-
pied by a child who is not in a CRS,
“PASSENGER AIR BAG OFF” indi-
cator may or may not be on. This is a
normal condition. But to maximize
safety, do not allow children to ride inthe front passenger seat.
* 2
: Never install a child restraint system
on the front passenger seat.
WARNING
Riding in an improper position or placing weight or an active elec-
tronic device (ex. Laptop computer,
navigation etc..) on the front pas-
senger's seat when it is unoccu-
pied by a passenger adversely
affects the occupant classification system (OCS). (Continued)
Condition detected by the occu-pant classification system
1. Adult or child*1
2. Child restraint system* 2
3. Unoccupied
4. There is a malfunction in the system
Off
On On
Off Off Off Off OnActivated
Deactivated
Deactivated
Activated
"PASSENGER AIR BAG OFF" indicator lightSRS warninglightFront passen-ger air bag
Indicator/Warning light Devices

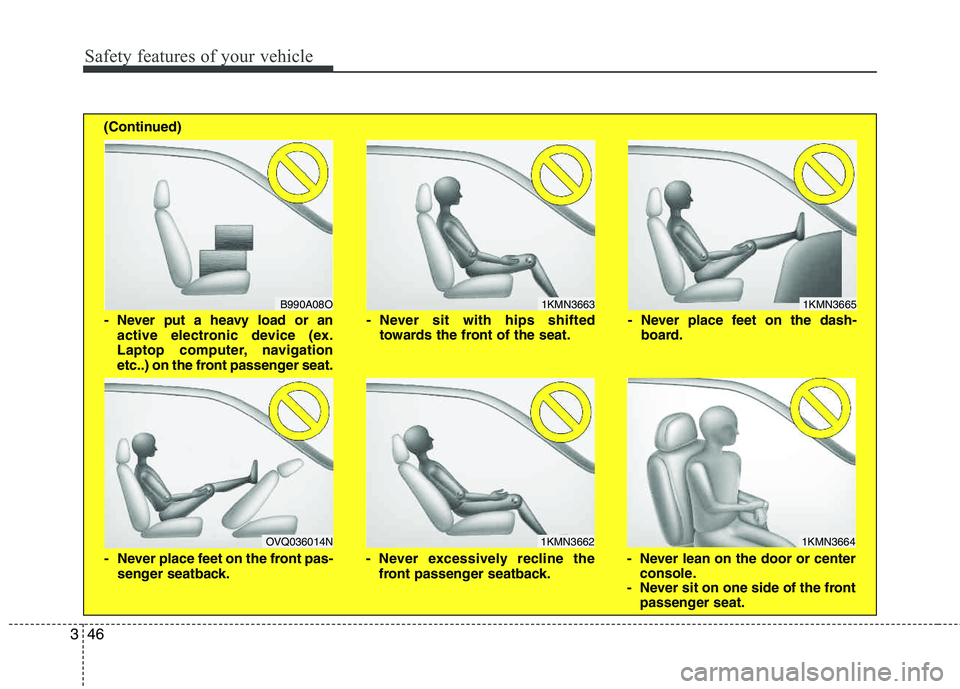

Safety features of your vehicle
46
3
1KMN3663
1KMN3664
1KMN3665
- Never sit with hips shifted towards the front of the seat.
- Never lean on the door or centerconsole.
- Never sit on one side of the front passenger seat.
- Never place feet on the dash-
board.B990A08O
1KMN3662
- Never put a heavy load or an
active electronic device (ex.
Laptop computer, navigation
etc..) on the front passenger seat.
- Never excessively recline thefront passenger seatback.OVQ036014N
- Never place feet on the front pas- senger seatback.
(Continued)

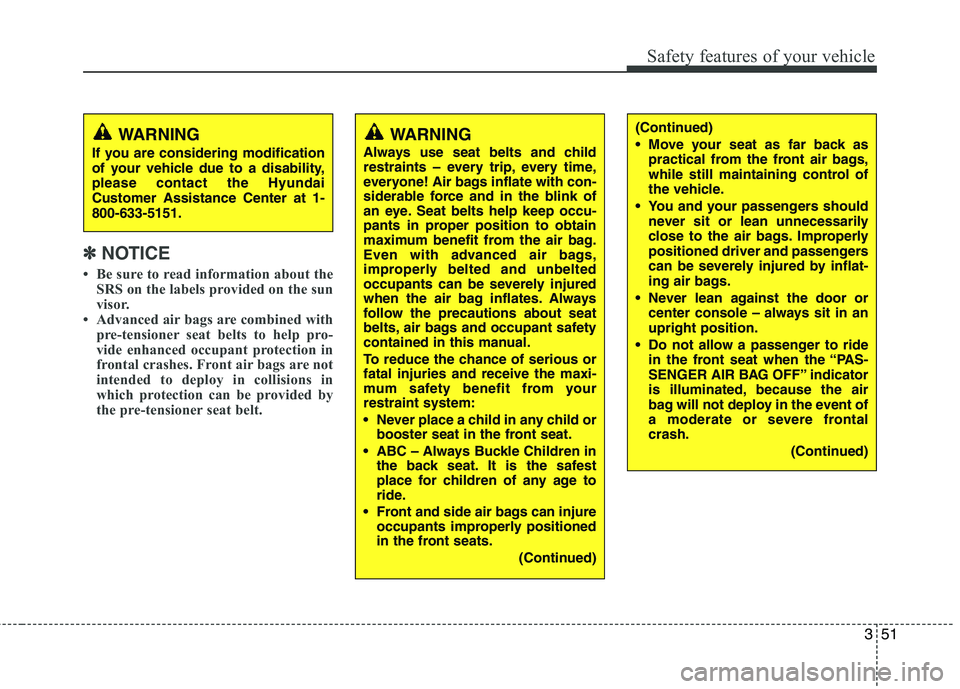

351
Safety features of your vehicle
✽✽NOTICE
 Be sure to read information about the SRS on the labels provided on the sun
visor.
 Advanced air bags are combined with pre-tensioner seat belts to help pro-
vide enhanced occupant protection in
frontal crashes. Front air bags are not
intended to deploy in collisions in
which protection can be provided by
the pre-tensioner seat belt.
(Continued)
Move your seat as far back aspractical from the front air bags,
while still maintaining control of
the vehicle.
You and your passengers should never sit or lean unnecessarily
close to the air bags. Improperly
positioned driver and passengers
can be severely injured by inflat-
ing air bags.
Never lean against the door or center console – always sit in an upright position.
Do not allow a passenger to ride in the front seat when the “PAS-
SENGER AIR BAG OFF” indicator
is illuminated, because the air
bag will not deploy in the event of
a moderate or severe frontal crash.
(Continued)WARNING
Always use seat belts and child
restraints – every trip, every time,
everyone! Air bags inflate with con-
siderable force and in the blink of
an eye. Seat belts help keep occu-
pants in proper position to obtain
maximum benefit from the air bag.
Even with advanced air bags,
improperly belted and unbelted
occupants can be severely injured
when the air bag inflates. Always
follow the precautions about seat
belts, air bags and occupant safety
contained in this manual.
To reduce the chance of serious or fatal injuries and receive the maxi-
mum safety benefit from yourrestraint system:
Never place a child in any child or booster seat in the front seat.
ABC – Always Buckle Children in the back seat. It is the safest
place for children of any age to
ride.
Front and side air bags can injure occupants improperly positioned
in the front seats.
(Continued)WARNING
If you are considering modification
of your vehicle due to a disability,please contact the HyundaiCustomer Assistance Center at 1- 800-633-5151.

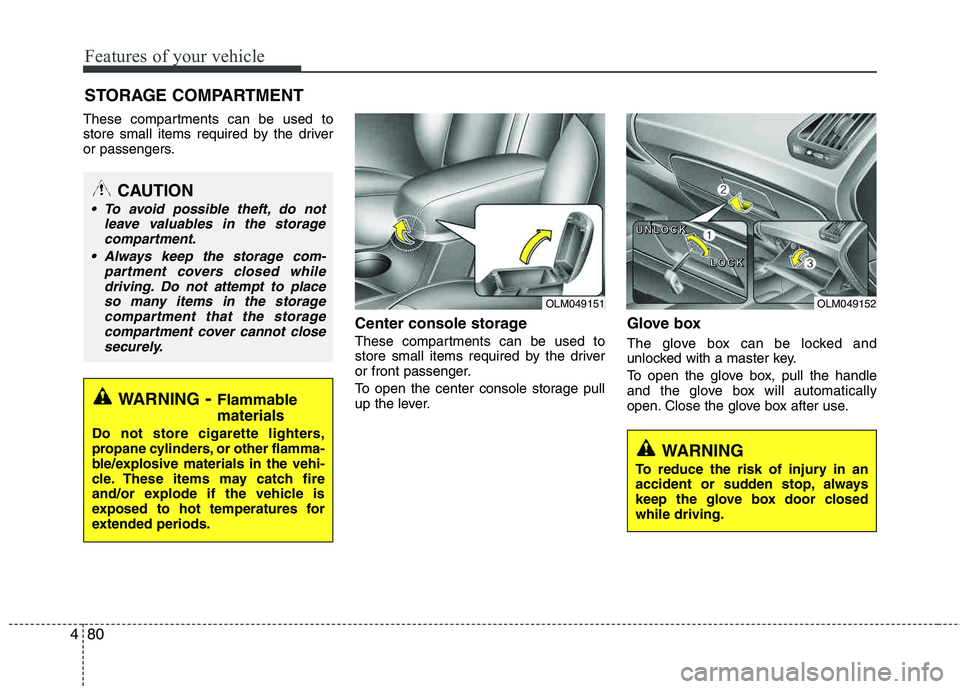

Features of your vehicle
80
4
These compartments can be used to
store small items required by the driver
or passengers.
Center console storage
These compartments can be used to
store small items required by the driver
or front passenger.
To open the center console storage pull
up the lever.
Glove box
The glove box can be locked and
unlocked with a master key.
To open the glove box, pull the handle
and the glove box will automatically
open. Close the glove box after use.
STORAGE COMPARTMENT
WARNING
- Flammable
materials
Do not store cigarette lighters,
propane cylinders, or other flamma-
ble/explosive materials in the vehi-
cle. These items may catch fire
and/or explode if the vehicle is
exposed to hot temperatures for
extended periods.
CAUTION
To avoid possible theft, do not leave valuables in the storagecompartment.
Always keep the storage com- partment covers closed whiledriving. Do not attempt to placeso many items in the storage
compartment that the storagecompartment cover cannot closesecurely.
WARNING
To reduce the risk of injury in an
accident or sudden stop, always
keep the glove box door closedwhile driving.
OLM049151OLM049152
U
UUUNNNNLLLLOOOOCCCCKKKK
LLLLOOOOCCCCKKKK

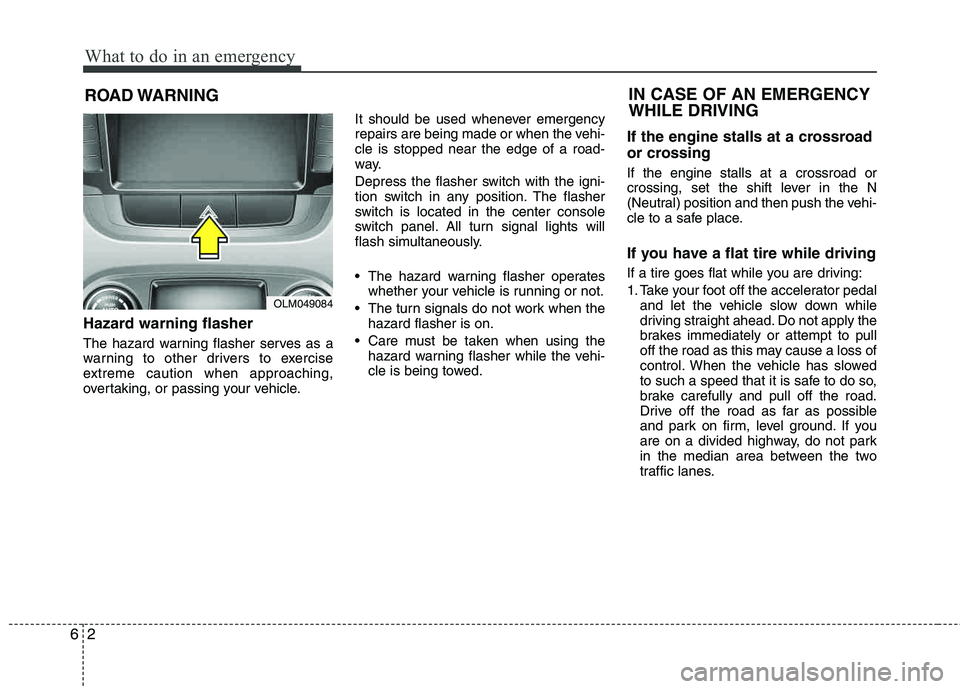

What to do in an emergency
2
6
ROAD WARNING
Hazard warning flasher
The hazard warning flasher serves as a
warning to other drivers to exercise
extreme caution when approaching,
overtaking, or passing your vehicle. It should be used whenever emergency
repairs are being made or when the vehi-cle is stopped near the edge of a road-
way.
Depress the flasher switch with the igni-
tion switch in any position. The flasher
switch is located in the center console
switch panel. All turn signal lights will
flash simultaneously.
• The hazard warning flasher operates
whether your vehicle is running or not.
The turn signals do not work when the hazard flasher is on.
Care must be taken when using the hazard warning flasher while the vehi-
cle is being towed.
If the engine stalls at a crossroad
or crossing
If the engine stalls at a crossroad or
crossing, set the shift lever in the N
(Neutral) position and then push the vehi-
cle to a safe place.
If you have a flat tire while driving
If a tire goes flat while you are driving:
1. Take your foot off the accelerator pedaland let the vehicle slow down while
driving straight ahead. Do not apply the
brakes immediately or attempt to pull
off the road as this may cause a loss of
control. When the vehicle has slowed
to such a speed that it is safe to do so,
brake carefully and pull off the road.
Drive off the road as far as possible
and park on firm, level ground. If you
are on a divided highway, do not park
in the median area between the two
traffic lanes.
IN CASE OF AN EMERGENCY WHILE DRIVING
OLM049084

I3

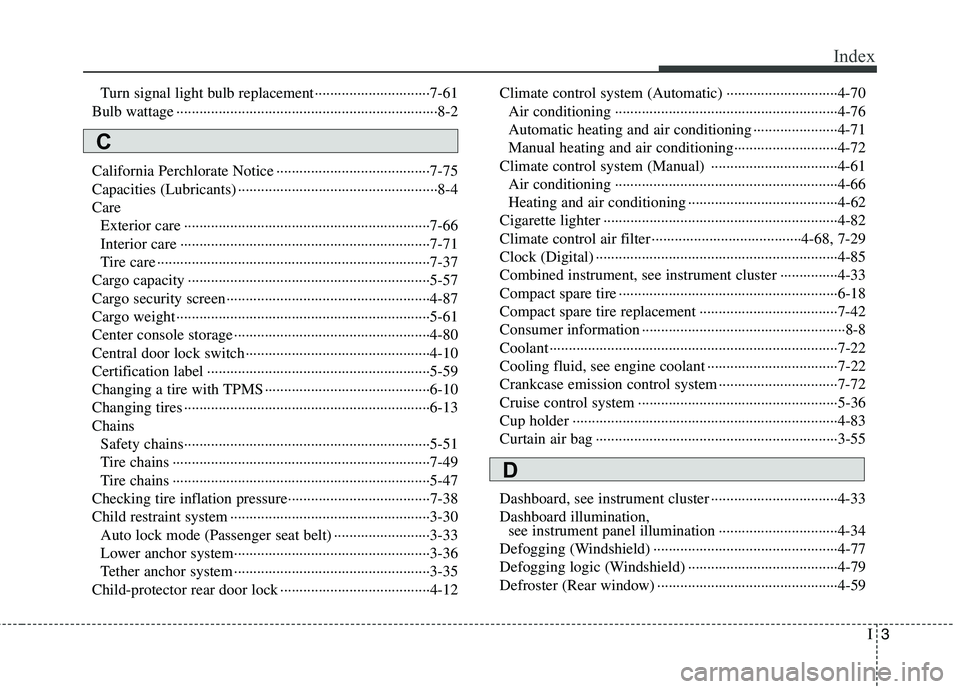

Index
Turn signal light bulb replacement······························7-61
Bulb wattage ····································································8-2
California Perchlorate Notice ········································7-75
Capacities (Lubricants) ····················································8-4Care Exterior care ································································7-66
Interior care ·································································7-71
Tire care ·······································································7-37
Cargo capacity ·······························································5-57
Cargo security screen·····················································4-87
Cargo weight ··································································5-61
Center console storage ···················································4-80
Central door lock switch················································4-10
Certification label ··························································5-59
Changing a tire with TPMS ···········································6-10
Changing tires ································································6-13Chains Safety chains································································5-51
Tire chains ···································································7-49
Tire chains ···································································5-47
Checking tire inflation pressure·····································7-38
Child restraint system ····················································3-30 Auto lock mode (Passenger seat belt) ·························3-33
Lower anchor system···················································3-36
Tether anchor system ···················································3-35
Child-protector rear door lock ·······································4-12 Climate control system (Automatic) ·····························4-70
Air conditioning ··························································4-76
Automatic heating and air conditioning ······················4-71
Manual heating and air conditioning···························4-72
Climate control system (Manual) ·································4-61 Air conditioning ··························································4-66
Heating and air conditioning ·······································4-62
Cigarette lighter ·····························································4-82
Climate control air filter ·······································4-68, 7-29
Clock (Digital) ·······························································4-85
Combined instrument, see instrument cluster ···············4-33
Compact spare tire ·························································6-18
Compact spare tire replacement ····································7-42
Consumer information ·····················································8-8
Coolant ···········································································7-22
Cooling fluid, see engine coolant ··································7-22
Crankcase emission control system ·······························7-72
Cruise control system ····················································5-36
Cup holder ·····································································4-83
Curtain air bag ·······························································3-55
Dashboard, see instrument cluster ·································4-33 Dashboard illumination, see instrument panel illumination ·······························4-34
Defogging (Windshield) ················································4-77
Defogging logic (Windshield) ·······································4-79
Defroster (Rear window) ···············································4-59
C
D

Index
8I
Seat belt warning ·························································3-17
Seat belts - Front passenger and rear seat ···················3-19
Seat warmer ···································································3-10
Seatback pocket ·····························································3-11
Seating capacity ·····························································5-57
Seats ·················································································3-2 Armrest ········································································3-13
Folding the rear seat ····················································3-13
Front seat adjustment - manual ·····································3-5
Front seat adjustment - power ·······································3-6
Headrest································································3-8, 3-12
Lumbar support ·····························································3-7
Rear seat adjustment····················································3-12
Seatback pocket ···························································3-11
Seat warmer ·································································3-10
Shift lock system ···························································5-14
Side impact air bag ························································3-53
Side marker light bulb replacement ·······························7-61
Side repeater light bulb replacement ·····························7-62Spare tire Compact spare tire ·······················································6-18
Compact spare tire replacement ··································7-42
Removing and storing the spare tire····························6-13
Smooth cornering···························································5-43
Snow tires ·····························································5-46, 7-48
Special driving conditions ·············································5-42 Driving at night ···························································5-43
Driving in flooded areas ··············································5-44 Driving in the rain ·······················································5-44
Hazardous driving conditions ······································5-42
Highway driving ··························································5-45
Rocking the vehicle ·····················································5-42
Smooth cornering ························································5-43
Speedometer···································································4-34
Sports mode ···································································5-13
Starting difficulties, see engine will not start ··················6-3
Starting the engine ···························································5-6
Steering wheel ·······························································4-28 Electronic power steering ············································4-28
Horn ·············································································4-29
Tilt steering ··································································4-28
Steering wheel audio control ·········································4-90
Storage compartment ·····················································4-80 Center console storage·················································4-80
Glove box ····································································4-80
Sunglass holder····························································4-81
Summer tires ··································································7-48
Sunglass holder ······························································4-81
Sunroof···········································································4-24
Sunvisor ·········································································4-83
Tachometer·····································································4-34
Tailgate···········································································4-13 Emergency tailgate safety release ·······························4-14
Tether anchor system ·····················································3-35
T
