2011 HYUNDAI TUCSON oil capacities

725
Maintenance
BRAKE/CLUTCH (IF EQUIPPED) FLUID
Checking the brake/clutch* fluid
level
Check the fluid level in the reservoir peri-
odically. The fluid level should be
between MAX and MIN marks on the
side of the reservoir.
Before removing the reservoir cap and
adding brake/clutch* fluid, clean the area
around the reservoir cap thoroughly to
prevent brake/clutch* fluid contamina-tion. *
:if equippedIf the level is low, add fluid to the MAX
level. The level will fall with accumulated
mileage. This is a normal condition asso-
ciated with the wear of the brake linings
and/or clutch disc (if equipped). If the
fluid level is excessively low, have the
brake/clutch* system checked by an
authorized HYUNDAI dealer.
Use only the specified brake/clutch* fluid.
(Refer to “Recommended lubricants andcapacities” in section 8.)
Never mix different types of fluid.
WARNING - Brake/clutch* fluid
When changing and adding
brake/clutch* fluid, handle it care-
fully. Do not let it come in contact
with your eyes. If brake/clutch* fluid
should come in contact with your
eyes, immediately flush them with a
large quantity of fresh tap water.
Have your eyes examined by a doc-
tor as soon as possible.
WARNING - Loss of
brake/clutch* fluid
In the event the brake/clutch* system
requires frequent additions of fluid,
the vehicle should be inspected by
an authorized HYUNDAI dealer.
OLM079008N
CAUTION
Do not allow brake/clutch* fluid to contact the vehicle's body paint, aspaint damage will result.
Brake/clutch* fluid, which has beenexposed to open air for an extended time should never be used as itsquality cannot be guaranteed. Itshould be disposed of properly.
Don't put in the wrong kind of fluid.A few drops of mineral-based oil, such as engine oil, in yourbrake/clutch* system can damage
brake/clutch* system parts.

Specifications, Consumer information, Reporting safety defects
4
8

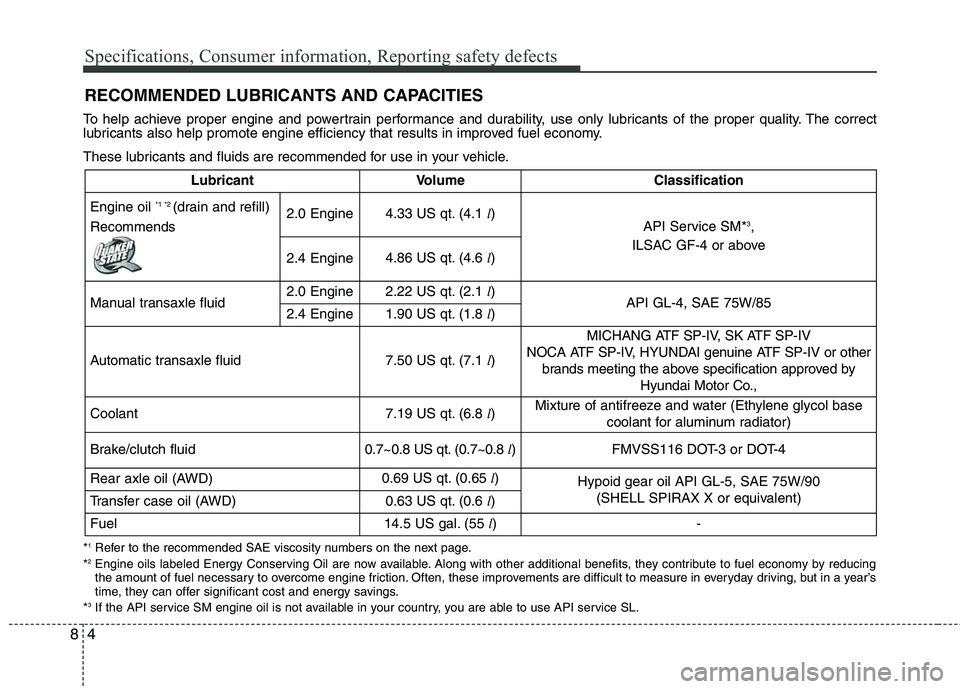

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
* 1
Refer to the recommended SAE viscosity numbers on the next page.
* 2
Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econo my by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
* 3
If the API service SM engine oil is not available in your country, you are able to use API service SL.
LubricantVolumeClassification
Engine oil *1 *2
(drain and refill)
Recommends2.0 Engine4.33 US qt. (4.1 l)API Service SM* 3
,
ILSAC GF-4 or above
2.4 Engine4.86 US qt. (4.6 l)
Manual transaxle fluid2.0 Engine2.22 US qt. (2.1 l)API GL-4, SAE 75W/852.4 Engine1.90 US qt. (1.8 l)
Automatic transaxle fluid7.50 US qt. (7.1 l)
MICHANG ATF SP-IV, SK ATF SP-IV
NOCA ATF SP-IV, HYUNDAI genuine ATF SP-IV or other brands meeting the above specification approved by Hyundai Motor Co.,
Coolant 7.19 US qt. (6.8 l)Mixture of antifreeze and water (Ethylene glycol base
coolant for aluminum radiator)
Brake/clutch fluid0.7~0.8 US qt. (0.7~0.8 l)FMVSS116 DOT-3 or DOT-4
Rear axle oil (AWD)0.69 US qt. (0.65 l)Hypoid gear oil API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Transfer case oil (AWD)0.63 US qt. (0.6 l)
Fuel14.5 US gal. (55 l)-

I7
Index
Maintenance services ·······················································7-3
Manual climate control system······································4-61Air conditioning ··························································4-66
Climate control air filter ··············································4-68
Heating and air conditioning ·······································4-62
Manual heating and air conditioning ·····························4-72
Manual transaxle······························································5-7
Memory fuse ··································································7-52
Mirrors ···········································································4-30 Inside rearview mirror ·················································4-30
Outside rearview mirror ··············································4-31
Moonroof, see sunroof···················································4-24
Neck restraints, see headrest ··································3-8, 3-12
Occupant classification system ······································3-44
Odometer/Tripmeter ······················································4-37
Oil (Engine) ···································································7-21
Outside rearview mirror·················································4-31
Overheats ·········································································6-6
Owner maintenance ·························································7-4
Panoramic sunroof ·························································4-24
Parking brake························································5-25, 7-27
Passenger's front air bag ················································3-49 Position light bulb replacement ·····································7-61
Power brakes ··································································5-24
Power outlet ···································································4-84
Power window lock button ············································4-18
Pre-tensioner seat belt····················································3-24
Push starting·····································································6-5
Rear combination light bulb replacement······················7-62
Rear seat adjustment ······················································3-12
Rearview camera····························································4-48
Recommended cold tire inflation pressures ··················7-37
Recommended lubricants and capacities ·························8-4
Recommended SAE viscosity number ··························8-5
Remote keyless entry ·······················································4-4
Reporting safety defects ··················································8-9
Road warning ···································································6-2
Rocking the vehicle ·······················································5-42
Roof rack ·······································································4-88
Safety chains ··································································5-51
Scheduled maintenance service ·······································7-6 Normal maintenance schedule·······································7-7
Maintenance under severe usage conditions ···············7-17
Seat belts ········································································3-16 Pre-tensioner seat belt ·················································3-24
Seat belt - Driver's ·······················································3-18
N
O
P
R
S
