Features of your vehicle
70
4
A : Wiper speed control
·
– Single wipe
· O – Off
· --- / AUTO* – Intermittent wipe/ Auto control wipe (*)
· 1 – Normal wiper speed
· 2 – Fast wiper speed
B : Intermittent or Auto control wipe time adjustment
C : Wash with brief wipes D : Rear wiper/washer control · – Spraying washer fluid
· – Normal wipe operation· O – Off
· – Wash with brief wipes
* if equipped

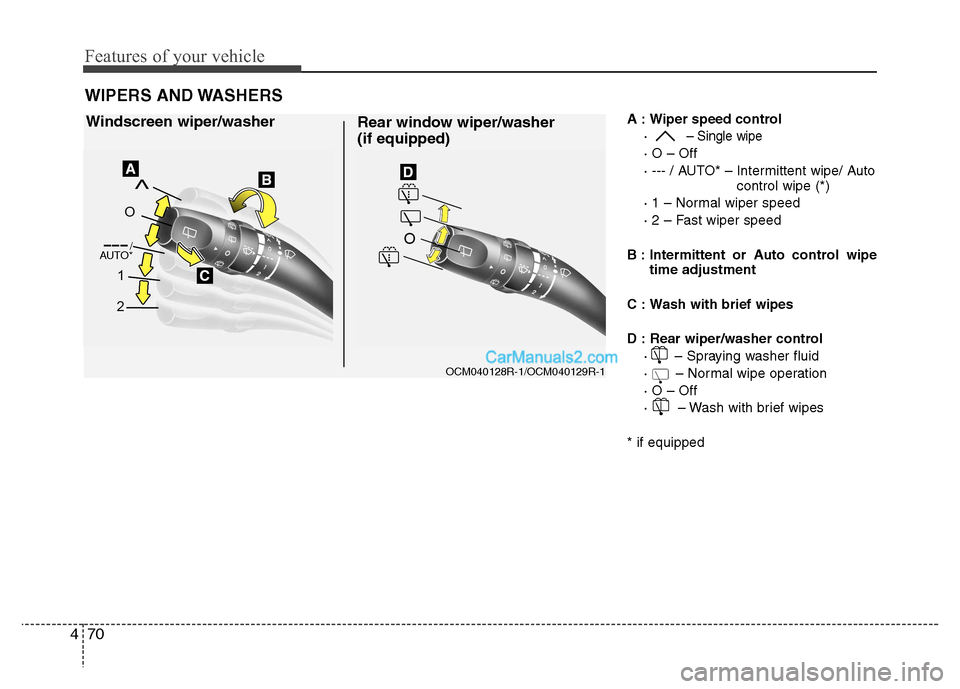

WIPERS AND WASHERS
OCM040128R-1/OCM040129R-1
Windscreen wiper/washerRear window wiper/washer (if equipped)
AUTO* /

471
Features of your vehicle
D200100ACM

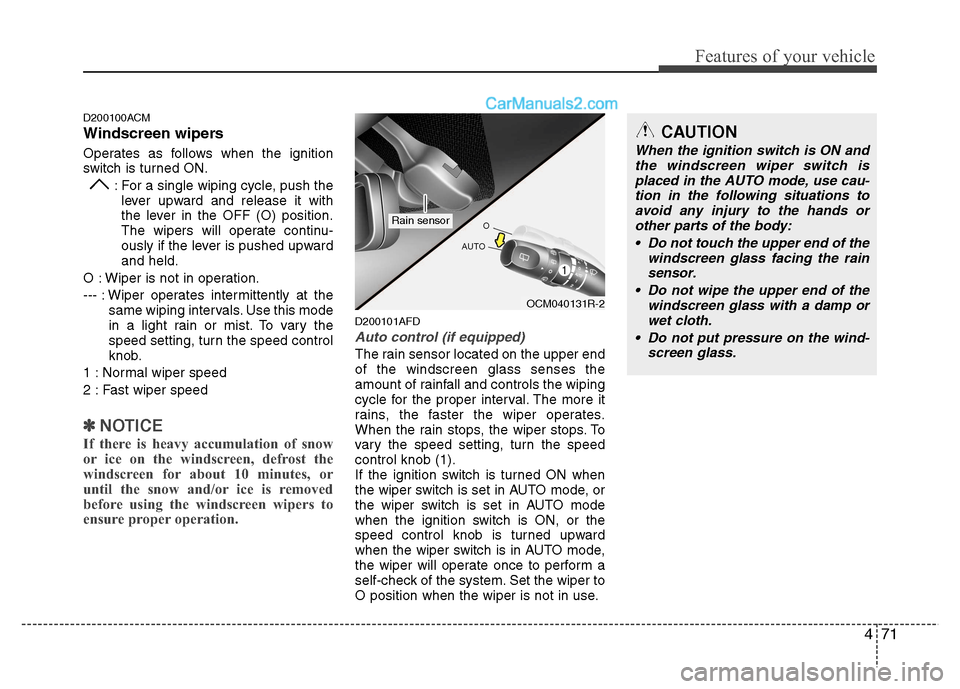

Windscreen wipers
Operates as follows when the ignition
switch is turned ON.: For a single wiping cycle, push thelever upward and release it with
the lever in the OFF (O) position.
The wipers will operate continu-
ously if the lever is pushed upwardand held.
O : Wiper is not in operation.
--- : Wiper operates intermittently at the same wiping intervals. Use this mode
in a light rain or mist. To vary the
speed setting, turn the speed control
knob.
1 : Normal wiper speed
2 : Fast wiper speed
✽✽ NOTICE
If there is heavy accumulation of snow
or ice on the windscreen, defrost the
windscreen for about 10 minutes, or
until the snow and/or ice is removed
before using the windscreen wipers to
ensure proper operation.
D200101AFD
Auto control (if equipped)
The rain sensor located on the upper end of the windscreen glass senses the
amount of rainfall and controls the wiping
cycle for the proper interval. The more it
rains, the faster the wiper operates.
When the rain stops, the wiper stops. To
vary the speed setting, turn the speedcontrol knob (1).
If the ignition switch is turned ON when
the wiper switch is set in AUTO mode, or
the wiper switch is set in AUTO mode
when the ignition switch is ON, or the
speed control knob is turned upward
when the wiper switch is in AUTO mode,
the wiper will operate once to perform a
self-check of the system. Set the wiper to
O position when the wiper is not in use.
CAUTION
When the ignition switch is ON and the windscreen wiper switch is
placed in the AUTO mode, use cau- tion in the following situations toavoid any injury to the hands orother parts of the body:
Do not touch the upper end of the windscreen glass facing the rainsensor.
Do not wipe the upper end of the windscreen glass with a damp or
wet cloth.
Do not put pressure on the wind- screen glass.
OCM040131R-2
Rain sensor

Features of your vehicle
72
4
D200200AFD

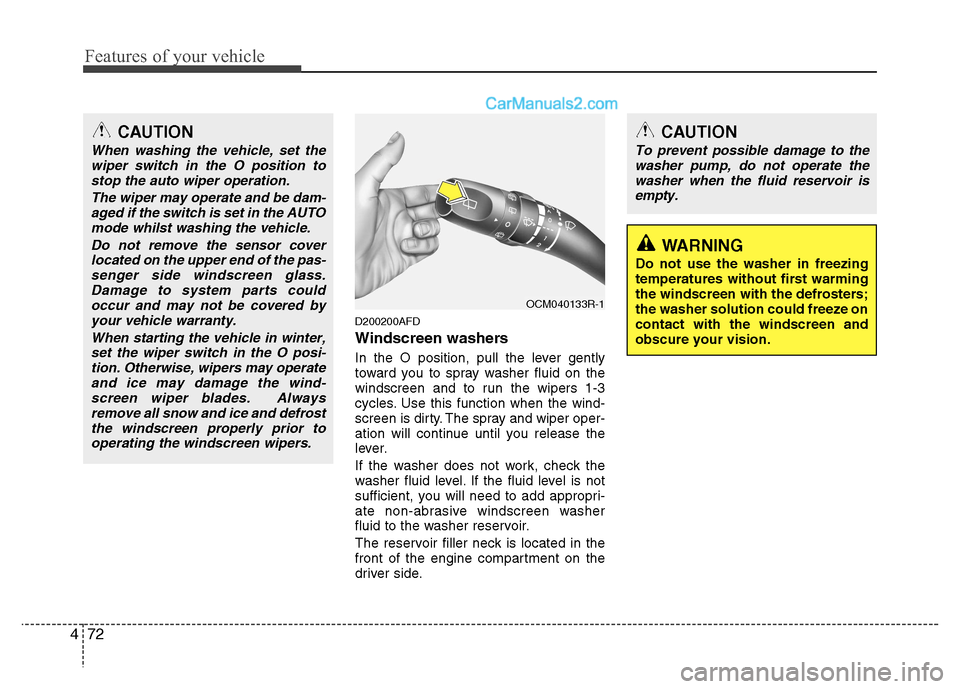

Windscreen washers
In the O position, pull the lever gently
toward you to spray washer fluid on the
windscreen and to run the wipers 1-3
cycles. Use this function when the wind-
screen is dirty. The spray and wiper oper-
ation will continue until you release the
lever.
If the washer does not work, check the
washer fluid level. If the fluid level is not
sufficient, you will need to add appropri-
ate non-abrasive windscreen washer
fluid to the washer reservoir.
The reservoir filler neck is located in the
front of the engine compartment on the
driver side.
CAUTION
When washing the vehicle, set the
wiper switch in the O position to
stop the auto wiper operation.
The wiper may operate and be dam-aged if the switch is set in the AUTO mode whilst washing the vehicle.
Do not remove the sensor coverlocated on the upper end of the pas-senger side windscreen glass.Damage to system parts could occur and may not be covered by
your vehicle warranty.
When starting the vehicle in winter,set the wiper switch in the O posi-tion. Otherwise, wipers may operateand ice may damage the wind-
screen wiper blades. Alwaysremove all snow and ice and defrostthe windscreen properly prior tooperating the windscreen wipers.
OCM040133R-1
CAUTION
To prevent possible damage to the washer pump, do not operate the
washer when the fluid reservoir is empty.
WARNING
Do not use the washer in freezing temperatures without first warmingthe windscreen with the defrosters;the washer solution could freeze oncontact with the windscreen andobscure your vision.

473
Features of your vehicle
D200300AFD

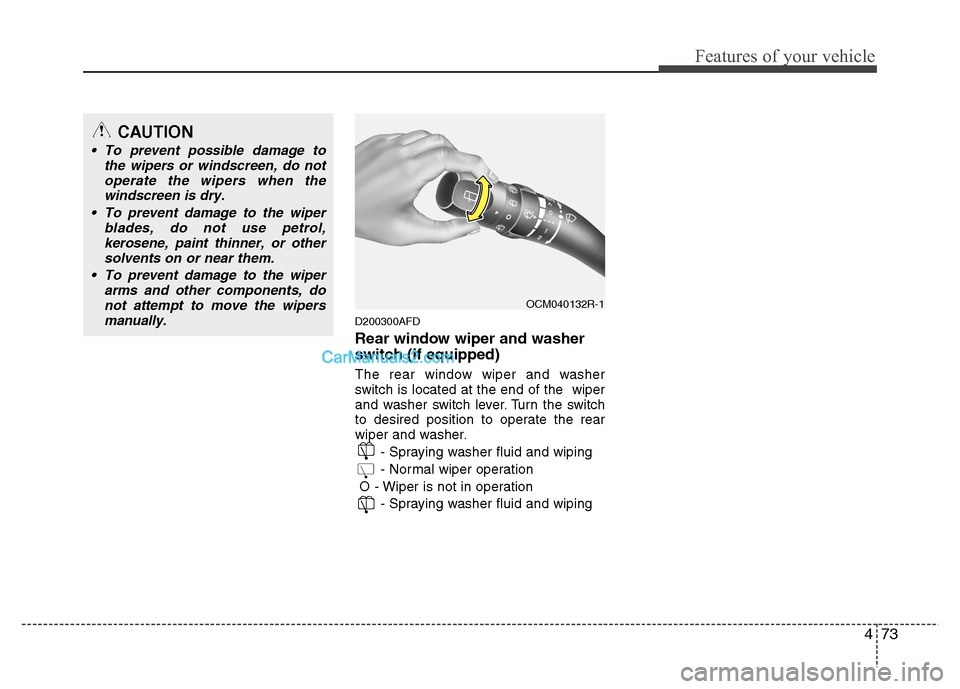

Rear window wiper and washer
switch (if equipped)
The rear window wiper and washer
switch is located at the end of the wiper
and washer switch lever. Turn the switch
to desired position to operate the rear
wiper and washer.- Spraying washer fluid and wiping
- Normal wiper operation
O - Wiper is not in operation - Spraying washer fluid and wiping
CAUTION
To prevent possible damage tothe wipers or windscreen, do not
operate the wipers when thewindscreen is dry.
To prevent damage to the wiper blades, do not use petrol,
kerosene, paint thinner, or other solvents on or near them.
To prevent damage to the wiper arms and other components, donot attempt to move the wipers
manually.
OCM040132R-1

Features of your vehicle
74
4
D210000AUN

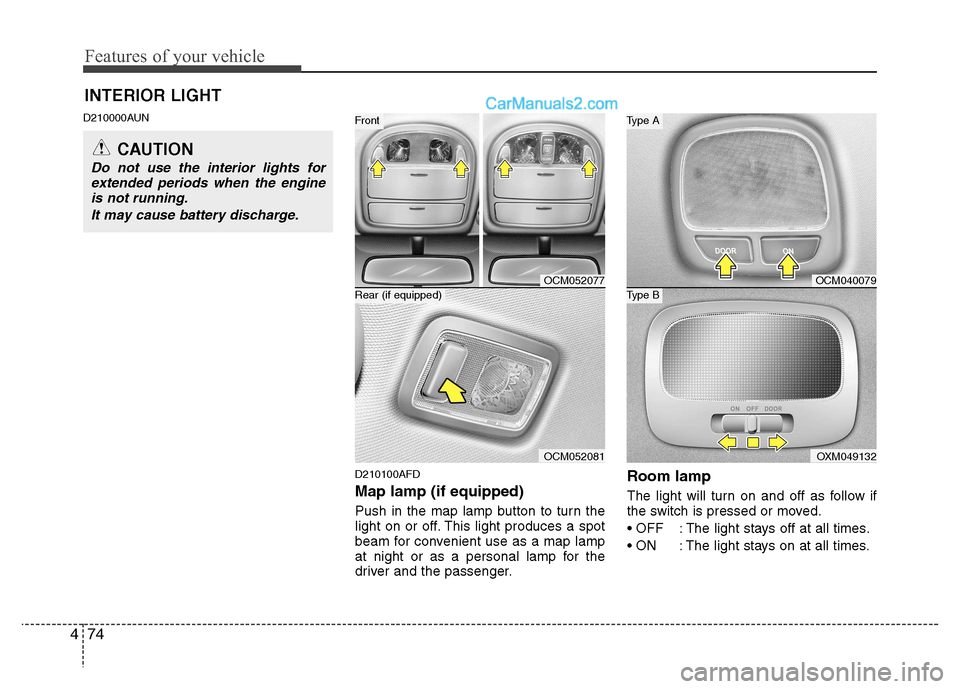

D210100AFD Map lamp (if equipped)
Push in the map lamp button to turn the
light on or off. This light produces a spot
beam for convenient use as a map lamp
at night or as a personal lamp for the
driver and the passenger.Room lamp
The light will turn on and off as follow if
the switch is pressed or moved.
: The light stays off at all times.
: The light stays on at all times.
INTERIOR LIGHT
CAUTION
Do not use the interior lights for
extended periods when the engineis not running.
It may cause battery discharge.
OCM052077
OCM052081
Rear (if equipped)
Front
OCM040079
OXM049132
Type B
Type A

475
Features of your vehicle

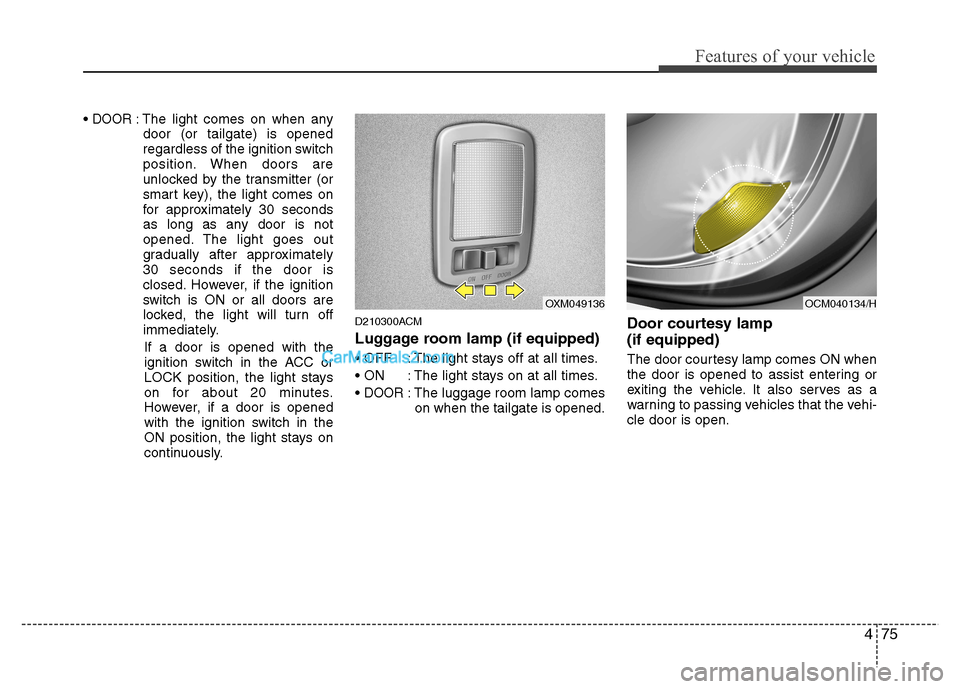

DOOR: The light comes on when anydoor (or tailgate) is opened
regardless of the ignition switch
position. When doors are
unlocked by the transmitter (or
smart key), the light comes on
for approximately 30 seconds
as long as any door is not
opened. The light goes out
gradually after approximately30 seconds if the door is
closed. However, if the ignition
switch is ON or all doors are
locked, the light will turn off
immediately.
If a door is opened with the
ignition switch in the ACC or
LOCK position, the light stays
on for about 20 minutes.
However, if a door is opened
with the ignition switch in the
ON position, the light stays on
continuously. D210300ACM
Luggage room lamp (if equipped)
: The light stays off at all times.
: The light stays on at all times.
DOOR: The luggage room lamp comes
on when the tailgate is opened. Door courtesy lamp (if equipped)
The door courtesy lamp comes ON when
the door is opened to assist entering or
exiting the vehicle. It also serves as a
warning to passing vehicles that the vehi-cle door is open.
OXM049136OCM040134/H

Features of your vehicle
76
4
D210500AUN

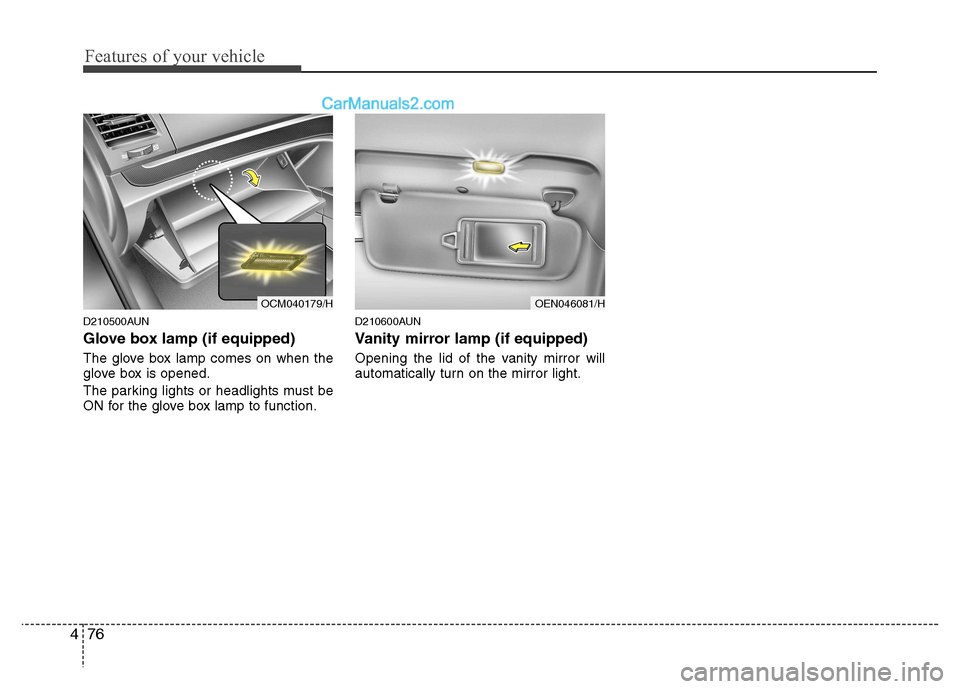

Glove box lamp (if equipped)
The glove box lamp comes on when the
glove box is opened.
The parking lights or headlights must be
ON for the glove box lamp to function. D210600AUN
Vanity mirror lamp (if equipped)
Opening the lid of the vanity mirror will
automatically turn on the mirror light.
OEN046081/HOCM040179/H

477
Features of your vehicle
D220000AUN
✽✽NOTICE
If you want to defrost and defog on the
front windscreen, refer to “Windscreen
Defrosting and Defogging” in this sec-
tion.
D220100AUN
Rear window defroster

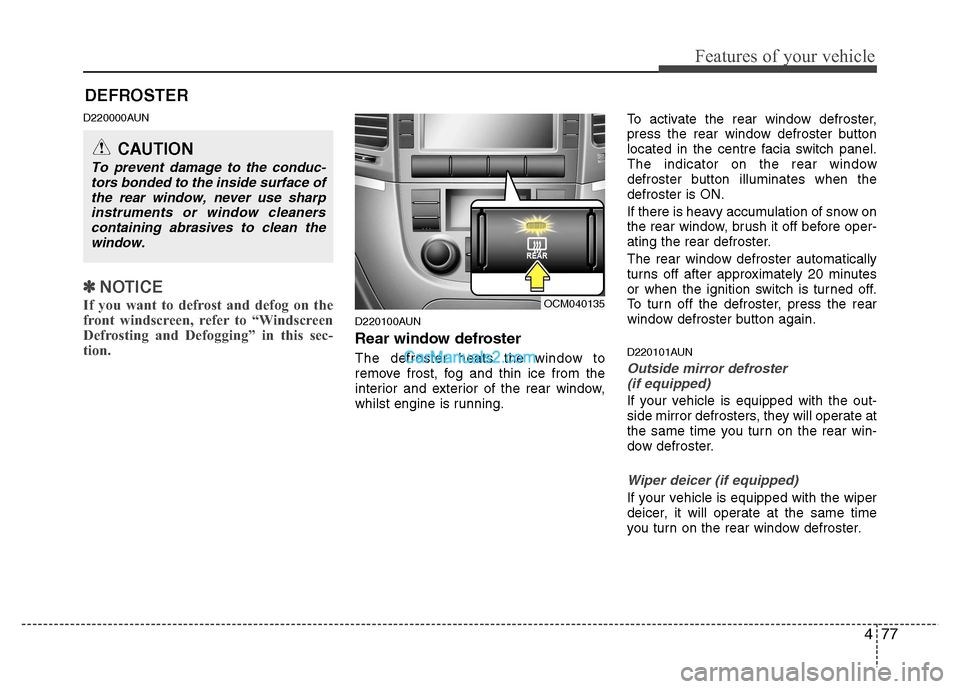

The defroster heats the window to
remove frost, fog and thin ice from the
interior and exterior of the rear window,
whilst engine is running. To activate the rear window defroster,
press the rear window defroster button
located in the centre facia switch panel.
The indicator on the rear window
defroster button illuminates when thedefroster is ON.
If there is heavy accumulation of snow on
the rear window, brush it off before oper-
ating the rear defroster.
The rear window defroster automatically
turns off after approximately 20 minutes
or when the ignition switch is turned off.
To turn off the defroster, press the rear
window defroster button again.
D220101AUN
Outside mirror defroster
(if equipped)
If your vehicle is equipped with the out-
side mirror defrosters, they will operate at
the same time you turn on the rear win-
dow defroster.
Wiper deicer (if equipped)
If your vehicle is equipped with the wiper
deicer, it will operate at the same time
you turn on the rear window defroster.
DEFROSTER
CAUTION
To prevent damage to the conduc-
tors bonded to the inside surface of
the rear window, never use sharpinstruments or window cleanerscontaining abrasives to clean thewindow.
OCM040135
