2011 HYUNDAI IX20 ESP

Maintenance
66
7
DescriptionFuse ratingSystemProtected Component
15ATRANSMISSION
CONTROL UNITSpeed In Sensor, Speed Out Sensor, Speed Sensor, Inhibitor Switch
10AIGNITION COILIgnition Coil, Condensor
10AIGNITIONHLLD Switch, HLLD Actuator, BCM, Air Conditioning System, Sunroof, ETCS
25AWINDSCREEN WIPING
SYSTEM (CONTINUOUS)Front Wiper Moter Relay, Multi Function Switch Wiper
10AFRONT FOG LAMPFront Fog Lamp, BCM
10AREAR FOG LAMPRear Fog Lamp, BCM
10AROOM LAMPRoom Lamp Switch, MUT
15ASTOP LAMPStop Switch, BCM
10ACLUSETERCluster, BCM, Digtal Clock
10AIGNITIONAudio,TPMS, IMMOUNIT, Center Facia Switch
10AANTI-LOCK BRAKE SYSTEMYaw Rate Sensor, ABS(ESP),ESP Switch
10AB/UP LPBack Up Switch
10AELECTRONIC (ENGINE) CONTROL UNITECU, AFS
10ARAIN SENSOR
(PTC HEATER )Rain Sensor Relay (PTC, Fuel Filter Heater)
10APOWER DISTRIBUTION MODULESmart key Uint
JC ENG 7.QXP 9/7/2010 12:01 PM Page 66
procarmanuals.com

Maintenance
68
7
Engine compartment fuse panel
DescriptionFuse ratingSystemProtected Component
50AIGNITIONStart Sol, IGN_SW
50ABATTERYI/P Junction(Stop Lamp 15A,Tail Lamp Relay, Room Lamp, Luggage
10A,Tail Lamp LH 10A, Tail Lamp RH 10A)
30AFUEL FILTER HEATERFuel Filter Heater (Diesel)
125A/150AALTERNATORAlternator
40AANTI-LOCK BRAKE SYSTEMABS,ESP
40AANTI-LOCK BRAKE SYSTEMABS,ESP
40AREAR HEAT RAYS JOIN
GLASSI/P Junction(Rear Heater Relay, Heated Mirror 10A)
40ABLOWERBlower Motor
80AMOTOR DRIVEN POWERSTEERINGMDPS(Motor Driven Power Steering)
30AIGNITIONIgnition Switch (IG1, Accessory)
40ACOOLING FANCooling Fan Relay(High), Cooling Fan Relay(Low)
30AELECTRONIC (ENGINE)CONTROL UNIT"Main Relay, ECU 4 10A, ECU 1 20A, ECU 3 10A, Sensor 1 10A, Sensor 2 10A,Injector 15A"
50ABATTERY"I/P Junction(Hazard 15A, Power Window Relay, Power window LH 25A,
Power window RH 25A ,Safety Power window 15A, Sunroof 20A, PDM 2
10A, Deicer 15A, Folding 10A, PDM1 25A, Door Lock 20A)"
JC ENG 7.QXP 9/7/2010 12:01 PM Page 68
procarmanuals.com

771
Maintenance
LIGHT BULBS
Use only the bulbs of the specifiedwattage.
✽✽ NOTICE
After heavy, driving rain or washing, headlight and taillight lenses could
appear frosty. This condition is caused by
the temperature difference between the
lamp inside and outside. This is similar
to the condensation on your windows
inside your vehicle during the rain and
doesn’t indicate a problem with your
vehicle. If the water leaks into the lamp
bulb circuitry, have the vehicle checked
by an authorized HYUNDAI dealer.
Headlight, position light, turn sig-
nal light, front fog light bulbreplacement
(1) Headlight (Low) (2) Headlight (High)
(3) Smart cornering light*
(4) Position light
(5) Front turn signal light
(6) Front fog light* * if equipped
WARNING - Working on
the lights
Prior to working on the light, firmly
apply the parking brake, ensure
that the ignition switch is turned tothe LOCK position and turn off the
lights to avoid sudden movement
of the vehicle and burning your fin-
gers or receiving an electric shock.
CAUTION
Be sure to replace the burned-out bulb with one of the same wattagerating. Otherwise, it may cause
damage to the fuse or electricwiring system.
CAUTION
If you don’t have necessary tools,the correct bulbs and the expertise,
consult an authorized HYUNDAIdealer. In many cases, it is difficult to replace vehicle light bulbsbecause other parts of the vehicle
must be removed before you canget to the bulb. This is especially true if you have to remove the head-
light assembly to
get to the bulb(s).
Removing/installingthe headlight
assembly can result in damage to the vehicle.OJC070027
JC ENG 7.QXP 9/7/2010 12:01 PM Page 71
procarmanuals.com

779
Maintenance

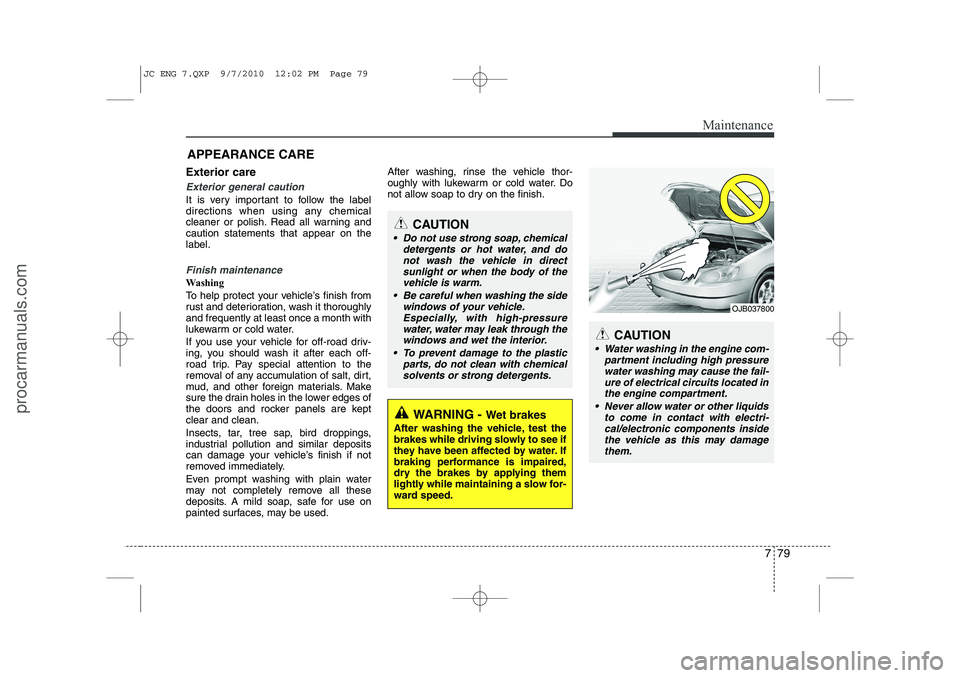

APPEARANCE CARE
Exterior care
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning andcaution statements that appear on thelabel.
Finish maintenance
Washing
To help protect your vehicle’s finish from
rust and deterioration, wash it thoroughlyand frequently at least once a month with
lukewarm or cold water.
If you use your vehicle for off-road driv-
ing, you should wash it after each off-
road trip. Pay special attention to the
removal of any accumulation of salt, dirt,
mud, and other foreign materials. Make
sure the drain holes in the lower edges of
the doors and rocker panels are keptclear and clean.
Insects, tar, tree sap, bird droppings,
industrial pollution and similar deposits
can damage your vehicle’s finish if not
removed immediately.
Even prompt washing with plain water
may not completely remove all these
deposits. A mild soap, safe for use on
painted surfaces, may be used. After washing, rinse the vehicle thor-
oughly with lukewarm or cold water. Do
not allow soap to dry on the finish.
WARNING -
Wet brakes
After washing the vehicle, test the
brakes while driving slowly to see if
they have been affected by water. If
braking performance is impaired,
dry the brakes by applying them
lightly while maintaining a slow for-
ward speed.
CAUTION
 Water washing in the engine com- partment including high pressurewater washing may cause the fail-ure of electrical circuits located in
the engine compartment.
 Never allow water or other liquids to come in contact with electri-cal/electronic components inside the vehicle as this may damage
them.
OJB037800
CAUTION
 Do not use strong soap, chemical detergents or hot water, and donot wash the vehicle in direct
sunlight or when the body of thevehicle is warm.
 Be careful when washing the side windows of your vehicle.
Especially, with high-pressurewater, water may leak through the windows and wet the interior.
 To prevent damage to the plastic parts, do not clean with chemical
solvents or strong detergents.
JC ENG 7.QXP 9/7/2010 12:02 PM Page 79
procarmanuals.com

785
Maintenance

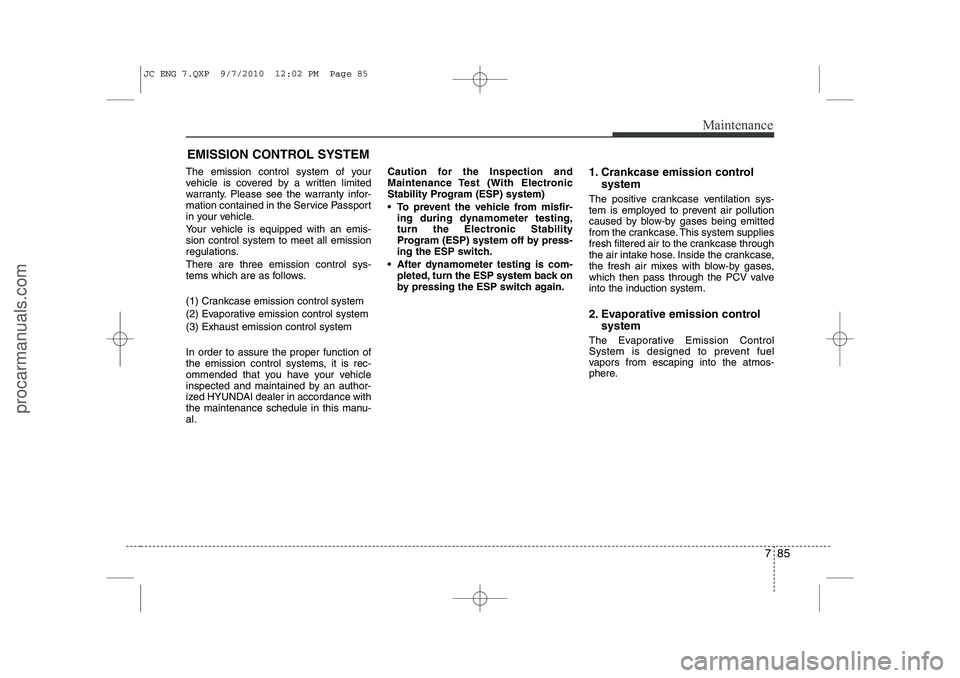

EMISSION CONTROL SYSTEM
The emission control system of your
vehicle is covered by a written limited
warranty. Please see the warranty infor-
mation contained in the Service Passport
in your vehicle.
Your vehicle is equipped with an emis- sion control system to meet all emission
regulations. There are three emission control sys-
tems which are as follows.
(1) Crankcase emission control system
(2) Evaporative emission control system(3) Exhaust emission control system In order to assure the proper function of
the emission control systems, it is rec-
ommended that you have your vehicle
inspected and maintained by an author-
ized HYUNDAI dealer in accordance with
the maintenance schedule in this manu-al. Caution for the Inspection and
Maintenance Test (With Electronic
Stability Program (ESP) system)
 To prevent the vehicle from misfir-
ing during dynamometer testing,
turn the Electronic Stability
Program (ESP) system off by press-
ing the ESP switch.
 After dynamometer testing is com- pleted, turn the ESP system back on
by pressing the ESP switch again. 1. Crankcase emission control
system
The positive crankcase ventilation sys-
tem is employed to prevent air pollution
caused by blow-by gases being emitted
from the crankcase. This system supplies
fresh filtered air to the crankcase through
the air intake hose. Inside the crankcase,
the fresh air mixes with blow-by gases,
which then pass through the PCV valveinto the induction system.
2. Evaporative emission control system
The Evaporative Emission Control
System is designed to prevent fuel
vapors from escaping into the atmos-
phere.
JC ENG 7.QXP 9/7/2010 12:02 PM Page 85
procarmanuals.com

Specifications & Consumer information
6
8
Recommended SAE viscosity
number
Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather. Using
oils of any viscosity other than those rec-ommended could result in engine dam-
age.When choosing an oil, consider the
range of temperature your vehicle will be
operated in before the next oil change.Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, ordipstick before checking or drain-ing any lubricant. This is especially
important in dusty or sandy areas and when the vehicle is used onunpaved roads. Cleaning the plugand dipstick areas will prevent dirt
and grit from entering the engine and other mechanisms that couldbe damaged.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil * 1
(For Europe) °C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Diesel
Engine Oil * 45W-30
15W-40
10W-30
0W-40, 5W-30, 5W-40
Gasoline
Engine Oil * 2
(Except Europe)20W-50
10W-30
15W-40
5W-20* 3
, 5W-30
* 1
: For better fuel economy, it is recommended to use the engine oil of a viscosity
grade SAE 0W-40, 5W-30, 5W-40 (API Service SL, SM / ACEA A5 or above).
* 2
: For better fuel economy, it is recommended to use the engine oil of a viscosity
grade SAE 5W-20,5W-30 (API SL, SM / ILSAC GF-3 or above). However, if the
engine oil is not available in your country, select the proper engine oil using the
engine oil viscosity chart.
* 3
: In Middle East, do not use the engine oil of viscosity grade SAE 5W-20.
* 4
: If your vehicle follows 30,000 km/ 1 year interval in normal maintenance schedule,
use the engine oil of viscosity grade, SAE 5W-30 or SAE 0W-30.
5W-40
0W-30, 0W-40
JC ENG 8.QXP 9/7/2010 1:43 PM Page 6
procarmanuals.com

Index
2
I
Air bags ···········································································3-37
Air bag warning label................................................3-59
Air bag warning light ................................................3-40
Curtain air bag ..........................................................3-51
Driver's and passenger's front air bag ......................3-44
Passenger’s front air bag ON/OFF indicator ............3-41
Passenger’s front air bag ON/OFF switch ................3-47
Side impact air bag....................................................3-49
Air cleaner·······································································7-43
Alarm system ··································································4-11
Antenna ·········································································4-111
Anti-lock brake system (ABS) ·······································5-29
Appearance care······························································7-79 Exterior care ······························································7-79
Interior care ·······························································7-84
Armrest ····································································3-5, 3-13
Ashtray ··········································································4-104
Audio system ································································4-111 Antenna ···································································4-111
Aux, USB and iPod ·················································4-107
Audio remote control ·············································4-112
Automatic climate control system ··································4-90 Air conditioning ···············································4-86, 4-96
Automatic heating and air conditioning····················4-91
Manual heating and air conditioning ························4-92 Automatic transaxle ························································5-21
Shift lock system ·······················································5-24
Battery ·············································································7-47
Battery saver function ·····················································4-69
Before driving ···································································5-3
Bottle holders, see cup holders ·····································4-105
Brake/clutch fluid ···························································7-38
Brake system ···································································5-26 Anti-lock brake system (ABS) ··································5-29
Electronic stability program (ESP) ···························5-31
Hill-start assist control (HAC) ··································5-34
Parking brake ····························································5-27
Power brakes ·····························································5-26
Bulb replacement ····························································7-71 Front fog light bulb replacement ······························7-74
Headlight bulb replacement ······································7-72
High mounted stop light replacement ·······················7-77
Interior light bulb replacement··································7-78
License plate light bulb replacement ························7-77
Position light bulb replacement ································7-73
Rear combination light bulb replacement ·················7-75
Rear fog light bulb replacement································7-77Side repeater light bulb replacement·························7-74
Smart cornering light bulb replacement····················7-72
Turn signal light bulb replacement ···························7-73
A
B
JC ENG INDEX.QXP 9/7/2010 12:36 PM Page 2
procarmanuals.com

Index
4
I
Displays, see instrument cluster ····································4-40 Display illumination, see instrument
panel illumination ·······················································4-41
Door locks ·······································································4-13 Central door lock/unlock switch ······························4-14
Child-protector rear door lock ·································4-16
Drinks holders, see cup holders ···································4-105
Driver's air bag ·······························································3-44
Driving at night ······························································5-47
Driving in flooded areas ················································5-48
Driving in the rain ·························································5-48
Economical operation ····················································5-43
Electric chromic mirror (ECM) ·····································4-35
Electric power steering ··················································4-33
Electronic stability program (ESP) ·································5-31
Emergency starting ··························································6-5 Jump starting ······························································6-5
Push starting ·······························································6-7
Emergency tailgate safety release ··································4-18
Emergency towing ·························································6-29
Emergency while driving ·················································6-3
Emission control system ················································7-85 Crankcase emission control system ·························7-85
Evaporative emission control system ······················7-85
Exhaust emission control system ·····························7-86 Engine ···············································································8-2
Engine compartment ················································2-6, 7-2
Engine coolant ·······························································7-35
Engine number ·································································8-8
Engine oil ·······································································7-34
Engine overheats ······························································6-8
Engine start/stop button ···················································5-8
Engine temperature gauge ·············································4-42
Engine will not start ·························································6-4
Evaporative emission control system ····························7-85
Exhaust emission control system ···································7-86Explanation of scheduled maintenance items ················7-30
Exterior care ···································································7-79
Flat tire ·············································································6-9
Changing tires ··························································6-10
Jack and tools ·····························································6-9
Removing and storing the spare tire ························6-10
Flat tire (with TireMobilityKit) ······································6-17
Floor mat anchor(s) ·····················································4-108Fluid Brake/clutch fluid ·····················································7-38
Washer fluid ·····························································7-41
Folding the rear seat ······················································3-10
Front fog light ·································································4-73
Front fog light bulb replacement ···································7-74
E
F
JC ENG INDEX.QXP 9/7/2010 12:36 PM Page 4
procarmanuals.com
