2011 HYUNDAI IX20 warning light

Maintenance
78
7
Interior light bulb replacement
1. Using a flat-blade screwdriver, gently
pry the lens from the interior light housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Align the lens tabs with the interior light housing notches and snap the
lens into place.■Front map lamp
■ Side room lamp/Vanity mirror lamp
OYN079052/OYN079049
■Glove box lamp
■Luggage room lamp
OYN079046/OYN079047/OJC070043
WARNING
Prior to working on the Interior
Lights, ensure that the “OFF” but-
ton is depressed to avoid burning
your fingers or receiving an electric
shock.
CAUTION
Use care not to dirty or damage lens, lens tab, and plastic housings.
■ Center room lamp
JC ENG 7.QXP 9/7/2010 12:02 PM Page 78
procarmanuals.com

779
Maintenance
APPEARANCE CARE
Exterior care
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning andcaution statements that appear on thelabel.
Finish maintenance
Washing
To help protect your vehicle’s finish from
rust and deterioration, wash it thoroughlyand frequently at least once a month with
lukewarm or cold water.
If you use your vehicle for off-road driv-
ing, you should wash it after each off-
road trip. Pay special attention to the
removal of any accumulation of salt, dirt,
mud, and other foreign materials. Make
sure the drain holes in the lower edges of
the doors and rocker panels are keptclear and clean.
Insects, tar, tree sap, bird droppings,
industrial pollution and similar deposits
can damage your vehicle’s finish if not
removed immediately.
Even prompt washing with plain water
may not completely remove all these
deposits. A mild soap, safe for use on
painted surfaces, may be used. After washing, rinse the vehicle thor-
oughly with lukewarm or cold water. Do
not allow soap to dry on the finish.
WARNING -
Wet brakes
After washing the vehicle, test the
brakes while driving slowly to see if
they have been affected by water. If
braking performance is impaired,
dry the brakes by applying them
lightly while maintaining a slow for-
ward speed.
CAUTION
 Water washing in the engine com- partment including high pressurewater washing may cause the fail-ure of electrical circuits located in
the engine compartment.
 Never allow water or other liquids to come in contact with electri-cal/electronic components inside the vehicle as this may damage
them.
OJB037800
CAUTION
 Do not use strong soap, chemical detergents or hot water, and donot wash the vehicle in direct
sunlight or when the body of thevehicle is warm.
 Be careful when washing the side windows of your vehicle.
Especially, with high-pressurewater, water may leak through the windows and wet the interior.
 To prevent damage to the plastic parts, do not clean with chemical
solvents or strong detergents.
JC ENG 7.QXP 9/7/2010 12:02 PM Page 79
procarmanuals.com

781
Maintenance

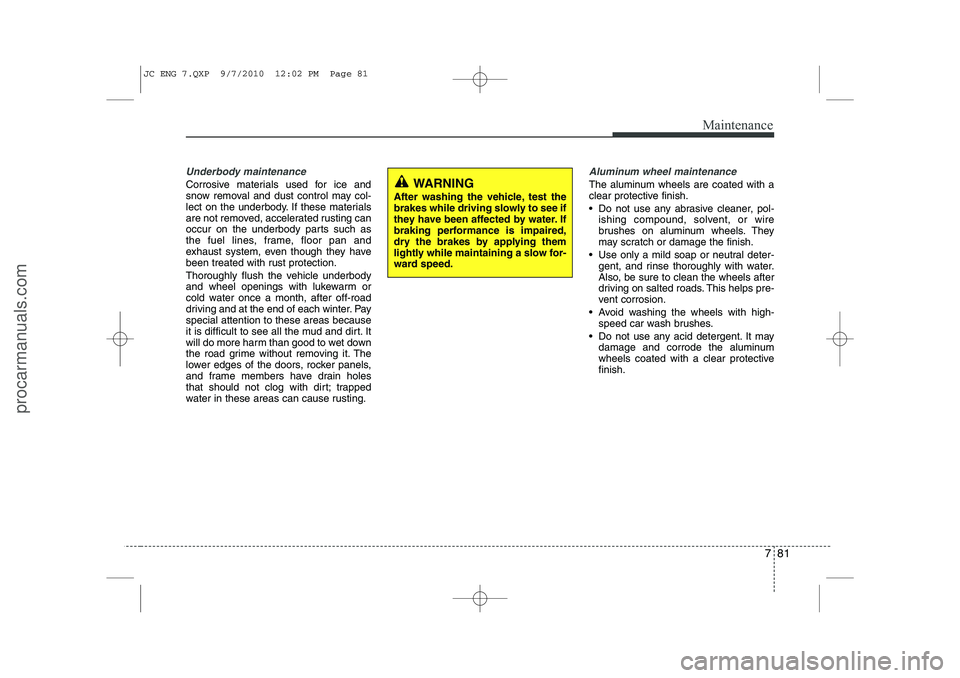

Underbody maintenance
Corrosive materials used for ice and
snow removal and dust control may col-
lect on the underbody. If these materials
are not removed, accelerated rusting can
occur on the underbody parts such as
the fuel lines, frame, floor pan and
exhaust system, even though they have
been treated with rust protection.
Thoroughly flush the vehicle underbody
and wheel openings with lukewarm or
cold water once a month, after off-road
driving and at the end of each winter. Payspecial attention to these areas because
it is difficult to see all the mud and dirt. It
will do more harm than good to wet down
the road grime without removing it. The
lower edges of the doors, rocker panels,
and frame members have drain holes
that should not clog with dirt; trapped
water in these areas can cause rusting.
Aluminum wheel maintenance
The aluminum wheels are coated with a
clear protective finish.
 Do not use any abrasive cleaner, pol-ishing compound, solvent, or wire
brushes on aluminum wheels. They
may scratch or damage the finish.
 Use only a mild soap or neutral deter- gent, and rinse thoroughly with water.
Also, be sure to clean the wheels after
driving on salted roads. This helps pre-
vent corrosion.
 Avoid washing the wheels with high- speed car wash brushes.
 Do not use any acid detergent. It may damage and corrode the aluminum
wheels coated with a clear protectivefinish.WARNING
After washing the vehicle, test the
brakes while driving slowly to see if
they have been affected by water. If
braking performance is impaired,
dry the brakes by applying them
lightly while maintaining a slow for-
ward speed.
JC ENG 7.QXP 9/7/2010 12:02 PM Page 81
procarmanuals.com

Index
2
I
Air bags ···········································································3-37
Air bag warning label................................................3-59
Air bag warning light ................................................3-40
Curtain air bag ..........................................................3-51
Driver's and passenger's front air bag ......................3-44
Passenger’s front air bag ON/OFF indicator ............3-41
Passenger’s front air bag ON/OFF switch ................3-47
Side impact air bag....................................................3-49
Air cleaner·······································································7-43
Alarm system ··································································4-11
Antenna ·········································································4-111
Anti-lock brake system (ABS) ·······································5-29
Appearance care······························································7-79 Exterior care ······························································7-79
Interior care ·······························································7-84
Armrest ····································································3-5, 3-13
Ashtray ··········································································4-104
Audio system ································································4-111 Antenna ···································································4-111
Aux, USB and iPod ·················································4-107
Audio remote control ·············································4-112
Automatic climate control system ··································4-90 Air conditioning ···············································4-86, 4-96
Automatic heating and air conditioning····················4-91
Manual heating and air conditioning ························4-92 Automatic transaxle ························································5-21
Shift lock system ·······················································5-24
Battery ·············································································7-47
Battery saver function ·····················································4-69
Before driving ···································································5-3
Bottle holders, see cup holders ·····································4-105
Brake/clutch fluid ···························································7-38
Brake system ···································································5-26 Anti-lock brake system (ABS) ··································5-29
Electronic stability program (ESP) ···························5-31
Hill-start assist control (HAC) ··································5-34
Parking brake ····························································5-27
Power brakes ·····························································5-26
Bulb replacement ····························································7-71 Front fog light bulb replacement ······························7-74
Headlight bulb replacement ······································7-72
High mounted stop light replacement ·······················7-77
Interior light bulb replacement··································7-78
License plate light bulb replacement ························7-77
Position light bulb replacement ································7-73
Rear combination light bulb replacement ·················7-75
Rear fog light bulb replacement································7-77Side repeater light bulb replacement·························7-74
Smart cornering light bulb replacement····················7-72
Turn signal light bulb replacement ···························7-73
A
B
JC ENG INDEX.QXP 9/7/2010 12:36 PM Page 2
procarmanuals.com

I5
Index
Front seat adjustment ························································3-4
Fuel filler lid ··································································4-26
Fuel filter(for diesel) ······················································7-42
Fuel gauge ······································································4-43
Fuel requirements ····························································1-3Fuses ··············································································7-60
Fuse/relay panel description ····································7-64
Main fuse ··································································7-63
Memory fuse ·····························································7-62
Multi fuse ·································································7-60
Gauges·············································································4-41 Engine temperature gauge·········································4-42
Fuel gauge ································································4-43
Glassroof, see panorama sunroof····································4-29
Glove box ·····································································4-100
Glove box cooling·························································4-101 Hazard warning flasher ··········································4-68, 6-2
Hazardous driving conditions ········································5-45
Headlight bulb replacement ···········································7-72
Headlight escort function ···············································4-69
Headlight leveling device ··············································4-74
Headrest ··································································3-6, 3-12
Heating and air conditioning ·········································4-82High mounted stop light replacement ····························7-77
Highway driving ····························································5-49
Hill-start assist control (HAC)········································5-34Hood ···············································································4-24Horn ···············································································4-34
How to use this manual ···················································1-2
Immobilizer system ·························································4-3
Indicators and warnings ·················································4-47Indicator symbols on the instrument cluster ····················1-7
Instrument cluster ··························································4-40
Engine temperature gauge ········································4-42
Fuel gauge ································································4-43
Instrument panel illumination ··································4-41
LCD display ······························································4-58Odometer ··································································4-43Speedometer ·····························································4-41
G
H
I
JC ENG INDEX.QXP 9/7/2010 12:36 PM Page 5
procarmanuals.com

Index
6
I
Tachometer ·······························································4-41
Tripmeter ···································································4-44
Trip computer ···························································4-44
Warning and indicators ············································4-47
Instrument panel illumination ········································4-41
Instrument panel overview ··············································2-4
Interior care ····································································7-84
Interior features ····························································4-103 Ashtray ···································································4-104
Cigarette lighter ······················································4-104
Clothes hanger·························································4-107
Cup holder ······························································4-105
Digital clock ···························································4-103
Aux, USB and iPod ················································4-107
Floor mat anchor(s) ················································4-108
Luggage net (holder) ··············································4-108
Luggage board·························································4-109
Outside temperature ················································4-103
Power outlet ···························································4-106
Shopping bag holder ··············································4-107Sunvisor ··································································4-105
Interior light ···································································4-79 Luggage room lamp ··················································4-18
Map lamp ··································································4-79
Room lamp ································································4-79
Vanity mirror lamp····················································4-79
Interior light bulb replacement ······································7-78
Interior overview ·····························································2-2 ISG (Idle Stop and Go) system ······································5-14
ISOFIX system ······························································3-33
Jack and tools ···································································6-9
Jump starting ····································································6-5
Key positions ···································································5-4 Keys ·················································································4-2 Label
Air bag warning label ··············································3-59
Tire sidewall labeling ···············································7-56
Tire specification and pressure label ·························8-8
Vehicle certification label ··········································8-7
Latch system, see ISOFIX system ·································3-33
License plate light bulb replacement ·····························7-77
Light bulbs ·····································································7-71 Front fog light bulb replacement ·····························7-74
Headlight bulb replacement ·····································7-72
High mounted stop light replacement ······················7-77
Interior light bulb replacement ································7-78
License plate light bulb replacement ·······················7-77
L
K
J
JC ENG INDEX.QXP 9/7/2010 12:36 PM Page 6
procarmanuals.com

Index
8
I
Neck restraints, see headrest ··································3-6, 3-12 Odometer ·······································································4-43
Oil (Engine) ···································································7-34
Outside mirror defroster ················································4-80
Outside temperaure ·······················································4-103
Outside rearview mirror ·················································4-36Overheats ·········································································6-8
Owner maintenance ·························································7-5
Panorama sunroof ··························································4-29
Parking brake ·································································5-27
Parking brake inspect ·····················································7-41
Passenger's front air bag ················································3-44
Position light bulb replacement ·····································7-73
Power brakes ··································································5-27
Power outlet ·································································4-106
Power window lock switch ············································4-22
Pre-tensioner seat belt ····················································3-21
Push starting ·····································································6-7 Rear combination light bulb replacement ······················7-75
Rear fog light ··································································4-73
Rear fog light bulb replacement ·····································7-77
Rear seat adjustment ·························································3-9
Rear parking assist system ·············································4-63
Rear window defroster····················································4-80
Rearview camera ···························································4-67
Recommended cold tire inflation pressures ··················7-50
Recommended lubricants and capacities ·························8-4
Recommended SAE viscosity number ······················8-6
Remote keyless entry ·······················································4-5
Road warning ···································································6-2
Rocking the vehicle ·······················································5-46
Room lamp······································································4-79
Scheduled maintenance service ·······································7-7 Normal maintenance schedule ··························7-8, 7-19
Maintenance under severe usage conditions ··7-17, 7-28
Seat····················································································3-2 Armrest ·····························································3-5, 3-13
Folding the rear seat ·················································3-10
Front seat adjustment ··················································3-4
Headrest ····························································3-6, 3-12
Rear seat adjustment ···················································3-9
R
S
O
P
N
JC ENG INDEX.QXP 9/7/2010 12:36 PM Page 8
procarmanuals.com

I9
Index
Seatback pocket ··························································3-9
Seat warmer ································································3-8
Seat belts ········································································3-14 Pre-tensioner seat belt ··············································3-21
Lap/shoulder belt ······················································3-16
3 point rear center belt ·············································3-19
Seat belt warning ···························································3-15
Seat warmer ·····································································3-8
Seatback pocket ·······························································3-9
Shift lock system ···························································5-24
Shopping bag holder ····················································4-107
Side impact air bag ························································3-49
Side repeater light bulb replacement ·····························7-74
Smart cornering light ······················································4-69
Smart key ·········································································4-8
Smooth cornering ···························································5-47
Snow tires ······································································5-50Spare tire Removing and storing the spare tire ························6-10Use of compact spare tire ·········································6-15
Special driving conditions ·············································5-45 Driving at night ························································5-47
Driving in flooded areas ··········································5-48
Driving in the rain ····················································5-48
Hazardous driving conditions ··································5-45
Highway driving ······················································5-49
Rocking the vehicle ··················································5-46
Smooth cornering ·····················································5-47 Speed limit control system ·············································5-41Speedometer ···································································4-41
Starting difficulties, see engine will not start ··················6-4
Starting the engine ··················································5-5, 5-11
Steering wheel ·······························································4-33
Electric power steering ············································4-33Horn ··········································································4-34
Tilt steering ······························································4-33
Storage compartment ···················································4-100 Center console storage ···········································4-100
Cool box ··································································4-101
Glove box ·······························································4-100
Luggage box ····························································4-102
Sunglass holder ······················································4-101
Sunroof, see panorama sunroof ·····································4-29Sunvisor ·······································································4-105 Tachometer ····································································4-41 Tailgate ··········································································4-17 Emergency tailgate safety release ····························4-18
Tether anchor system ·····················································3-32
Theft-alarm system ························································4-11
Tie-down hook ································································6-31
Tilt steering ····································································4-33
Tire chains·······································································5-51
TireMobilityKit ·······························································6-17
T
JC ENG INDEX.QXP 9/7/2010 12:36 PM Page 9
procarmanuals.com
