2011 HYUNDAI I40 Battery type

Downloaded from www.Manualslib.com manuals search engine Your vehicle at a glance
82
ENGINE COMPARTMENT
OVF071002/OVF071002R
1. Engine oil dipstick ............................7-44
2. Engine oil filler cap ..........................7-44
3. Engine coolant reservoir ..................7-46
4. Radiator cap ....................................7-47
5. Brake/clutch* fluid reservoir .............7-48
6. Windshield washer fluid reservoir ....7-49
7. Air cleaner .......................................7-51
8. Positive battery terminal ..................7-58
9. Negative battery terminal ................7-58
10. Fuse box ........................................7-73
* : if equipped
❈The actual engine room in the vehicle may
differ from the illustration.
■
■Gasoline (1.6L)
• Right-Hand drive type
Left-Hand drive type

Downloaded from www.Manualslib.com manuals search engine 29
Your vehicle at a glance
OVF071001/OVF071001R
1. Engine oil dipstick ............................7-44
2. Engine oil filler cap ..........................7-44
3. Engine coolant reservoir ..................7-46
4. Radiator cap ....................................7-47
5. Brake/clutch* fluid reservoir .............7-48
6. Windshield washer fluid reservoir ....7-49
7. Air cleaner .......................................7-51
8. Positive battery terminal ..................7-58
9. Negative battery terminal ................7-58
10. Fuse box ........................................7-73
* : if equipped
❈The actual engine room in the vehicle may
differ from the illustration.
■
■Gasoline (2.0L)
Right-Hand drive type
Left-Hand drive type

Downloaded from www.Manualslib.com manuals search engine 210
Your vehicle at a glance
OVF071003/OVF071003R
1. Engine oil dipstick ............................7-44
2. Engine oil filler cap ..........................7-44
3. Engine coolant reservoir ..................7-46
4. Radiator cap ....................................7-47
5. Brake/clutch* fluid reservoir .............7-48
6. Windshield washer fluid reservoir ....7-49
7. Fuel filter ..........................................7-50
8. Air cleaner ........................................7-51
9. Positive battery terminal ..................7-58
10. Negative battery terminal ..............7-58
11. Fuse box ........................................7-73
* : if equipped
❈The actual engine room in the vehicle may
differ from the illustration.
■
■Diesel Engine (1.7L)
Right-Hand drive type
Left-Hand drive type

Downloaded from www.Manualslib.com manuals search engine 47
Features of your vehicle
Transmitter precautions
✽
✽NOTICE
The transmitter will not work if any of
following occur:
• The ignition key is in ignition switch.
• You exceed the operating distance
limit (about 10 m [30 feet]).
• The battery in the transmitter is weak.
• Other vehicles or objects may be blocking the signal.
• The weather is extremely cold.
• The transmitter is close to a radio transmitter such as a radio station or
an airport which can interfere with
normal operation of the transmitter.
When the transmitter does not work
correctly, open and close the door with
the ignition key. If you have a problem
with the transmitter, contact an author-
ized HYUNDAI dealer.
Battery replacement
A battery should last for several years,
but if the transmitter or smart key is not
working properly, try replacing the bat-
tery with a new one. If you are unsure
how to use or replace the battery, contact
an authorized HYUNDAI dealer.
CAUTION
Changes or modifications not expressly approved by the partyresponsible for compliance couldvoid the user’s authority to operatethe equipment. If the keyless entry system is inoperative due tochanges or modifications notexpressly approved by the partyresponsible for compliance, it willnot be covered by your manufactur-er’s vehicle warranty.
CAUTION
Keep the transmitter away fromwater or any liquid. If the keylessentry system is inoperative due to exposure to water or liquids, it willnot be covered by your manufactur-er vehicle warranty.
■Type B OVF041213
■Type A
OHG040009

Downloaded from www.Manualslib.com manuals search engine 447
Features of your vehicle
Electric type
To fold the outside rearview mirror, press
the button.
To unfold it, press the button again.
OVF041037
CAUTION
In case it is an electric type outsiderearview mirror, don’t fold it byhand. It could cause motor failure.
CAUTION
The electric type outside rearviewmirror operates even though theignition switch is in the OFF posi-tion. However, to prevent unneces- sary battery discharge, do notadjust the mirrors longer than nec-essary while the engine is not run-ning.

Downloaded from www.Manualslib.com manuals search engine Features of your vehicle
54
4
Trip computer
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving
when the ignition switch is in the ON
position. All stored driving information
(except odometer, distance to empty and
instant fuel economy) resets if the battery
is disconnected.
Press the DISP button to change
between modes.
Distance to empty (km or mi.)
This mode indicates the estimated dis-
tance the vehicle can be driven with the
remaining fuel. When the remaining dis-
tance is below 50 km (30 miles), “---” will
be displayed.
The meter’s working range is from 50 to
999 km (30 to 999 miles).
Average speed
Elapsed time
Distance to empty
Average fuel economy*/
Instant fuel economy*
* if equipped
OVF041054
OVF041055
■ Type A■Type B
■ Type A ■Type B

Downloaded from www.Manualslib.com manuals search engine 455
Features of your vehicle

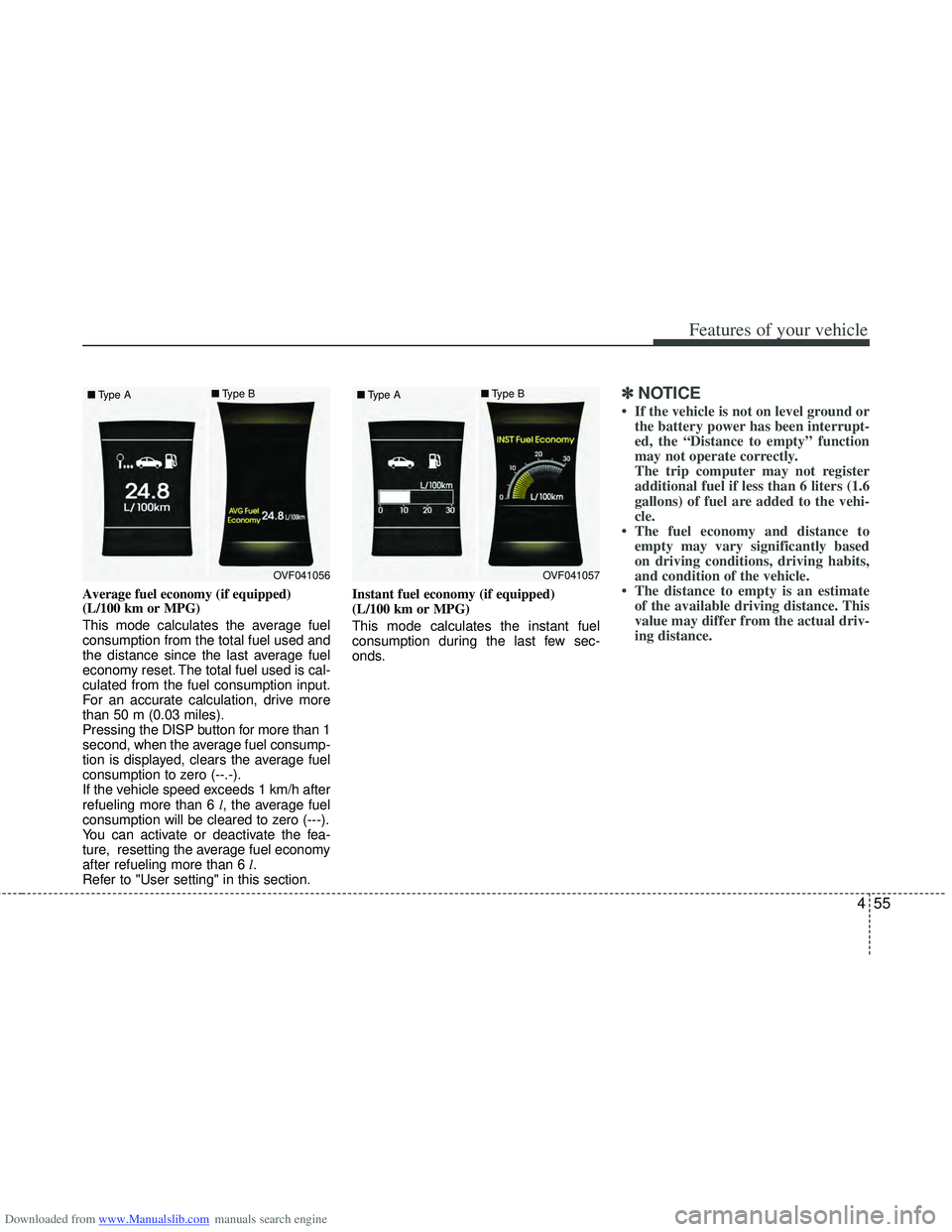

Average fuel economy (if equipped)
(L/100 km or MPG)
This mode calculates the average fuel
consumption from the total fuel used and
the distance since the last average fuel
economy reset. The total fuel used is cal-
culated from the fuel consumption input.
For an accurate calculation, drive more
than 50 m (0.03 miles).
Pressing the DISP button for more than 1
second, when the average fuel consump-
tion is displayed, clears the average fuel
consumption to zero (--.-).
If the vehicle speed exceeds 1 km/h after
refueling more than 6 l, the average fuel
consumption will be cleared to zero (---).
You can activate or deactivate the fea-
ture, resetting the average fuel economy
after refueling more than 6 l.
Refer to "User setting" in this section. Instant fuel economy (if equipped)
(L/100 km or MPG)
This mode calculates the instant fuel
consumption during the last few sec-
onds.
✽ ✽
NOTICE
• If the vehicle is not on level ground or
the battery power has been interrupt-
ed, the “Distance to empty” function
may not operate correctly.
The trip computer may not register
additional fuel if less than 6 liters (1.6
gallons) of fuel are added to the vehi-
cle.
• The fuel economy and distance to empty may vary significantly based
on driving conditions, driving habits,
and condition of the vehicle.
• The distance to empty is an estimate of the available driving distance. This
value may differ from the actual driv-
ing distance.
OVF041056
■
Type A ■
Type BOVF041057
■
Type A ■
Type B

Downloaded from www.Manualslib.com manuals search engine 463
Features of your vehicle
Low key battery
If the engine start/stop button changes to
the OFF position when the smart key in
the vehicle discharges, the warning illu-
minates on the LCD display for about 10
seconds. Also, the warning chime
sounds once.
Replace the battery with a new one.Press brake pedal to start engine
(for automatic transaxle)
If the engine start/stop button changes to
the ACC position twice by pressing the
button repeatedly without depressing the
brake pedal, the warning illuminates on
the LCD display for about 10 seconds to
indicate that you should depress the
brake pedal to start the engine.Press clutch pedal to start engine
(for manual transaxle)
If the engine start/stop button turns to the
ACC position twice by pressing the but-
ton repeatedly without depressing the
clutch pedal, the warning illuminates on
the LCD display for about 10 seconds to
indicate that you should depress the
clutch pedal to start the engine.
OVF041078
■
Type A ■Type BOVF041079
■
Type A ■Type BOVF041080
■
Type A ■Type B
