Downloaded from www.Manualslib.com manuals search engine Introduction
41
Use of MTBE
HYUNDAI recommends avoiding fuels
containing MTBE (Methyl Tertiary Butyl
Ether) over 15.0% vol. (Oxygen Content
2.7% weight) in your vehicle.
Fuel containing MTBE over 15.0% vol.
(Oxygen Content 2.7% weight) may
reduce vehicle performance and produce
vapor lock or hard starting.
Do not use methanol
Fuels containing methanol (wood alco-
hol) should not be used in your vehicle.
This type of fuel can reduce vehicle per-
formance and damage components of
the fuel system.
Fuel Additives
HYUNDAI recommends that you use
good quality gasolines meet Europe Fuel
standards (EN228) or equivalents.
For customers who do not use good
quality gasolines including fuel additives
regularly, and have problems starting or
the engine does not run smoothly, one
bottle of additives added to the fuel tank
at every 15,000km (for Europe)/ 5,000km
(except Europe). Additives are available
from your authorized HYUNDAI dealer
along with information on how to use
them. Do not mix other additives.
Operation in foreign countries
If you are going to drive your vehicle in
another country, be sure to:
Observe all regulations regarding reg-istration and insurance.
Determine that acceptable fuel is avail- able.
Diesel engine
Diesel fuel
Diesel engine must be operated only on
commercially available diesel fuel that
complies with EN 590 or comparable
standard. (EN stands for "European
Norm"). Do not use marine diesel fuel,
heating oils, or non-approved fuel addi-
tives, as this will increase wear and
cause damage to the engine and fuel
system. The use of non-approved fuels
and / or fuel additives will result in a limi-
tation of your warranty rights.
Diesel fuel of above cetane 51 is used in
your vehicle. If two types of diesel fuel
are available, use summer or winter fuel
properly according to the following tem-
perature conditions.
Above -5°C (23°F) ... Summer typediesel fuel.
Below -5°C (23°F) ... Winter type diesel fuel.
Watch the fuel level in the tank very care-
fully : If the engine stops through fuel fail-
ure, the circuits must be completely
purged to permit restarting.
CAUTION
Your New Vehicle Limited Warranty may not cover damage to the fuelsystem and any performance prob-lems that are caused by the use of fuels containing methanol or fuelscontaining MTBE (Methyl TertiaryButyl Ether) over 15.0% vol.(Oxygen Content 2.7% weight.)

Downloaded from www.Manualslib.com manuals search engine 23
Your vehicle at a glance
1. Seat warmer/Air ventilation seat* ..................................3-10/3-11
2. Front passenger's seat belt warning light* ..................................3-19
3. Passenger's front air bag ON/OFF indicator* ............................3-44
4. Driver's front air bag ..............................................................3-48
5. Driver's knee air bag* ............................................................3-48
6. Passenger's front air bag* ......................................................3-48
7. Central door lock/unlock switch ..............................................4-16
8. Power tailgate open button* ..................................................4-21
9. Horn........................................................................\
................4-43
10. Instrument cluster ................................................................4-48
11. LCD display button ..............................................................4-53
12. Trip button ........................................................................\
....4-53
13. Parking assist system button* ..............................................4-79
14. Smart parking assist system button*....................................4-88
15. Hazard warning flasher ........................................................4-9516. Climate control system ............................................4-112/4-121
17. Center console storage ......................................................4-136
18. Glove box ........................................................................\
..4-136
19. Cup holder/Ashtray* ................................................4-141/4-140
20. Power outlet/Cigarette lighter*..................................4-142/4-140
21. Steering wheel audio controls* ..........................................4-154
22. AUX, USB and ipod ............................................................4-143
23. Audio/AVN system ......................4-158, 4-181/Separate Manual
24. Bluetooth phone controls* ........................................4-175,4-196
25. Ignition switch or Engine start/stop button ......................5-4/5-8
26. Electric parking brake(EPB) switch ......................................5-31
27. Auto hold control button* ......................................................5-36
28. Electronic stability program (ESP) button ................................5-41
29. Cruise control switch* / Speed limiter switch* ..............5-48/5-53
30. Sport drive mode button* ....................................................5-26
* : if equipped

Downloaded from www.Manualslib.com manuals search engine 25
Your vehicle at a glance
1. Seat warmer/Air ventilation seat* ..................................3-10/3-11
2. Front passenger's seat belt warning light* ..................................3-19
3. Passenger's front air bag ON/OFF indicator* ............................3-44
4. Driver's front air bag ..............................................................3-48
5. Driver's knee air bag* ............................................................3-48
6. Passenger's front air bag* ......................................................3-48
7. Central door lock/unlock switch ..............................................4-16
8. Power tailgate open button* ..................................................4-21
9. Horn........................................................................\
................4-43
10. Instrument cluster ................................................................4-48
11. LCD display button ..............................................................4-53
12. Trip button ........................................................................\
....4-53
13. Parking assist system button* ..............................................4-79
14. Smart parking assist system button*....................................4-88
15. Hazard warning flasher ........................................................4-9516. Climate control system ............................................4-112/4-121
17. Center console storage ......................................................4-136
18. Glove box ........................................................................\
..4-136
19. Cup holder/Ashtray* ................................................4-141/4-140
20. Power outlet/Cigarette lighter*..................................4-142/4-140
21. Steering wheel audio controls* ..........................................4-154
22. AUX, USB and ipod ............................................................4-143
23. Audio/AVN system ......................4-158, 4-181/Separate Manual
24. Bluetooth phone controls* ........................................4-175,4-196
25. Ignition switch or Engine start/stop button ......................5-4/5-8
26. Electric parking brake(EPB) switch ......................................5-31
27. Auto hold control button* ......................................................5-36
28. Electronic stability program (ESP) button ................................5-41
29. Cruise control switch* / Speed limiter switch* ..............5-48/5-53
30. Sport drive mode button* ....................................................5-26
* : if equipped

Downloaded from www.Manualslib.com manuals search engine Your vehicle at a glance
62
INTERIOR OVERVIEW
1. Seat..........................................................3-2
2. Inside door handle ................................4-16
3. Power window switch ............................4-26
4. Power window lock switch......................4-29
5. Hood release lever ................................4-30
6. Driver position memory seat* ................4-39
7. Steering wheel ......................................4-41
8. Tilt and telescopic steering control lever ..4-42
9. Heated steering wheel*..........................4-42
10. Outside rearview mirror control............4-46
11. Outside rearview mirror folding* ..........4-47
12. Light switch ..........................................4-97
13. Wiper/Washer ....................................4-104
14. Headlight leveling device* ..................4-102
15. Instrument panel illumination control system..................................................4-49
16. Idle Stop and Go (ISG) OFF button* ..5-14
17. Manual transaxle shift lever/ Automatic transaxle shift lever ....5-19/5-22
18. Fuse box ..............................................7-72
* : if equipped
OVF021001
■Left-Hand drive type
❈ The actual shape may differ from the illustration.

Downloaded from www.Manualslib.com manuals search engine 27
Your vehicle at a glance
1. Seat..........................................................3-2
2. Inside door handle ................................4-16
3. Power window switch ............................4-26
4. Power window lock switch......................4-29
5. Bonnet release lever ..............................4-30
6. Driver position memory seat* ................4-39
7. Steering wheel ......................................4-41
8. Tilt and telescopic steering control lever ..4-42
9. Heated steering wheel*..........................4-42
10. Outside rearview mirror control............4-46
11. Outside rearview mirror folding* ..........4-47
12. Light switch ..........................................4-97
13. Wiper/Washer ....................................4-104
14. Headlight leveling device* ..................4-102
15. Instrument panel illumination control system..................................................4-49
16. Idle Stop and Go (ISG) OFF button* ..5-14
17. Manual transaxle shift lever/ Automatic transaxle shift lever ....5-19/5-22
18. Fuse box ..............................................7-72
* : if equipped
OVF021001R-1❈ The actual shape may differ from the illustration.
■Right-Hand drive type

Downloaded from www.Manualslib.com manuals search engine 33
Safety system of your vehicle

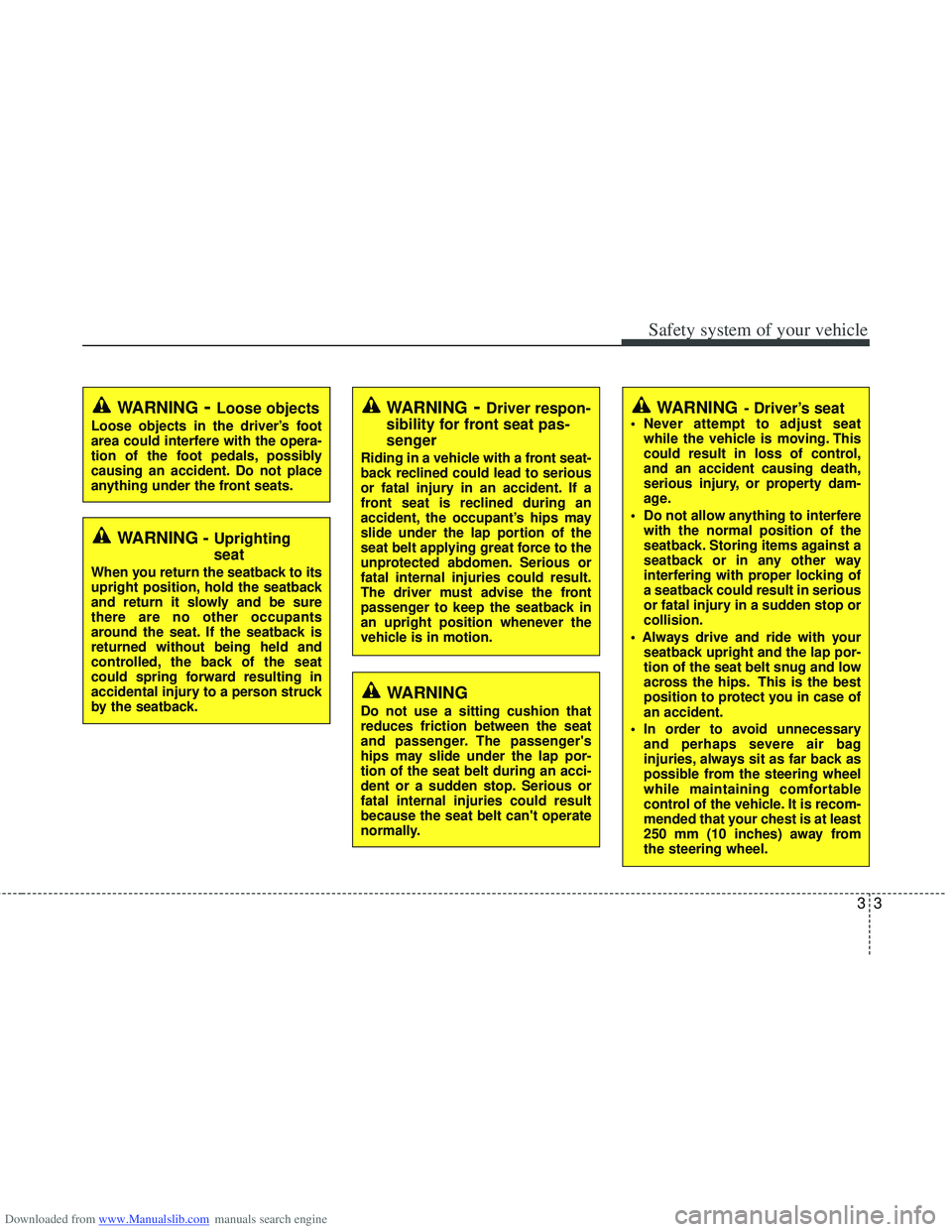

WARNING- Driver’s seat Never attempt to adjust seatwhile the vehicle is moving. This
could result in loss of control,
and an accident causing death,
serious injury, or property dam-
age.
Do not allow anything to interfere with the normal position of the
seatback. Storing items against a
seatback or in any other way
interfering with proper locking of
a seatback could result in serious
or fatal injury in a sudden stop or
collision.
seatback upright and the lap por-
tion of the seat belt snug and low
across the hips. This is the best
position to protect you in case of
an accident.
In order to avoid unnecessary and perhaps severe air bag
injuries, always sit as far back as
possible from the steering wheel
while maintaining comfortable
control of the vehicle. It is recom-
mended that your chest is at least
250 mm (10 inches) away from
the steering wheel.
WARNING - Uprighting
seat
When you return the seatback to its
upright position, hold the seatback
and return it slowly and be sure
there are no other occupants
around the seat. If the seatback is
returned without being held and
controlled, the back of the seat
could spring forward resulting in
accidental injury to a person struck
by the seatback.
WARNING- Loose objects
Loose objects in the driver’s foot
area could interfere with the opera-
tion of the foot pedals, possibly
causing an accident. Do not place
anything under the front seats.
WARNING- Driver respon-
sibility for front seat pas-
senger
Riding in a vehicle with a front seat-
back reclined could lead to serious
or fatal injury in an accident. If a
front seat is reclined during an
accident, the occupant’s hips may
slide under the lap portion of the
seat belt applying great force to the
unprotected abdomen. Serious or
fatal internal injuries could result.
The driver must advise the front
passenger to keep the seatback in
an upright position whenever the
vehicle is in motion.
WARNING
Do not use a sitting cushion that
reduces friction between the seat
and passenger. The passenger's
hips may slide under the lap por-
tion of the seat belt during an acci-
dent or a sudden stop. Serious or
fatal internal injuries could result
because the seat belt can't operate
normally.

Downloaded from www.Manualslib.com manuals search engine Safety system of your vehicle
43
(Continued)
When resetting the seatback tothe upright position, make sure it
is securely latched by pushing it
forward and backwards.WARNING- Rear seatbacks
The rear seatback must besecurely latched. If not, passen-
gers and objects could be thrown
forward resulting in serious
injury or death in the event of a
sudden stop or collision.
Luggage and other cargo should be laid flat in the cargo area. If
objects are large, heavy, or must
be piled, they must be secured.
Under no circumstances should
cargo be piled higher than the
seatbacks. Failure to follow these
warnings could result in serious
injury or death in the event of a
sudden stop, collision or rollover.
No passenger should ride in the cargo area or sit or lie on folded
seatbacks while the vehicle is
moving. All passengers must be
properly seated in seats and
restrained properly while riding.
(Continued)
WARNING
After adjusting the seat, always
check that it is securely locked into
place by attempting to move the
seat forward or backward without
using the lock release lever.
Sudden or unexpected movement
of the driver's seat could cause you
to lose control of the vehicle result-
ing in an accident.
WARNING
Use extreme caution so thathands or other objects are not
caught in the seat mechanisms
while the seat is moving.
Do not put a cigarette lighter on the floor or seat. When you oper-
ate the seat, gas may gush out of
the lighter and cause fire.

Downloaded from www.Manualslib.com manuals search engine 35

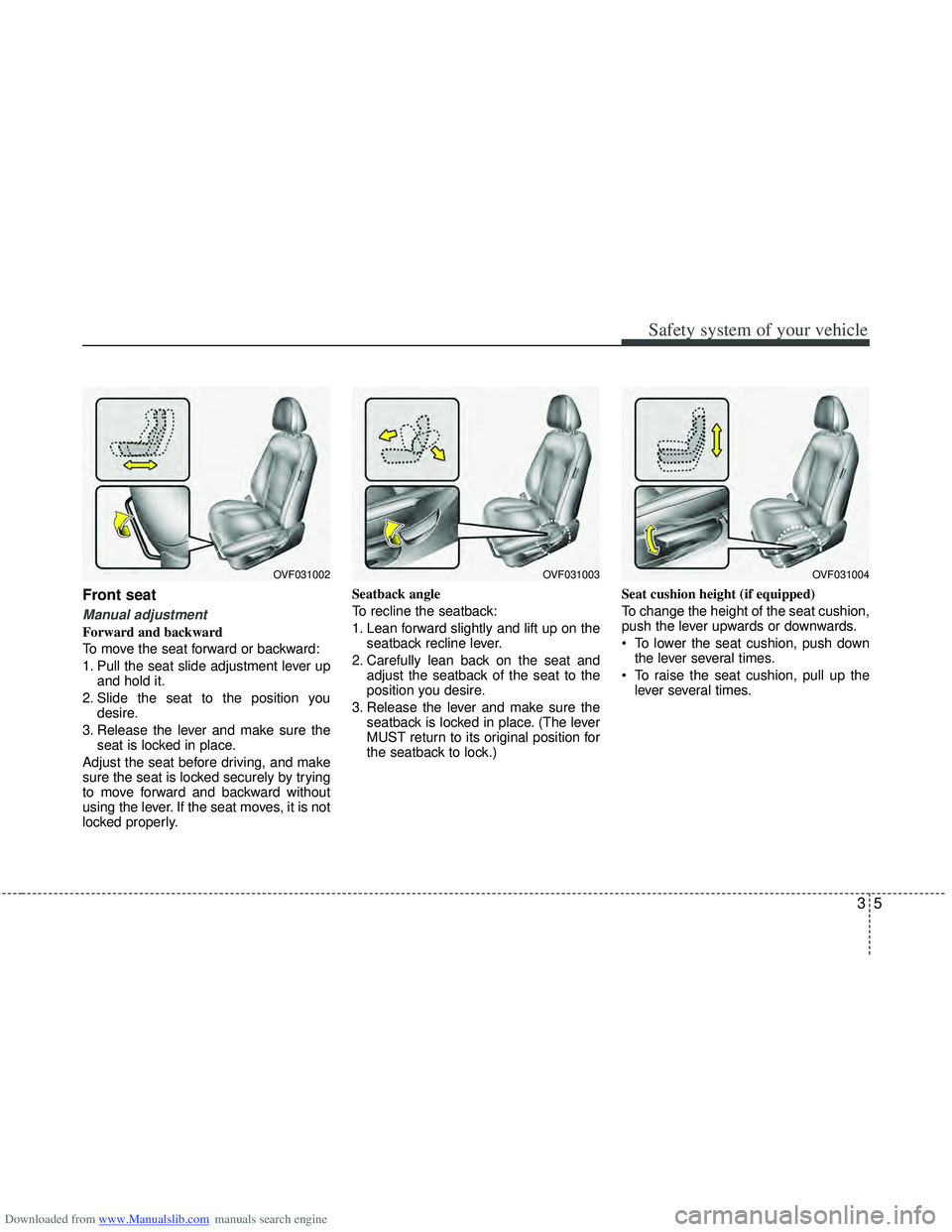

Safety system of your vehicle
Front seat
Manual adjustment
Forward and backward
To move the seat forward or backward:
1. Pull the seat slide adjustment lever upand hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place.
Adjust the seat before driving, and make
sure the seat is locked securely by trying
to move forward and backward without
using the lever. If the seat moves, it is not
locked properly. Seatback angle
To recline the seatback:
1. Lean forward slightly and lift up on the
seatback recline lever.
2. Carefully lean back on the seat and adjust the seatback of the seat to the
position you desire.
3. Release the lever and make sure the seatback is locked in place. (The lever
MUST return to its original position for
the seatback to lock.) Seat cushion height (if equipped)
To change the height of the seat cushion,
push the lever upwards or downwards.
• To lower the seat cushion, push down
the lever several times.
To raise the seat cushion, pull up the lever several times.
OVF031002OVF031003OVF031004
