Page 120 of 354

441
Features of your vehicle
D150317APA
Immobilizer indicator (if equipped)
This light illuminates when the immobiliz-
er key is inserted and turned to the ON
position to start the engine.
At this time, you can start the engine. The
light goes out after the engine is running.
If this light blinks when the ignition switch
is in the ON position before starting the
engine, have the system checked by an
authorized HYUNDAI dealer.
D150318AUN
Low fuel level warning light
This warning light indicates the fuel tank
is nearly empty. When it comes on, you
should add fuel as soon as possible.
Driving with the fuel level warning light on
or with the fuel level below “E” can causethe engine to misfire and damage the
catalytic converter. D150320APA
Malfunction indicator (MIL)
(check engine light)
(if equipped)
This indicator light is part of the Engine
Control System which monitors various
emission control system components. If
this light illuminates while driving, it indi-cates that a potential malfunction has
been detected somewhere in the emis-sion control system. This light will also illuminate when the
ignition switch is turned to the ON posi-
tion, and will go out in a few seconds
after the engine is started. If it illuminates
while driving, or does not illuminate when
the ignition switch is turned to the ON
position, take your vehicle to your near-
est authorized HYUNDAI dealer and
have the system checked.
Generally, your vehicle will continue to be
drivable, but have the system checked by
an authorized HYUNDAI dealer promptly.
CAUTION
Prolonged driving with the Emission Control System
Malfunction Indicator Light illumi- nated may cause damage to theemission control systems whichcould effect drivability and/or fuel
economy.
CAUTION - Gasoline engine
If the Emission Control SystemMalfunction Indicator Light illumi- nates, potential catalytic converterdamage is possible which could
result in loss of engine power. Havethe Engine Control System inspect- ed as soon as possible by anauthorized HYUNDAI dealer.
Page 122 of 354

443
Features of your vehicle
D150326APA
Lights on warning chime (if equipped)
The lights on warning chime will sound if
the headlight switch is left in the 1st or
2nd position and the driver’s door isopened.
D150327AUN
Key reminder warning chime
(if equipped)
If the driver’s door is opened while the
ignition key is left in the ignition switch
(ACC or LOCK position), the key
reminder warning chime will sound. This
is to prevent you from locking your keys
in the vehicle. The chime sounds until the
key is removed from the ignition switch or
the driver’s door is closed. D150330AEN
Overspeed warning
(if equipped)
Overspeed warning light
If you drive with the speed of 120 km/h or
more, the overspeed warning light will
blink. This is to prevent you from driving
your vehicle with overspeed.
Overspeed warning chime
If you drive with the speed of 120 km/h or
more, the overspeed warning chime will
sound for about 5 seconds. This is to pre-
vent you from driving your vehicle with
overspeed.
120km/h
Page 126 of 354
447
Features of your vehicle
HAZARD WARNING FLASHER
D180000AUN
The hazard warning flasher should be
used whenever you find it necessary tostop the car in a hazardous location.
When you must make such an emer-
gency stop, always pull off the road as far
as possible.The hazard warning lights are turned on
by pushing in the hazard switch. This
causes all turn signal lights to blink. The
hazard warning lights will operate even
though the key is not in the ignition
switch.
To turn the hazard warning lights off,
push the switch a second time.
OPA047059
OPA047104
Type A
Type B

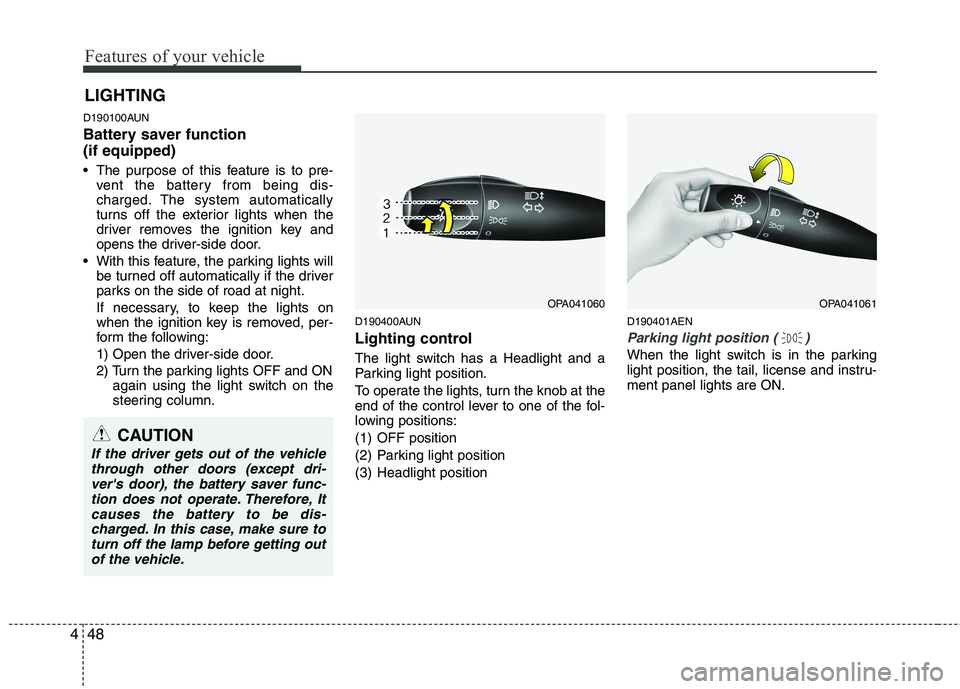

Page 127 of 354

Features of your vehicle
48
4
D190100AUN
Battery saver function (if equipped)
The purpose of this feature is to pre-
vent the battery from being dis-
charged. The system automatically
turns off the exterior lights when the
driver removes the ignition key and
opens the driver-side door.
With this feature, the parking lights will be turned off automatically if the driver
parks on the side of road at night.
If necessary, to keep the lights on
when the ignition key is removed, per-
form the following:
1) Open the driver-side door.
2) Turn the parking lights OFF and ON again using the light switch on the
steering column. D190400AUN
Lighting control
The light switch has a Headlight and a
Parking light position.
To operate the lights, turn the knob at the
end of the control lever to one of the fol-
lowing positions:
(1) OFF position
(2) Parking light position
(3) Headlight position D190401AEN
Parking light position ( )
When the light switch is in the parking
light position, the tail, license and instru-ment panel lights are ON.
LIGHTING
OPA041060OPA041061
CAUTION
If the driver gets out of the vehicle
through other doors (except dri-ver's door), the battery saver func-tion does not operate. Therefore, Itcauses the battery to be dis-
charged. In this case, make sure toturn off the lamp before getting out of the vehicle.
Page 164 of 354

485
Features of your vehicle
Using CD Player
1. Button
Push button for less than 1sec to play from the beginning of cur- rent song.
Push button for less than 1 sec and press again within 1 sec to
play the previous song.
In case of pushing, TRACK DOWN continually.
Push button for less than 1 sec to play the next song.
In case of pushing, TRACK UP contin- ually.
2. Button (Fast Rewind)
Push and hold the button, more
than 0.8sec : play the operation of REW
on the current TRACK. 3. Button (Fast Forward)
Push and hold the button, more
than 0.8sec : play the operation of FF on
the current TRACK.
4. Button (RANDOM)
Turns ON/OFF the randomization of the
play list of files in the currently played
DISC.
To cancel the mode, press the key once again.
5. CD slot
Please face printed side upward and gently push in.
When the ignition switch is on ACC or
ON and power is OFF, power is automat-
ically turned on if the CD is loaded.
This CDP support only 12cm CD. But if
VCD. Data CD are loaded, "Disc-Er"message will appear and CD will beejected.
6. CD-IN Indicator
When car ignition switch is ACC or ON and if the CD is loaded, this indicator islighted.
If the CD is ejected the light is turned off.
7. Button (CD Eject)
Push button to eject the CD.
This button is enabled when ignition
switch is off.
8. Button
Play first 10 sec of each song in the
DISC.
To cancel the mode, press the key once again.
SCAN
4
RDM
3
FF >
3 FF>
2< REW
2
SEEK
TRACK
SEEK
TRACK
SEEK
TRACK
TRACK
PA_SA710PAPA_SA710PA
PA_SA710PA
Page 171 of 354

Features of your vehicle
92
4
Using CD Player
1. Button
If there is a CD in the CD DECK it switch-
es to CD mode.
If there is no CD, then the message “NO
DISC” will become displayed on the LCD
for 3 seconds and returns to the previous
mode.
2. CD eject Button
Push button to eject the CD. This but-
ton is enabled when ignition switch is off.
3. Button
Plays first 10 sec of each song in the
DISC.
To cancel the mode, press the key once again. 4. CD slot
Please face printed side upward and
gently push in. When the ignition switch
is on ACC or ON and power is off, power
is automatically turned on if the CD is
loaded. This CDP support only 12 cm
CD. But if VCD, Data CD loaded,"Reading Error" message will appearand CD will be ejected.
5. CD-IN Indicator
When car ignition switch is ACC or ON and if the CD is loaded, this indicator is
lighted. If the CD is ejected the light is
turned off.
6. Button
Displays the information of the current
CD TRACK in the order of DISC TITLE
➟
DISC ARTIST ➟ TRACK TITLE ➟
TRACK ARTIST ➟ TOTAL TRACK ➟Play
Screen ➟ DISC TITLE ➟ ···.(not dis-
played if the information is not available
on the DISC.)
INFO
SCAN
CD
PA_PA710PAE
PA_PA710PAG
PA_PA710PAE
PA_PA710PAE
Page 172 of 354

493
Features of your vehicle
7. Button
Push button to play from thebeginning of current song.
Push button and press again within 1 sec to play the previous song.
In case of keep pressing, track goes down continually.
Push button to play the next song.
In case of keep pressing, track gose up continually.
8. Button (Fast Forward)
Push and hold the button, more than
0.8sec : play the operation of FF on the
current TRACK. 9. Button (RANDOM)
Turns on/off the randomization of the
play list of files in the currently played
DISC.
To cancel the mode, press the key onceagain.
10. Button (Fast Rewind)
Push and hold the button, more than
0.8sec : play the operation of REW on
the current TRACK.
11. Button (REPEAT)
Repeats current song when the button is
pressed for less than 0.8 sec.
Repeats the entire DISC when the button
is pressed for 0.8 sec or longer.
If CD has folders in it, repeat current fold-
er instead of entire DISC when the button
is pressed for more than 0.8 sec.12. Button (FOLDER)
Moves button child folder of the
current folder and displays the first
song in the folder. Press
/ knob to move to the folder
displayed.
It will play the first song in the folder.
Moves button Parent folder and displays the first song in the folder.
Press / knob to move
to the folder displayed. It will play the
first song in the folder.
13. Knob & Button
Turn this knob clockwise to display songs after current song.
Also, turn this knob counterclockwise to
display songs before current song.
To listen to the displayed song, press the
knob to skip to the song and play.
ENTERTUNE
ENTERTUNE
PTY
FLDR
ENTER
TUNE
PTY
FLDR
FLDR
5 RPT
4REW
4 REW
2
RDM
1FF
1 FF
SEEKTRACK
SEEKTRACK
SEEKTRACK
TRACK
PA_PA710PAE
PA_PA710PAG
PA_PA710PAE
Page 175 of 354
Features of your vehicle
96
4
(Continued)
If the USB device is divided by logical drives, only the music fileson the highest-priority drive arerecognized by car audio.
Devices such as MP3 Player/ Cellular phone/Digital camera canbe unrecognizable by standardUSB I/F can be unrecognizable.
Some non-standard USB devices (METAL COVER TYPE USB) canbe unrecognizable.
Some USB flash memory readers (such as CF, SD, microSD, etc.) orexternal-HDD type devices can be
unrecognizable.
Music files protected by DRM (DIGITAL RIGHTS MANAGE-MENT) are not recognizable.
The data in the USB memory may be lost while using this audio.Always back up important data ona personal storage device.
(Continued)(Continued) Please avoid using USB memory products which can be used askey chains or cellular phoneaccessories as they could cause
damage to the USB jack. Pleasemake certain only to use plug type connector products as
shown below.
