2011 HONDA PILOT Tailgate

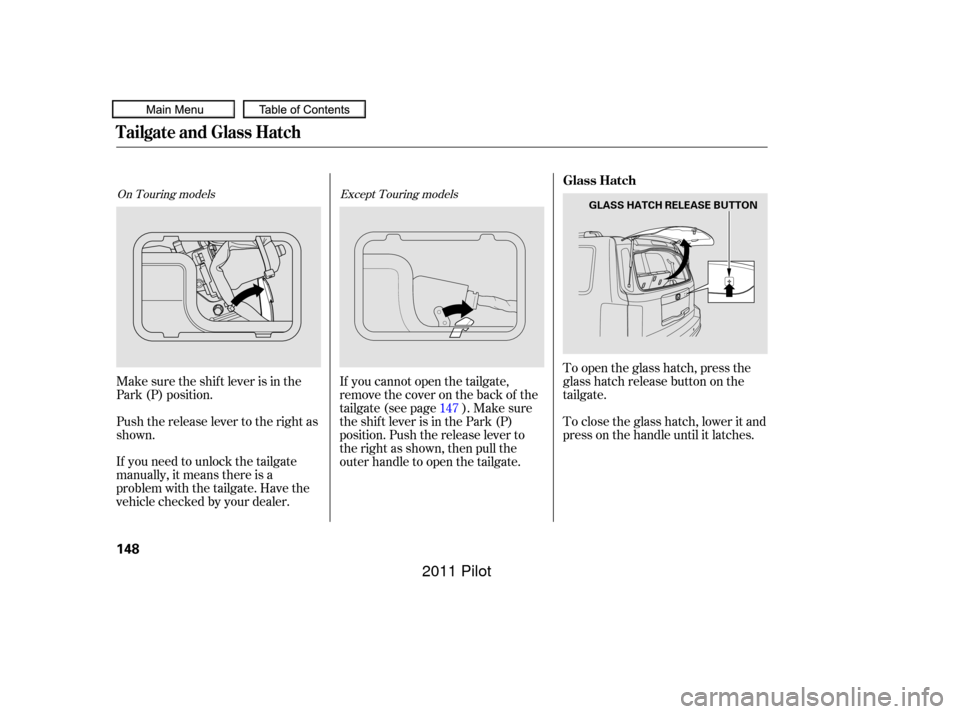

To open the glass hatch, press the
glass hatch release button on the
tailgate.
If you need to unlock the tailgate
manually, it means there is a
problem with the tailgate. Have the
vehicle checked by your dealer. Push the release lever to the right as
shown. Make sure the shif t lever is in the
Park (P) position. If youcannotopenthetailgate,
remove the cover on the back of the
tailgate (see page ). Make sure
the shif t lever is in the Park (P)
position. Push the release lever to
the right as shown, then pull the
outer handle to open the tailgate.To close the glass hatch, lower it and
press on the handle until it latches.
147
Except Touring models
On Touring models
Tailgate and Glass Hatch
Glass Hatch
148
GLASS HATCH RELEASE BUTTON
10/01/26 18:48:30 31SZA620_153
2011 Pilot

The rear wiper will not operate with
the glass hatch open. If you open the
glass hatch while the rear wiper is
operating, the wiper will return to its
parked position (see page ). The
wiper will resume operation af ter the
glass hatch is closed.Keepthetailgateandtheglasshatch
closed at all times while driving to
avoid damaging the tailgate and the
glass hatch, and to prevent exhaust
gas from getting into the interior.
See
on
page .

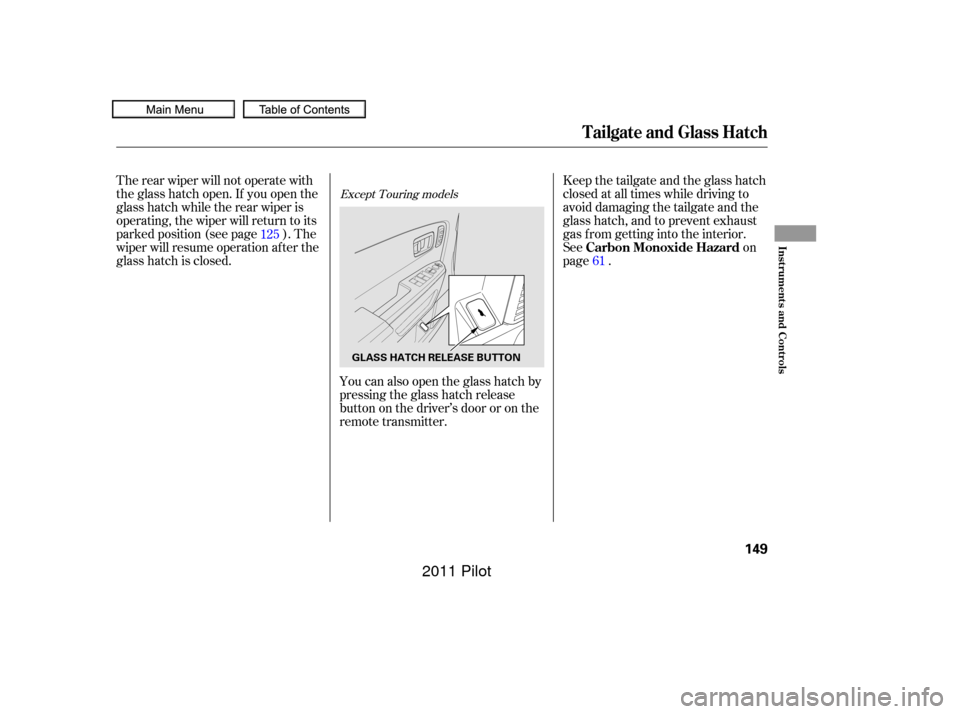

You can also open the glass hatch by
pressing the glass hatch release
button on the driver’s door or on the
remote transmitter.
125
61
Except Touring models
Tailgate and Glass Hatch
Carbon Monoxide HazardInst rument s and Cont rols
149
GLASS HATCH RELEASE BUTTON
10/01/26 18:48:37 31SZA620_154
2011 Pilot

µ
µ Pressthisbuttononce
to unlock the driver’s door. Push it
twice to unlock the other doors.
Some exterior lights will f lash twice
when you push the button. If you do
not open any door or the tailgate
within 30 seconds, they will
automatically relock.
To change the ‘‘KEY AND REMOTE
UNLOCK MODE’’ setting, see page .
To change the ‘‘SECURITY
RELOCK TIMER’’ setting, see page .
Press this button once to
lock all doors and the tailgate. Some
exterior lights will f lash. When you
push LOCK twice within 5 seconds,
you will hear a beep to verify that the
doors and tailgate are locked and the
security system has set. This button
does not work if any door or tailgate
is not f ully closed. To change the ‘‘KEYLESS LOCK
ACKNOWLEDGEMENT’’ setting,
see page .
120 119
121
On vehicles with navigation system
On vehicles with navigation system
Remote Transmitter
UNL OCK
LOCK
150
Except Touring models On Touring models
UNLOCK
BUTTON UNLOCK
BUTTON
LOCK
BUTTON
PANIC
BUTTON LOCK
BUTTON
PANIC
BUTTON TAILGATE
BUTTON
GLASS
HATCH
RELEASE
BUTTON
10/01/26 18:48:47 31SZA620_155
2011 Pilot

µ
µ
µ Press and hold this
button for about 1 second to attract
attention; the horn will sound, and
the exterior lights will f lash f or about
30 seconds. To cancel panic mode,
press any other button on the remote
transmitter, or turn the ignition
switch to the ON (II) position. Panic
mode does not work when the key is
in the ignition switch.
Avoid dropping or throwing the
transmitter.
Protect the transmitter from
extreme temperature.
Do not immerse the transmitter in
any liquid.
If you lose a transmitter, the
replacement needs to be
reprogrammed by your dealer.
When you press the UNLOCK
button, the f ront and rear individual
map lights and the cargo area light,
depending on their switch positions,
will come on (see page ). If you
do not open any door or the tailgate,
the lights stay on for about 30
seconds, then go out. If you relock
thedoorsandthetailgatewiththe
remote transmitter before 30
seconds have elapsed, the lights will
go of f immediately.
If you push the same button again
while the tailgate is opening or
closing, three beeps sound, the
tailgate stops moving, reverses
direction and stops in the f ully
opened or f ully closed position.Press and hold the
TAILGATE button to open or close
the power tailgate. When the tailgate
begins to move, you will hear a beep,
and some f ront and rear lights will
flash.
Press this button f or about 1 second
to open the glass hatch. Even if the
glass hatch is open, the tailgate can
be locked with the remote
transmitter. 176
Except Touring models
On Touring models
Remote Transmitter
PA NIC
TAILGATE
GLASS HATCH RELEASE
Remote Transmitter Care
Inst rument s and Cont rols
151
10/01/26 18:48:59 31SZA620_156
2011 Pilot

Inside the transmitter, separate
the inner cover f rom the keypad
by releasing the two tabs on the
cover.
If it takes several pushes on the
button to lock or unlock the doors
and the tailgate, replace the battery
as soon as possible.
Battery type: CR1616
To replace the battery:Remove the screw at the base of
the transmitter with a small
Phillips-head screwdriver.
Separate the transmitter by prying
its middle seam with your
f ingernail. 3.
1.
2.
Remote Transmitter
Replacing the Transmitter
Battery
152
SCREW BATTERY
10/01/26 18:49:09 31SZA620_157
2011 Pilot

The light control switch has three
positions: OFF, Door Activated, and
ON.The individual map lights come on
when any door or the tailgate is
opened, or when the remote
transmitter is used to unlock the
doors. When the doors and the
tailgate are closed, each light can
be turned on and of f by pushing
the lens.
The cargo area light comes on
whenthetailgateisopenedif the
light control switch is in the door
activated (center) position. When
thetailgateisclosed,thecargo
arealightcanbeturnedonwith
the switch in the light.
The individual door lights will
operate when a door is opened.
The individual map lights in the
f ront can be turned on and of f by
pressing the lenses.
The individual map lights in the
second and third rows cannot be
turned on.
When the switch is in the door activated
position:
When the switch is in the OFF position:L ight Control Switch
Interior Lights
176
OFF ON
DOOR ACTIVATED POSITION
10/01/26 18:53:29 31SZA620_181
2011 Pilot

When the light control switch is in theposition:
On vehicles with navigation system
ON
After all doors are closed tightly, the
lights dim slightly, then f ade out in
about 30 seconds.
Turn on the f ront row individual map
lights by pushing the lens. Push the
lens again to turn it off. With the
light control switch in the door
activated position, the second row
and third row map lights can be
turned on by pushing the lens. Push
the lens again to turn it off.
To change the ‘‘INTERIOR LIGHT
DIMMING TIME’’ setting, see page
.
The lights also come on when the
key is removed f rom the ignition
switch. Withanydoororthetailgateleft
open, the lights stay on about 15
minutes, then go out. All the individual map lights come on
andstayonaslongastheswitch
remains in the ON position.
111
CONT INUED
Individual Map L ights
Interior Lights
Inst rument s and Cont rols
177
Front
10/01/26 18:53:41 31SZA620_182
2011 Pilot

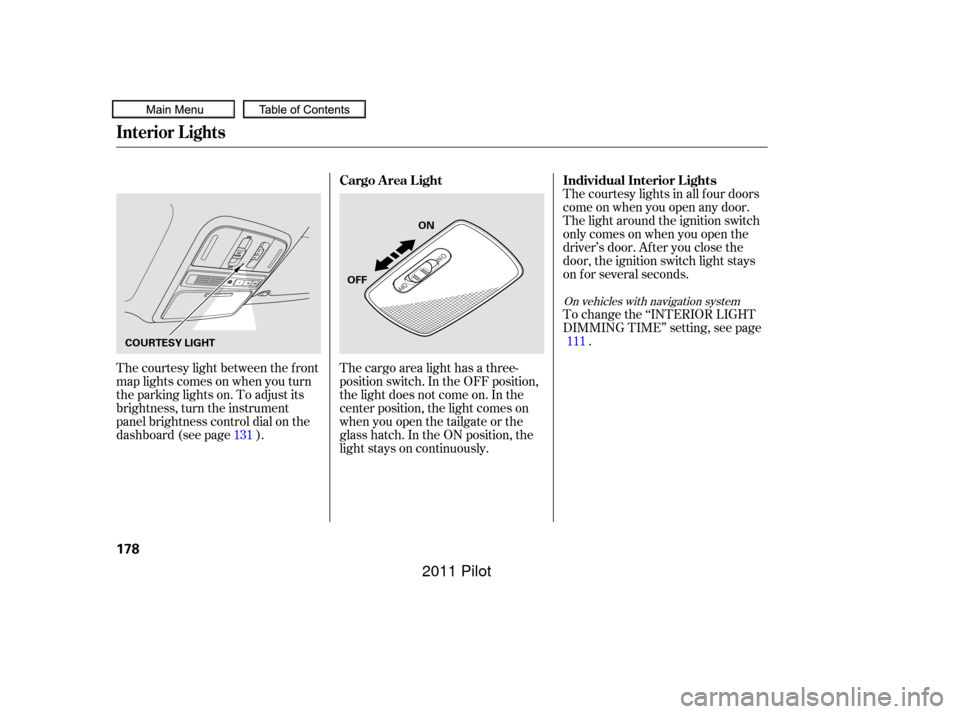

The courtesy light between the f ront
map lights comes on when you turn
the parking lights on. To adjust its
brightness, turn the instrument
panel brightness control dial on the
dashboard (see page ).The courtesy lights in all f our doors
come on when you open any door.
The light around the ignition switch
only comes on when you open the
driver’s door. Af ter you close the
door, the ignition switch light stays
on f or several seconds.
To change the ‘‘INTERIOR LIGHT
DIMMING TIME’’ setting, see page
.
The cargo area light has a three-
position switch. In the OFF position,
the light does not come on. In the
center position, the light comes on
when you open the tailgate or the
glass hatch. In the ON position, the
light stays on continuously.
131 111
On vehicles with navigation system
Individual Interior L ights
Cargo Area Light
Interior Lights
178
ON
OFF
COURTESY LIGHT
10/01/26 18:53:51 31SZA620_183
2011 Pilot
