2011 HONDA CIVIC heater

Î
Î
Î
Î
Î
Î
Î
CONT INUED: If equipped

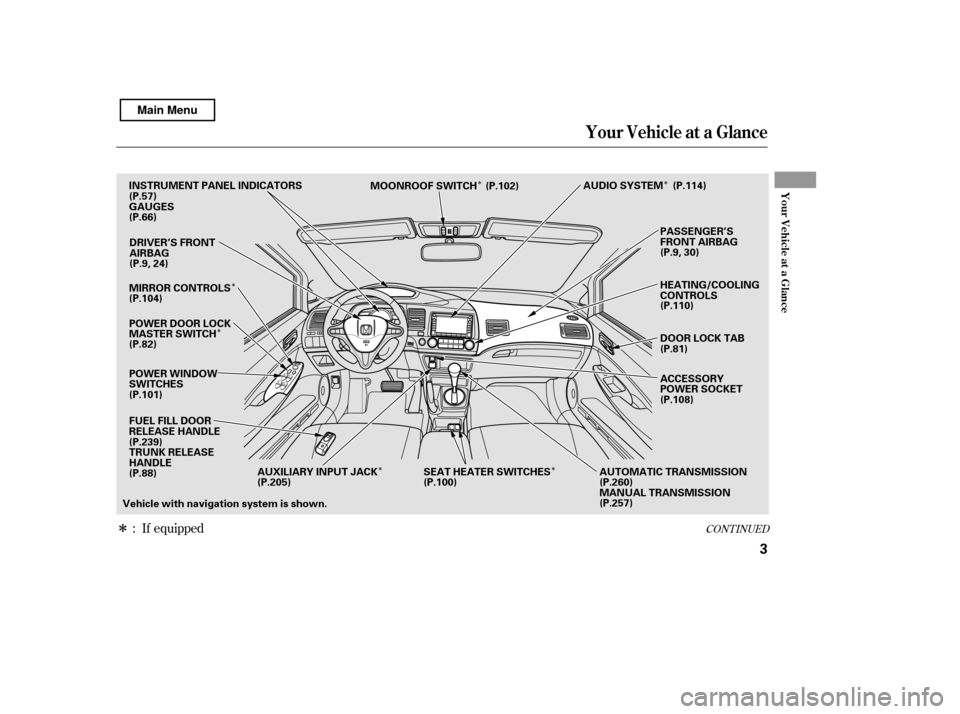

Your Vehicle at a Glance
Your Vehicle at a Glance
3
Vehicle with navigation system is shown.DRIVER’S FRONT
AIRBAG
AUDIO SYSTEM
MOONROOF SWITCH
DOOR LOCK TAB
ACCESSORY
POWER SOCKET
AUXILIARY INPUT JACK (P.102)
(P.100)
(P.9, 24)
(P.205) PASSENGER’S
FRONT AIRBAG
HEATING/COOLING
CONTROLS
(P.114)
INSTRUMENT PANEL INDICATORS
(P.57)
GAUGES
MIRROR CONTROLS
(P.104)
POWER DOOR LOCK
MASTER SWITCH
POWER WINDOW
SWITCHES
(P.101)
(P.66)
(P.82)
FUEL FILL DOOR
RELEASE HANDLE
(P.239)
TRUNK RELEASE
HANDLE
(P.88) (P.9, 30)
(P.110)
(P.81)
(P.108)
SEAT HEATER SWITCHES AUTOMATIC TRANSMISSION (P.260)
MANUAL TRANSMISSION
(P.257)
Main Menu

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations . 56
............................
Instrument Panel . 57
..........
Instrument Panel Indicators . 59
.............................................
Gauges . 66
..............
Display Change Button . 66
....................
Inf ormation Display . 67
..................................
Fuel Gauge . 70
...................
Temperature Gauge . 70
Controls Near the Steering ...........................................
Wheel . 71
.
Windshield Wipers and Washers . 72
.........
Turn Signals and Headlights . 73
............
Daytime Running Lights . 74
........................................
Fog Lights . 74
........
Instrument Panel Brightness . 75
.................
Hazard Warning Button . 76
.................
Rear Window Def ogger . 76
..........
Steering Wheel Adjustment . 77
...............................
Keys and Locks . 78
........................
Immobilizer System . 79
................................
Ignition Switch . 80
......................................
Door Locks . 81
......................
Power Door Locks . 82
..............
Childproof Door Locks . 82
.
Auto Door Locking/Unlocking . 83
.....................
Auto Door Locking . 83 .................
Auto Door Unlocking . 85
................................................
Trunk . 88
........
Emergency Trunk Opener . 89
.......................
Remote Transmitter . 90
.................................................
Seats . 93
..................................
Seat Heaters . 100
............................
Power Windows . 101
.......................................
Moonroof . 102
...........................................
Mirrors . 103
...............................
Parking Brake . 105
...............................
Interior Lights . 105
.........
Interior Convenience Items . 107
.....................
Beverage Holders . 108
.........
Accessory Power Socket . 108
..................................
Glove Box . 108
.............
Console Compartment . 108
Instruments and Controls
Inst rument s and Cont rols
55
Main Menu

Î
Î Î
Î Î
Î
ÎIf equipped
:

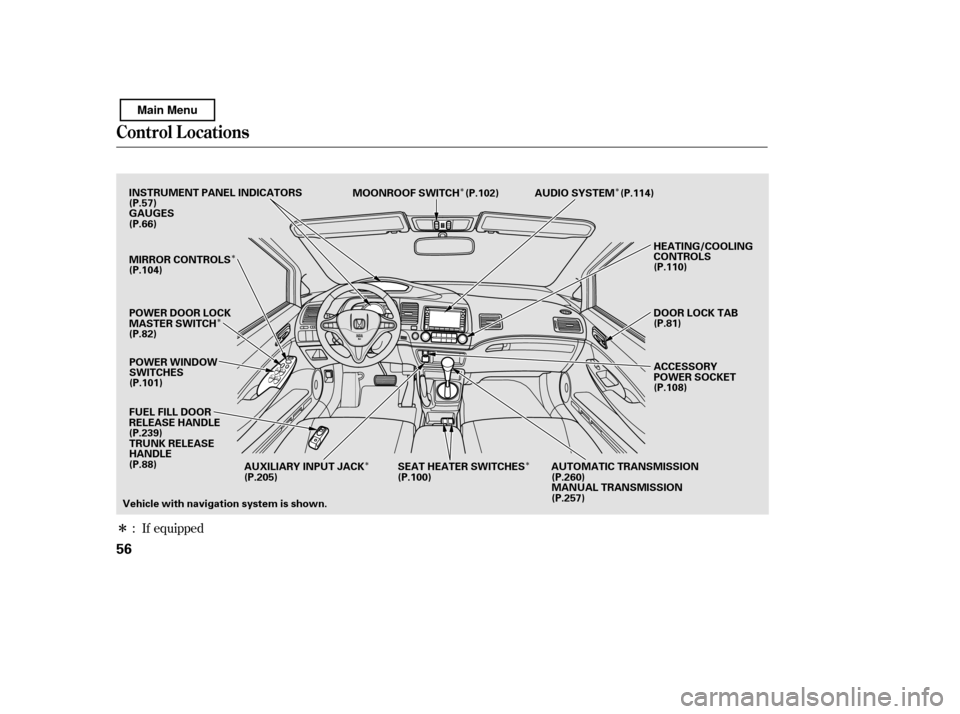

Control L ocations
56
(P.102)
MOONROOF SWITCH
AUXILIARY INPUT JACK AUTOMATIC TRANSMISSION
(P.260)
MANUAL TRANSMISSION
POWER WINDOW
SWITCHES AUDIO SYSTEM
POWER DOOR LOCK
MASTER SWITCH
FUEL FILL DOOR
RELEASE HANDLE TRUNK RELEASE
HANDLE(P.101)
(P.88) (P.114)
(P.239)
INSTRUMENT PANEL INDICATORS
(P.57)
GAUGES
(P.66)
MIRROR CONTROLS
(P.104)
Vehicle with navigation system is shown. ACCESSORY
POWER SOCKET
DOOR LOCK TAB
(P.81)
HEATING/COOLING
CONTROLS
(P.110)
(P.108)
(P.257)
(P.205)
SEAT HEATER SWITCHES
(P.100)
(P.82)
Main Menu

Make sure the rear window is clear
and you have good visibility bef ore
starting to drive.
The def ogger and antenna wires on
the inside of the rear window can be
accidentally damaged. When
cleaning the glass, always wipe side-
to-side.
The rear window def ogger will clear
fog, frost, and thin ice from the
window. Push the def ogger button to
turn it on and off. The indicator in
the button comes on to show the
def ogger is on. If you do not turn it
of f , the def ogger will shut itself of f
af ter about 15 minutes. It also shuts
of f when you turn of f the ignition
switch. You have to turn the
def ogger on again when you restart
the vehicle.
Pushthebuttontoturnonthe
hazard warning lights (f our-way
flashers). This causes all four
outside turn signals and both turn
indicators in the instrument panel to
f lash. Use the hazard warning lights
if you need to park in a dangerous
area near heavy traffic, or if your
vehicle is disabled.
Pushing this button also turns the
mirror heaters on or of f . For more
inf ormation, see page .
104
OnAllEX-L,CanadianSE,andSi
models
Hazard Warning Button, Rear Window Def ogger
Rear Window Def ogger
Hazard Warning Button
76
EX-L,
Canadian
SE, and Si
Main Menu

Follow these precautions whenever
you use the seat heaters:Use the HI setting only to heat the
seats quickly, because it draws
large amounts of current f rom the
battery.
If the engine is lef t idling f or an
extended period, do not use the
seat heaters, even on the LO
setting. It can weaken the battery,
causing hard starting.
In the LO setting, the heater runs
continuously. It does not cycle with
temperature changes.
In the HI setting, the heater turns off
when the seat gets warm, and turns
back on after the seat’s temperature
drops.
The ignition switch must be in the
ON (II) position to use seat heaters.
Push the top of the switch, HI, to
rapidly heat up the seat. Af ter the
seat reaches a comfortable
temperature, select LO by pushing
the bottom of the switch. This will
keep the seat warm.
Both f ront seats are equipped with
seat heaters. The passenger seat is
only heated in the seat bottom
because of the side airbag cutof f
system.
On EX-L model
Seat Heaters
100
Passenger’s Seat
Driver’s Seat SEAT HEATER SWITCHES
HEATERS
Main Menu

Turn the ignition switch to the ON
(II) position.
Move the selector switch to L
(driver’s side) or R (passenger’s
side).Push the appropriate edge of the
adjustment switch to move the
mirrorright,left,up,ordown.
When you f inish, move the
selector switch to the center (off)
position. This turns the
adjustment switch of f to keep your
settings.The outside mirrors are heated to
remove fog and frost. With the
ignition switch in the ON (II)
position, turn on the heaters by
pressing the button. The indicator in
the button comes on as a reminder.
Press the button again to turn the
heaters off. Pressing this button also
turns the rear window def ogger on
and off.
2. 3. 4.
1.
On all models except U.S. DX
On All EX-L, Canadian SE and Si models
Mirrors

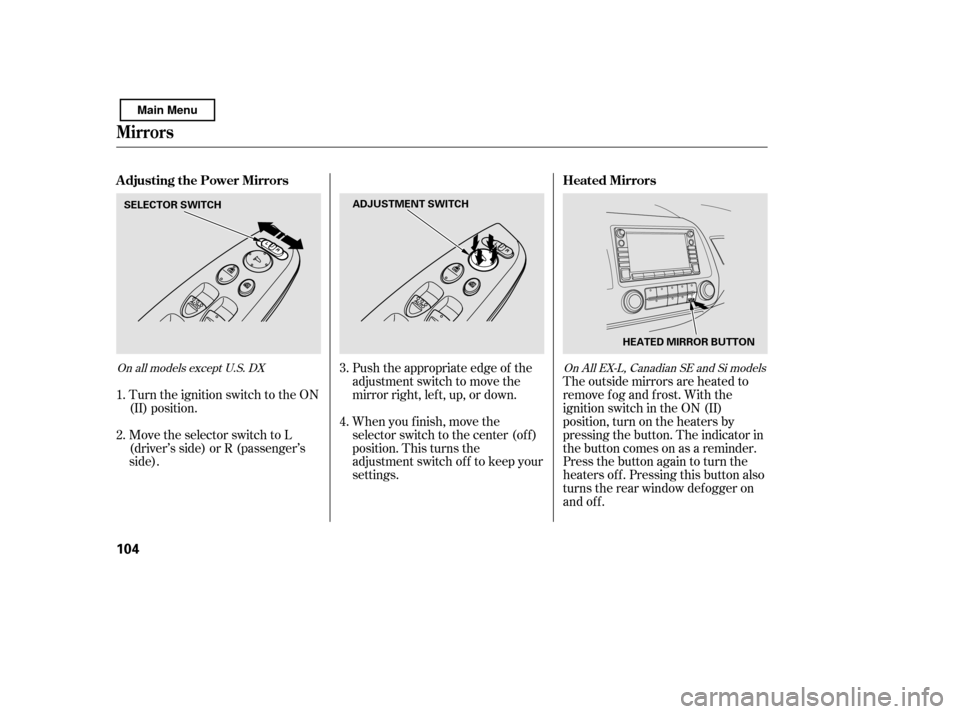

Adjusting the Power MirrorsHeated Mirrors
104
SELECTOR SWITCHADJUSTMENT SWITCH
HEATED MIRROR BUTTON
Main Menu

The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming f rom the
system.Select .
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page ). If it moves near the red zone,
turn of f the A/C until the gauge
reading returns to normal.
Turn on the A/C by pressing the
button. The indicator in the button
comesonwhenafanspeedis
selected.
Make sure the temperature is set to maximum cool.
Select .
If the outside air is humid, select
recirculation mode. If the outside
air is dry, select f resh air mode.
Set the f an to the desired speed.
If the interior is very warm, you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in f resh air mode.
To cool the interior with MAX A/C: Set the f an to the desired speed.
Select MAX A/C.
The system automatically turns on
the A/C, selects , and
switches to recirculation mode.
Make sure the temperature is set
to maximum cool. Turn the fan on.
If the A/C is of f , turn it on (if
equipped).
Select and fresh air mode.
Adjust the temperature to your
pref erence.
Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry and
can prevent the windows f rom
f ogging up.
This setting is suitable f or all driving
conditions whenever the outside
temperature is above 32°F (0°C).
1.2.3.
3.4. 5.
1. 2. 1. 2. 3.1. 2. 3. 4.
70
If equipped
Vents, Heating, and A/C
Using the Heater
Using the A /C Dehumidif y the Interior
112
Main Menu

Although this seems like a simple
procedure, you should take several
precautions.To jump start your vehicle:
The numbers in the illustrations
show you the order to connect the
jumper cables.
Turn of f all the electrical
accessories: heater, A/C, audio
system, lights, etc. Put the
transmission in neutral (manual)
or Park (automatic), and set the
parking brake.
Open the hood, and check the
physical condition of the battery.
In very cold weather, check the
condition of the electrolyte. If it
seems slushy or f rozen, do not try
jump starting until it thaws.
You cannot start a vehicle with an
automatic transmission by pushing
or pulling it. 1. 2.
Jump Starting
336
Except Si
BOOSTER BATTERY
A battery can explode if you do
not follow the correct procedure,
seriously injuring anyonenearby.
Keep all sparks, open flames,
and smoking materials away
from the battery. If a battery sits in extreme cold, the
electrolyte inside can f reeze.
Attempting to jump start with a f rozen
battery can cause it to rupture.
