2011 HONDA CIVIC fog light

ÎÎ
Î
Î Î
Î
Î
Î
Î ÎÎÎ Only on vehicles equipped with navigation system. Ref er to the navigati on system manual.
To use the horn, press the center pad of the steering wheel.
If equipped
1:2:3:4: Si model
Your Vehicle at a Glance
4
STEERING WHEEL
ADJUSTMENT WINDSHIELD WIPERS/WASHERS
Vehicle with navigation system is shown. HORN
CRUISE CONTROL BUTTONSPASSENGER AIRBAG OFF
INDICATOR
HAZARD WARNING BUTTON
REAR WINDOW DEFOGGER
HEATED MIRRORS
INSTRUMENT PANEL
BRIGHTNESS BUTTONS
DISPLAY CHANGE
BUTTON
HOOD RELEASE HANDLE
SEL/RESET BUTTON
(P.75)
(P.66) (P.66)
(P.77) (P.76)
(P.76) (P.30)
(P.72)
REMOTE AUDIO CONTROLS HEADLIGHTS/TURN SIGNALS
(P.73)
FOG LIGHTS (P.74)
NAVIGATION SYSTEM VOICE
CONTROL BUTTONS VEHICLE STABILITY ASSIST
(VSA) OFF SWITCH
(P.269)
(P.204)
(P.212)
BLUETOOTH HANDSFREELINK
SYSTEM VOICE CONTROL
BUTTONS
(P.240)
(P.209)(P.104)
1 2
2
2 3
4
2
4
Main Menu

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations . 56
............................
Instrument Panel . 57
..........
Instrument Panel Indicators . 59
.............................................
Gauges . 66
..............
Display Change Button . 66
....................
Inf ormation Display . 67
..................................
Fuel Gauge . 70
...................
Temperature Gauge . 70
Controls Near the Steering ...........................................
Wheel . 71
.
Windshield Wipers and Washers . 72
.........
Turn Signals and Headlights . 73
............
Daytime Running Lights . 74
........................................
Fog Lights . 74
........
Instrument Panel Brightness . 75
.................
Hazard Warning Button . 76
.................
Rear Window Def ogger . 76
..........
Steering Wheel Adjustment . 77
...............................
Keys and Locks . 78
........................
Immobilizer System . 79
................................
Ignition Switch . 80
......................................
Door Locks . 81
......................
Power Door Locks . 82
..............
Childproof Door Locks . 82
.
Auto Door Locking/Unlocking . 83
.....................
Auto Door Locking . 83 .................
Auto Door Unlocking . 85
................................................
Trunk . 88
........
Emergency Trunk Opener . 89
.......................
Remote Transmitter . 90
.................................................
Seats . 93
..................................
Seat Heaters . 100
............................
Power Windows . 101
.......................................
Moonroof . 102
...........................................
Mirrors . 103
...............................
Parking Brake . 105
...............................
Interior Lights . 105
.........
Interior Convenience Items . 107
.....................
Beverage Holders . 108
.........
Accessory Power Socket . 108
..................................
Glove Box . 108
.............
Console Compartment . 108
Instruments and Controls
Inst rument s and Cont rols
55
Main Menu

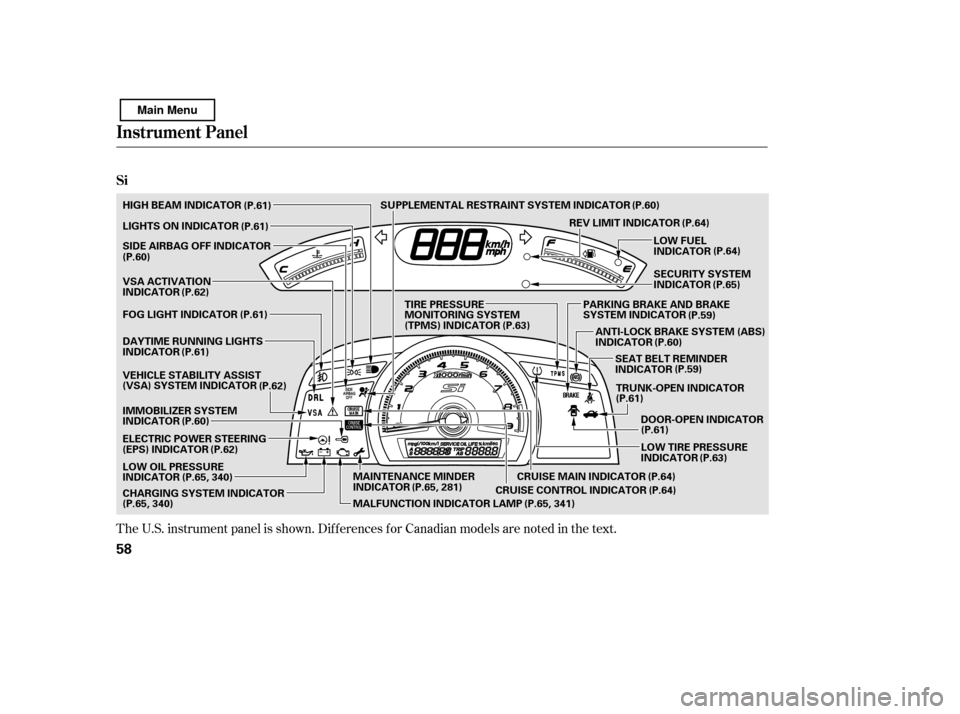

The U.S. instrument panel is shown. Dif f erences f or Canadian models are noted inthe text.
Instrument Panel
Si
58
ANTI-LOCK BRAKE SYSTEM (ABS)
INDICATOR
LOW TIRE PRESSURE
INDICATOR (P.63)
(P.61)
SEAT BELT REMINDER
INDICATOR
(P.65, 341) (P.65)
(P.64)
SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR
PARKING BRAKE AND BRAKE
SYSTEM INDICATORTRUNK-OPEN INDICATOR
CRUISE CONTROL INDICATOR
MALFUNCTION INDICATOR LAMP
LIGHTS ON INDICATOR
SIDE AIRBAG OFF INDICATOR
(P.60)
VSA ACTIVATION
INDICATOR
FOG LIGHT INDICATOR
DAYTIME RUNNING LIGHTS
INDICATOR
VEHICLE STABILITY ASSIST
(VSA) SYSTEM INDICATOR
IMMOBILIZER SYSTEM
INDICATOR
ELECTRIC POWER STEERING
(EPS) INDICATOR
LOW OIL PRESSURE
INDICATOR
CHARGING SYSTEM INDICATOR
(P.65, 340)
HIGH BEAM INDICATOR
(P.61)
(P.61)
(P.62) (P.61)
(P.61) (P.62)
(P.65, 340) CRUISE MAIN INDICATOR
MAINTENANCE MINDER
INDICATOR (P.65, 281) (P.64)
(P.64) LOW FUEL
INDICATOR
SECURITY SYSTEM
INDICATOR
REV LIMIT INDICATOR
TIRE PRESSURE
MONITORING SYSTEM
(TPMS) INDICATOR (P.59)
(P.61)
DOOR-OPEN INDICATOR
(P.60)
(P.64)
(P.60)
(P.63)
(P.60) (P.62) (P.59)
Main Menu

When you press the hazard warning
button, both turn signal indicators
and all turn signals on the outside of
the vehicle f lash.If this indicator comes on when the
ignition switch is turned to the ON
(II) position and the parking brake is
released, it means there is a problem
with a circuit. Have your vehicle
checked by your dealer.
This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. If you turn the
ignition switch to the ACCESSORY
(I) or the LOCK (0) position without
turning of f the light switch, this
indicator will remain on. A reminder
chime will also sound when you open
the driver’s door and remove the key
from the ignition switch.
The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If an indicator does not blink
or blinks rapidly, it usually means
one of the turn signal bulbs is
burned out (see pages and ).
Replace the bulb as soon as possible,
since other drivers cannot see that
you are signaling.
This indicator comes on if the trunk
lid is not closed tightly.
This indicator comes on if any door
is not closed tightly.
This indicator also comes on with
reduced brightness when the
daytime running lights (DRL) are on
(see page ).
This indicator comes on when you
turn on the f og lights. For more
inf ormation, see page . 73
74
74
304 305
Si model only
Turn Signal and
Hazard Warning
Indicators
Lights On Indicator
High Beam Indicator Trunk-open Indicator
Door-open Indicator
Fog L ight Indicator
Daytime Running L ights
Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
61
Main Menu

ÎÎ
Î
Î Î
Î
Î
Î
Î ÎÎÎ
Only on vehicles equipped with navigation system. Ref er to the navigati on system manual.
To use the horn, press the center pad of the steering wheel.
If equipped
1:2:3:4: Si model
Controls Near the Steering Wheel
Inst rument s and Cont rols
71
STEERING WHEEL
ADJUSTMENT WINDSHIELD WIPERS/WASHERS
Vehicle with navigation system is shown. HORN
CRUISE CONTROL BUTTONSPASSENGER AIRBAG OFF
INDICATOR
HAZARD WARNING BUTTON
REAR WINDOW DEFOGGER
HEATED MIRRORS
DISPLAY CHANGE
BUTTON
HOOD RELEASE HANDLE
SEL/RESET BUTTON
(P.75)
(P.66) (P.66)
(P.76)
(P.76) (P.30)
(P.72)
REMOTE AUDIO CONTROLS HEADLIGHTS/TURN SIGNALS
(P.73)
FOG LIGHTS (P.74)
INSTRUMENT PANEL
BRIGHTNESS
(P.77)
VEHICLE STABILITY ASSIST
(VSA) OFF SWITCH
NAVIGATION SYSTEM VOICE
CONTROL BUTTONS (P.269)
(P.204)
BLUETOOTH HANDSFREELINK
SYSTEM VOICE CONTROL
BUTTONS (P.212)
(P.240)
(P.209)(P.104)
1 2
2
2 3
2
4
4
Main Menu

With the headlight switch of f or in
the position, the high beam
headlights come on with reduced
brightness when you turn the
ignition switch to the ON (II)
position and release the parking
brake. They remain on until you turn
the ignition switch of f , even if you
set the parking brake.
The headlights revert to normal
operation when you turn them on
with the switch.You can use the f og lights only when
the headlights are on low beam.
They will go of f when the headlights
are turned of f .
Turn the f og lights on and of f by
turning the switch next to the
headlight switch.
On Si model
Daytime Running L ights Fog L ights
Headlights, Fog Lights
74
FOG LIGHT SWITCH
Main Menu

Make sure the rear window is clear
and you have good visibility bef ore
starting to drive.
The def ogger and antenna wires on
the inside of the rear window can be
accidentally damaged. When
cleaning the glass, always wipe side-
to-side.
The rear window def ogger will clear
fog, frost, and thin ice from the
window. Push the def ogger button to
turn it on and off. The indicator in
the button comes on to show the
def ogger is on. If you do not turn it
of f , the def ogger will shut itself of f
af ter about 15 minutes. It also shuts
of f when you turn of f the ignition
switch. You have to turn the
def ogger on again when you restart
the vehicle.

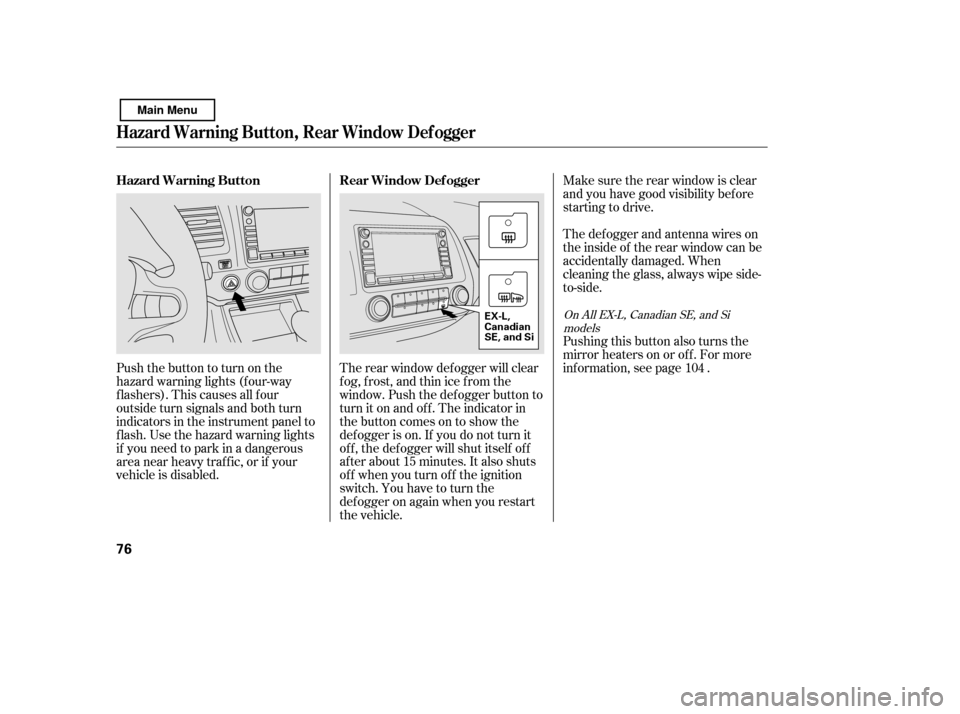

Pushthebuttontoturnonthe
hazard warning lights (f our-way
flashers). This causes all four
outside turn signals and both turn
indicators in the instrument panel to
f lash. Use the hazard warning lights
if you need to park in a dangerous
area near heavy traffic, or if your
vehicle is disabled.
Pushing this button also turns the
mirror heaters on or of f . For more
inf ormation, see page .
104
OnAllEX-L,CanadianSE,andSi
models
Hazard Warning Button, Rear Window Def ogger
Rear Window Def ogger
Hazard Warning Button
76
EX-L,
Canadian
SE, and Si
Main Menu

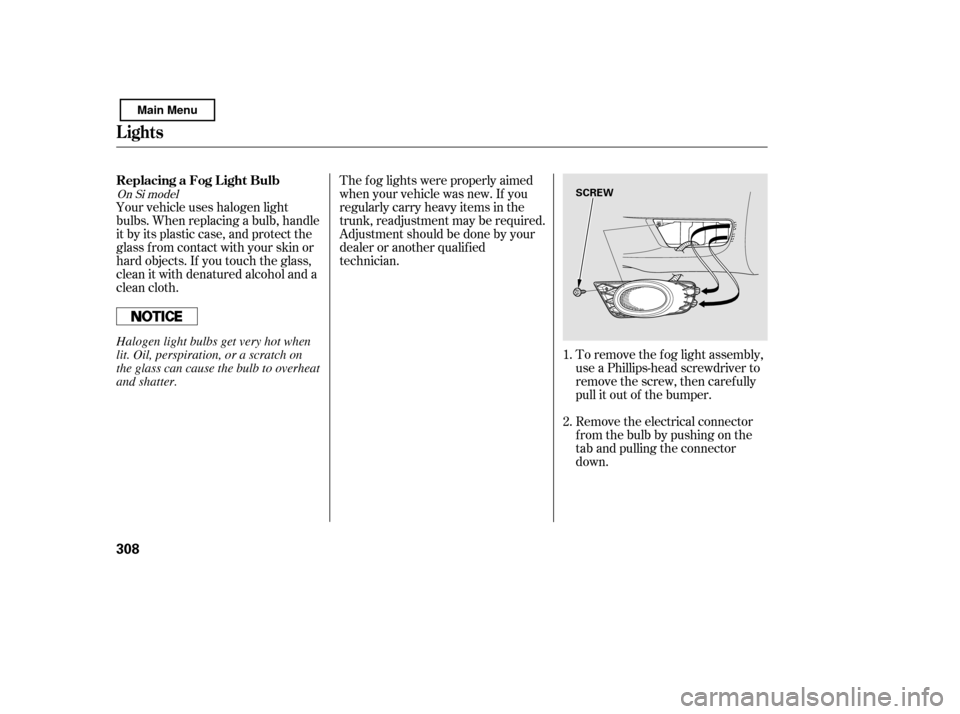

To remove the fog light assembly,
use a Phillips-head screwdriver to
remove the screw, then caref ully
pull it out of the bumper.
Remove the electrical connector
f rom the bulb by pushing on the
tab and pulling the connector
down.
Your vehicle uses halogen light
bulbs. When replacing a bulb, handle
it by its plastic case, and protect the
glass from contact with your skin or
hard objects. If you touch the glass,
clean it with denatured alcohol and a
clean cloth.
Thefoglightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
trunk, readjustment may be required.
Adjustment should be done by your
dealer or another qualif ied
technician.
1. 2.
On Si model
Lights
ReplacingaFogLightBulb
308
SCREW
Halogen light bulbs get very hot when
lit. Oil, perspiration, or a scratch on
the glass can cause the bulb to overheat
and shatter.
