INTERIOR LAMPS
Dome lamp
The dome lamp is equipped with a
control switch that will illuminate
when:
•the doors are closed and the
switch is in the right position.
•the switch is in the middle
position and any door is open.
When the dome lamp switch is in the left position, it will not illuminate
when you open the doors.
Reading lamps (if equipped)
The reading lamps are operated by
separate on/off controls.
Theater dimming: The dome lamp
dims about 20 seconds after the
doors are closed.
Approach lamps (if equipped)
The approach lamps will turn on and off automatically when you open
and close the doors. If you unlock the doors with the remote control,
they will come on. They will go off automatically after a short time.
BULB REPLACEMENT
Lamp assembly condensation
Exterior lamps are vented to accommodate normal changes in pressure.
Condensation can be a natural by-product of this design. When moist air
enters the lamp assembly through the vents, there is a possibility that
condensation can occur when the temperature is cold. When normal
condensation occurs, a thin film of mist can form on the interior of the
lens. The thin mist eventually clears and exits through the vents during
normal operation. Clearing time may take as long as 48 hours under dry
weather conditions.
Lights
47
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

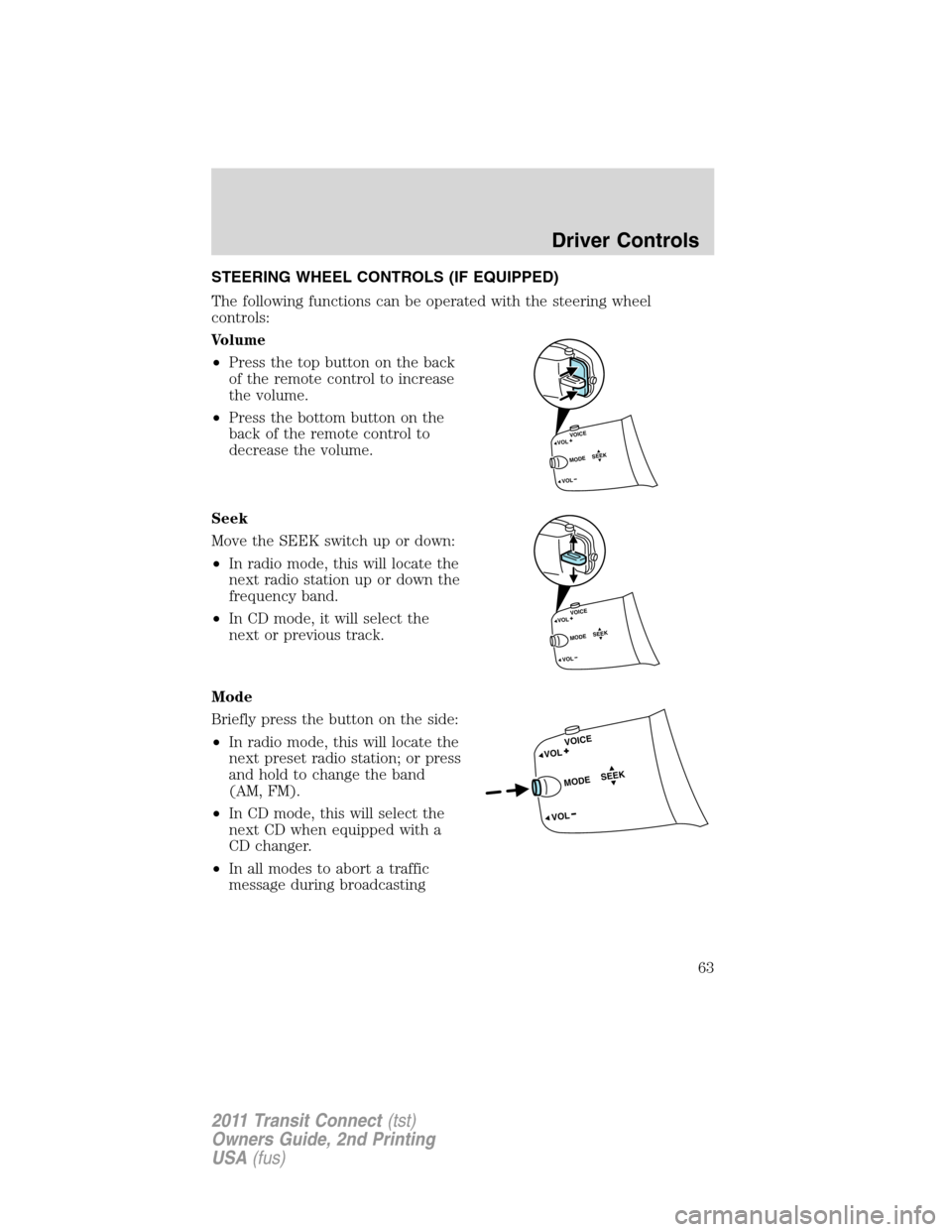

STEERING WHEEL CONTROLS (IF EQUIPPED)
The following functions can be operated with the steering wheel
controls:
Volume
•Press the top button on the back
of the remote control to increase
the volume.
•Press the bottom button on the
back of the remote control to
decrease the volume.
Seek
Move the SEEK switch up or down:
•In radio mode, this will locate the
next radio station up or down the
frequency band.
•In CD mode, it will select the
next or previous track.
Mode
Briefly press the button on the side:
•In radio mode, this will locate the
next preset radio station; or press
and hold to change the band
(AM, FM).
•In CD mode, this will select the
next CD when equipped with a
CD changer.
•In all modes to abort a traffic
message during broadcasting
VOICE
SE
E
KVOL
VOL
MODE
VOICE
S
E
E
KVOL
VOL
MODE
VOICE
S
E
E
K
VOL
VOL
MODE
Driver Controls
63
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

The typical operating range for your remote entry transmitter is
approximately 33 feet (10 meters). A decrease in operating range could
be caused by:
•weather conditions,
•nearby radio towers,
•structures around the vehicle, or
•other vehicles parked next to
your vehicle.
The remote entry system allows you
to lock or unlock all vehicle doors
and cargo door without a key.
Note:The lock and unlock buttons
work only when the ignition is the
off position. The cargo door button
works when the ignition is any
position.
If there are problems with the
remote entry system, make sure to takeALL remote entry
transmitterswith you to the authorized dealer in order to aid in
troubleshooting the problem.
Two-step door unlocking
•Press
and release to unlock the front and sliding doors.
•Within three seconds, press
and release again to unlock all the
doors.
Note:The interior lamps will illuminate if the control on the overhead
lamp isnotset to theoffposition.
One-step door unlocking
If the one-step door unlocking feature is activated, press
and release
once to unlock all the doors.Note:The interior lamps will illuminate
(refer to theIlluminated entryfeature later in this section), if the
control on the overhead lamp isnotset to theoffposition.
Switching from two-step to one-step door unlocking
Your vehicle comes with two-step unlocking enabled. With the vehicle
locked, unlocking can be switched between two-step and one-step door
unlocking by pressing and holding both the
andbuttons
Locks and Security
70
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

are not present during the programming procedure, the transmitters that
are not present during programming will no longer operate the vehicle.
Note:Ensure the brake pedal is not depressed during this sequence.
To reprogram the remote entry transmitters:
1. Ensure the vehicle is unlocked.
2. Put the key in the ignition in the 0 (off) position.
3. Cycle four times rapidly (within
six seconds) between the 0 (off)
and II (on) position.
Note:The fourth turn must end in
the II (on) position.
4. Turn the key to the 0 (off)
position within 10 seconds.
5. A chime will sound to confirm
that the programming mode has been activated.
6. Within 10 seconds press any button on the remote entry transmitter.
Note:If more than 10 seconds have passed you will need to start the
procedure over again.
7. A chime will sound to confirm that this remote entry transmitter has
been programmed.
8. Repeat Step 6 to program each additional remote entry transmitter.
9. The programming mode will exit automatically after 10 seconds of
inactivity, or by turning the ignition to position II.
Illuminated entry
The interior lamps illuminate when the remote entry system is used to
unlock the door(s).
The illuminated entry system will turn off the interior lights if:
•the ignition switch is turned to the on position, or
•the remote transmitter lock control is pressed, or
•after 25 seconds of illumination.
The dome lamp control (if equipped) mustnotbe set to the off position
for the illuminated entry system to operate.
The inside lights will not turn off if:
•they have been turned on with the dome lamp control, or
•any door is open.
Locks and Security
73
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

Safety restraints ..............87, 92–95
Belt-Minder.............................96
extension assembly ..................95
for adults .............................92–93
for children .............................111
Occupant Classification
Sensor ........................................88
warning light and chime ..........96
Safety restraints - LATCH
anchors ......................................120
Safety seats for children ..........116
Safety Compliance
Certification Label ....................260
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............274
Seats ............................................77
child safety seats ....................116
cleaning ...................................222
front seats .................................80
SecuriLock passive anti-theft
system ..........................................74
Servicing your vehicle ..............225
Setting the clock .........................22
Spark plugs,
specifications .............256, 259–260
Special notice
ambulance conversions ..............7
utility-type vehicles ....................7
Specification chart,
lubricants ...................................257
Speed control ..............................61
Starting your vehicle ........163–165
jump starting ..........................203
Steering wheel
controls ......................................63
tilting .........................................57T
Tilt steering wheel ......................57
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....148
Tires ...........................133–134, 195
alignment ................................141
care ..........................................137
changing ..........................195, 199
checking the pressure ............137
inflating ...................................135
label .........................................147
replacing ..................................139
rotating
....................................142
safety practices
.......................141
sidewall information
...............142
snow tires and chains
............155
spare tire
.................................196
terminology
.............................134
tire grades
...............................134
treadwear
........................133, 138
Towing
.......................................162
recreational towing
.................162
trailer towing
..........................162
wrecker
....................................207
Transaxle
lubricant specifications
..........257
Transmission
.............................177
brake-shift interlock (BSI)
....176
fluid, checking and adding
(automatic)
.............................251
fluid, refill capacities
..............257
Trunk
remote release
..........................71
Turn signal
..................................46
