7. Drive the vehicle to complete the relearning process.
•The vehicle may need to be driven 10 miles (16 km) or more to
relearn the idle and fuel trim strategy.
•If you do not allow the engine to relearn its idle trim, the idle
quality of your vehicle may be adversely affected until the idle
trim is eventually relearned.
If the battery has been disconnected or a new battery has been installed,
the clock and radio settings must be reset once the battery is
reconnected.
•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
ENGINE COOLANT
Electric vehicles
For specific information on the Transit Connect Electric, refer to the
Azure Dynamics TC-E Owner’s GuideSupplement.
Checking engine coolant
The concentration and level of engine coolant should be checked at the
intervals listed inscheduled maintenance information.The coolant
concentration should be maintained at 50/50 coolant and distilled water.
Coolant concentration testing is possible with a hydrometer or antifreeze
tester. The level of coolant should be maintained at the MAX level in the
coolant reservoir. If the level falls below, add coolant per the instructions
in theAdding engine coolantsection.
Your vehicle was factory-filled with a 50/50 engine coolant and water
concentration. If the concentration of coolant falls below 40% or above
60%, the engine parts could become damaged or not work properly.A
50/50 mixture of coolant and water provides the following:
•Improved freeze protection.
•Improved boiling protection.
L
E
A
D
RETURN
RECYCLE
Maintenance and Specifications
233
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

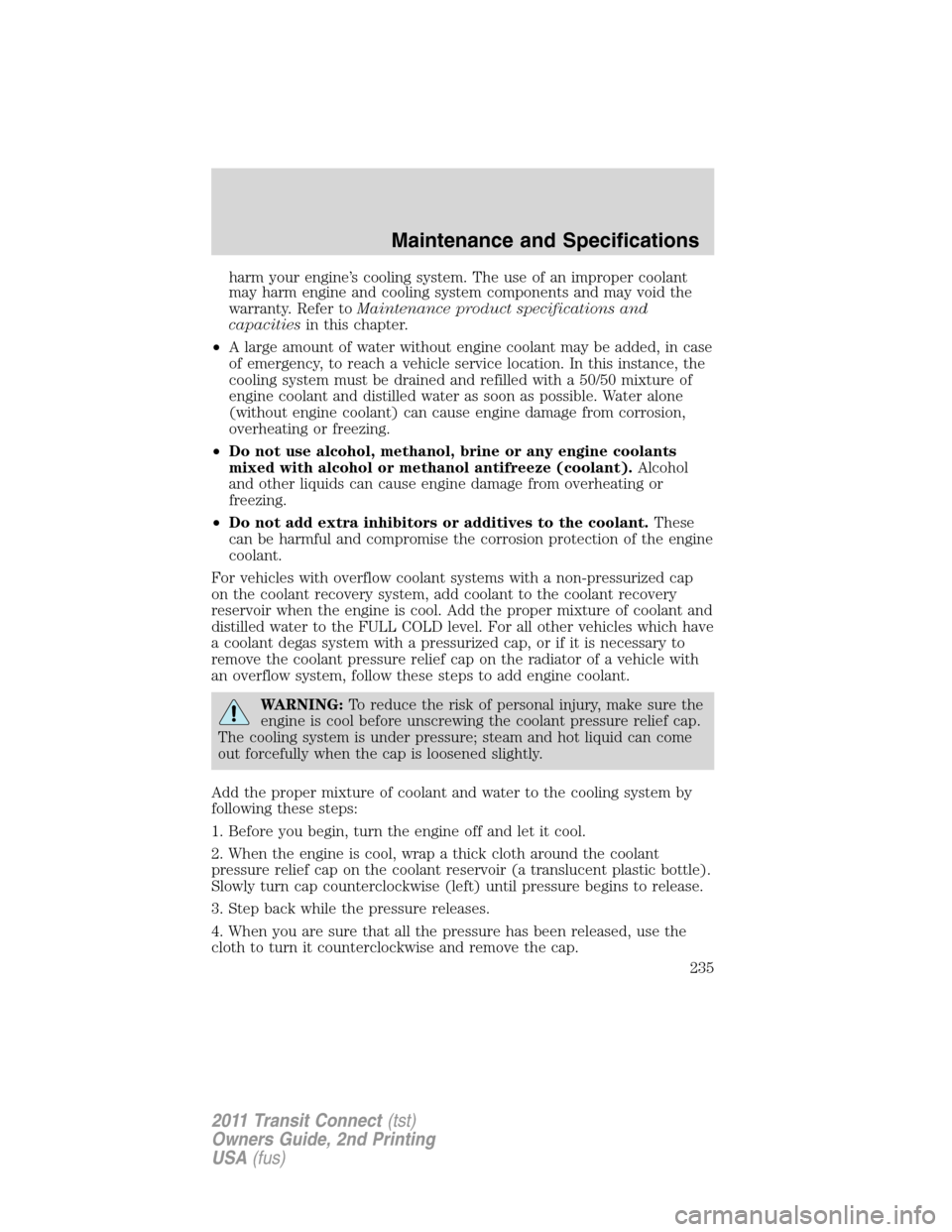

harm your engine’s cooling system. The use of an improper coolant
may harm engine and cooling system components and may void the
warranty. Refer toMaintenance product specifications and
capacitiesin this chapter.
•A large amount of water without engine coolant may be added, in case
of emergency, to reach a vehicle service location. In this instance, the
cooling system must be drained and refilled with a 50/50 mixture of
engine coolant and distilled water as soon as possible. Water alone
(without engine coolant) can cause engine damage from corrosion,
overheating or freezing.
•Do not use alcohol, methanol, brine or any engine coolants
mixed with alcohol or methanol antifreeze (coolant).Alcohol
and other liquids can cause engine damage from overheating or
freezing.
•Do not add extra inhibitors or additives to the coolant.These
can be harmful and compromise the corrosion protection of the engine
coolant.
For vehicles with overflow coolant systems with a non-pressurized cap
on the coolant recovery system, add coolant to the coolant recovery
reservoir when the engine is cool. Add the proper mixture of coolant and
distilled water to the FULL COLD level. For all other vehicles which have
a coolant degas system with a pressurized cap, or if it is necessary to
remove the coolant pressure relief cap on the radiator of a vehicle with
an overflow system, follow these steps to add engine coolant.
WARNING:To reduce the risk of personal injury, make sure the
engine is cool before unscrewing the coolant pressure relief cap.
The cooling system is under pressure; steam and hot liquid can come
out forcefully when the cap is loosened slightly.
Add the proper mixture of coolant and water to the cooling system by
following these steps:
1. Before you begin, turn the engine off and let it cool.
2. When the engine is cool, wrap a thick cloth around the coolant
pressure relief cap on the coolant reservoir (a translucent plastic bottle).
Slowly turn cap counterclockwise (left) until pressure begins to release.
3. Step back while the pressure releases.
4. When you are sure that all the pressure has been released, use the
cloth to turn it counterclockwise and remove the cap.
Maintenance and Specifications
235
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

Use the following guidelines to avoid electrostatic charge build-up when
filling an ungrounded fuel container:
•Place approved fuel container on the ground.
•DO NOT fill a fuel container while it is in the vehicle (including the
cargo area).
•Keep the fuel pump nozzle in contact with the fuel container while
filling.
•DO NOT use a device that would hold the fuel pump handle in the fill
position.
Fuel filler cap
Your fuel tank filler cap has an indexed design with a 1/4 turn on/off
feature.
When fueling your vehicle:
1. Turn the engine off.
2. Unlock the fuel filler door.
3. Carefully turn the filler cap
counterclockwise until it spins off.
4. Pull to remove the cap from the
fuel filler pipe.
5. To install the cap, align the tabs
on the cap with the notches on the
filler pipe.
6. Turn the filler cap clockwise 1/4
of a turn until it clicks at least once.
7. Lock the fuel filler door.
If you must replace the fuel filler cap, replace it with a fuel filler
cap that is designed for your vehicle. The customer warranty may
be void for any damage to the fuel tank or fuel system if the
correct genuine Ford, Motorcraftor other certified fuel filler
cap is not used.
WARNING:The fuel system may be under pressure. If the fuel
filler cap is venting vapor or if you hear a hissing sound, wait
until it stops before completely removing the fuel filler cap. Otherwise,
fuel may spray out and injure you or others.
Maintenance and Specifications
241
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

instrument panel ....................220
interior .....................................221
plastic parts ............................219
safety belts ..............................221
washing ....................................217
waxing .....................................218
wheels ......................................218
wiper blades ............................220
Clock ......................................22–23
Console ........................................57
overhead ....................................58
Controls
steering column ........................63
Coolant
checking and adding ..............233
refill capacities ................236, 257
specifications ..........................257
Cruise control (see Speed
control) ........................................61
Customer Assistance ................185
Ford Extended Service
Plan ..................................265, 268
Getting assistance outside the
U.S. and Canada .....................213
Getting roadside assistance ...185
Getting the service you
need .........................................209
Ordering additional owner’s
literature .................................215
Utilizing the
Mediation/Arbitration
Program ...................................213
D
Daytime running lamps (see
Lamps) .........................................44
Dipstick
automatic transmission
fluid ..........................................251engine oil .................................229
Doors ...........................................69
central unlocking ......................68
Driving under special
conditions
through water .........................183
E
Emergencies, roadside
jump-starting ..........................203
Emission control system ..........246
Engine ................................259–260
cleaning ...................................219
coolant .....................................233
fail-safe cooling .......................237
idle speed control ...................231
lubrication specifications .......257
refill capacities ........................257
service points ..................227–228
Engine block heater .................166
Engine oil ..................................229
checking and adding ..............229
dipstick ....................................229
filter, specifications ........230, 256
recommendations ...................230
refill capacities ........................257
specifications ..........................257
Event data recording ....................8
Exhaust fumes ..........................166
F
Fail safe cooling ........................237
Floor mats .............................64–65
Fluid capacities .........................257
Index
291
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

Safety restraints ..............87, 92–95
Belt-Minder.............................96
extension assembly ..................95
for adults .............................92–93
for children .............................111
Occupant Classification
Sensor ........................................88
warning light and chime ..........96
Safety restraints - LATCH
anchors ......................................120
Safety seats for children ..........116
Safety Compliance
Certification Label ....................260
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............274
Seats ............................................77
child safety seats ....................116
cleaning ...................................222
front seats .................................80
SecuriLock passive anti-theft
system ..........................................74
Servicing your vehicle ..............225
Setting the clock .........................22
Spark plugs,
specifications .............256, 259–260
Special notice
ambulance conversions ..............7
utility-type vehicles ....................7
Specification chart,
lubricants ...................................257
Speed control ..............................61
Starting your vehicle ........163–165
jump starting ..........................203
Steering wheel
controls ......................................63
tilting .........................................57T
Tilt steering wheel ......................57
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....148
Tires ...........................133–134, 195
alignment ................................141
care ..........................................137
changing ..........................195, 199
checking the pressure ............137
inflating ...................................135
label .........................................147
replacing ..................................139
rotating
....................................142
safety practices
.......................141
sidewall information
...............142
snow tires and chains
............155
spare tire
.................................196
terminology
.............................134
tire grades
...............................134
treadwear
........................133, 138
Towing
.......................................162
recreational towing
.................162
trailer towing
..........................162
wrecker
....................................207
Transaxle
lubricant specifications
..........257
Transmission
.............................177
brake-shift interlock (BSI)
....176
fluid, checking and adding
(automatic)
.............................251
fluid, refill capacities
..............257
Trunk
remote release
..........................71
Turn signal
..................................46
Index
294
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)
