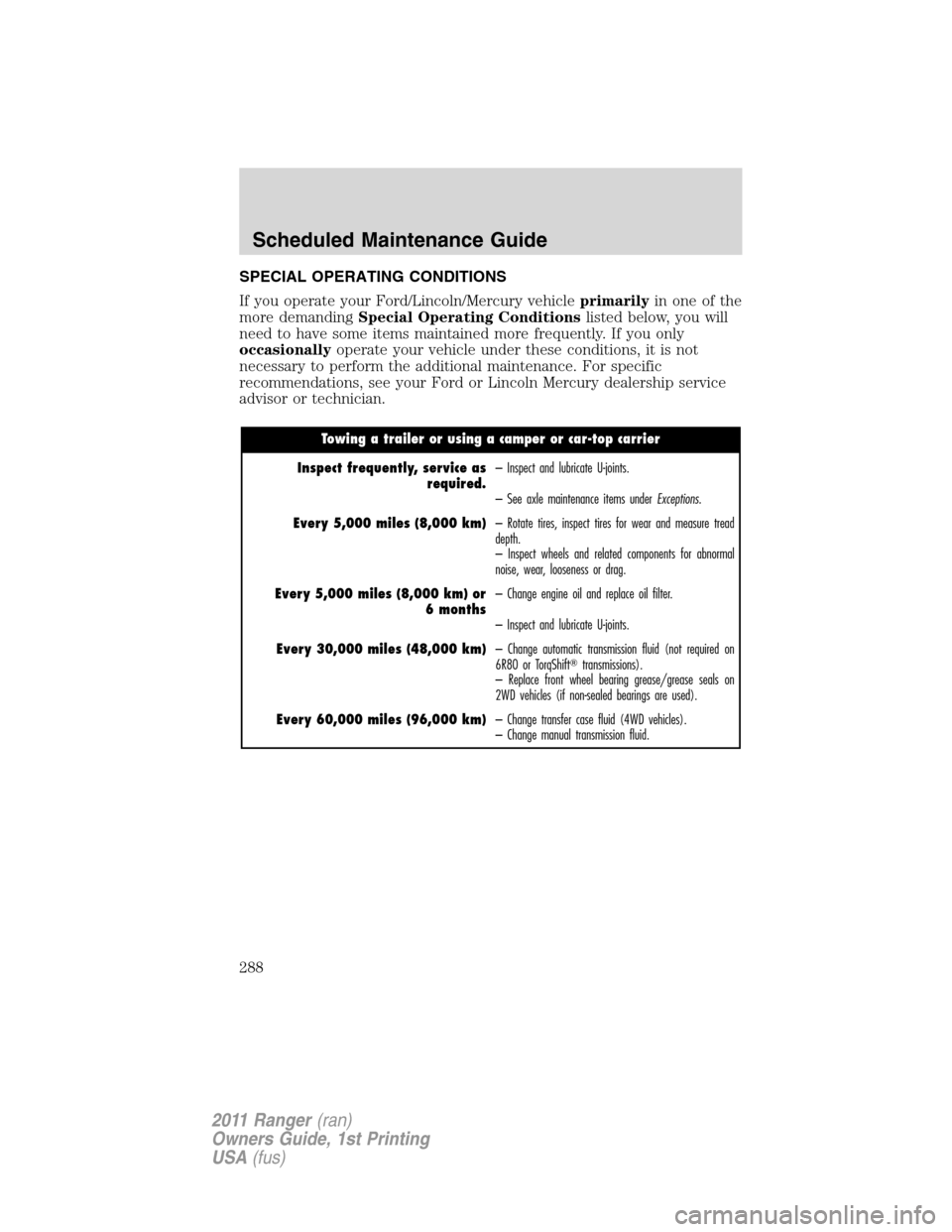

SPECIAL OPERATING CONDITIONS
If you operate your Ford/Lincoln/Mercury vehicleprimarilyin one of the
more demandingSpecial Operating Conditionslisted below, you will
need to have some items maintained more frequently. If you only
occasionallyoperate your vehicle under these conditions, it is not
necessary to perform the additional maintenance. For specific
recommendations, see your Ford or Lincoln Mercury dealership service
advisor or technician.
Towing a trailer or using a camper or car-top carrier
Inspect frequently, service as
required.– Inspect and lubricate U-joints.
– See axle maintenance items under
Exceptions.
Every 5,000 miles (8,000 km)– Rotate tires, inspect tires for wear and measure tread
depth.
– Inspect wheels and related components for abnormal
noise, wear, looseness or drag.
Every 5,000 miles (8,000 km) or
6 months– Change engine oil and replace oil filter.
– Inspect and lubricate U-joints.
Every 30,000 miles (48,000 km)– Change automatic transmission fluid (not required on
6R80 or TorqShifttransmissions).
– Replace front wheel bearing grease/grease seals on
2WD vehicles (if non-sealed bearings are used).
Every 60,000 miles (96,000 km)– Change transfer case fluid (4WD vehicles).
– Change manual transmission fluid.
Scheduled Maintenance Guide
288
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

Extensive idling and/or low-speed driving for long distances as in heavy
commercial use such as delivery, taxi, patrol car or livery
Inspect frequently, service as
required– Replace cabin air filter (if equipped).
– Replace engine air filter.
Every 5,000 miles (8,000 km)– Inspect brake system.
– Rotate tires, inspect tires for wear and measure tread
depth.
– Inspect wheels and related components for abnormal
noise, wear, looseness or drag.
– Lubricate control arm and steering ball joints (if
equipped with grease fittings).
Every 5,000 miles (8,000 km) or
6 months– Inspect and lubricate U-joints.
Every 5,000 miles (8,000 km),
6 months or 200 hours of engine
operation– Change engine oil and replace oil filter.
Every 15,000 miles (24,000 km)– Replace fuel filter (Ranger).
Every 30,000 miles (48,000 km)– Change automatic transmission fluid (not required on
6R80 or TorqShifttransmissions).
– Replace front wheel bearing grease/grease seals on
2WD vehicles (if non-sealed bearings are used).
Every 60,000 miles (96,000 km)– Replace spark plugs.
– Change transfer case fluid (4WD vehicles).
Scheduled Maintenance Guide
289
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

Operating in dusty conditions such as unpaved or dusty roads
Inspect frequently, service as
required– Replace cabin air filter (if equipped).
– Replace engine air filter.
Every 5,000 miles (8,000 km)– Rotate tires, inspect tires for wear and measure tread
depth.
– Inspect wheels and related components for abnormal
noise, wear, looseness or drag.
Every 5,000 miles (8,000 km) or
6 months– Change engine oil and replace oil filter.
– Inspect and lubricate U-joints.
Every 15,000 miles (24,000 km)– Replace fuel filter (Ranger).
Every 30,000 miles (48,000 km)– Change automatic transmission fluid (not required on
6R80 or TorqShifttransmissions).
– Replace front wheel bearing grease/grease seals on
2WD vehicles (if non-sealed bearings are used).
Every 50,000 miles (80,000 km)– Change manual transmission fluid.
– Change rear axle lubricant (E-450 and F-450/550
only).
Every 60,000 miles (96,000 km)– Change transfer case fluid (4WD vehicles).
Scheduled Maintenance Guide
290
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

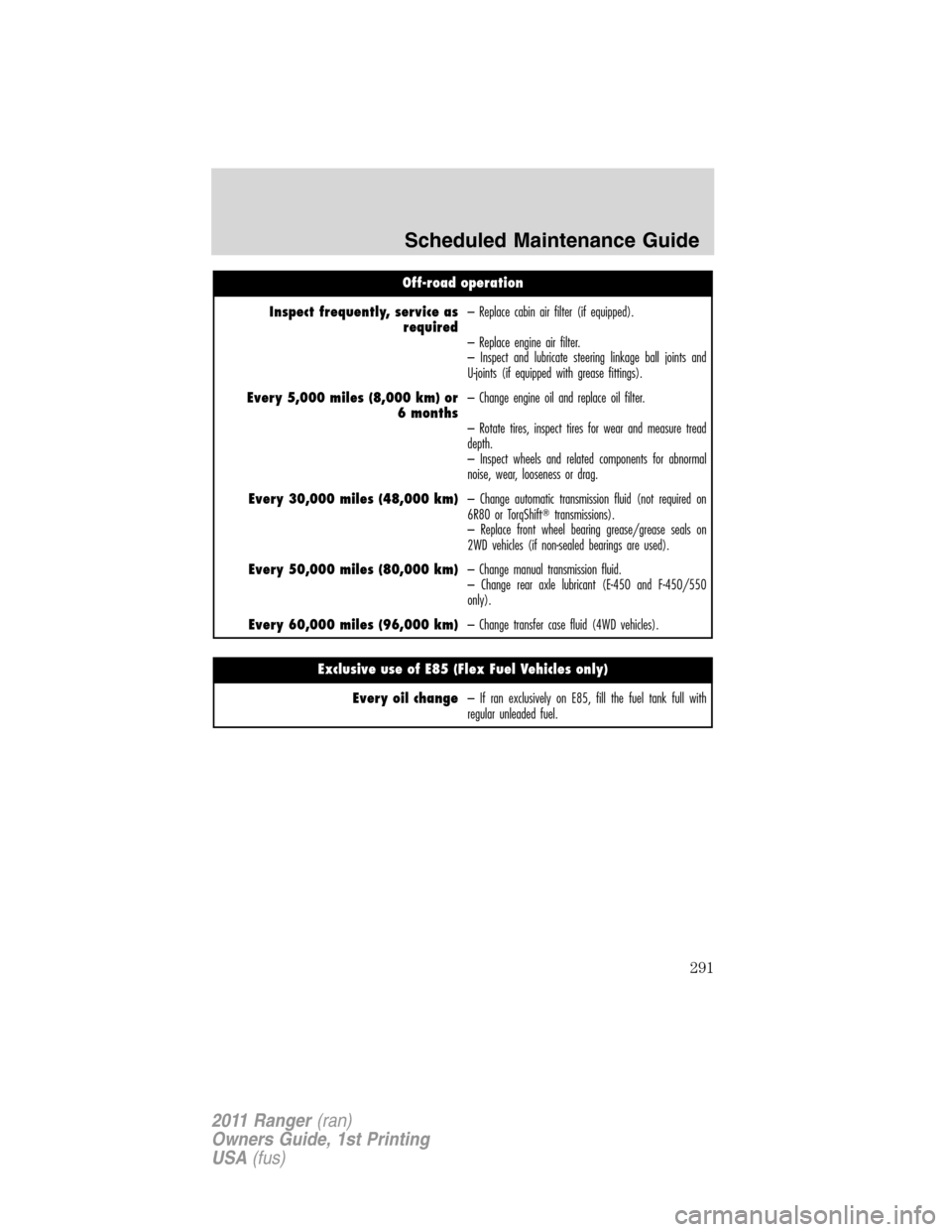

Off-road operation
Inspect frequently, service as
required– Replace cabin air filter (if equipped).
– Replace engine air filter.
– Inspect and lubricate steering linkage ball joints and
U-joints (if equipped with grease fittings).
Every 5,000 miles (8,000 km) or
6 months– Change engine oil and replace oil filter.
– Rotate tires, inspect tires for wear and measure tread
depth.
– Inspect wheels and related components for abnormal
noise, wear, looseness or drag.
Every 30,000 miles (48,000 km)– Change automatic transmission fluid (not required on
6R80 or TorqShifttransmissions).
– Replace front wheel bearing grease/grease seals on
2WD vehicles (if non-sealed bearings are used).
Every 50,000 miles (80,000 km)– Change manual transmission fluid.
– Change rear axle lubricant (E-450 and F-450/550
only).
Every 60,000 miles (96,000 km)– Change transfer case fluid (4WD vehicles).
Exclusive use of E85 (Flex Fuel Vehicles only)
Every oil change– If ran exclusively on E85, fill the fuel tank full with
regular unleaded fuel.
Scheduled Maintenance Guide
291
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

COOLANT CHANGE RECORD
Hot climate oil change intervals
❑If operating conditions are normal and you drive your Ford, Lincoln or Mercury vehicle under typical, everyday conditions
andyou are using an API performance category oil of SL or later (for example SM, etc.) then you can follow the
7,500 mile (12,000 km) normal service oil change intervals schedule. Vehicles operating in the Middle East, North Africa,
Sub-Saharan Africa or locations with similar climates must follow the oil change interval of 3,000 mile (5,000 km) if the
owner is using oils defined by the American Petroleum Institute (API) performance category of API SK or earlier (for ex-
ample SJ, etc.).
Engine air filter & cabin air filter replacement
❑Engine air filter and cabin air filter life is dependent on exposure to dusty and dirty conditions. Vehicles operated in these
conditions will require frequent inspection and replacement of the engine air filter and cabin air filter.
Engine coolant
❑6 years or 105,000 miles (168,000 km) - change coolant (whichever comes first).❑After initial change - change coolant every 3 years or 45,000 miles (72,000 km).
Scheduled Maintenance Guide
295
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

Engine coolant change log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
Scheduled Maintenance Guide
296
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

A
ABS (see Brakes) .....................155
AdvanceTrac ..............................158
Air cleaner filter .......255–256, 259
Airbag supplemental restraint
system ..............................82–83, 91
and child safety seats ..............85
description ..........................83, 91
disposal ......................................93
driver airbag ..................83, 86, 91
indicator light .....................90, 93
operation .......................83, 86, 91
passenger airbag ...........83, 86, 91
side airbag .................................91
Ambulance packages ....................7
Antifreeze
(see Engine coolant) ................233
Anti-lock brake system
(see Brakes) ......................155–156
Anti-theft system ........................59
Audio system (see Radio) ...19, 21
Automatic transmission ............166
driving an automatic
overdrive .................................166
fluid, refill capacities ..............260
fluid, specification ..................260
Auxiliary input jack (Line in) ....26
Auxiliary power point .................50
Axle
lubricant specifications ..........260
refill capacities ........................260
B
Battery .......................................231
acid, treating emergencies .....231
jumping a disabled battery ....201maintenance-free ....................231
replacement, specifications ...259
servicing ..................................231
Belt-Minder...............................78
Booster seats .............................106
Brakes ........................................155
anti-lock ...........................155–156
anti-lock brake system (ABS)
warning light ...........................156
fluid, checking and adding ....251
fluid, refill capacities ..............260
fluid, specifications .................260
lubricant specifications ..........260
parking ....................................157
shift interlock ..........................164
Bulbs ............................................42
C
Capacities for refilling fluids ....260
Cell phone use ..............................9
Changing a tire .........................191
Child safety seats ........................98
attaching with tether
straps .......................................103
in front seat ..............................98
in rear seat ........................98, 102
LATCH .....................................102
recommendations .....................96
Child safety seats - booster
seats ...........................................106
Cleaning your vehicle
engine compartment ..............216
instrument panel ....................218
interior .....................................219
plastic parts ............................217
safety belts ..............................219
washing ....................................214
waxing .....................................215
Index
297
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

wheels ......................................215
wiper blades ............................217
Clock adjust
AM/FM .......................................20
AM/FM stereo CD .....................21
Clutch
fluid ..........................................251
operation while driving ..........168
recommended shift speeds ....169
Console ........................................49
Coolant
checking and adding ..............233
refill capacities ................238, 260
specifications ..........................260
Cruise control
(see Speed control) ....................52
Customer Assistance ................179
Ford Extended Service
Plan ..................................271, 274
Getting assistance outside the
U.S. and Canada .....................210
Getting roadside assistance ...179
Getting the service you
need .........................................206
Ordering additional owner’s
literature .................................212
Utilizing the
Mediation/Arbitration
Program ...................................210
D
Daytime running lamps
(see Lamps) ................................39
Dipstick
engine oil .................................227
Driveline universal joint and
slip yoke ....................................255Driving under special
conditions ..................168, 173, 176
sand .........................................175
snow and ice ...........................177
through water .................175, 178
E
Emergencies, roadside
jump-starting ..........................201
Emergency Flashers .................180
Emission control system ..........247
Engine ........................................265
cleaning ...................................216
coolant .....................................233
idle speed control ...................231
lubrication specifications .......260
refill capacities ........................260
service points ..................224–225
starting after a collision .........180
Engine block heater .................153
Engine oil ..................................227
checking and adding ..............227
dipstick ....................................227
filter, specifications ........229, 259
recommendations ...................229
refill capacities ........................260
specifications ..........................260
Event data recording ....................7
Exhaust fumes ..........................153
F
Floor mats ...................................54
Fluid capacities .........................260
Fog lamps ....................................38
Four-Wheel Drive vehicles .......171
driving off road .......................172
electronic shift ........................171
Index
298
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
