2011 FORD KUGA panel

DETAILS/RESULTS/ACTIONS
TEST CONDITIONS
D2: INSPECT THE WHEEL BEARINGS
1 Inspect the wheel bearings.
• Are the wheel bearings OK?
zYe s GO to D3 .
zNo
INSTALL new wheel bearings as necessary.
REFER to: Front Wheel Bearing (204-01 Front
Suspension, Removal and Installation).
ROAD TEST as necessary.
D3: INSPECT THE WHEEL AND TIRE RUNOUT
1 Inspect the wheel and tire runout.
• Is the wheel and tire runout OK?
zYe s Balance the wheels and tires. Refer to the
wheel balance equipment manufacturer's
instructions. ROAD TEST as necessary.
zNoINSTALL new wheels or tires as necessary.
REFER to: Wheel and Tire (204-04 Wheels
and Tires, Removal and Installation).
ROAD TEST as necessary.
PINPOINT TEST E : NON-AXLE NOISE
DETAILS/RESULTS/ACTIONS
TEST CONDITIONS
E1: INSPECT THE VEHICLE TRIM
1 Check the radiator grille and trim panels to see
if they are the source of the noise.
• Are the vehicle trim components causing the noise?
zYe s
INSTALL new trim components or REPAIR as
necessary. ROAD TEST as necessary.
zNoGO to E2.
E2: CHECK THE AIR CONDITIONING (A/C) SYSTEM FOR NOISE
1 Ignition switch in position III.
2Ignition switch in position II.
G37349en2008.50 Kuga8/2011
100-04-
18
Noise, Vibration and Harshness
100-04- 18
DIAGNOSIS AND TESTING
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Blower Motor — RHD(34 374 0)
Special Tool(s)412-131
Remover/Installer, Blower
Engine
E42948
Removal
NOTE:Removal steps in this procedure may
contain installation details.
1. Refer to: Cowl Panel Grille (501-02 Front End
Body Panels, Removal and Installation).
2. Torque: 25
Nm
E101389
3.Refer to: Steering Column (211-04 Steering
Column, Removal and Installation).
4. Refer to: Floor Console Extension - Vehicles
With: Center Armrest (501-12 Instrument
Panel and Console, Removal and Installation).
5.
E102293
6. Torque: 25Nm
G1065500en2008.50 Kuga8/2011
412-01- 37
Climate Control
412-01- 37
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

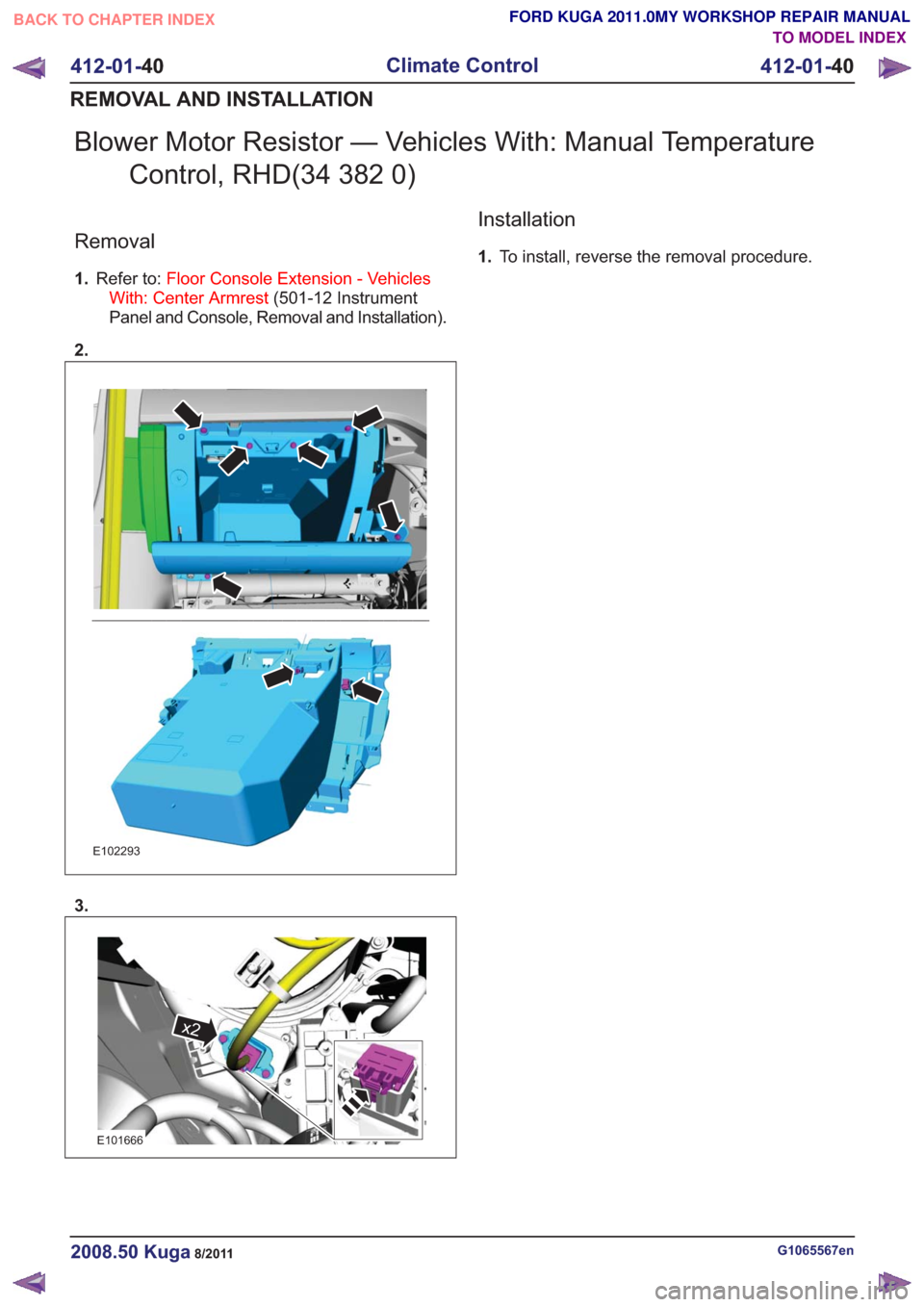

Blower Motor Resistor — Vehicles With: Manual TemperatureControl, RHD(34 382 0)
Removal
1.Refer to: Floor Console Extension - Vehicles
With: Center Armrest (501-12 Instrument
Panel and Console, Removal and Installation).
2.
E102293
3.
E101666
x2
Installation
1. To install, reverse the removal procedure.
G1065567en2008.50 Kuga8/2011
412-01- 40
Climate Control
412-01- 40
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Blower Motor Resistor — Vehicles With: Dual AutomaticTemperature Control(34 382 0)
Removal
1.Refer to: In-Vehicle Crossbeam (501-12
Instrument Panel and Console, Removal and
Installation).
2.
E82113
x2
Installation
1. To install, reverse the removal procedure.
G1072295en2008.50 Kuga8/2011
412-01- 41
Climate Control
412-01- 41
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Evaporator Core Orifice
Special Tool(s)
412-027
Disconnect Tool, Spring Lock
Coupling (1/2" blue) 412-034
Remover/Installer, Evaporator
Core Orifice Special Tool(s)
412-034-01
Adapter for 412-034 412-035
Remover, Damaged
Evaporator Core Orifice
Materials
Specification
Name
WSH-M1C231-B /
6U7J-M1C231-AA
Compressor Oil - Air
Conditioning
Removal
NOTE: Removal steps in this procedure may
contain installation details. 1.
Refer to: Air Conditioning (A/C) System
Recovery, Evacuation and Charging (412-00
Climate Control System - General Information,
General Procedures).
2. Refer to: Cowl Panel Grille (501-02 Front End
Body Panels, Removal and Installation).
3. G1071472en
2008.50 Kuga 8/2011 412-01-65
Climate Control
412-01-65
REMOVAL AND INSTALLATIONTO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL34001 34004 E129004 34005

Footwell Vent/Duct Blend Door Actuator — RHD(34 591 0)
Removal
1.
Refer to: Floor Console Extension - Vehicles
With: Center Armrest (501-12 Instrument
Panel and Console, Removal and Installation).
2. 3.
Installation
1.
To install, reverse the removal procedure. G1065565en
2008.50 Kuga 8/2011 412-01-78
Climate Control
412-01-78
REMOVAL AND INSTALLATIONTO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUALE102293 E101545x2x3

Air Inlet Blend Door Actuator(34 606 0)
Removal
1.
Refer to: Floor Console Extension - Vehicles
With: Center Armrest (501-12 Instrument
Panel and Console, Removal and Installation).
2. 3.
Installation
1.
To install, reverse the removal procedure. G1065557en
2008.50 Kuga 8/2011 412-01-79
Climate Control
412-01-79
REMOVAL AND INSTALLATIONTO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUALE102293 E100655x3

Electric Booster Heater
Removal
NOTE:
Removal steps in this procedure may
contain installation details.
1. Refer to: Floor Console (501-12 Instrument
Panel and Console, Removal and Installation).
2. Torque: 9 Nm 3.
Refer to: Climate Control Assembly - Vehicles
With: Manual Temperature Control (412-01
Climate Control, Removal and Installation).
Refer to: Climate Control Assembly - Vehicles
With: Automatic Temperature Control (412-01
Climate Control, Removal and Installation).
4. Torque: 10 Nm1.
2. Torque: 25
Nm
G1074270en
2008.50 Kuga 8/2011 412-02-18
Auxiliary Climate Control
412-02-18
REMOVAL AND INSTALLATIONTO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUALx4E101619
