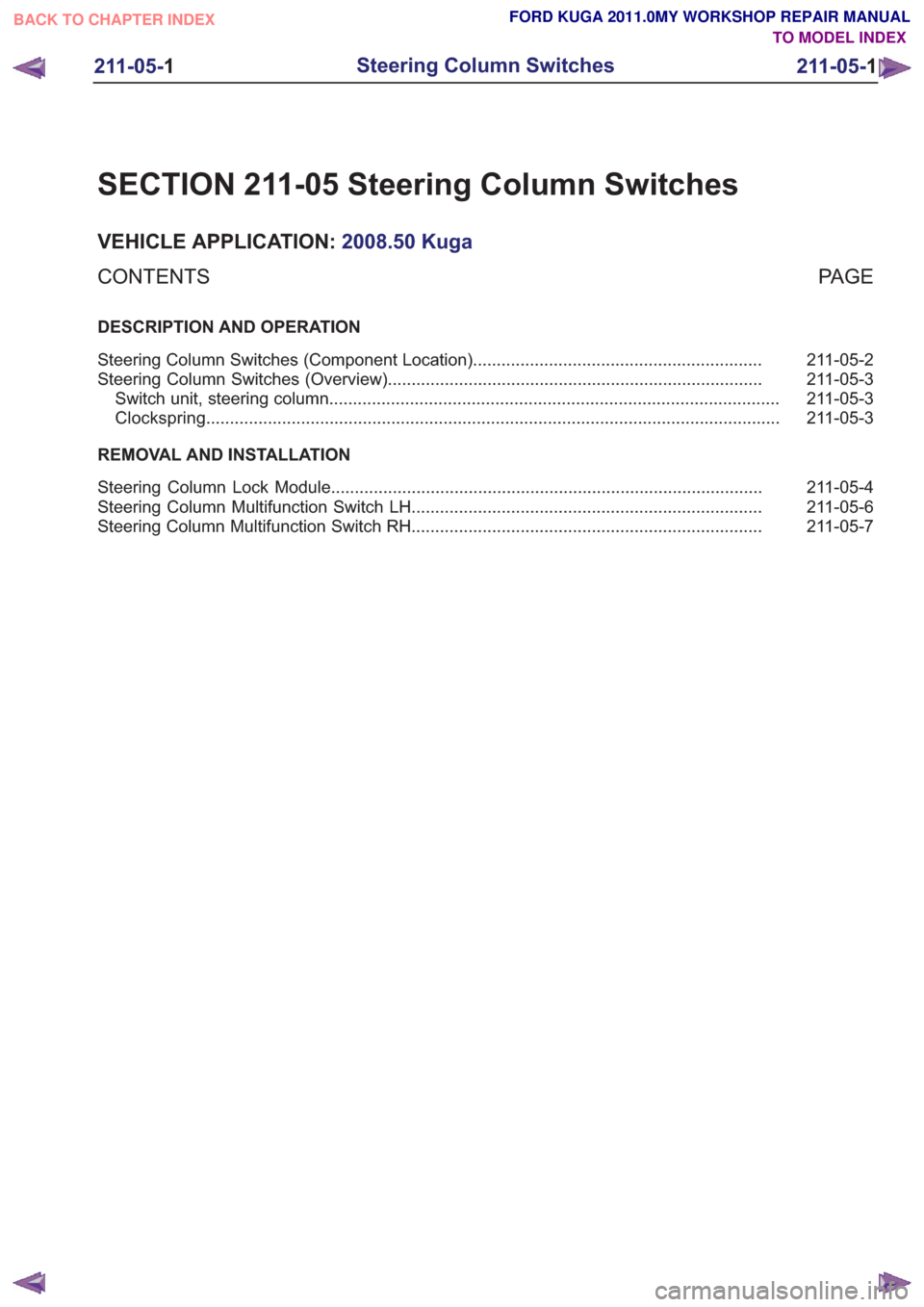

SECTION 211-05 Steering Column Switches
VEHICLE APPLICATION:2008.50 Kuga
PA G E
CONTENTS
DESCRIPTION AND OPERATION
211-05-2
Steering Column Switches (Component Location) .............................................................
211-05-3
Steering Column Switches (Overview) ........................................................................\
.......
211-05-3
Switch unit, steering column ........................................................................\
.......................
211-05-3
Clockspring ........................................................................\
.................................................
REMOVAL AND INSTALLATION 211-05-4
Steering Column Lock Module ........................................................................\
...................
211-05-6
Steering Column Multifunction Switch LH ........................................................................\
..
211-05-7
Steering Column Multifunction Switch RH ........................................................................\
..
211-05-1
Steering Column Switches
211-05- 1
.
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 1510 of 2057

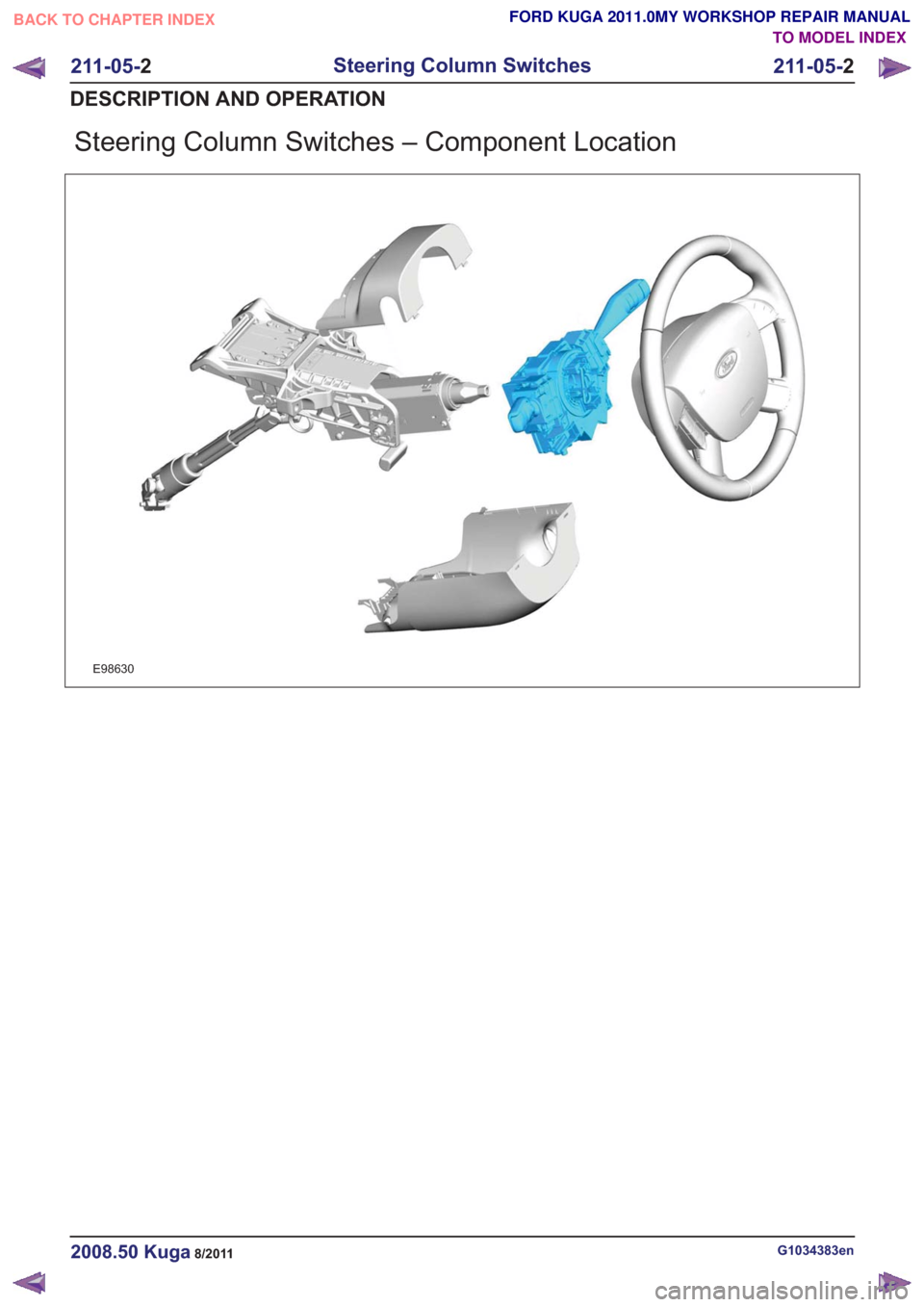

Steering Column Switches – Component Location
E98630
G1034383en2008.50 Kuga8/2011
211-05-2
Steering Column Switches
211-05- 2
DESCRIPTION AND OPERATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 1511 of 2057
Steering Column Switches – Overview

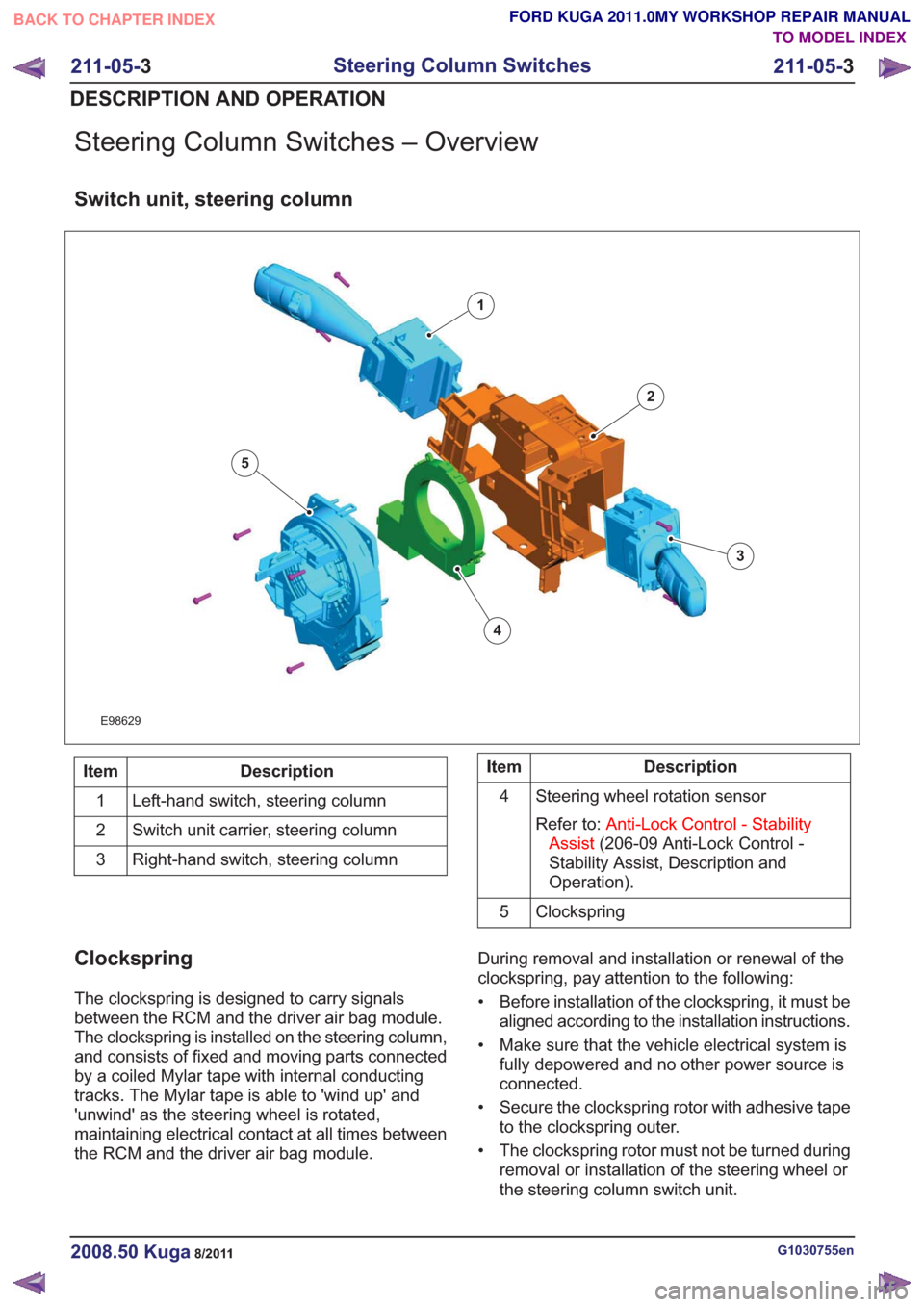

Switch unit, steering column
E98629
1
2
3
4
5
Description
Item
Left-hand switch, steering column
1
Switch unit carrier, steering column
2
Right-hand switch, steering column
3Description
Item
Steering wheel rotation sensor
Refer to: Anti-Lock Control - Stability
Assist (206-09 Anti-Lock Control -
Stability Assist, Description and
Operation).
4
Clockspring
5
Clockspring
The clockspring is designed to carry signals
between the RCM and the driver air bag module.
The clockspring is installed on the steering column,
and consists of fixed and moving parts connected
by a coiled Mylar tape with internal conducting
tracks. The Mylar tape is able to 'wind up' and
'unwind' as the steering wheel is rotated,
maintaining electrical contact at all times between
the RCM and the driver air bag module. During removal and installation or renewal of the
clockspring, pay attention to the following:
• Before installation of the clockspring, it must be
aligned according to the installation instructions.
• Make sure that the vehicle electrical system is fully depowered and no other power source is
connected.
• Secure the clockspring rotor with adhesive tape to the clockspring outer.
• The clockspring rotor must not be turned during removal or installation of the steering wheel or
the steering column switch unit.
G1030755en2008.50 Kuga8/2011
211-05- 3
Steering Column Switches
211-05- 3
DESCRIPTION AND OPERATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 1512 of 2057

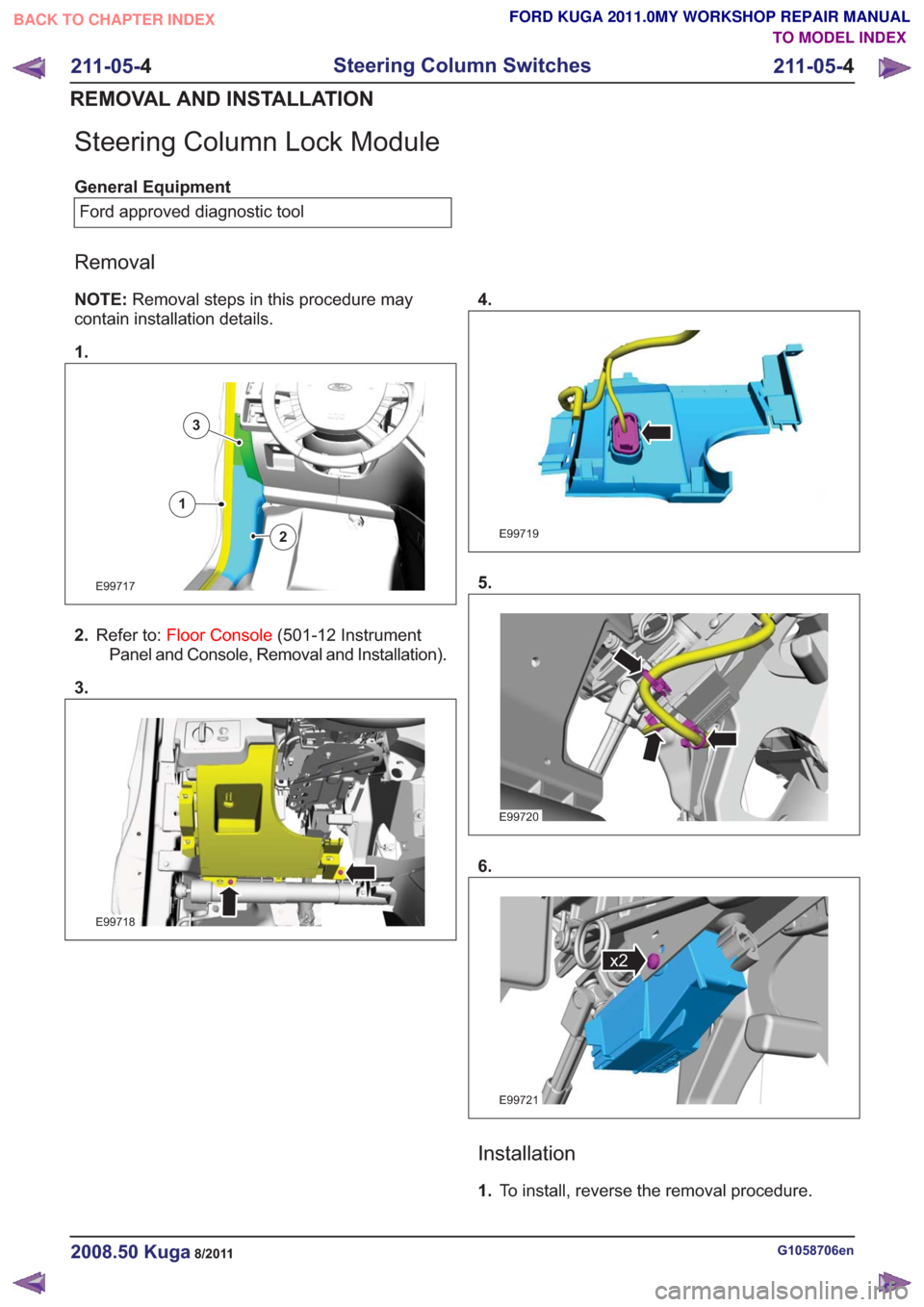

Steering Column Lock Module
General EquipmentFord approved diagnostic tool
Removal
NOTE: Removal steps in this procedure may
contain installation details.
1.
E99717
1
2
3
2. Refer to: Floor Console (501-12 Instrument
Panel and Console, Removal and Installation).
3.
E99718
4.
E99719
5.
E99720
6.
E99721
x2
Installation
1. To install, reverse the removal procedure.
G1058706en2008.50 Kuga8/2011
211-05- 4
Steering Column Switches
211-05- 4
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 1513 of 2057

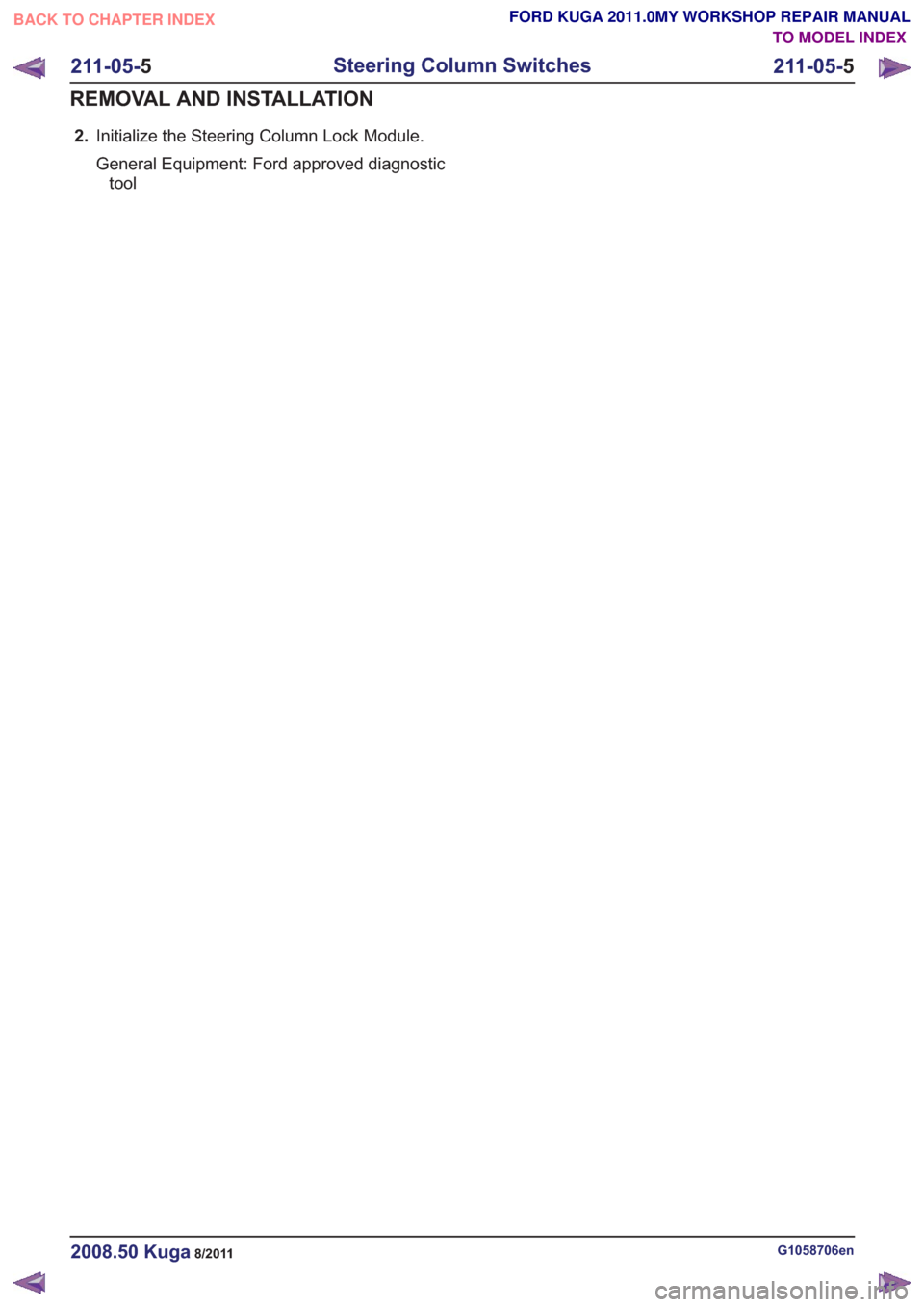

2.Initialize the Steering Column Lock Module.
General Equipment: Ford approved diagnostic
tool
G1058706en2008.50 Kuga8/2011
211-05- 5
Steering Column Switches
211-05- 5
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 1514 of 2057

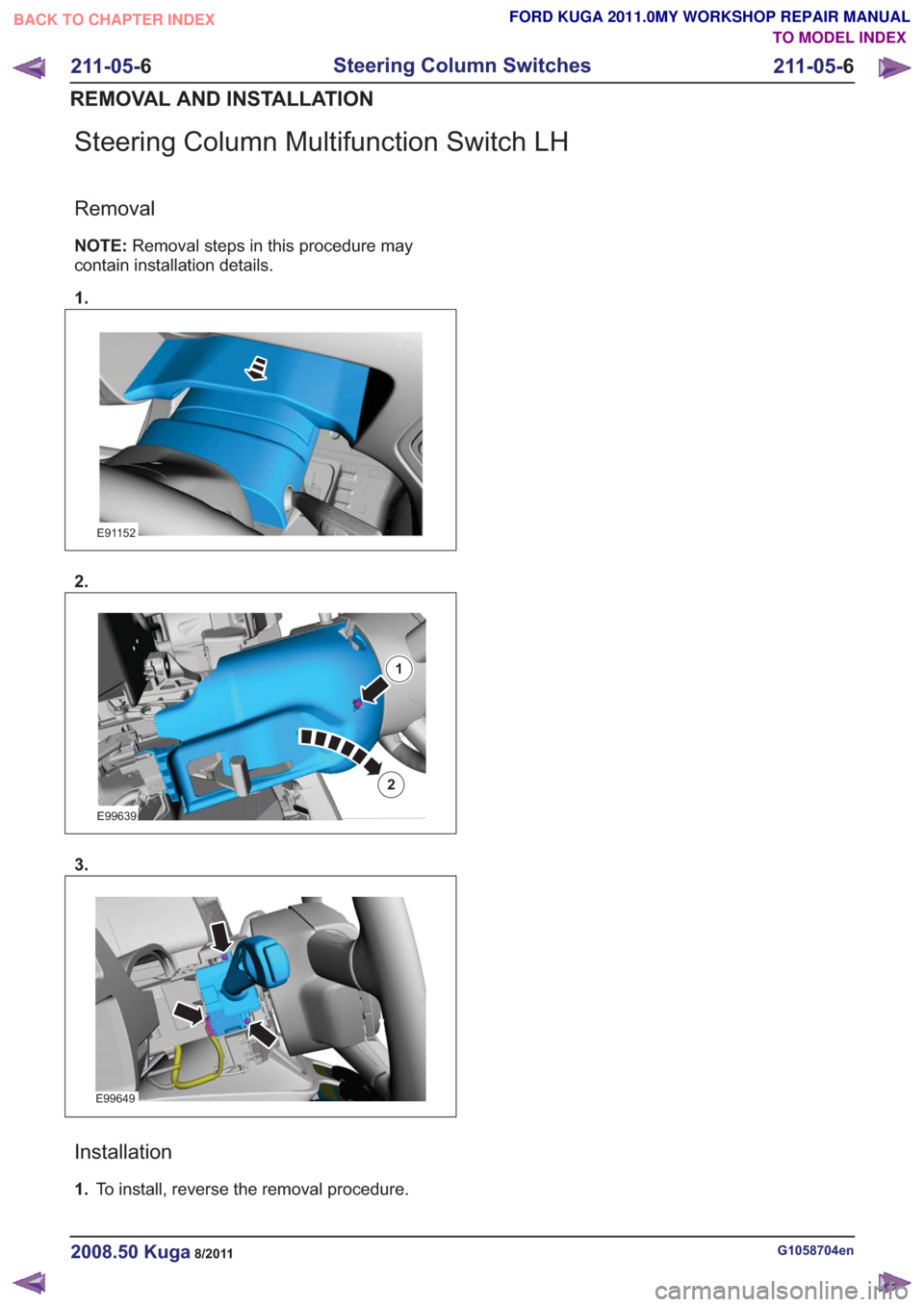

Steering Column Multifunction Switch LH
Removal
NOTE:Removal steps in this procedure may
contain installation details.
1.
E91152
2.
E99639
1
2
3.
E99649
Installation
1. To install, reverse the removal procedure.
G1058704en2008.50 Kuga8/2011
211-05- 6
Steering Column Switches
211-05- 6
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 1515 of 2057

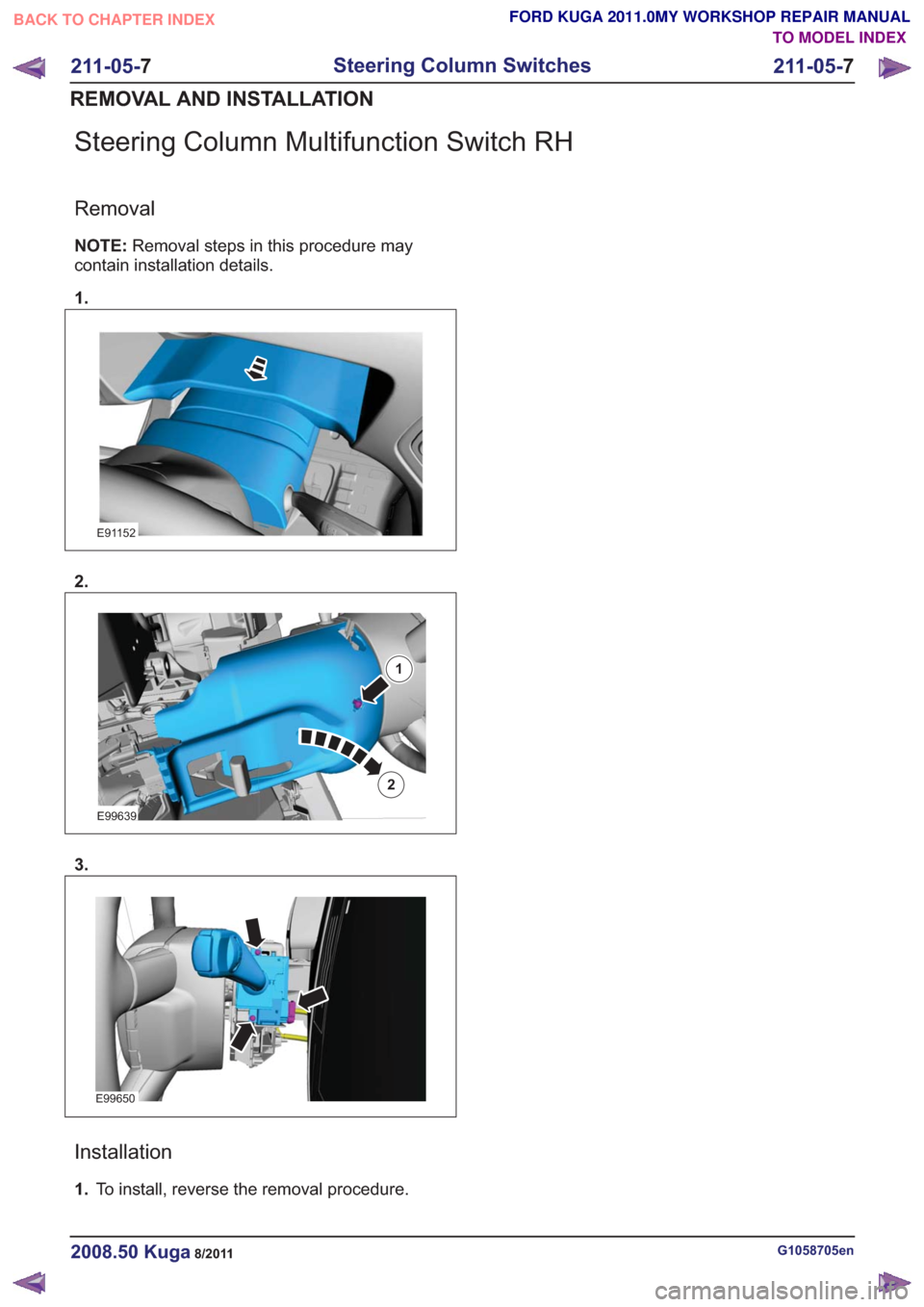

Steering Column Multifunction Switch RH
Removal
NOTE:Removal steps in this procedure may
contain installation details.
1.
E91152
2.
E99639
1
2
3.
E99650
Installation
1. To install, reverse the removal procedure.
G1058705en2008.50 Kuga8/2011
211-05- 7
Steering Column Switches
211-05- 7
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 1516 of 2057
