2. Slowly rotate the brake disc and note thereadings.
TIE0035481
2
206-0031
205-0701
205-0691
6. NOTE: If any of the readings vary by morethan 0.015 mm or the brake disc thickness
is less than the specified minimum, a new
brake disc must be installed and the brake
disc runout re-checked.
Check the brake disc thickness variation.
For additional information, refer to:Specifications (206-00 Brake System -
General Information, Specifications).
• Using a suitable micrometer, measure the brake disc thickness at eight positions, 45
degrees apart and approximately 15 mm from
the outer edge of the brake disc.
MPU1201004
7. If all the brake disc runout measurementsand the thickness variation are within the
specifications, check the wheel balance.
8. If just the brake disc runout measurement with the wheel and tire fitted exceeds the
specification, the wheel and tire must be
rotated through 90 degrees in relation to the
brake disc and the brake disc runout
re-checked.
• If the brake disc runout measurement still exceeds the specification, repeat the wheel and tire rotation and checking process until
the measurement is within specification.
9. If the brake disc runout measurement without the wheel and tire fitted is outside the
specification, check the wheel hub face
runout.
10. NOTE: Using paint or typing correction fluid, mark the position of the brake disc in
relation to the wheel hub.
Remove the brake disc.
11. NOTE: Make sure that the wheel hub face is clean and free of rust and foreign
material.
NOTE: Re-position the dial indicator gauge so that
it contacts the wheel hub approximately 10 mm
from the outer edge of the wheel hub.
Check the wheel hub face runout.• Slowly rotate the wheel hub and note the readings.
TIE0035482
12. If the wheel hub runout exceeds 0.03 mm, install a new wheel hub.
For additional information, refer to: Wheel
Hub (204-01 Front Suspension, Removal
and Installation)
/ Wheel Bearing and Wheel Hub (204-02
Rear Suspension, Removal and
Installation).
13. If the wheel hub face runout is within specification, install a new brake disc.
G1076535en2008.50 Kuga8/2011
206-00- 21
Brake System - General Information
206-00- 21
GENERAL PROCEDURES
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Component Bleeding
General EquipmentFluid Container
Bleeding
NOTE: Make sure that the vehicle is standing on
a level surface.
1. Refer to: Brake System Health and Safety
Precautions (100-00 General Information,
Description and Operation).
Vehicles with stability assist
2. Bleed the brake system using the
BleedMASTER function in the diagnostic tool.
Vehicles without stability assist
3.
E86914
4. CAUTION: The brake fluid reservoir
must remain full with new, clean brake
fluid at all times during bleeding.
Refer to: Specifications (206-00 Brake System
- General Information, Specifications).
E139915
G1464506en2008.50 Kuga8/2011
206-00- 22
Brake System - General Information
206-00- 22
GENERAL PROCEDURES
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

5.
E139455
6.General Equipment: Fluid Container
E139454
7.Loosen: 180°
G1464506en2008.50 Kuga8/2011
206-00- 23
Brake System - General Information
206-00- 23
GENERAL PROCEDURES
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

E139456
8.Operate the brake pedal fully (pumping brake
fluid and air into the bleed jar) and allow the
brake pedal to return to the rest position. 9.
Continue operating the brake pedal until air-free
fluid is being pumped into the bleed jar.
10. Refer to: Specifications (206-00 Brake System
- General Information, Specifications).
G1464506en2008.50 Kuga8/2011
206-00- 24
Brake System - General Information
206-00- 24
GENERAL PROCEDURES
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

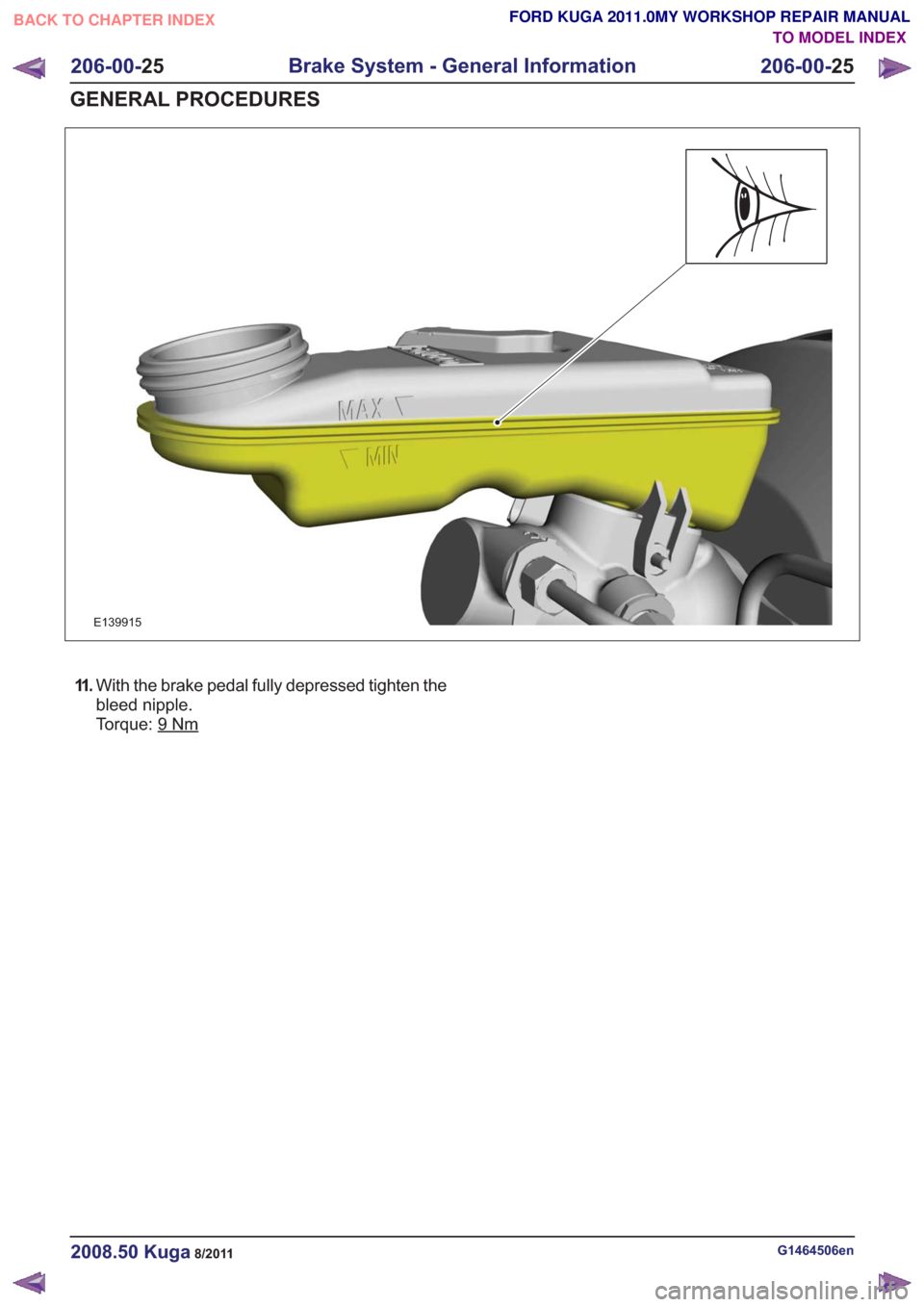

E139915
11 .With the brake pedal fully depressed tighten the
bleed nipple.
Torque: 9
Nm
G1464506en2008.50 Kuga8/2011
206-00- 25
Brake System - General Information
206-00- 25
GENERAL PROCEDURES
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

E139456
12.
E139455
13.
E86914
G1464506en2008.50 Kuga8/2011
206-00-26
Brake System - General Information
206-00- 26
GENERAL PROCEDURES
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

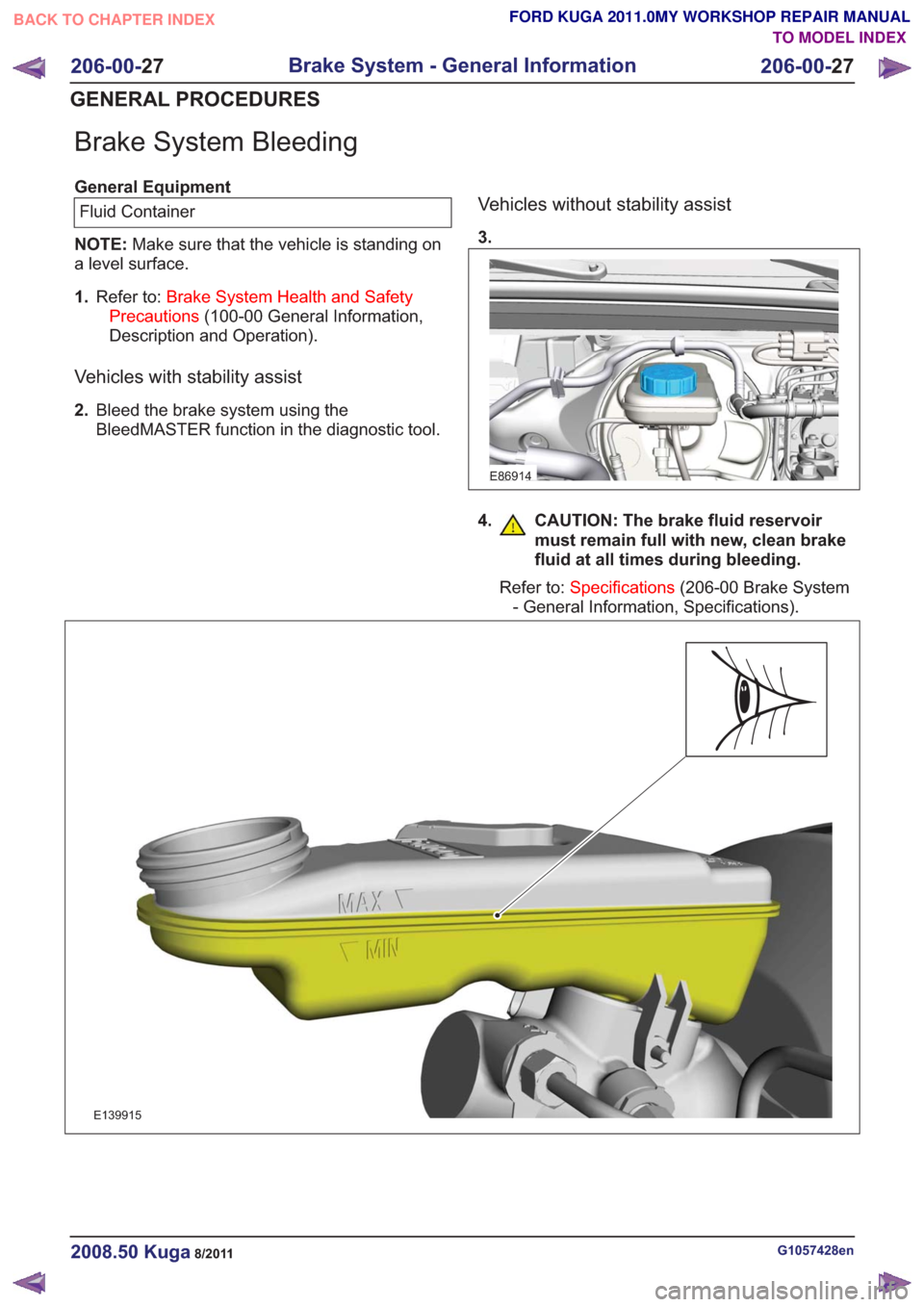

Brake System Bleeding
General EquipmentFluid Container
NOTE: Make sure that the vehicle is standing on
a level surface.
1. Refer to: Brake System Health and Safety
Precautions (100-00 General Information,
Description and Operation).
Vehicles with stability assist
2. Bleed the brake system using the
BleedMASTER function in the diagnostic tool.
Vehicles without stability assist
3.
E86914
4. CAUTION: The brake fluid reservoir
must remain full with new, clean brake
fluid at all times during bleeding.
Refer to: Specifications (206-00 Brake System
- General Information, Specifications).
E139915
G1057428en2008.50 Kuga8/2011
206-00- 27
Brake System - General Information
206-00- 27
GENERAL PROCEDURES
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

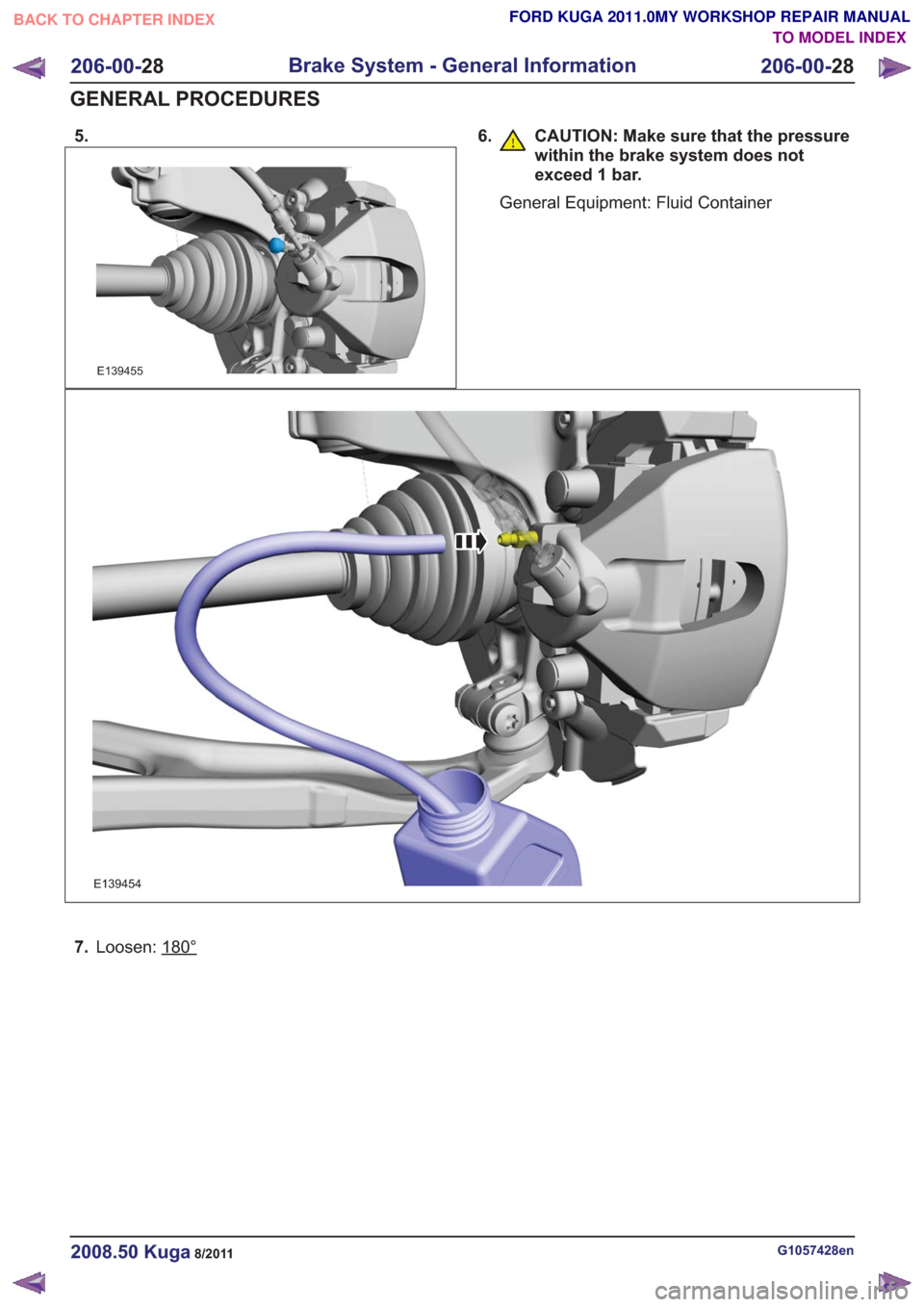

5.
E139455
6. CAUTION: Make sure that the pressurewithin the brake system does not
exceed 1 bar.
General Equipment: Fluid Container
E139454
7.Loosen: 180°
