2011 FORD F650 set clock

2.AUDIO:Press AUDIO repeatedly
to gain access to the following
settings:
TREB (Treble):Press AUDIO to reach the treble setting.
Use
//SEEK.
BASS (Bass):Press AUDIO to reach the bass setting. Use
//
SEEK.
BAL (Balance):Press AUDIO to reach the balance setting.
Use
//SEEKto adjust between the left and right
speakers.
Setting the clock:Press and hold CLK until the hours start to flash,
then use
//SEEKto adjust. To adjust minutes, press CLK
again to make the minutes start to flash and use
//SEEK
to adjust. Press CLK again to exit the clock setting mode.
3.SEEK:Press
SEEKto
access the previous/next strong
station.
4.Memory presets:To set a
station: Select frequency band
AM/FM1/FM2; tune to a station,
press and hold a preset button until sound returns. You may store up to
six stations in each frequency band for a total of 18.
5.AM/FM:Press AM/FM to select
AM/FM1/FM2 frequency band.
6.ON/OFF/Volume:Press VOL -
PUSH to turn ON/OFF. Turn VOL -
PUSH to increase/decrease volume.
Entertainment Systems
37
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

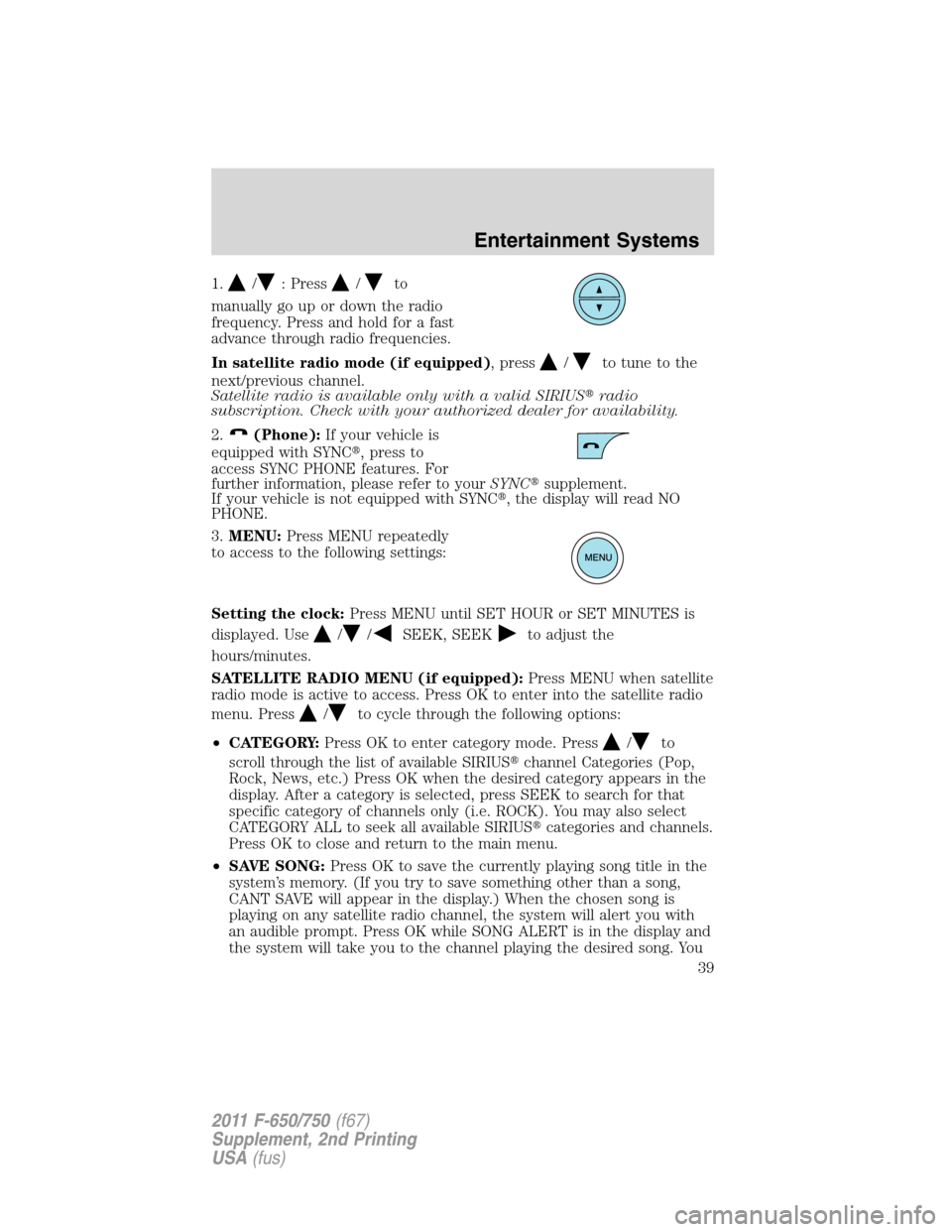

1./: Press/to
manually go up or down the radio
frequency. Press and hold for a fast
advance through radio frequencies.
In satellite radio mode (if equipped), press
/to tune to the
next/previous channel.
Satellite radio is available only with a valid SIRIUSradio
subscription. Check with your authorized dealer for availability.
2.
(Phone):If your vehicle is
equipped with SYNC, press to
access SYNC PHONE features. For
further information, please refer to yourSYNCsupplement.
If your vehicle is not equipped with SYNC, the display will read NO
PHONE.
3.MENU:Press MENU repeatedly
to access to the following settings:
Setting the clock:Press MENU until SET HOUR or SET MINUTES is
displayed. Use
//SEEK, SEEKto adjust the
hours/minutes.
SATELLITE RADIO MENU (if equipped):Press MENU when satellite
radio mode is active to access. Press OK to enter into the satellite radio
menu. Press
/to cycle through the following options:
•CATEGORY:Press OK to enter category mode. Press
/to
scroll through the list of available SIRIUSchannel Categories (Pop,
Rock, News, etc.) Press OK when the desired category appears in the
display. After a category is selected, press SEEK to search for that
specific category of channels only (i.e. ROCK). You may also select
CATEGORY ALL to seek all available SIRIUScategories and channels.
Press OK to close and return to the main menu.
•SAVE SONG:Press OK to save the currently playing song title in the
system’s memory. (If you try to save something other than a song,
CANT SAVE will appear in the display.) When the chosen song is
playing on any satellite radio channel, the system will alert you with
an audible prompt. Press OK while SONG ALERT is in the display and
the system will take you to the channel playing the desired song. You
Entertainment Systems
39
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

A
Air conditioning ..........................48
manual heating and air
conditioning system .................48
Air suspension ...........................132
Anti-lock brake system
(see Brakes) ..............................130
Audio system (see Radio) ...36, 38
Automatic transmission ............134
fluid, adding ............................218
fluid, checking ........................218
fluid, refill capacities ..............252
fluid, specification ..................237
Auxiliary Input Jack ...................45
Auxiliary power point .................57
Axle ............................143, 184, 223
lubricant specifications ..........237
refill capacities ........................250
B
Battery .......................................193
charging system warning
light ............................................23
jumping a disabled battery ....162
voltage gauge ............................31
Belt-Minder...............................84
Booster seats ...............................99
Brakes ........................111, 116, 185
adjustment ..............................187
anti-lock ...................................130
anti-lock brake system (ABS)
warning light .....................23, 130
brake warning light ..................23
fluid, checking and adding ....215
fluid, specifications .................237
parking ....................112, 119, 188
Bulbs ............................................53C
Cassette tape player ...................36
Catalytic converter
(see Emission control) .............188
Cell phone use ..............................8
Child safety seats ........................92
attaching with tether straps ....96
in front seat ..............................93
in rear seat ..........................93, 95
tether anchorage hardware .....96
Child safety seats - booster
seats .............................................99
Cleaning your vehicle
engine compartment ..............176
exterior ....................................181
instrument panel ....................178
interior .....................................179
plastic parts ............................177
safety belts ..............................179
washing ....................................175
waxing .....................................175
wheels ......................................176
wiper blades ............................177
Climate control (see Air
conditioning or Heating) ............48
Clock adjust
AM/FM/CD .................................45
Clutch ................................137, 216
adjusting ..................................217
fluid ..........................................216
operation while driving ..........137
specifications ..........................237
Console
overhead ....................................57
Controls
power seat .................................76
Coolant ......................................196
Index
286
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

P
Parking brake ....................112, 119
warning light .............................23
Power door locks ........................67
Power mirrors .............................60
Power point .................................57
Power steering ..........................190
fluid, checking and adding ....214
fluid, refill capacity ................251
fluid, specifications .................237
Power Take-Off (PTO)
operation .................................141
Power Windows ...........................58
R
Radio ......................................36, 38
Relays ........................................154
Remote entry system
locking/unlocking doors ...........67
Roadside assistance ..................153
S
Safety belts (see Safety
restraints) ........................80–81, 83
Safety defects, reporting ..........174
Safety restraints ....................80–83
Belt-Minder.............................84
cleaning the safety belts ........102
extension assembly ..................84
for adults .............................81, 83
for children ...............................88
lap belt ......................................82
warning light and chime ....23, 84
Safety seats for children ............92Scheduled Maintenance
Guide .........................................254
General Maintenance
Information .............................254
Seat belts (see Safety
restraints) ....................................80
Seats ............................................69
child safety seats ......................92
cleaning ...................................180
heated ........................................76
Setting the clock
AM/FM/CD .................................45
Special notice ................................5
Specification chart,
lubricants ...................................237
Speed control ..............................64
Speedometer ...............................31
Starting your vehicle ................104
jump starting ..........................162
preparing to start your
vehicle .....................................104
Steering .....................................189
Steering wheel
controls ......................................57
tilting .........................................57
Suspension ........................132, 221
T
Tachometer .................................31
Tires ...........................................229
Towing
wrecker ....................................166
Traction control
off light ......................................23
Transmission .....................134, 138
automatic operation ...............134
Index
289
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)
