2011 FORD F150 coolant capacity

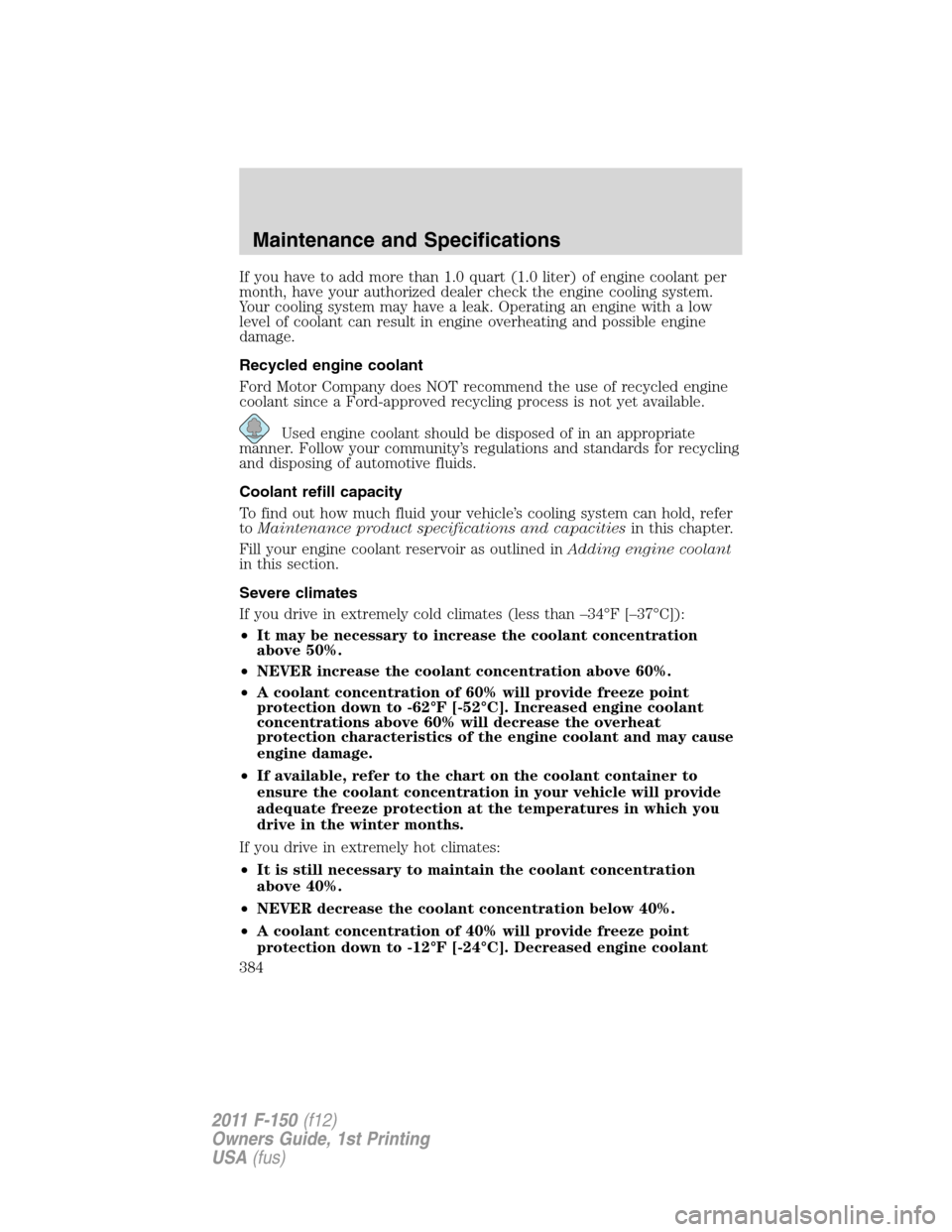

If you have to add more than 1.0 quart (1.0 liter) of engine coolant per
month, have your authorized dealer check the engine cooling system.
Your cooling system may have a leak. Operating an engine with a low
level of coolant can result in engine overheating and possible engine
damage.
Recycled engine coolant
Ford Motor Company does NOT recommend the use of recycled engine
coolant since a Ford-approved recycling process is not yet available.
Used engine coolant should be disposed of in an appropriate
manner. Follow your community’s regulations and standards for recycling
and disposing of automotive fluids.
Coolant refill capacity
To find out how much fluid your vehicle’s cooling system can hold, refer
toMaintenance product specifications and capacitiesin this chapter.
Fill your engine coolant reservoir as outlined inAdding engine coolant
in this section.
Severe climates
If you drive in extremely cold climates (less than –34°F [–37°C]):
•It may be necessary to increase the coolant concentration
above 50%.
•NEVER increase the coolant concentration above 60%.
•A coolant concentration of 60% will provide freeze point
protection down to -62°F [-52°C]. Increased engine coolant
concentrations above 60% will decrease the overheat
protection characteristics of the engine coolant and may cause
engine damage.
•If available, refer to the chart on the coolant container to
ensure the coolant concentration in your vehicle will provide
adequate freeze protection at the temperatures in which you
drive in the winter months.
If you drive in extremely hot climates:
•It is still necessary to maintain the coolant concentration
above 40%.
•NEVER decrease the coolant concentration below 40%.
•A coolant concentration of 40% will provide freeze point
protection down to -12°F [-24°C]. Decreased engine coolant
Maintenance and Specifications
384
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

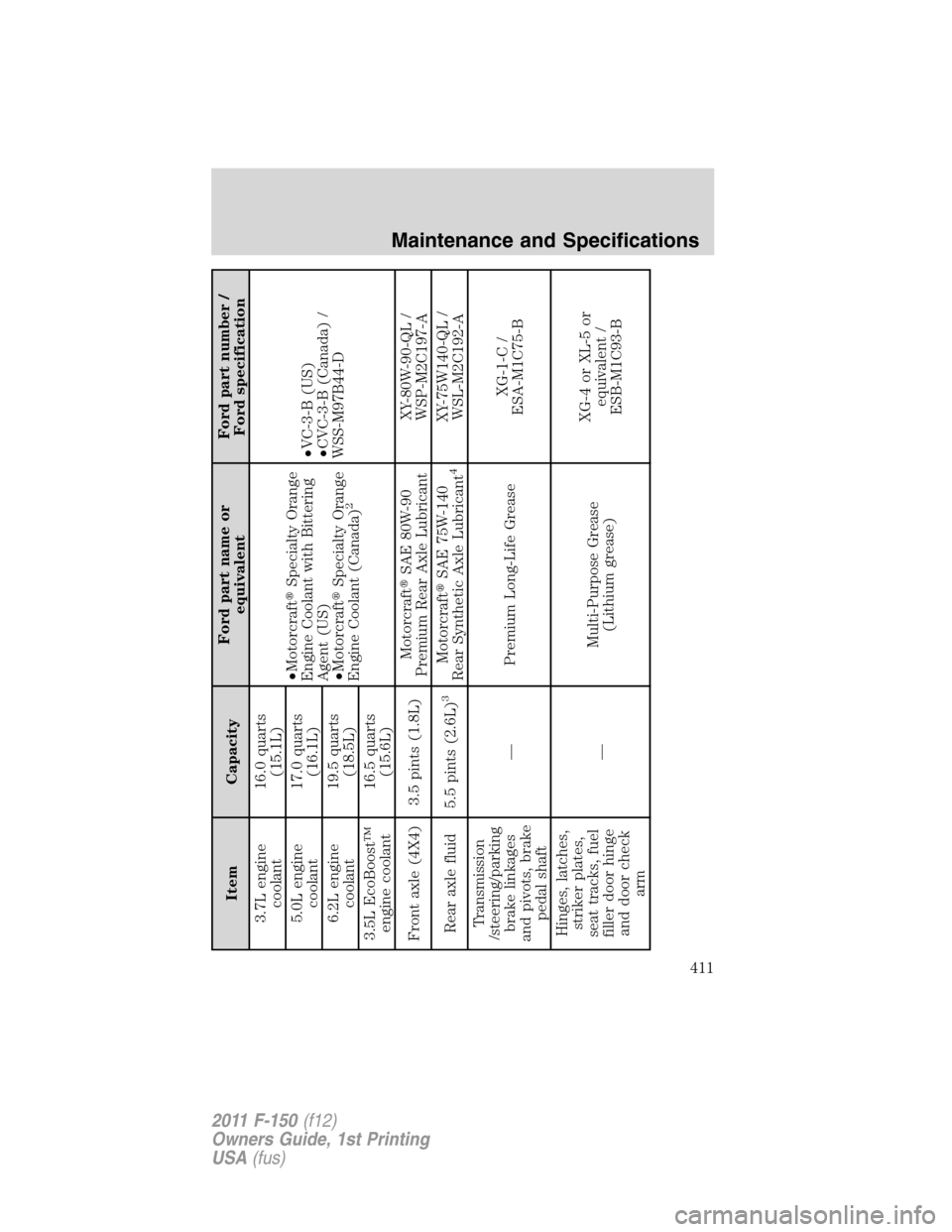

Item CapacityFord part name or
equivalentFord part number /
Ford specification
3.7L engine
coolant16.0 quarts
(15.1L)
•MotorcraftSpecialty Orange
Engine Coolant with Bittering
Agent (US)
•MotorcraftSpecialty Orange
Engine Coolant (Canada)
2
•VC-3-B (US)
•CVC-3-B (Canada) /
WSS-M97B44-D 5.0L engine
coolant17.0 quarts
(16.1L)
6.2L engine
coolant19.5 quarts
(18.5L)
3.5L EcoBoost™
engine coolant16.5 quarts
(15.6L)
Front axle (4X4) 3.5 pints (1.8L)MotorcraftSAE 80W-90
Premium Rear Axle LubricantXY-80W-90-QL /
WSP-M2C197-A
Rear axle fluid 5.5 pints (2.6L)
3
MotorcraftSAE 75W-140
Rear Synthetic Axle Lubricant
4
XY-75W140-QL /
WSL-M2C192-A
Transmission
/steering/parking
brake linkages
and pivots, brake
pedal shaft— Premium Long-Life GreaseXG-1-C /
ESA-M1C75-B
Hinges, latches,
striker plates,
seat tracks, fuel
filler door hinge
and door check
arm—Multi-Purpose Grease
(Lithium grease)XG-4 or XL-5 or
equivalent /
ESB-M1C93-B
Maintenance and Specifications
411
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

Item CapacityFord part name or
equivalentFord part number /
Ford specification

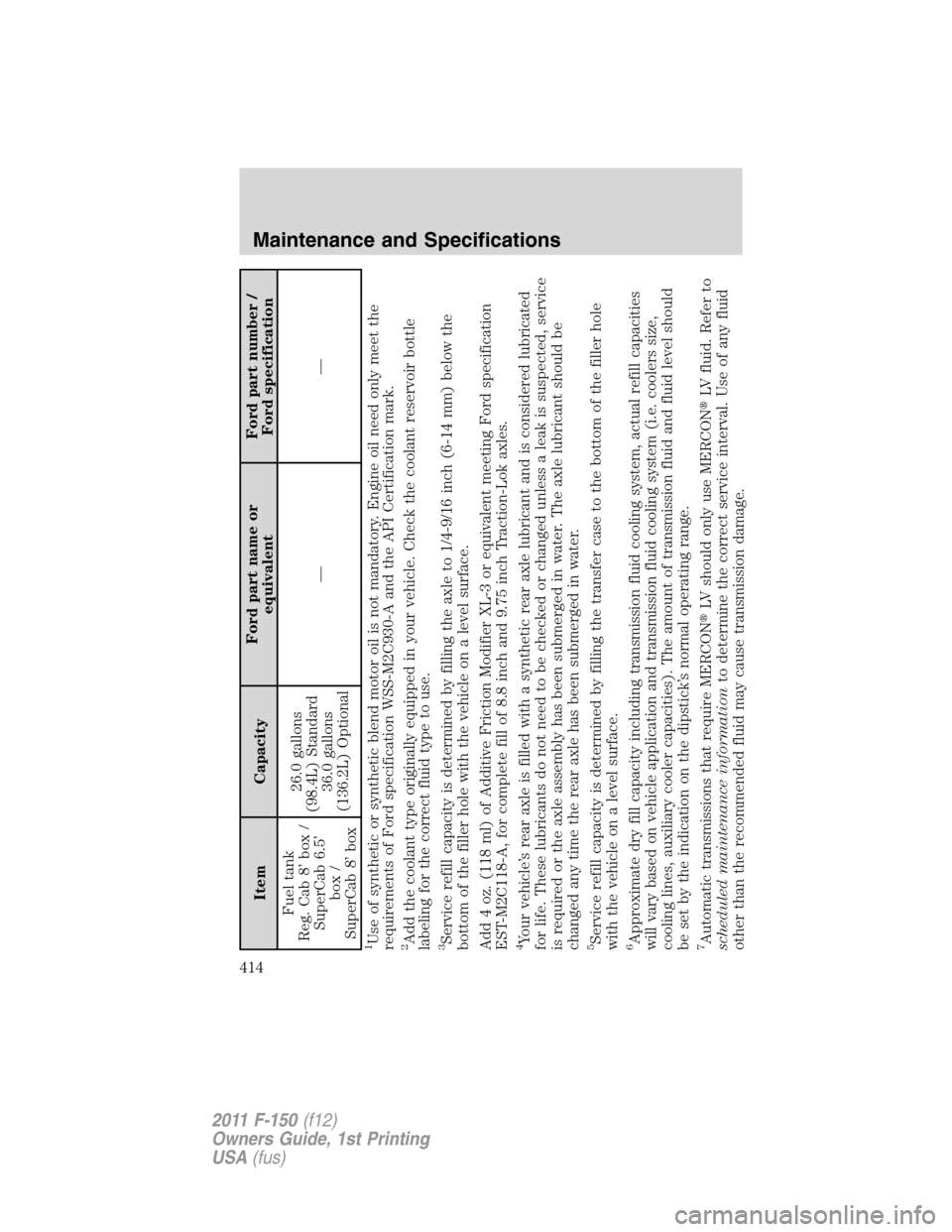

Fuel tank
Reg. Cab 8’ box /
SuperCab 6.5’
box /
SuperCab 8’ box26.0 gallons
(98.4L) Standard
36.0 gallons
(136.2L) Optional——
1Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.2Add the coolant type originally equipped in your vehicle. Check the coolant reservoir bottle
labeling for the correct fluid type to use.3Service refill capacity is determined by filling the axle to 1/4-9/16 inch (6-14 mm) below the
bottom of the filler hole with the vehicle on a level surface.
Add 4 oz. (118 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford specification
EST-M2C118-A, for complete fill of 8.8 inch and 9.75 inch Traction-Lok axles.4Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and is considered lubricated
for life. These lubricants do not need to be checked or changed unless a leak is suspected, service
is required or the axle assembly has been submerged in water. The axle lubricant should be
changed any time the rear axle has been submerged in water.5Service refill capacity is determined by filling the transfer case to the bottom of the filler hole
with the vehicle on a level surface.6Approximate dry fill capacity including transmission fluid cooling system, actual refill capacities
will vary based on vehicle application and transmission fluid cooling system (i.e. coolers size,
cooling lines, auxiliary cooler capacities). The amount of transmission fluid and fluid level should
be set by the indication on the dipstick’s normal operating range.7Automatic transmissions that require MERCONLV should only use MERCONLV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.
Maintenance and Specifications
414
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

E
Electronic message center ...19, 30
Emergencies, roadside
jump-starting ..........................341
running out of fuel .........341, 394
Emission control system ..........399
Engine ........................................415
cleaning ...................................357
coolant .....................................381
fail-safe cooling .......................385
idle speed control ...................378
lubrication specifications .......410
refill capacities ........................410
service points ..................370–373
Engine block heater .................276
Engine oil ..................................375
checking and adding ..............375
dipstick ....................................375
filter, specifications ................409
refill capacities ........................410
specifications ..........................410
Event data recording ....................7
Exhaust fumes ..........................276
F
Fail safe cooling ........................385
Fleet MyKey programming ......133
Flexible Fuel Vehicle (FFV) ....388
Floor mats .................................120
Fluid capacities .........................410
Fog lamps ....................................80
Four-Wheel Drive vehicles .......306
driving off road .......................312
electronic shift ........................309
indicator light .........................306
lever operated shift ................307preparing to drive your
vehicle .....................................288
Fuel ............................................388
calculating fuel
economy ............................22, 396
cap ...........................................391
capacity ...................................410
choosing the right fuel ...........392
detergent in fuel .....................394
filler funnel .............................394
filling your vehicle with
fuel ...........................388, 391, 396
filter, specifications ........388, 409
fuel pump shut-off ..................323
improving fuel economy ........396
octane rating ...........392–393, 415
quality ......................................393
running out of fuel .........341, 394
safety information relating to
automotive fuels .....................388
Fuel - flex fuel vehicle
(FFV) .........................388, 392–393
Fuses ..................................323–324
G
Garage door opener ..................113
Gas cap (see Fuel cap) ............391
Gas mileage
(see Fuel economy) .................396
Gauges .........................................18
H
Hazard flashers .........................322
Headlamps ...................................80
aiming ........................................82
autolamp system .......................80
bulb specifications ....................86
daytime running lights .............81
