4. Turn the portable music player on and adjust the volume to 1/2 the
volume.
5. Press the lower left corner on the touchscreen. Select the A/V in tab.
(You should hear audio from your portable music player although it may
be low.)
6. Adjust the sound on your portable music player until it reaches the
level of the FM station or CD by switching back and forth between the
controls.
Troubleshooting:
•Do not connect the audio input jack to a line level output. The AIJ will
only work correctly with devices that have a headphone output with a
volume control.
•Do not set the portable music player’s volume level higher than is
necessary to match the volume of the CD or FM radio as this will
cause distortion and will reduce sound quality.
•If the music sounds distorted at lower listening levels, turn the
portable music player volume down. If the problems persists, replace
or recharge the batteries in the portable music player.
•The portable music player must be controlled in the same manner
when it is used with headphones as the AIJ does not provide control
(play, pause, etc.) over the attached portable music player.
•For safety reasons, connecting or adjusting the settings on your
portable music player should not be attempted while the vehicle is
moving. Also, the portable music player should be stored in a secure
location, such as the center console or the glove box, when the vehicle
is in motion. The audio extension cable must be long enough to allow
the portable music player to be safely stored while the vehicle is in
motion.
Media features
36SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

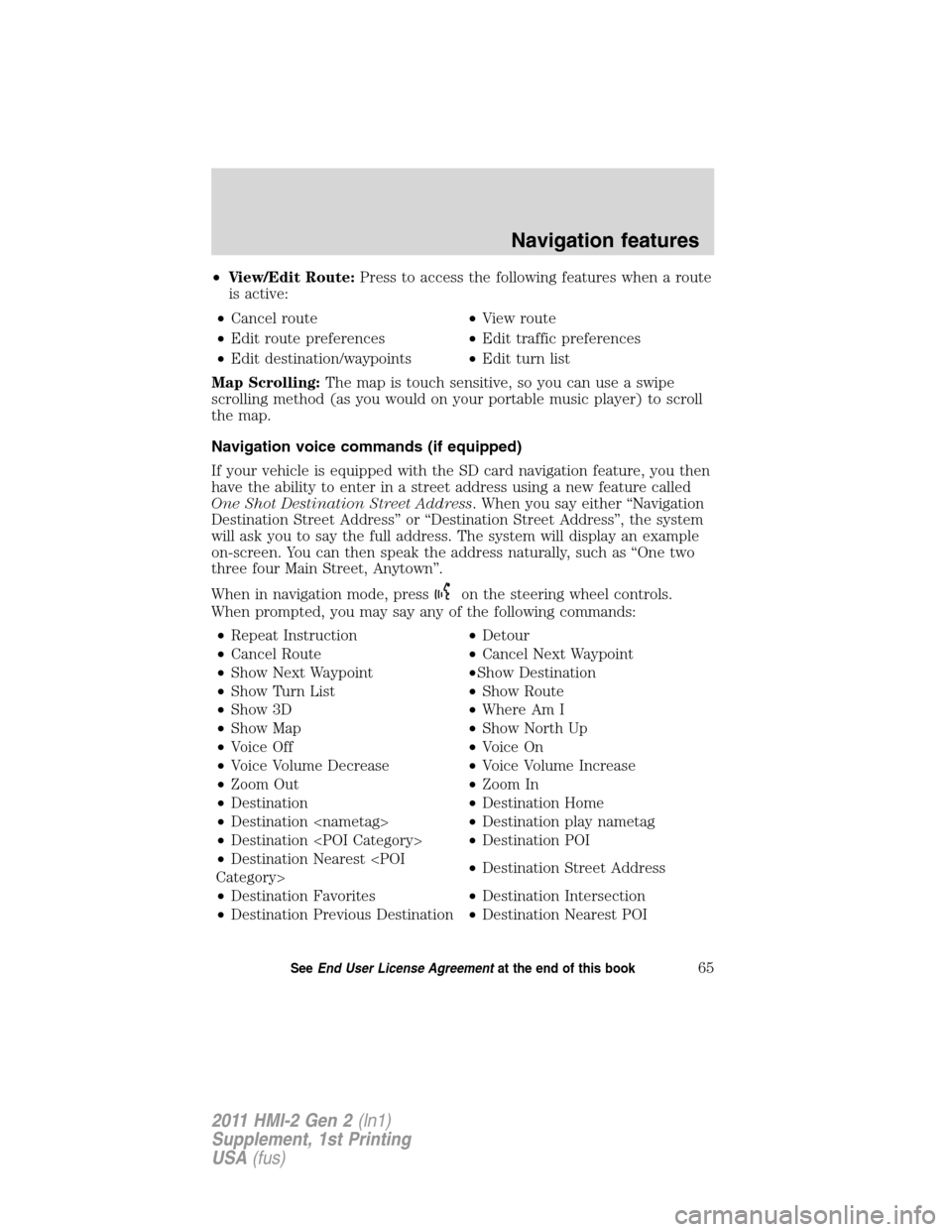

•View/Edit Route:Press to access the following features when a route
is active:
•Cancel route•View route
•Edit route preferences•Edit traffic preferences
•Edit destination/waypoints•Edit turn list
Map Scrolling:The map is touch sensitive, so you can use a swipe
scrolling method (as you would on your portable music player) to scroll
the map.
Navigation voice commands (if equipped)
If your vehicle is equipped with the SD card navigation feature, you then
have the ability to enter in a street address using a new feature called
One Shot Destination Street Address. When you say either “Navigation
Destination Street Address” or “Destination Street Address”, the system
will ask you to say the full address. The system will display an example
on-screen. You can then speak the address naturally, such as “One two
three four Main Street, Anytown”.
When in navigation mode, press
on the steering wheel controls.
When prompted, you may say any of the following commands:
•Repeat Instruction•Detour
•Cancel Route•Cancel Next Waypoint
•Show Next Waypoint•Show Destination
•Show Turn List•Show Route
•Show 3D•Where Am I
•Show Map•Show North Up
•Voice Off•Voice On
•Voice Volume Decrease•Voice Volume Increase
•Zoom Out•Zoom In
•Destination•Destination Home
•Destination •Destination play nametag
•Destination •Destination POI
•Destination Nearest
Category>•Destination Street Address
•Destination Favorites•Destination Intersection
•Destination Previous Destination•Destination Nearest POI
