2011 FORD EXPEDITION Owners Manual

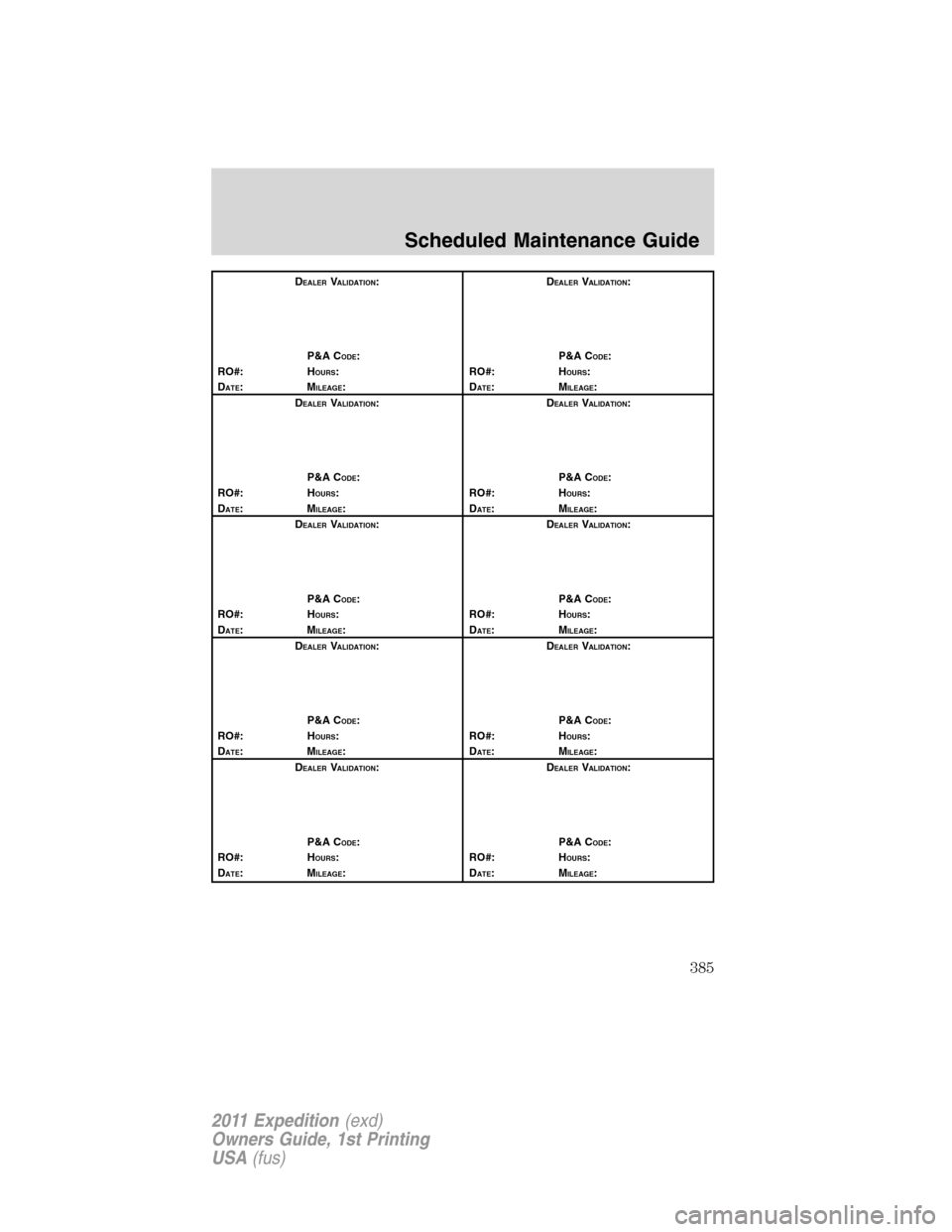

DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DATE:MILEAGE:
Scheduled Maintenance Guide
385
2011 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

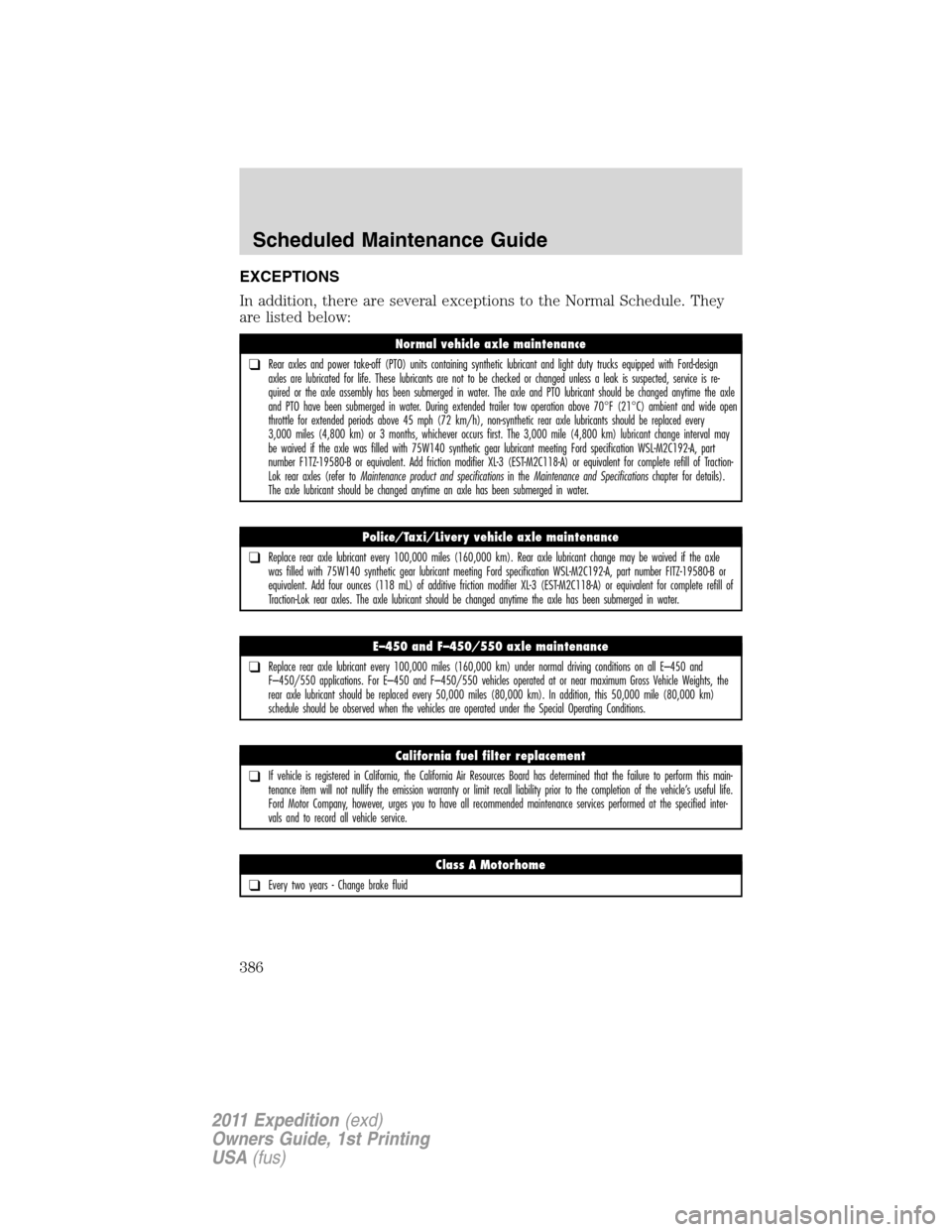

EXCEPTIONS
In addition, there are several exceptions to the Normal Schedule. They
are listed below:
Normal vehicle axle maintenance
❑Rear axles and power take-off (PTO) units containing synthetic lubricant and light duty trucks equipped with Ford-design
axles are lubricated for life. These lubricants are not to be checked or changed unless a leak is suspected, service is re-
quired or the axle assembly has been submerged in water. The axle and PTO lubricant should be changed anytime the axle
and PTO have been submerged in water. During extended trailer tow operation above 70°F (21°C) ambient and wide open
throttle for extended periods above 45 mph (72 km/h), non-synthetic rear axle lubricants should be replaced every
3,000 miles (4,800 km) or 3 months, whichever occurs first. The 3,000 mile (4,800 km) lubricant change interval may
be waived if the axle was filled with 75W140 synthetic gear lubricant meeting Ford specification WSL-M2C192-A, part
number F1TZ-19580-B or equivalent. Add friction modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of Traction-
Lok rear axles (refer to
Maintenance product and specificationsin theMaintenance and Specificationschapter for details).
The axle lubricant should be changed anytime an axle has been submerged in water.
Police/Taxi/Livery vehicle axle maintenance
❑Replace rear axle lubricant every 100,000 miles (160,000 km). Rear axle lubricant change may be waived if the axle
was filled with 75W140 synthetic gear lubricant meeting Ford specification WSL-M2C192-A, part number FITZ-19580-B or
equivalent. Add four ounces (118 mL) of additive friction modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of
Traction-Lok rear axles. The axle lubricant should be changed anytime the axle has been submerged in water.
E–450 and F–450/550 axle maintenance
❑Replace rear axle lubricant every 100,000 miles (160,000 km) under normal driving conditions on all E–450 and
F–450/550 applications. For E–450 and F–450/550 vehicles operated at or near maximum Gross Vehicle Weights, the
rear axle lubricant should be replaced every 50,000 miles (80,000 km). In addition, this 50,000 mile (80,000 km)
schedule should be observed when the vehicles are operated under the Special Operating Conditions.
California fuel filter replacement
❑If vehicle is registered in California, the California Air Resources Board has determined that the failure to perform this main-
tenance item will not nullify the emission warranty or limit recall liability prior to the completion of the vehicle’s useful life.
Ford Motor Company, however, urges you to have all recommended maintenance services performed at the specified inter-
vals and to record all vehicle service.
Class A Motorhome
❑Every two years - Change brake fluid
Scheduled Maintenance Guide
386
2011 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

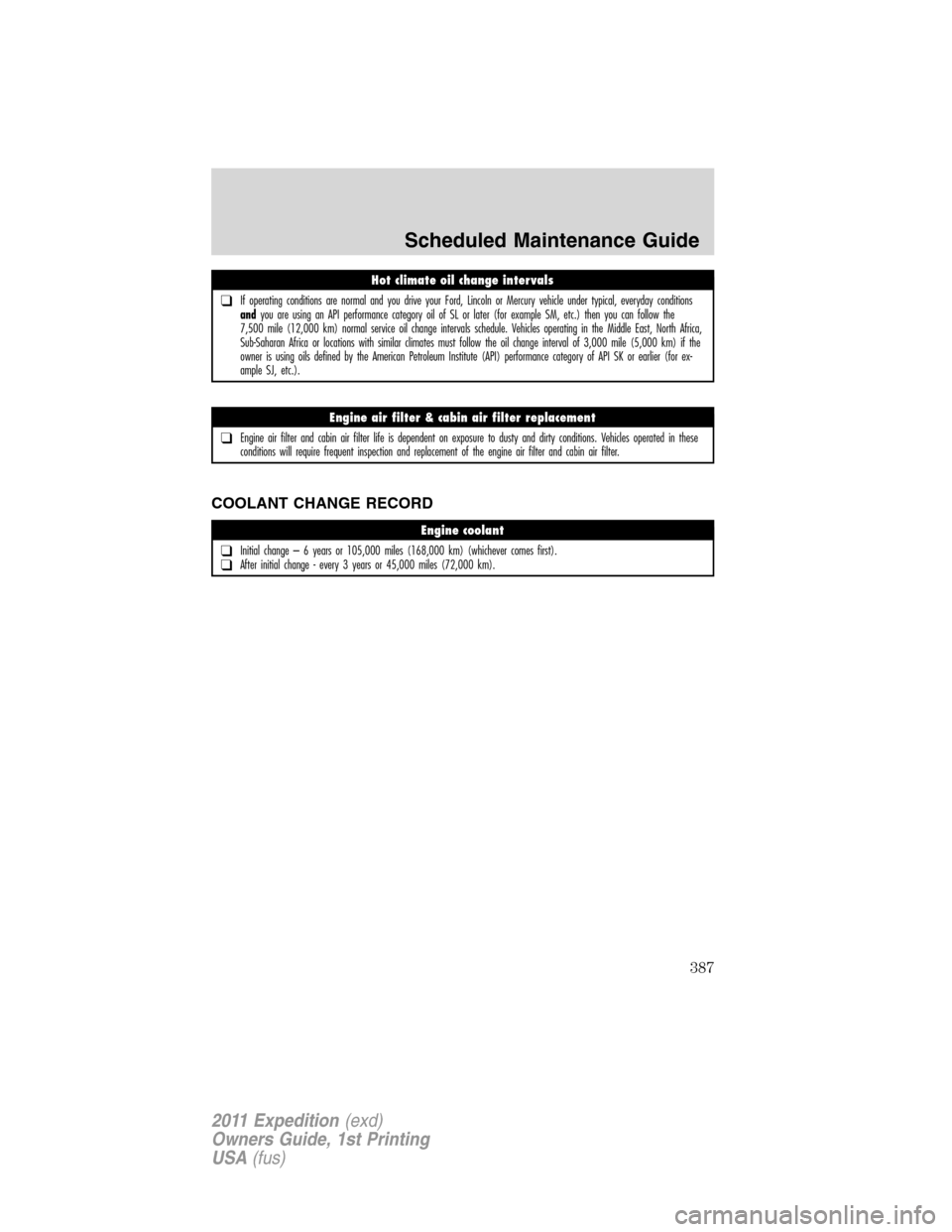

COOLANT CHANGE RECORD
Hot climate oil change intervals
❑If operating conditions are normal and you drive your Ford, Lincoln or Mercury vehicle under typical, everyday conditions
andyou are using an API performance category oil of SL or later (for example SM, etc.) then you can follow the
7,500 mile (12,000 km) normal service oil change intervals schedule. Vehicles operating in the Middle East, North Africa,
Sub-Saharan Africa or locations with similar climates must follow the oil change interval of 3,000 mile (5,000 km) if the
owner is using oils defined by the American Petroleum Institute (API) performance category of API SK or earlier (for ex-
ample SJ, etc.).
Engine air filter & cabin air filter replacement
❑Engine air filter and cabin air filter life is dependent on exposure to dusty and dirty conditions. Vehicles operated in these
conditions will require frequent inspection and replacement of the engine air filter and cabin air filter.
Engine coolant
❑Initial change – 6 years or 105,000 miles (168,000 km) (whichever comes first).❑After initial change - every 3 years or 45,000 miles (72,000 km).
Scheduled Maintenance Guide
387
2011 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

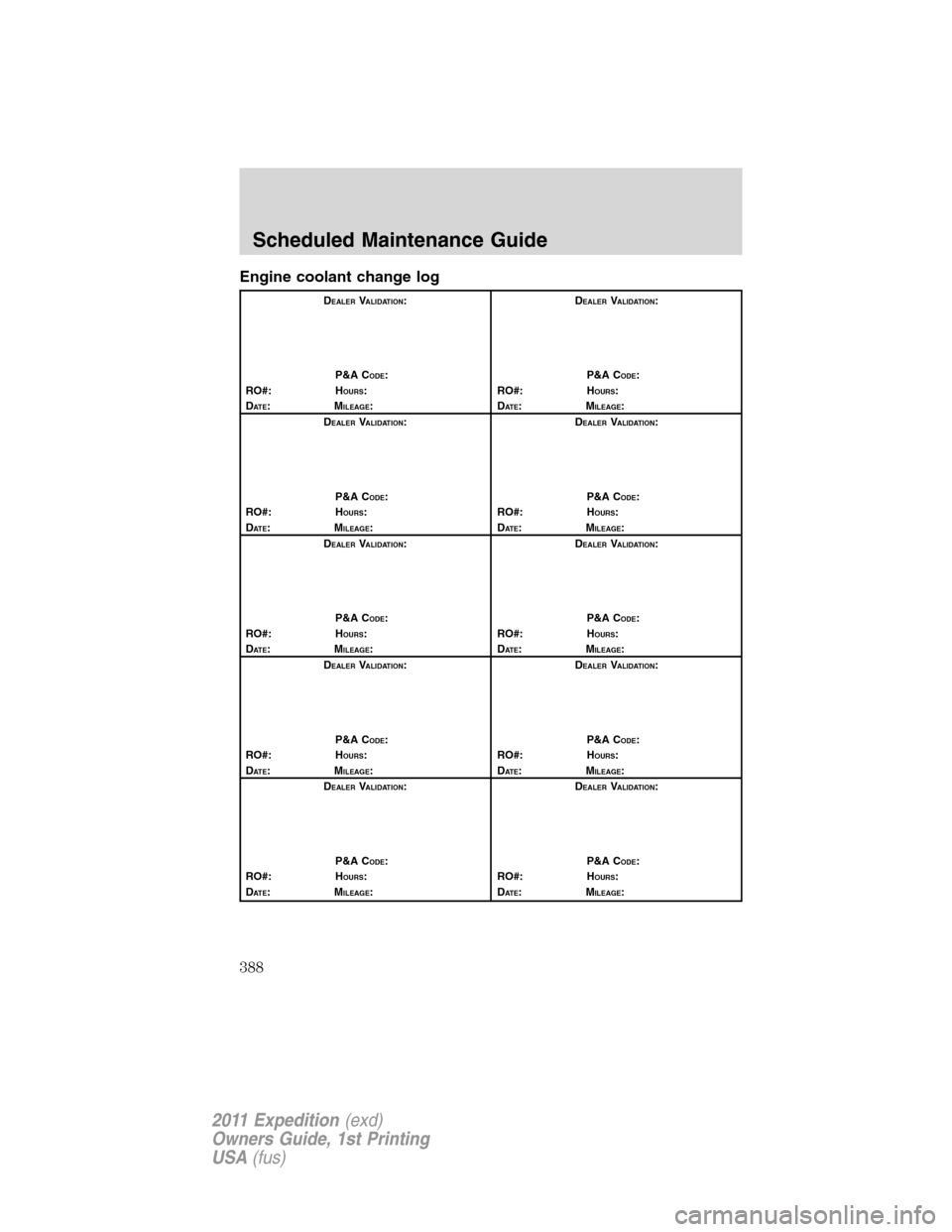

Engine coolant change log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance Guide
388
2011 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

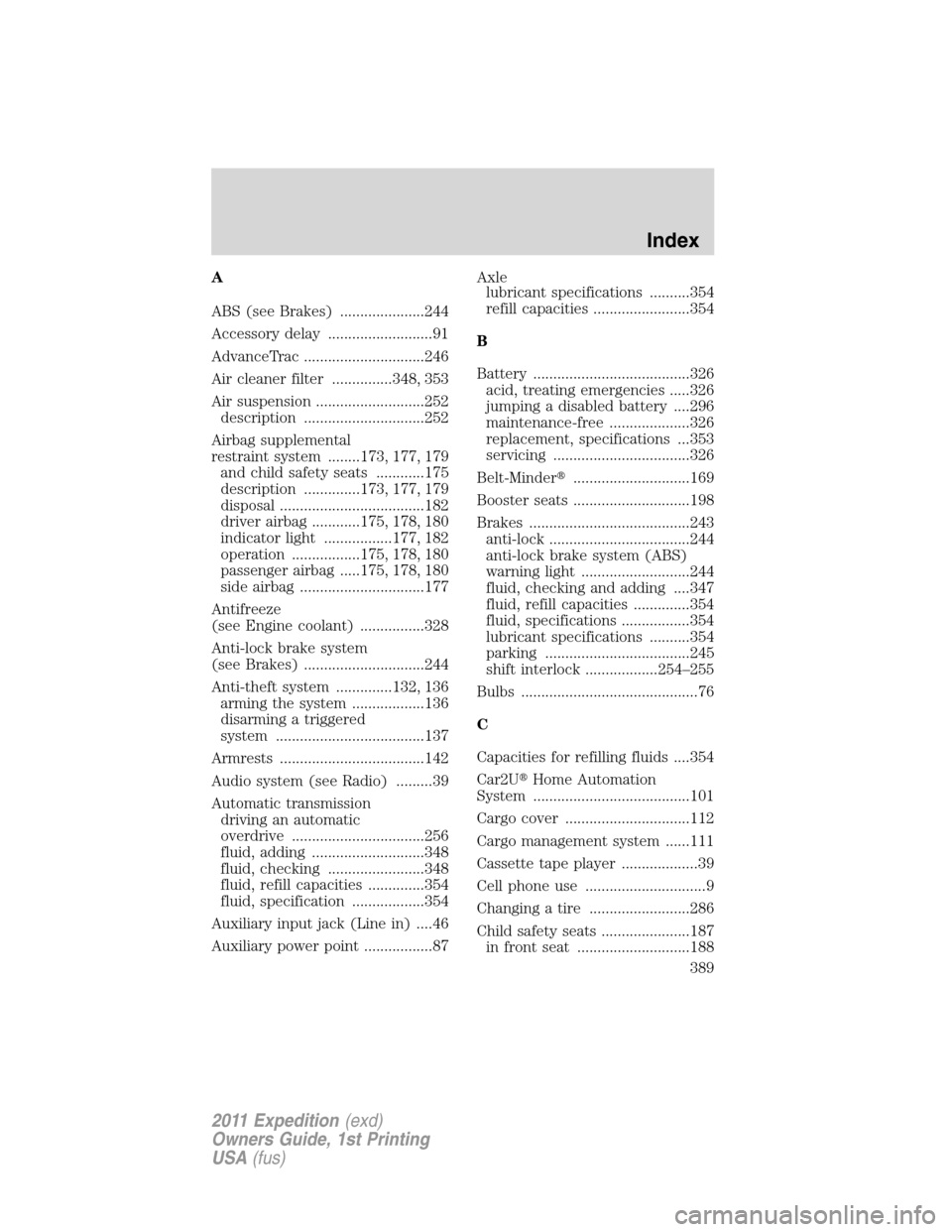

A
ABS (see Brakes) .....................244
Accessory delay ..........................91
AdvanceTrac ..............................246
Air cleaner filter ...............348, 353
Air suspension ...........................252
description ..............................252
Airbag supplemental
restraint system ........173, 177, 179
and child safety seats ............175
description ..............173, 177, 179
disposal ....................................182
driver airbag ............175, 178, 180
indicator light .................177, 182
operation .................175, 178, 180
passenger airbag .....175, 178, 180
side airbag ...............................177
Antifreeze
(see Engine coolant) ................328
Anti-lock brake system
(see Brakes) ..............................244
Anti-theft system ..............132, 136
arming the system ..................136
disarming a triggered
system .....................................137
Armrests ....................................142
Audio system (see Radio) .........39
Automatic transmission
driving an automatic
overdrive .................................256
fluid, adding ............................348
fluid, checking ........................348
fluid, refill capacities ..............354
fluid, specification ..................354
Auxiliary input jack (Line in) ....46
Auxiliary power point .................87Axle
lubricant specifications ..........354
refill capacities ........................354
B
Battery .......................................326
acid, treating emergencies .....326
jumping a disabled battery ....296
maintenance-free ....................326
replacement, specifications ...353
servicing ..................................326
Belt-Minder.............................169
Booster seats .............................198
Brakes ........................................243
anti-lock ...................................244
anti-lock brake system (ABS)
warning light ...........................244
fluid, checking and adding ....347
fluid, refill capacities ..............354
fluid, specifications .................354
lubricant specifications ..........354
parking ....................................245
shift interlock ..................254–255
Bulbs ............................................76
C
Capacities for refilling fluids ....354
Car2UHome Automation
System .......................................101
Cargo cover ...............................112
Cargo management system ......111
Cassette tape player ...................39
Cell phone use ..............................9
Changing a tire .........................286
Child safety seats ......................187
in front seat ............................188
Index
389
2011 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

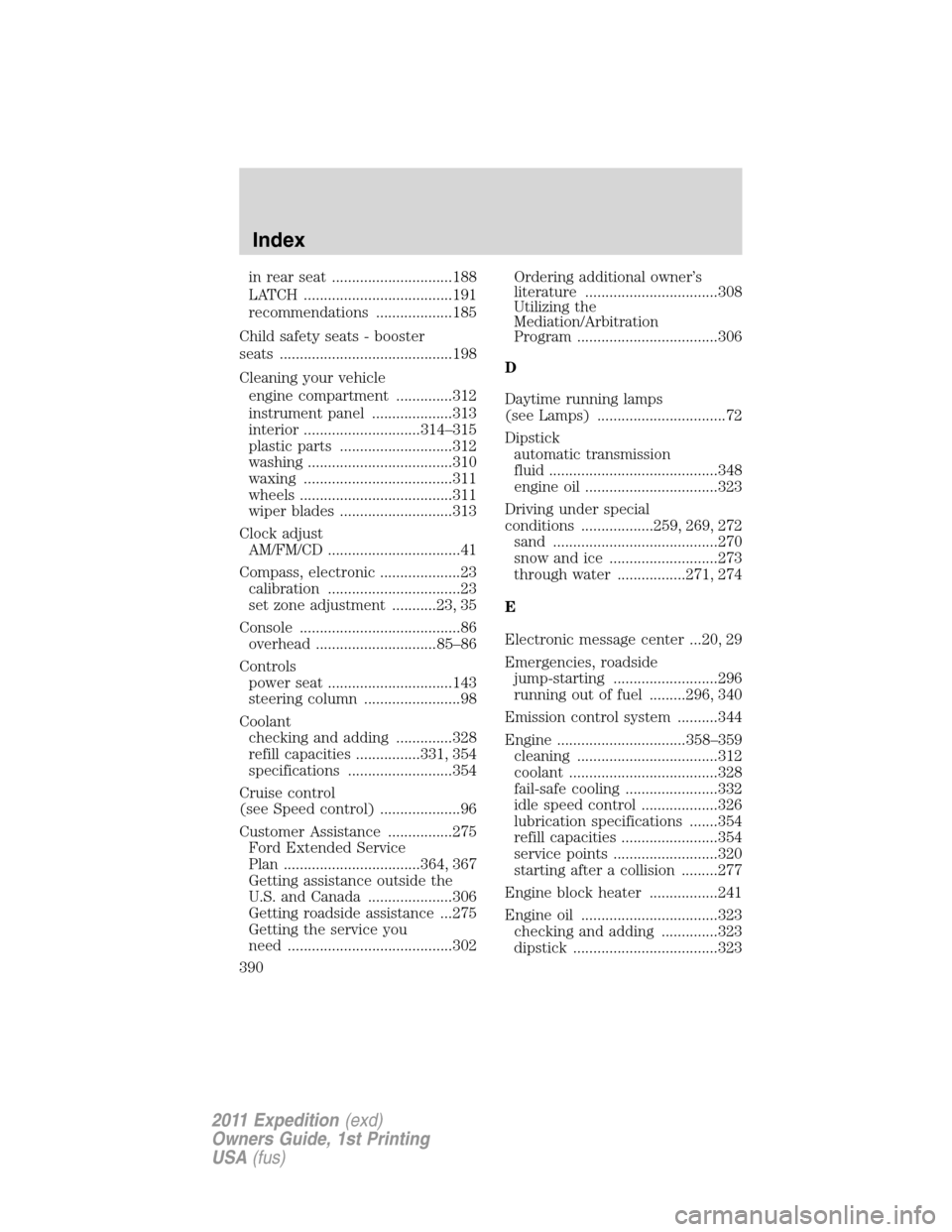

in rear seat ..............................188
LATCH .....................................191
recommendations ...................185
Child safety seats - booster
seats ...........................................198
Cleaning your vehicle
engine compartment ..............312
instrument panel ....................313
interior .............................314–315
plastic parts ............................312
washing ....................................310
waxing .....................................311
wheels ......................................311
wiper blades ............................313
Clock adjust
AM/FM/CD .................................41
Compass, electronic ....................23
calibration .................................23
set zone adjustment ...........23, 35
Console ........................................86
overhead ..............................85–86
Controls
power seat ...............................143
steering column ........................98
Coolant
checking and adding ..............328
refill capacities ................331, 354
specifications ..........................354
Cruise control
(see Speed control) ....................96
Customer Assistance ................275
Ford Extended Service
Plan ..................................364, 367
Getting assistance outside the
U.S. and Canada .....................306
Getting roadside assistance ...275
Getting the service you
need .........................................302Ordering additional owner’s
literature .................................308
Utilizing the
Mediation/Arbitration
Program ...................................306
D
Daytime running lamps
(see Lamps) ................................72
Dipstick
automatic transmission
fluid ..........................................348
engine oil .................................323
Driving under special
conditions ..................259, 269, 272
sand .........................................270
snow and ice ...........................273
through water .................271, 274
E
Electronic message center ...20, 29
Emergencies, roadside
jump-starting ..........................296
running out of fuel .........296, 340
Emission control system ..........344
Engine ................................358–359
cleaning ...................................312
coolant .....................................328
fail-safe cooling .......................332
idle speed control ...................326
lubrication specifications .......354
refill capacities ........................354
service points ..........................320
starting after a collision .........277
Engine block heater .................241
Engine oil ..................................323
checking and adding ..............323
dipstick ....................................323
Index
390
2011 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

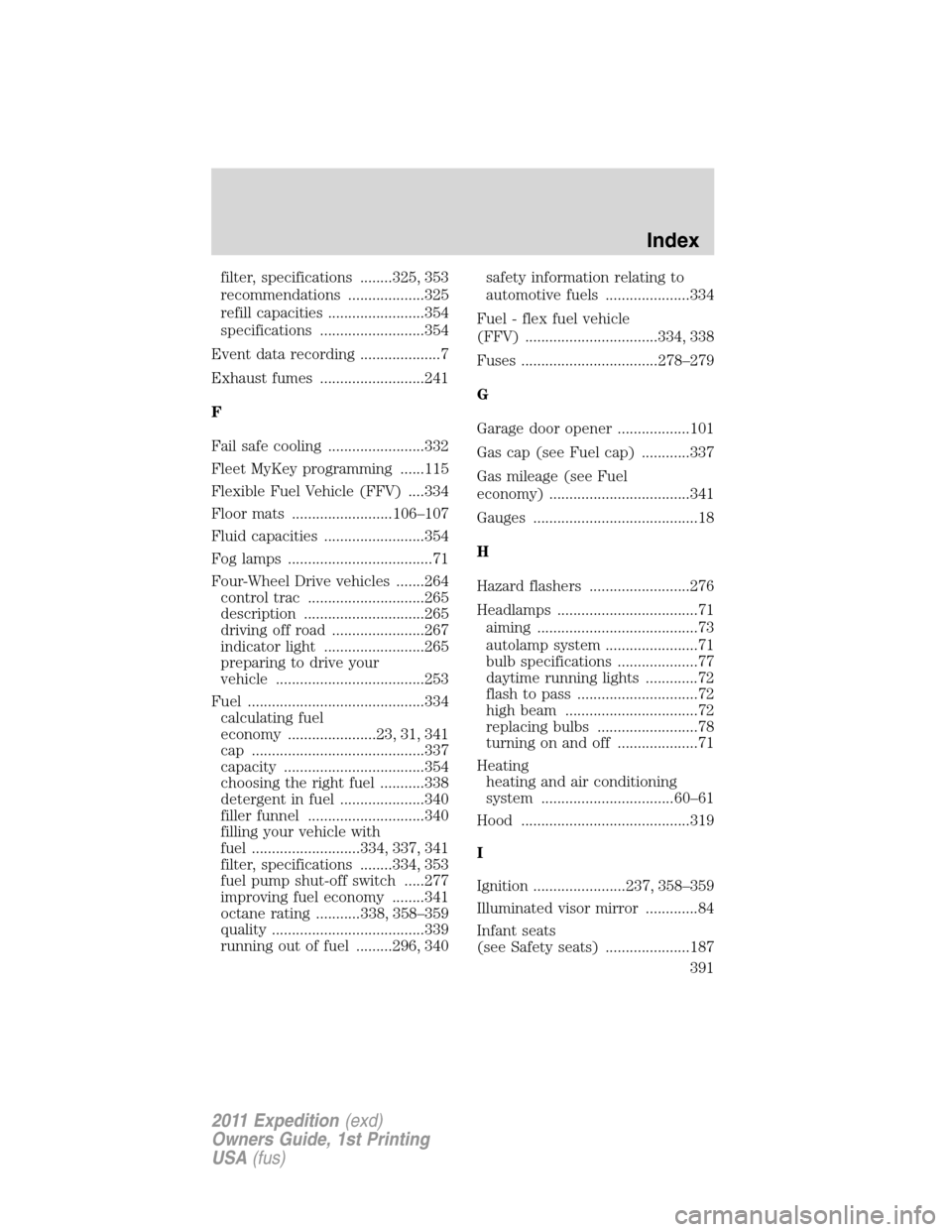

filter, specifications ........325, 353
recommendations ...................325
refill capacities ........................354
specifications ..........................354
Event data recording ....................7
Exhaust fumes ..........................241
F
Fail safe cooling ........................332
Fleet MyKey programming ......115
Flexible Fuel Vehicle (FFV) ....334
Floor mats .........................106–107
Fluid capacities .........................354
Fog lamps ....................................71
Four-Wheel Drive vehicles .......264
control trac .............................265
description ..............................265
driving off road .......................267
indicator light .........................265
preparing to drive your
vehicle .....................................253
Fuel ............................................334
calculating fuel
economy ......................23, 31, 341
cap ...........................................337
capacity ...................................354
choosing the right fuel ...........338
detergent in fuel .....................340
filler funnel .............................340
filling your vehicle with
fuel ...........................334, 337, 341
filter, specifications ........334, 353
fuel pump shut-off switch .....277
improving fuel economy ........341
octane rating ...........338, 358–359
quality ......................................339
running out of fuel .........296, 340safety information relating to
automotive fuels .....................334
Fuel - flex fuel vehicle
(FFV) .................................334, 338
Fuses ..................................278–279
G
Garage door opener ..................101
Gas cap (see Fuel cap) ............337
Gas mileage (see Fuel
economy) ...................................341
Gauges .........................................18
H
Hazard flashers .........................276
Headlamps ...................................71
aiming ........................................73
autolamp system .......................71
bulb specifications ....................77
daytime running lights .............72
flash to pass ..............................72
high beam .................................72
replacing bulbs .........................78
turning on and off ....................71
Heating
heating and air conditioning
system .................................60–61
Hood ..........................................319
I
Ignition .......................237, 358–359
Illuminated visor mirror .............84
Infant seats
(see Safety seats) .....................187
Index
391
2011 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

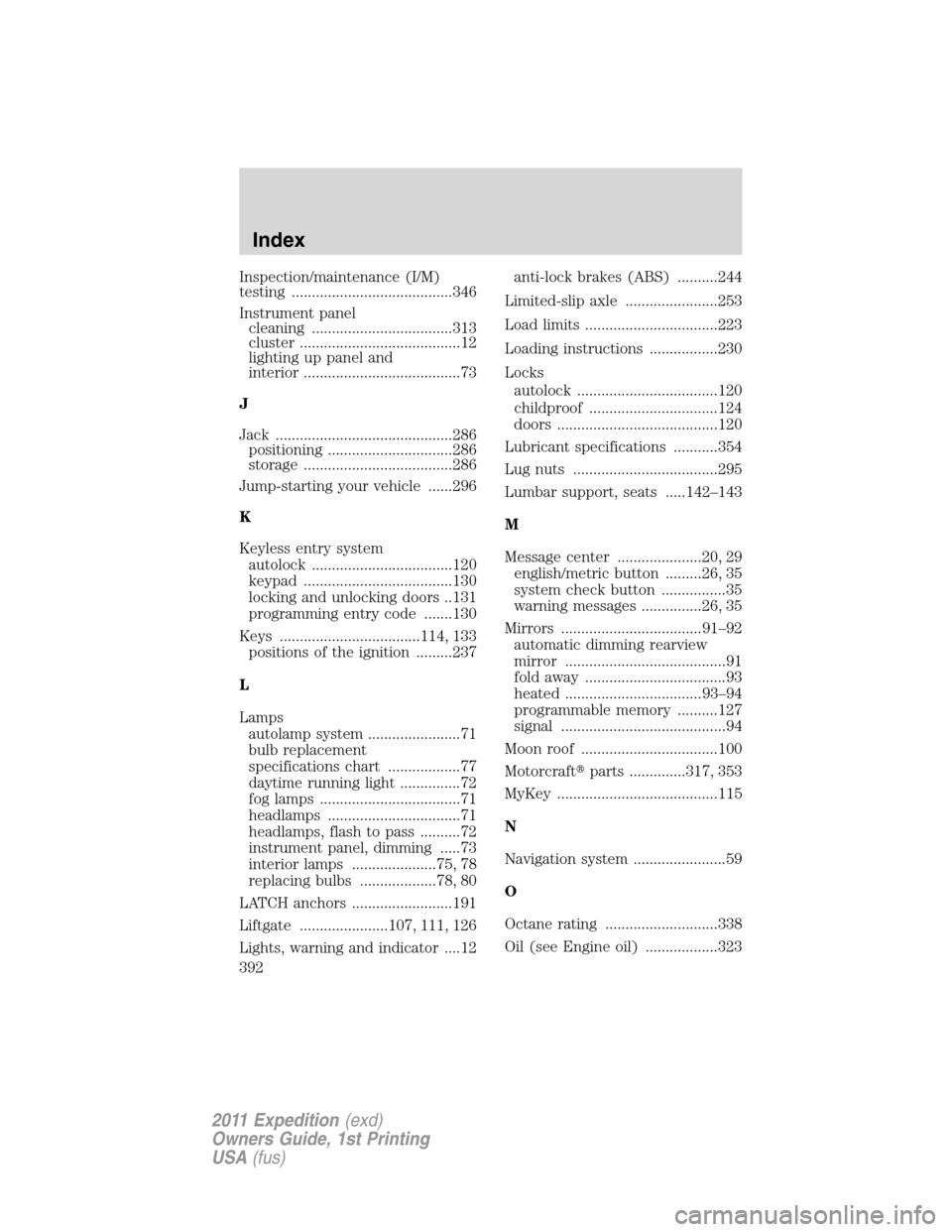

Inspection/maintenance (I/M)
testing ........................................346
Instrument panel
cleaning ...................................313
cluster ........................................12
lighting up panel and
interior .......................................73
J
Jack ............................................286
positioning ...............................286
storage .....................................286
Jump-starting your vehicle ......296
K
Keyless entry system
autolock ...................................120
keypad .....................................130
locking and unlocking doors ..131
programming entry code .......130
Keys ...................................114, 133
positions of the ignition .........237
L
Lamps
autolamp system .......................71
bulb replacement
specifications chart ..................77
daytime running light ...............72
fog lamps ...................................71
headlamps .................................71
headlamps, flash to pass ..........72
instrument panel, dimming .....73
interior lamps .....................75, 78
replacing bulbs ...................78, 80
LATCH anchors .........................191
Liftgate ......................107, 111, 126
Lights, warning and indicator ....12anti-lock brakes (ABS) ..........244
Limited-slip axle .......................253
Load limits .................................223
Loading instructions .................230
Locks
autolock ...................................120
childproof ................................124
doors ........................................120
Lubricant specifications ...........354
Lug nuts ....................................295
Lumbar support, seats .....142–143
M
Message center .....................20, 29
english/metric button .........26, 35
system check button ................35
warning messages ...............26, 35
Mirrors ...................................91–92
automatic dimming rearview
mirror ........................................91
fold away ...................................93
heated ..................................93–94
programmable memory ..........127
signal .........................................94
Moon roof ..................................100
Motorcraftparts ..............317, 353
MyKey ........................................115
N
Navigation system .......................59
O
Octane rating ............................338
Oil (see Engine oil) ..................323
Index
392
2011 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)
