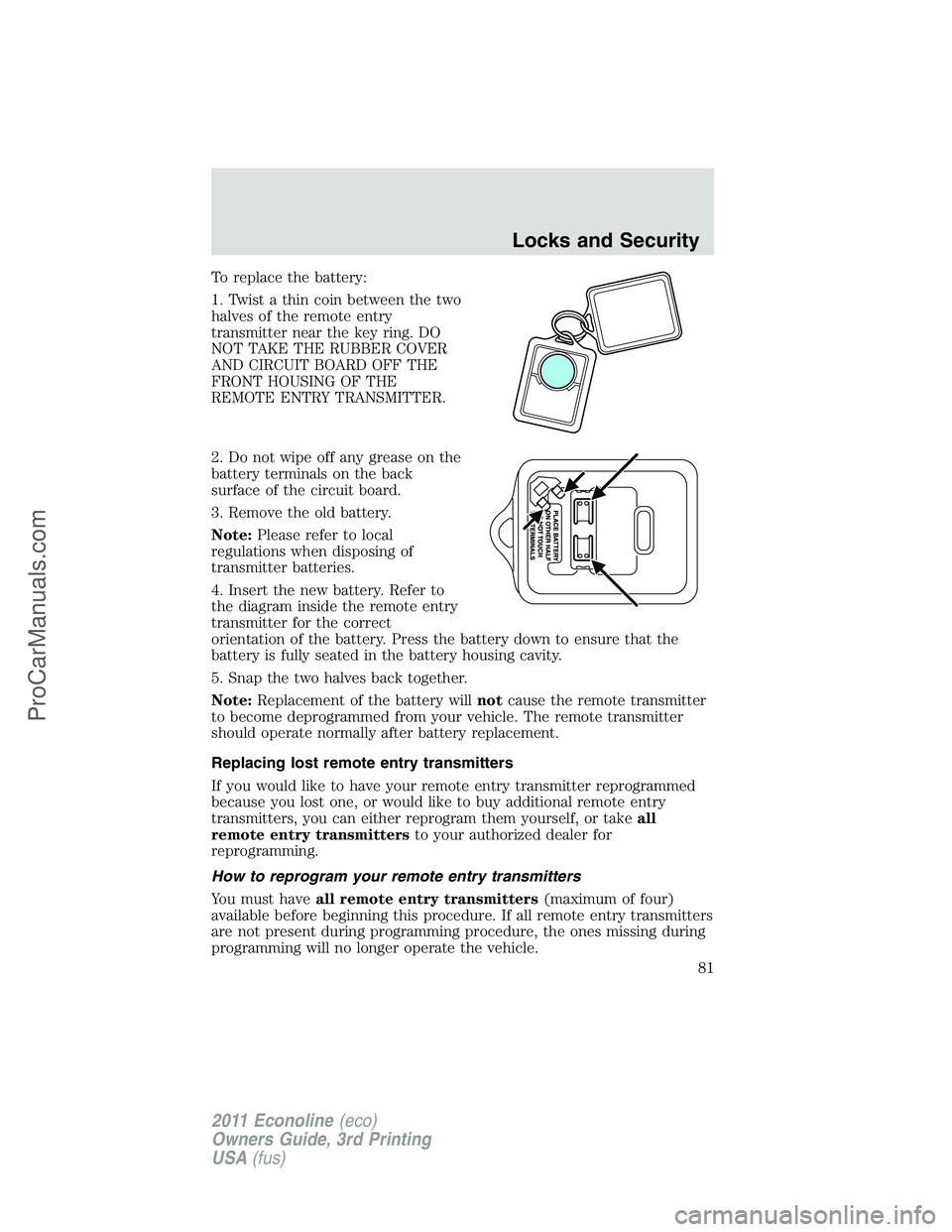

2011 FORD E-450 battery replacement

To replace the battery:
1. Twist a thin coin between the two
halves of the remote entry
transmitter near the key ring. DO
NOT TAKE THE RUBBER COVER
AND CIRCUIT BOARD OFF THE
FRONT HOUSING OF THE
REMOTE ENTRY TRANSMITTER.
2. Do not wipe off any grease on the
battery terminals on the back
surface of the circuit board.
3. Remove the old battery.
Note:Please refer to local
regulations when disposing of
transmitter batteries.
4. Insert the new battery. Refer to
the diagram inside the remote entry
transmitter for the correct
orientation of the battery. Press the battery down to ensure that the
battery is fully seated in the battery housing cavity.
5. Snap the two halves back together.
Note:Replacement of the battery willnotcause the remote transmitter
to become deprogrammed from your vehicle. The remote transmitter
should operate normally after battery replacement.
Replacing lost remote entry transmitters
If you would like to have your remote entry transmitter reprogrammed
because you lost one, or would like to buy additional remote entry
transmitters, you can either reprogram them yourself, or takeall
remote entry transmittersto your authorized dealer for
reprogramming.
How to reprogram your remote entry transmitters
You must haveall remote entry transmitters(maximum of four)
available before beginning this procedure. If all remote entry transmitters
are not present during programming procedure, the ones missing during
programming will no longer operate the vehicle.
Locks and Security
81
2011 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

ROADSIDE ASSISTANCE
Vehicles sold in the U.S. : Getting roadside assistance
To fully assist you should you have a vehicle concern, Ford Motor
Company offers a complimentary roadside assistance program. This
program is separate from the New Vehicle Limited Warranty. The service
is available:
•24-hours, seven days a week
•for the coverage period listed on the Roadside Assistance Card
included in your Owner Guide portfolio.
Roadside assistance will cover:
•a flat tire change with a good spare (except vehicles that have been
supplied with a tire inflation kit)
•battery jump start
•lock-out assistance (key replacement cost is the customer’s
responsibility)
•fuel delivery – Independent Service Contractors, if not prohibited by
state, local or municipal law shall deliver up to 2.0 gallons (7.5L) of
gasoline or 5.0 gallons (18.9L) of diesel fuel to a disabled vehicle. Fuel
delivery service is limited to two no-charge occurrences within a
12-month period.
•winch out – available within 100 feet (30.5 meters) of a paved or
county maintained road, no recoveries.
•towing – Ford and Lincoln eligible vehicles towed to an authorized
dealer within 35 miles (56 km) of the disablement location or to the
nearest authorized dealer. If a member requests to be towed to an
authorized dealer more than 35 miles (56 km) from the disablement
location, the member shall be responsible for any mileage costs in
excess of 35 miles (56 km).
Trailers shall be covered up to $200 if the disabled eligible vehicle
requires service at the nearest authorized dealer. If the trailer is disabled,
but the towing vehicle is operational, the trailer does not qualify for any
roadside services.
Vehicles sold in the U.S. : Using roadside assistance
Complete the roadside assistance identification card and place it in your
wallet for quick reference. In the United States, this card is found in the
Owner Guide portfolio in the glove compartment. In Canada, the card is
found in theWarranty Guidein the glove compartment.
Roadside Emergencies
215
2011 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

Change your engine oil and filter according to the appropriate schedule
listed in thescheduled maintenance information.
Ford production and Motorcraftreplacement oil filters are designed for
added engine protection and long life. If a replacement oil filter is used
that does not meet Ford material and design specifications, start-up
engine noises or knock may be experienced.
It is recommended you use the appropriate Motorcraftoil filter or
another with equivalent performance for your engine application.
BATTERY
Your vehicle is equipped with a
Motorcraftmaintenance-free
battery which normally does not
require additional water during its
life of service.
WARNING:This vehicle may be equipped with more than one
battery, removal of cable from only one battery does not
disconnect the vehicle electrical system. Be sure to disconnect cables
from all batteries when disconnecting power. Failure to do so may
cause serious personal injury or property damage.
If your battery has a cover/shield, make sure it is reinstalled
after the battery has been cleaned or replaced.
For longer, trouble-free operation, keep the top of the battery clean and
dry. Also, make certain the battery cables are always tightly fastened to
the battery terminals.
If you see any corrosion on the battery or terminals, remove the cables
from the terminals and clean with a wire brush. You can neutralize the
acid with a solution of baking soda and water.
When the battery is disconnected or a new battery installed, the
transmission must learn its adaptive strategy. As a result of this, the
transmission may shift firmly. This operation is considered normal and
will fully update transmission operation to its optimum shift feel.
Maintenance and Specifications
265
2011 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

•If the battery was removed, clean the battery cable ends and inspect.
If you have any concerns or issues, contact your authorized dealer.
MOTORCRAFT PART NUMBERS
Component 4.6L V8 engine 5.4L V8 engine6.8L V10
engine
Air filter element FA-1632 FA-1632 FA-1632
Battery-
standard /
(auxiliary)BXT-65-650 /
(BXT-65-750)BXT-65-650 /
(BXT-65-750)BXT-65-650 /
(BXT-65-750)
Oil filter FL-820-S FL-820-S FL-820-S
Spark plugs
1
Torqshift
automatic
transmission
internal
bottom–pan filter— FT-180 FT-180
1For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraftor
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
Maintenance and Specifications
298
2011 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

A
Accessory delay ..........................66
AdvanceTrac ..............................194
Airbag supplemental restraint
system ........................................104
and child safety seats ............106
description ..............................104
disposal ....................................108
driver airbag ............................106
indicator light .........................108
operation .................................106
passenger airbag .....................106
passenger deactivation
switch ......................................109
Air cleaner filter .......294–295, 298
Ambulance packages ....................7
Antifreeze
(see Engine coolant) ................268
Anti-lock brake system
(see Brakes) ......................191–192
Anti-theft system ........................83
arming the system ....................84
Audio system (see Radio) ...29, 31
Automatic transmission
driving an automatic
overdrive .........................203, 205
fluid, adding ............................288
fluid, checking ........................288
fluid, refill capacities ..............299
fluid, specification ..................299
Auxiliary Input Jack ...................38
Auxiliary power point .................64
Axle
lubricant specifications ..........299
refill capacities ........................299
traction lok ..............................199
B
Battery .......................................265acid, treating emergencies .....265
jumping a disabled battery ....236
maintenance-free ....................265
replacement, specifications ...298
servicing ..................................265
Belt-Minder.............................100
Blind spot mirror ......................213
Booster seats .............................132
Brakes ........................................191
anti-lock ...........................191–192
anti-lock brake system (ABS)
warning light ...........................192
fluid, checking and adding ....287
fluid, refill capacities ..............299
fluid, specifications .................299
lubricant specifications ..........299
parking ....................................192
shift interlock ..........................201
trailer .......................................179
Bulbs ............................................57
C
Capacities for refilling fluids ....299
Cell phone use ............................10
Changing a tire .........................226
Child safety seats ......................118
in front seat ............................118
in rear seat ..............................118
LATCH .....................................122
recommendations ...................116
tether anchorage hardware ...129
Child safety seats - booster
seats ...........................................132
Cleaning your vehicle
engine compartment ..............253
exterior ....................................257
instrument panel ....................254
interior .....................................255
Index
334
2011 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com
