2011 FORD C MAX engine

Downloaded from www.Manualslib.com manuals search engine See Power Windows (page 71).
Electric folding mirrors See Electric exterior mirrors (page 73).
Information displays Use the arrow buttons to navigate through
the menus and press OK to make a
selection.
See General Information (page 83). Manual climate control
Heating the interior quickly
Cooling the interior quickly
Defrosting and demisting the
windscreen
See Manual Climate Control (page 101).
Automatic climate control See Automatic Climate Control (page
103).
15 At a GlanceE72623 E130248 E129884 E129887 E129888 E91391

Downloaded from www.Manualslib.com manuals search engine Keyless starting
Press the start button.
Stopping the engine when the vehicle
is moving
WARNING
Switching off the engine when the
vehicle is still moving will result in a
loss of brake and steering assistance.
The steering will not be locked, but higher
effort will be required. When the ignition is
switched off some electrical circuits,
warning lamps and indicators may also be
OFF. Press and hold the start button for two
seconds, or press three times within three
seconds.
Press the start button.
See Keyless Starting (page 129).
Diesel particulate filter (DPF) WARNING
Do not park or idle your vehicle over
dry leaves, dry grass or other
combustible materials. The DPF
regeneration process creates very high
exhaust gas temperatures and the exhaust
will radiate a considerable amount of heat
during and after DPF regeneration, and
after you have switched the engine off.
This is a potential fire hazard. See Diesel Particulate Filter (page 130).
Fuel filler flap Press the flap to open it. Open the flap fully
until it engages.
Insert the fuel nozzle up to and including
the first notch on the nozzle A. Keep it
resting on the cover of the fuel pipe
opening.
16 At a GlanceE85766 E86613 E139202AA

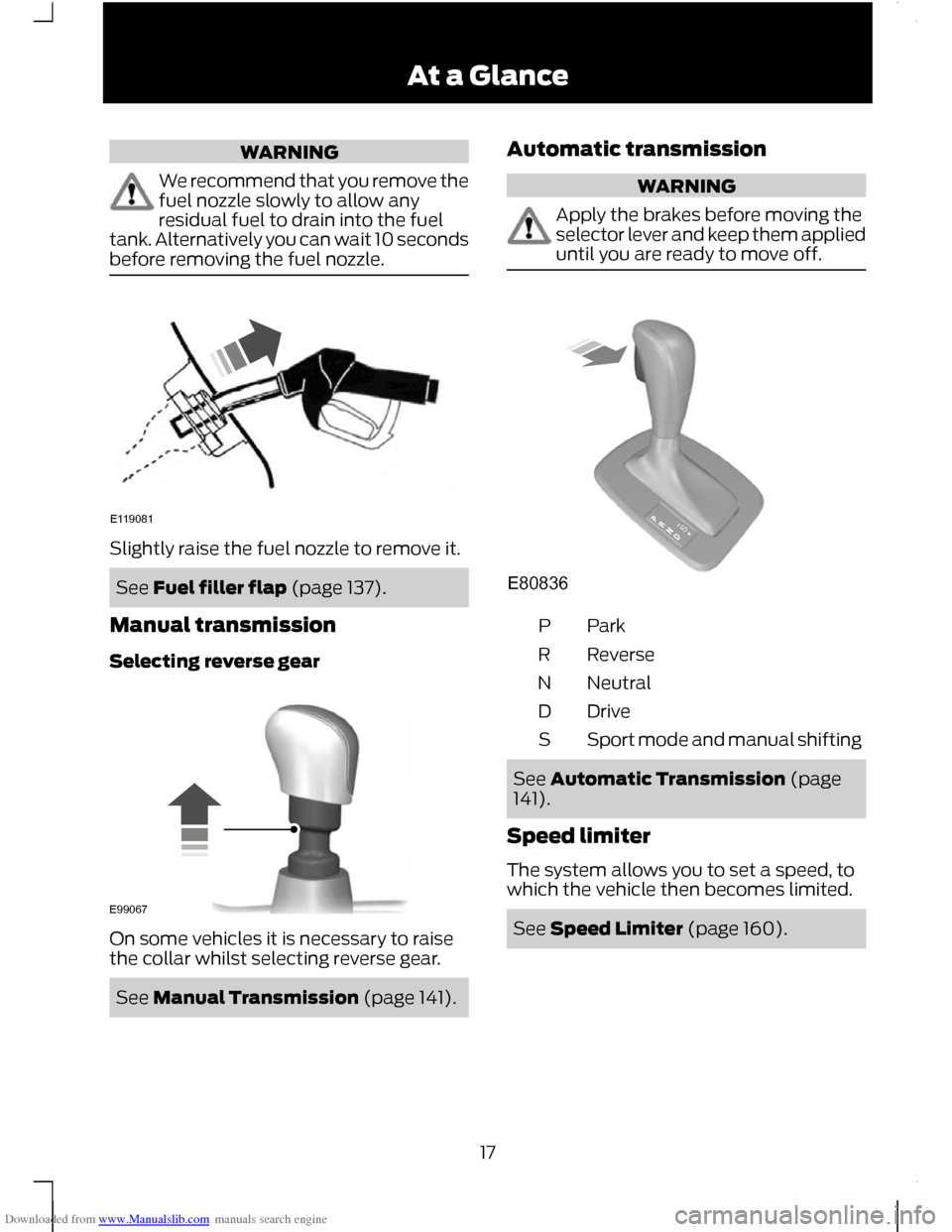

Downloaded from www.Manualslib.com manuals search engine WARNING
We recommend that you remove the
fuel nozzle slowly to allow any
residual fuel to drain into the fuel
tank. Alternatively you can wait 10 seconds
before removing the fuel nozzle. Slightly raise the fuel nozzle to remove it.
See Fuel filler flap (page 137).
Manual transmission
Selecting reverse gear On some vehicles it is necessary to raise
the collar whilst selecting reverse gear.
See Manual Transmission (page 141). Automatic transmission WARNING
Apply the brakes before moving the
selector lever and keep them applied
until you are ready to move off.
ParkP
Reverse
R
Neutral
N
Drive
D
Sport mode and manual shifting
S See Automatic Transmission (page
141).
Speed limiter
The system allows you to set a speed, to
which the vehicle then becomes limited. See Speed Limiter (page 160).
17 At a GlanceE119081 E99067 E80836S

Downloaded from www.Manualslib.com manuals search engine Towing the vehicle on four wheels
CAUTION
For certain engine and transmission
combinations, it is recommended not
to tow the vehicle with the drive
wheels on the ground. See Towing the Vehicle on Four
Wheels (page 183).
18At a Glance

Downloaded from www.Manualslib.com manuals search engine CHILD SEATS
WARNINGS
Secure children that are less than
150 centimetres (59 inches) tall in a
suitable, approved child restraint, in
the rear seat. Extreme Hazard! Do not use a
rearward facing child restraint on a
seat protected by an air bag in front
of it! Read and follow the manufacturer
’s
instructions when you are fitting a
child restraint. Do not modify child restraints in any
way.
Do not hold a child on your lap when
the vehicle is moving. WARNINGS
Do not leave unattended children in
your vehicle.
If your vehicle has been involved in
an accident, have the child restraints
checked by properly trained
technicians. Note:
Mandatory use of child restraints
varies from country to country.
Only child restraints certified to
ECE-R44.03 (or later) have been tested
and approved for use in your vehicle. A
choice of these are available from your
Dealer.
Child restraints for different mass
groups
Use the correct child restraint as follows:
Baby safety seat Secure children that weigh less than 13
kilograms (29 pounds) in a rearward facing
baby safety seat (Group 0+) in the rear
seat.
19
Child SafetyE133140 E68916 E68918

Downloaded from www.Manualslib.com manuals search engine Child safety seat
Secure children that weigh between 13 and
18 kilograms (29 and 40 pounds) in a child
safety seat (Group 1) in the rear seat.
BOOSTER SEATS
WARNINGS
Do not install a booster seat or a
booster cushion with only the lap
strap of the seat belt.
Do not install a booster seat or a
booster cushion with a seat belt that
is slack or twisted.
Do not put the seat belt under your
child
’s arm or behind its back. Do not use pillows, books or towels
to boost your child
’s height. Make sure that your children sit in an
upright position.
Secure children that weigh more
than 15 kilograms (33 pounds) but
are less than 150 centimetres (59
inches) tall in a booster seat or a booster
cushion. CAUTION
When using a child seat on a rear seat,
make sure that the child seat rests
tightly against the vehicle seat. It may
be necessary to lift or remove the head
restraint. See Head Restraints (page 110). Booster seat (Group 2)
We recommend that you use a booster
seat that combines a cushion with a
backrest instead of a booster cushion only.
The raised seating position will allow you
to position the shoulder strap of the adult
seat belt over the centre of your child
’s
shoulder and the lap strap tightly across
its hips.
20
Child SafetyE68920 E70710

Downloaded from www.Manualslib.com manuals search engine Booster cushion (Group 3)
CHILD SEAT POSITIONING
WARNINGS
Please consult your Dealer for the
latest details relating to Ford
recommended child seats.
Extreme Hazard! Do not use a
rearward facing child restraint on a
seat protected by an air bag in front
of it! WARNINGS
When you are using a child restraint
with a support leg on a second row
seat, make sure that you locate the
support leg securely on the under floor
storage compartment lid. Make sure that
you install the foam spacer correctly inside
the storage compartment and that you
position the lid correctly. When using a child seat with a seat
belt, make sure that the seat belt is
not slack or twisted.
CAUTION
The child seat must rest tightly
against the vehicle seat. It may be
necessary to lift or remove the head
restraint. See Head Restraints (page 110). Note:
When using a child seat on a front
seat, always adjust the front passenger seat
to its fully rearwards position. If it proves
difficult to tighten the lap section of the seat
belt without slack remaining, adjust the
seatback to the fully upright position and
raise the height of the seat. See Seats
(page 109).
Child seat positions Mass group categories
Seating positions 3
2
1
0+
0
22 - 36 kg(49 - 79 lbs)
15 - 25 kg
(33 - 55 lbs)
9 - 18 kg
(20 - 40 lbs)
Up to 13 kg
(29 lbs)
Up to 10 kg
(22 lbs)
Booster seat or cushion
Child
safety seat
Baby safety seat
UF¹
UF¹
UF¹
X
X
Front passenger seat
with airbag ON
U¹
U¹
U¹
U¹
U¹
Front passenger seat
with airbag OFF
21
Child SafetyE68924

Downloaded from www.Manualslib.com manuals search engine Mass group categories
Seating positions 3
2
1
0+
0
22 - 36 kg(49 - 79 lbs)
15 - 25 kg
(33 - 55 lbs)
9 - 18 kg
(20 - 40 lbs)
Up to 13 kg
(29 lbs)
Up to 10 kg
(22 lbs)
Booster seat or cushion
Child
safety seat
Baby safety seat
U
U
U
U
U
Second row seats -
Grand C-MAX
U
U
U
U
U
Second row seats - C-
MAX
U
U
U
U
U
Third row seats - Grand
C-MAX
X Not suitable for children in this mass group.
U Suitable for universal category child seats approved for use in this mass group.
U¹ Suitable for universal category child seats approved for use in this mass group. However,
we recommend that you secure children in a government approved child seat, in the rear
seat.
UF¹ Suitable for universal category forward facing child seats approved for use in this
mass group. However, we recommend that you secure children in a government approved
child seat, in the rear seat.
ISOFIX child seats Mass group categories
Seating positions 1
0+
Forward facing
Rear facing
9 - 18 kg (20 - 40 lbs)
Up to 13 kg (29 lbs)
Vehicle seating position not ISOFIX equipped
Size class
Front seat
Seat type
A, B, B1, C, D1
C, D, E 1
Size class
Second row outboard seat
ISOFIX - Grand C-MAX
IL2
, IUF 3
IL 2
Seat type
A, B, B1, D1
D, E 1
Size class
Second row outboard seat
ISOFIX - C-MAX
22
Child Safety
