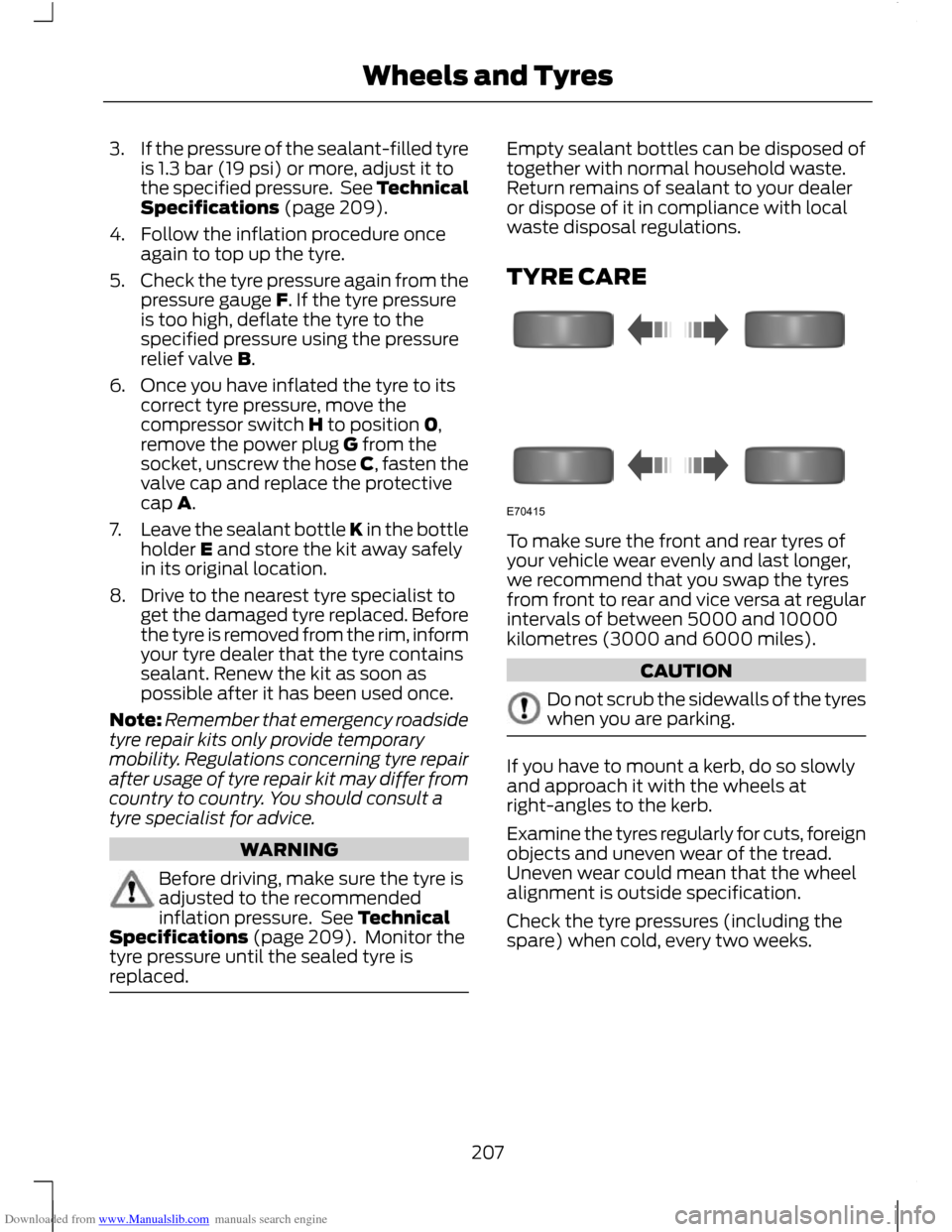

If the pressure of the sealant-filled tyre
is 1.3 bar (19 psi) or more, adjust it to
the specified pressure. See Technical
Specifications (page 209).
4. Follow the inflation procedure once again to top up the tyre.
5. Check the tyre pressure again from the
pressure gauge F. If the tyre pressure
is too high, deflate the tyre to the
specified pressure using the pressure
relief valve B.
6. Once you have inflated the tyre to its correct tyre pressure, move the
compressor switch H to position 0,
remove the power plug G from the
socket, unscrew the hose C, fasten the
valve cap and replace the protective
cap A.
7. Leave the sealant bottle K in the bottle
holder E and store the kit away safely
in its original location.
8. Drive to the nearest tyre specialist to get the damaged tyre replaced. Before
the tyre is removed from the rim, inform
your tyre dealer that the tyre contains
sealant. Renew the kit as soon as
possible after it has been used once.
Note: Remember that emergency roadside
tyre repair kits only provide temporary
mobility. Regulations concerning tyre repair
after usage of tyre repair kit may differ from
country to country. You should consult a
tyre specialist for advice. WARNING
Before driving, make sure the tyre is
adjusted to the recommended
inflation pressure. See Technical
Specifications (page 209). Monitor the
tyre pressure until the sealed tyre is
replaced. Empty sealant bottles can be disposed of
together with normal household waste.
Return remains of sealant to your dealer
or dispose of it in compliance with local
waste disposal regulations.
TYRE CARE
To make sure the front and rear tyres of
your vehicle wear evenly and last longer,
we recommend that you swap the tyres
from front to rear and vice versa at regular
intervals of between 5000 and 10000
kilometres (3000 and 6000 miles).
CAUTION
Do not scrub the sidewalls of the tyres
when you are parking.
If you have to mount a kerb, do so slowly
and approach it with the wheels at
right-angles to the kerb.
Examine the tyres regularly for cuts, foreign
objects and uneven wear of the tread.
Uneven wear could mean that the wheel
alignment is outside specification.
Check the tyre pressures (including the
spare) when cold, every two weeks.
207
Wheels and TyresE70415

Downloaded from www.Manualslib.com manuals search engine USING WINTER TYRES
CAUTION
Make sure that you use the correct
wheel nuts for the type of wheel the
winter tyres are fitted to.
If winter tyres are used, make sure that the
tyre pressures are correct. See Technical
Specifications (page 209).
USING SNOW CHAINS
WARNINGS
Do not exceed 50 km/h (30 mph).
Do not use snow chains on snow-free
roads.
Only fit snow chains to specified
tyres. See Technical
Specifications (page 209).
CAUTION
If your vehicle is fitted with wheel
trims, remove them before fitting
snow chains.
Note:
The ABS will continue to operate
normally.
Only use snow chains of 10 millimetre or
smaller.
Only use snow chains on the front wheels.
Vehicles with stability control
(ESP)
Vehicles with stability control (ESP) may
exhibit some unusual driving
characteristics which can be reduced by
switching traction control off. See Using
Stability Control (page 145). TYRE PRESSURE
MONITORING SYSTEM WARNINGS
The system does not relieve you of
your responsibility to regularly check
the tyre pressures.
The system will only provide a low
tyre pressure warning. It will not
inflate the tyres.
Do not drive on significantly
under-inflated tyres. This may cause
the tyres to overheat and fail.
Under-inflation reduces fuel efficiency, tyre
tread life and may also affect your ability
to drive the vehicle safely. CAUTIONS
Do not bend or damage the valves
when you are inflating the tyres.
Have tyres installed by properly
trained technicians.
The Deflation Detection System will alert
you if there is a change of air pressure in
any tyre. It does this by using the ABS
sensors to detect the rolling circumference
of the wheels. When the circumference
changes, this indicates low pressure in a
tyre, a warning message is displayed in the
information display and the message
indicator will illuminate. See Information
Messages (page 90).
If a low pressure warning message is
displayed in the information display, check
the tyre pressures as soon as possible and
inflate them to the recommended
pressure. See Technical Specifications
(page 209).
If this happens frequently, have the cause
determined and rectified as soon as
possible.
208
Wheels and Tyres

Downloaded from www.Manualslib.com manuals search engine Apart from a too low tyre pressure or a
damaged tyre, the following situations can
affect the rolling circumference:
•
Vehicle load is uneven.
• When using a trailer or travelling up and
down an incline.
• Using snow chains.
• Driving on soft surfaces such as snow
or mud.
Note: The system will still function
correctly, but there may be an increased
detection time. System reset
Note:
Do not reset the system when the
vehicle is moving.
Note: You should reset the system
following any adjustment to the tyre
pressures or any changing of tyres.
Note: Turn the ignition on.
1. Using the information display control, navigate to Settings > Driver assist
> Deflation detection
2. Press and hold the OK button until confirmation appears.
TECHNICAL SPECIFICATIONS
Wheel nut torque Nm (Ib-ft)
Wheel type
130 (96)
All
Tyre pressures (cold tyres)
Up to 80 km/h (50 mph) Full load
Normal load
Tyre size
Variant Rear
Front
Rear
Front
bar (lbf/in²)
bar (lbf/
in²)
bar (lbf/
in²)
bar (lbf/
in²)
4.2 (61)
4.2 (61)
4.2 (61)
4.2 (61)
T125/80 R 16
All
4.2 (61)
4.2 (61)
4.2 (61)
4.2 (61)
T125/90 R 16
All
209
Wheels and Tyres

Downloaded from www.Manualslib.com manuals search engine C-MAX
Up to 160 km/h (100 mph)
Full load
Normal load
Tyre size
Variant Rear
Front
Rear
Front
bar (psi)
bar (psi)
bar (psi)
bar (psi)
2.8 (41)
2.5 (36)
2.1 (31)
2.1 (31)
205/55 R 16 *
Vehicles with a
petrol engine
2.8 (41)
2.5 (36)
2.1 (31)
2.3 (33)
205/55 R 16 *
Vehicles with a
diesel engine
2.8 (41)
2.5 (36)
2.1 (31)
2.1 (31)
215/55 R 16 *
Vehicles with a
petrol engine
2.8 (41)
2.5 (36)
2.1 (31)
2.3 (33)
215/55 R 16 *
Vehicles with a
diesel engine
2.8 (41)
2.5 (36)
2.1 (31)
2.1 (31)
215/50 R 17
Vehicles with a
petrol engine
2.8 (41)
2.5 (36)
2.1 (31)
2.3 (33)
215/50 R 17
1.6L Duratorq-TDCi
- DV
2.8 (41)
2.5 (36)
2.1 (31)
2.4 (35)
215/50 R 17
2.0L Duratorq-TDCi
- DW
2.9 (42)
2.6 (38)
2.1 (31)
2.1 (31)
235/40 R 18
Vehicles with a
petrol engine
2.9 (42)
2.6 (38)
2.1 (31)
2.1 (31)
235/40 R 18
1.6L Duratorq-TDCi
- DV
2.9 (42)
2.6 (38)
2.1 (31)
2.4 (35)
235/40 R 18
2.0L Duratorq-TDCi
- DW
* Only fit snow chains to specified tyres.
Continuous speed in excess of 160 km/h (100 mph) Full load
Normal load
Tyre size
Variant Rear
Front
Rear
Front
bar (psi)
bar (psi)
bar (psi)
bar (psi)
2.8 (41)
2.5 (36)
2.1 (31)
2.1 (31)
205/55 R 16
1.6L Duratec-16V Ti-
VCT - Sigma
210
Wheels and Tyres

Downloaded from www.Manualslib.com manuals search engine Full load
Normal load
Tyre size
Variant Rear
Front
Rear
Front
bar (psi)
bar (psi)
bar (psi)
bar (psi)
2.8 (41)
2.5 (36)
2.1 (31)
2.3 (33)
205/55 R 16
1.6L EcoBoost -
Sigma
2.8 (41)
2.5 (36)
2.1 (31)
2.3 (33)
205/55 R 16
1.6L Duratorq-TDCi
- DV
2.8 (41)
2.5 (36)
2.1 (31)
2.1 (31)
215/55 R 16
Vehicles with a
petrol engine
2.8 (41)
2.5 (36)
2.1 (31)
2.4 (35)
215/55 R 16
Vehicles with a
diesel engine
2.8 (41)
2.6 (38)
2.1 (31)
2.2 (32)
215/50 R 17
Vehicles with a
petrol engine
2.8 (41)
2.6 (38)
2.1 (31)
2.3 (33)
215/50 R 17
1.6L Duratorq-TDCi
- DV
2.8 (41)
2.6 (38)
2.1 (31)
2.4 (35)
215/50 R 17
2.0L Duratorq-TDCi
- DW
2.9 (42)
2.6 (38)
2.1 (31)
2.2 (32)
235/40 R 18
Vehicles with a
petrol engine
2.9 (42)
2.6 (38)
2.1 (31)
2.1 (31)
235/40 R 18
1.6L Duratorq-TDCi
- DV
2.9 (42)
2.6 (38)
2.1 (31)
2.4 (35)
235/40 R 18
2.0L Duratorq-TDCi
- DW
Grand C-MAX
Up to 160 km/h (100 mph) Full load
Normal load
Tyre size
Variant Rear
Front
Rear
Front
bar (psi)
bar (psi)
bar (psi)
bar (psi)
2.8 (41)
2.5 (36)
2.3 (33)
2.1 (31)
205/55 R 16 *
Vehicles with a
petrol engine
2.8 (41)
2.5 (36)
2.3 (33)
2.3 (33)
205/55 R 16 *
Vehicles with a
diesel engine
211
Wheels and Tyres

Downloaded from www.Manualslib.com manuals search engine Full load
Normal load
Tyre size
Variant Rear
Front
Rear
Front
bar (psi)
bar (psi)
bar (psi)
bar (psi)
2.8 (41)
2.5 (36)
2.3 (33)
2.1 (31)
215/55 R 16 *
Vehicles with a
petrol engine
2.8 (41)
2.5 (36)
2.3 (33)
2.3 (33)
215/55 R 16 *
Vehicles with a
diesel engine
2.9 (42)
2.5 (36)
2.3 (33)
2.1 (31)
215/50 R 17
Vehicles with a
petrol engine
2.9 (42)
2.5 (36)
2.3 (33)
2.3 (33)
215/50 R 17
1.6L Duratorq-TDCi
- DV
2.9 (42)
2.5 (36)
2.3 (33)
2.4 (35)
215/50 R 17
2.0L Duratorq-TDCi
- DW
2.9 (42)
2.6 (38)
2.1 (31)
2.1 (31)
235/40 R 18
Vehicles with a
petrol engine
2.9 (42)
2.6 (38)
2.1 (31)
2.1 (31)
235/40 R 18
1.6L Duratorq-TDCi
- DV
2.9 (42)
2.6 (38)
2.1 (31)
2.4 (35)
235/40 R 18
2.0L Duratorq-TDCi
- DW
* Only fit snow chains to specified tyres.
Continuous speed in excess of 160 km/h (100 mph) Full load
Normal load
Tyre size
Variant Rear
Front
Rear
Front
bar (psi)
bar (psi)
bar (psi)
bar (psi)
3 (44)
2.6 (38)
2.3 (33)
2.2 (32)
205/55 R 16
1.6L Duratec-16V Ti-
VCT - Sigma
3.2 (46)
2.6 (38)
2.3 (33)
2.4 (35)
205/55 R 16
1.6L EcoBoost -
Sigma
2.9 (42)
2.6 (38)
2.3 (33)
2.3 (33)
205/55 R 16
1.6L Duratorq-TDCi
- DV
3 (44)
2.6 (38)
2.3 (33)
2.2 (32)
215/55 R 16
Vehicles with a
petrol engine
212
Wheels and Tyres

Downloaded from www.Manualslib.com manuals search engine Full load
Normal load
Tyre size
Variant Rear
Front
Rear
Front
bar (psi)
bar (psi)
bar (psi)
bar (psi)
3 (44)
2.6 (38)
2.3 (33)
2.4 (35)
215/55 R 16
Vehicles with a
diesel engine
3.1 (45)
2.7 (39)
2.3 (33)
2.3 (33)
215/50 R 17
Vehicles with a
petrol engine
3.1 (45)
2.7 (39)
2.3 (33)
2.3 (33)
215/50 R 17
1.6L Duratorq-TDCi
- DV
3.1 (45)
2.7 (39)
2.3 (33)
2.5 (36)
215/50 R 17
2.0L Duratorq-TDCi
- DW
3.2 (46)
2.7 (39)
2.1 (31)

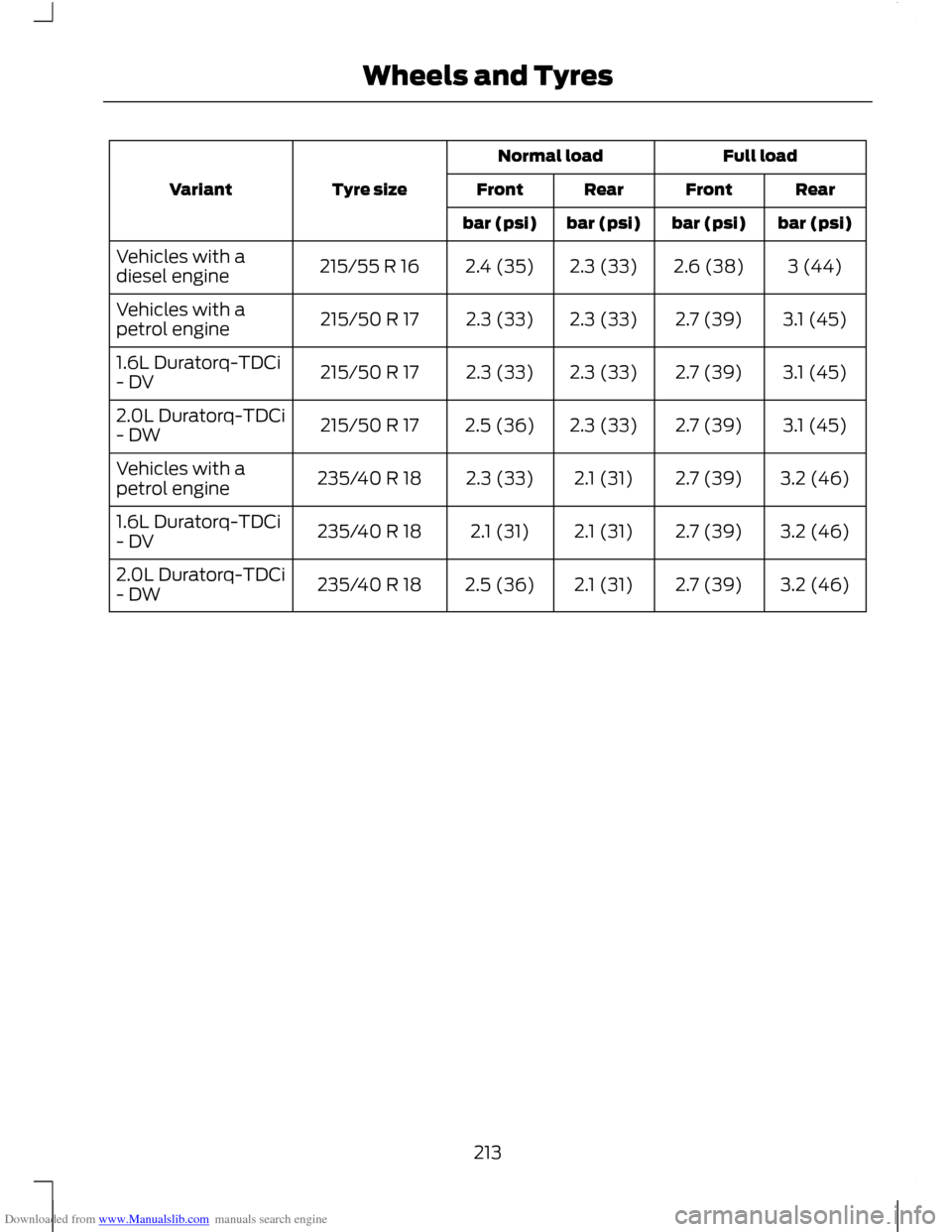

2.3 (33)
235/40 R 18
Vehicles with a
petrol engine
3.2 (46)
2.7 (39)
2.1 (31)
2.1 (31)
235/40 R 18
1.6L Duratorq-TDCi
- DV
3.2 (46)
2.7 (39)
2.1 (31)
2.5 (36)
235/40 R 18
2.0L Duratorq-TDCi
- DW
213
Wheels and Tyres

Downloaded from www.Manualslib.com manuals search engine VEHICLE IDENTIFICATION
PLATE
Note:
The vehicle identification plate
design may vary to that shown.
Note: The information shown on the vehicle
identification plate is dependant upon
market requirements. Model
A
Variant
B
Engine designation
C
Emission level
D
Vehicle identification number
E
Gross vehicle weight
F
Gross train weight
G
Maximum front axle weight
H
Maximum rear axle weight
I
The vehicle identification number and
maximum weights are shown on a plate
located on the lock side of the right-hand
door aperture at the bottom.
214
Vehicle identificationE135662BCEDFGHIA
