2011 DODGE GRAND CARAVAN lights

Power Sliding Side Door Open Flash
The left and right exterior hazard lights will flash for
12 seconds when either sliding door is opened. This will
alert other drivers in the area that passenger(s) could be
entering or exiting the vehicle.
The Sliding Side Door Open Flash can be enabled or
disabled by performing the following procedure:
1. Place the Key Fob in the ignition switch.
2. Cycle the ignition switch from ON/RUN to OFF five
times ending in the ON/RUN position(do not start the
engine).
3. Within 10 seconds of the final cycle, press the HAZ-
ARD switch ON.
4. A single chime will sound to signify that you have
successfully completed the programming. You can turn the feature back on by repeating the
previous procedure.
Power Sliding Side Door Master Lock Switch
To provide a safer environment for small children riding
in the rear seats, the second row sliding door switches
and handles may be overridden by pressing the OFF side
of the Master Lock Out Switch located in the front
overhead console.
When the power sliding door master lock switch is in the
OFF position, the power sliding side door may not be
opened or closed by pressing the switch located on the
b-pillar trim panel, just in front of the sliding door or
activating the inside power sliding door handle.
46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

The power liftgate may be closed by pressing the button,
located in the upper left trim in the liftgate opening.
Pushing once will only close the liftgate. This button
cannot be used to open the liftgate.When the RKE transmitter button is pressed and the
Flash Lights feature is enabled, the tail lights will flash
and several audible beeps will occur to signal that the
liftgate is opening or closing.

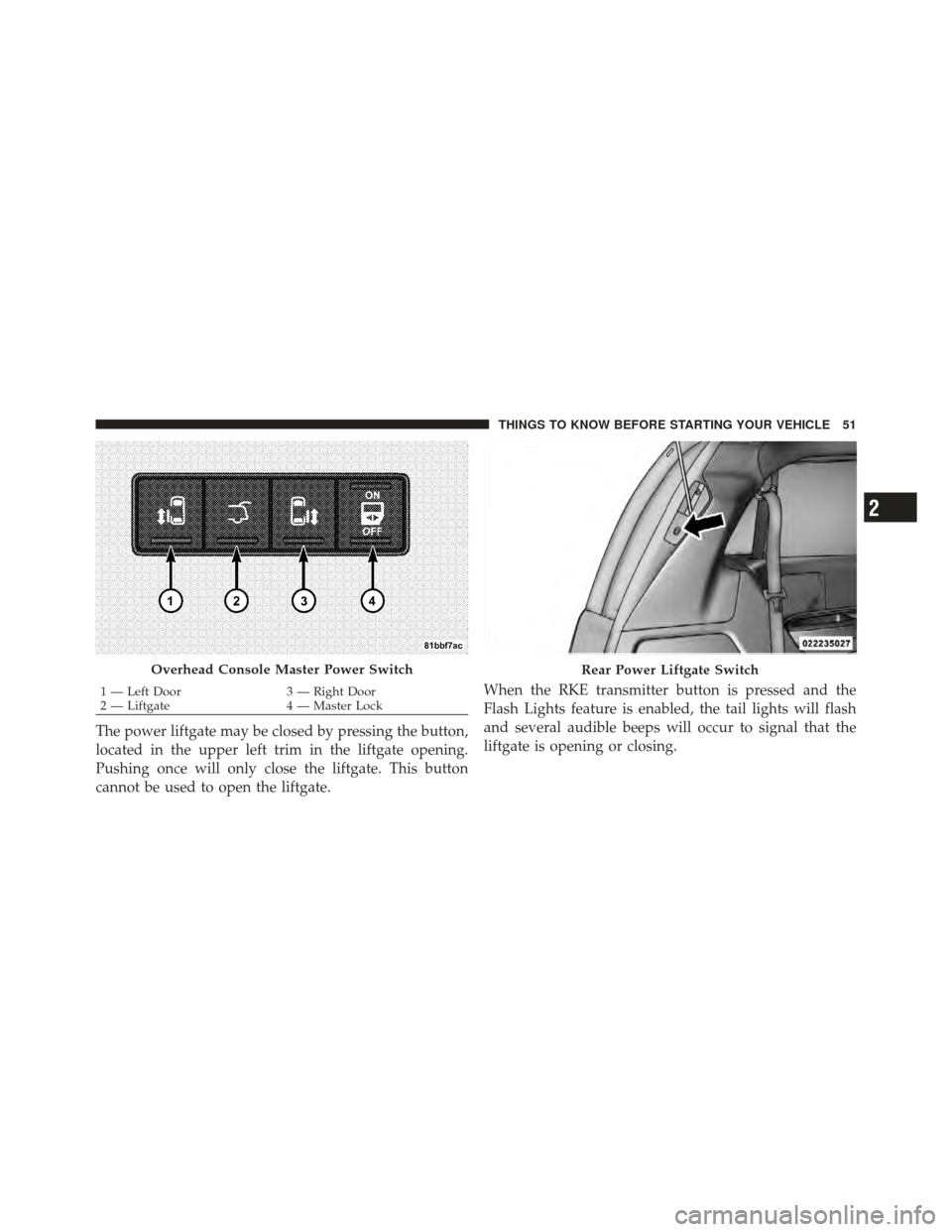

Overhead Console Master Power Switch
1 — Left Door
3 — Right Door
2 — Liftgate 4 — Master Lock
Rear Power Liftgate Switch
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 51

WARNING! (Continued)
•Do not mount any accessories to the knee bolster
such as alarm lights, stereos, citizen band radios,
etc.

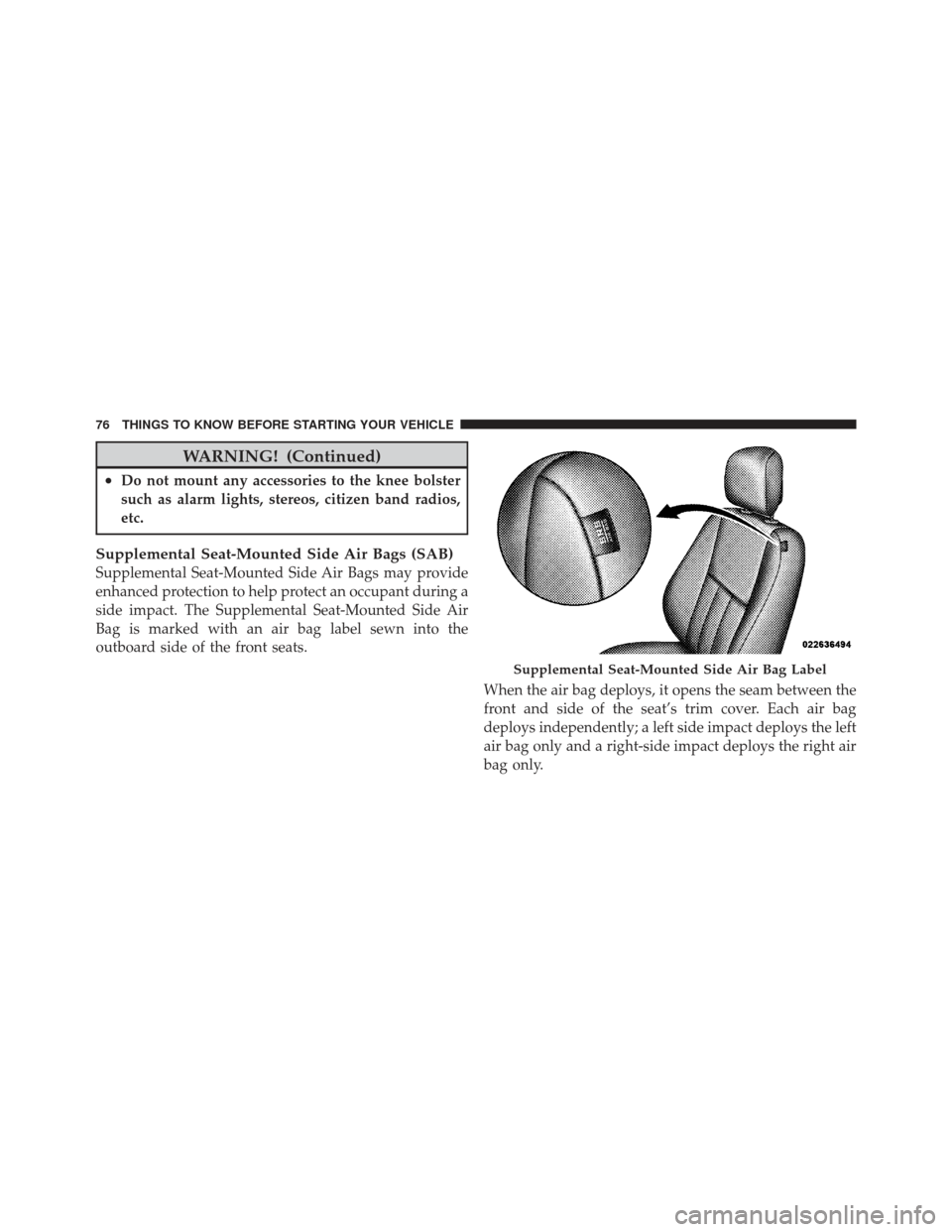

Supplemental Seat-Mounted Side Air Bags (SAB)
Supplemental Seat-Mounted Side Air Bags may provide
enhanced protection to help protect an occupant during a
side impact. The Supplemental Seat-Mounted Side Air
Bag is marked with an air bag label sewn into the
outboard side of the front seats.When the air bag deploys, it opens the seam between the
front and side of the seat’s trim cover. Each air bag
deploys independently; a left side impact deploys the left
air bag only and a right-side impact deploys the right air
bag only.
Supplemental Seat-Mounted Side Air Bag Label
76 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

A quantity of non-toxic gas is generated to inflate the side
curtain air bag. The inflating side curtain air bag pushes
the outside edge of the headliner out of the way and
covers the window. The air bag inflates in about 30
milliseconds (about one-quarter of the time that it takes
to blink your eyes) with enough force to injure you if you
are not belted and seated properly, or if items are
positioned in the area where the side curtain air bag
inflates. This especially applies to children. The side
curtain air bag is only about 3-1/2 in (9 cm) thick when
it is inflated.
Because air bag sensors estimate deceleration over time,
vehicle speed and damage are not good indicators of
whether or not an air bag should have deployed.
NOTE:In a rollover the pretensioners and/or SAB and
SABIC air bags may deploy on both sides of the vehicle.Front And Side Impact Sensors
In front and side impacts, impact sensors can aid the ORC
in determining appropriate response to impact events.
Enhanced Accident Response System
In the event of an impact causing air bag deployment, if
the communication network remains intact, and the
power remains intact, depending on the nature of the
event the ORC will determine whether to have the
Enhanced Accident Response System perform the follow-
ing functions:
•Cut off fuel to the engine.
•Flash hazard lights as long as the battery has power or
until the ignition key is turned off.
•Turn on the interior lights, which remain on as long as
the battery has power or until the ignition key is
removed.
•Unlock the doors automatically.
82 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING! (Continued)
•Check mounting of mats on a regular basis. Al-
ways properly reinstall and secure floor mats that
have been removed for cleaning.
•Always make sure that objects cannot fall into the
driver footwell while the vehicle is moving. Ob-
jects can become trapped under the brake pedal
and accelerator pedal causing a loss of vehicle
control.
•If required, mounting posts must be properly
installed, if not equipped from the factory.
Failure to properly follow floor mat installation or
mounting can cause interference with the brake
pedal and accelerator pedal operation causing loss
of control of the vehicle.
Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks and bulges.
Check the wheel nuts for tightness. Check the tires
(including spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.
Door Latches
Check for positive closing, latching, and locking.
104 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Seats .............................. 127
▫ Power Seats — If Equipped ............. 128
▫ Power Lumbar — If Equipped ........... 130
▫ Heated Seats — If Equipped ............ 130
▫ Manual Front/Second Row Seat Adjuster . . . 133
▫ Manual Reclining Seats — If Equipped ..... 134
▫ Head Restraints ..................... 135
▫ Stow ’n Go Seating — If Equipped ....... 139
▫ Quad Seats — If Equipped ............. 146
▫ Second Row Bench Seat — If Equipped .... 152
▫ Third Row Power Recline — If Equipped . . . 153
▫ Third Row Power Folding Seat — If
Equipped .......................... 153 ▫
Manually Folding Third Row Seats — If
Equipped .......................... 156
▫ Plastic Grocery Bag Retainer Hooks ....... 159
 Driver Memory Seat — If Equipped ........ 159
▫ Setting Memory Positions And Linking RKE
Transmitter To Memory ................ 160
▫ Easy Entry/Exit Seat (Available With
Memory Seat Only) ................... 162
 To Open And Close The Hood ............ 163
 Lights ............................. 165
▫ Headlight Switch .................... 165
▫ Automatic Headlights — If Equipped ...... 165
▫ Headlights On With Wipers — If Equipped . . 166
▫ Headlight Delay — If Equipped .......... 166
108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫Lights-On Reminder .................. 166
▫ Daytime Running Lights — If Equipped .... 167
▫ Front Fog Lights — If Equipped .......... 167
▫ Dimmer Controls .................... 167
▫ Multifunction Lever .................. 169
▫ Turn Signals ........................ 170
▫ Lane Change Assist ................... 170
▫ High/Low Beam Switch ............... 170
▫ Flash-To-Pass ....................... 170
▫ Battery Protection .................... 171
 Windshield Wiper And Washers ........... 171
▫ Intermittent Wiper System .............. 172
▫ Windshield Wiper Operation ............ 172▫
Windshield Washers .................. 172
▫ Mist Feature ........................ 173
▫ Rear Wiper And Washer ............... 173
▫ Rain Sensing Wipers — If Equipped ....... 173
 Tilt/Telescoping Steering Column .......... 175
 Heated Steering Wheel — If Equipped ...... 176
 Adjustable Pedals — If Equipped .......... 177
 Electronic Speed Control — If Equipped ..... 178
▫ To Activate ......................... 179
▫ To Set A Desired Speed ................ 180
▫ To Deactivate ....................... 180
▫ To Resume Speed .................... 180
▫ To Vary The Speed Setting .............. 180
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109

▫To Accelerate For Passing .............. 181
 Parksense Rear Park Assist — If Equipped . . . 182
▫ Parksense Sensors................... 182
▫ Parksense Warning Display ............ 182
▫ Parksense Display................... 183
▫ Enabling/Disabling Parksense .......... 187
▫ Service The Parksense Rear Park Assist
System ............................ 187
▫ Cleaning The Parksense System......... 188
▫ Parksense System Usage Precautions ...... 188
 Parkview Rear Back Up Camera — If
Equipped ............................ 191
▫ Turning Parkview On Or Off — With
Navigation/Multimedia Radio ........... 192▫
Turning Parkview On Or Off — Without
Navigation/Multimedia Radio ........... 193
 Overhead Consoles .................... 193
▫ Front Overhead Console ............... 193
▫ Courtesy/Interior Lighting ............. 194
▫ Sunglass Storage (Non-Sunroof Only) ...... 194
▫ Rear Courtesy/Reading Lights — If
Equipped .......................... 196
▫ Rear Overhead Consoles — If Equipped .... 196
 Garage Door Opener — If Equipped ........ 197
▫ Programming HomeLink .............. 199
▫ Gate Operator/Canadian Programming .... 201
▫ Using HomeLink ................... 202
110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
