2011 DODGE CARAVAN Owners Manual

WARNING!
To reduce the risk of personal injury:
•Retainer strap must always be securely attached to
grab handle when seat is folded forward and
vehicle is moving.
•Never occupy the seat or the center seat behind a
seat that has been folded forward.
Removal
The Quad seats can be removed if additional storage is
needed. With the seat in the easy entry position, lift the
cross beam forward and up to release the front anchor
latches.
Cross Beam for Seat Removal
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 151
ProCarManuals.com

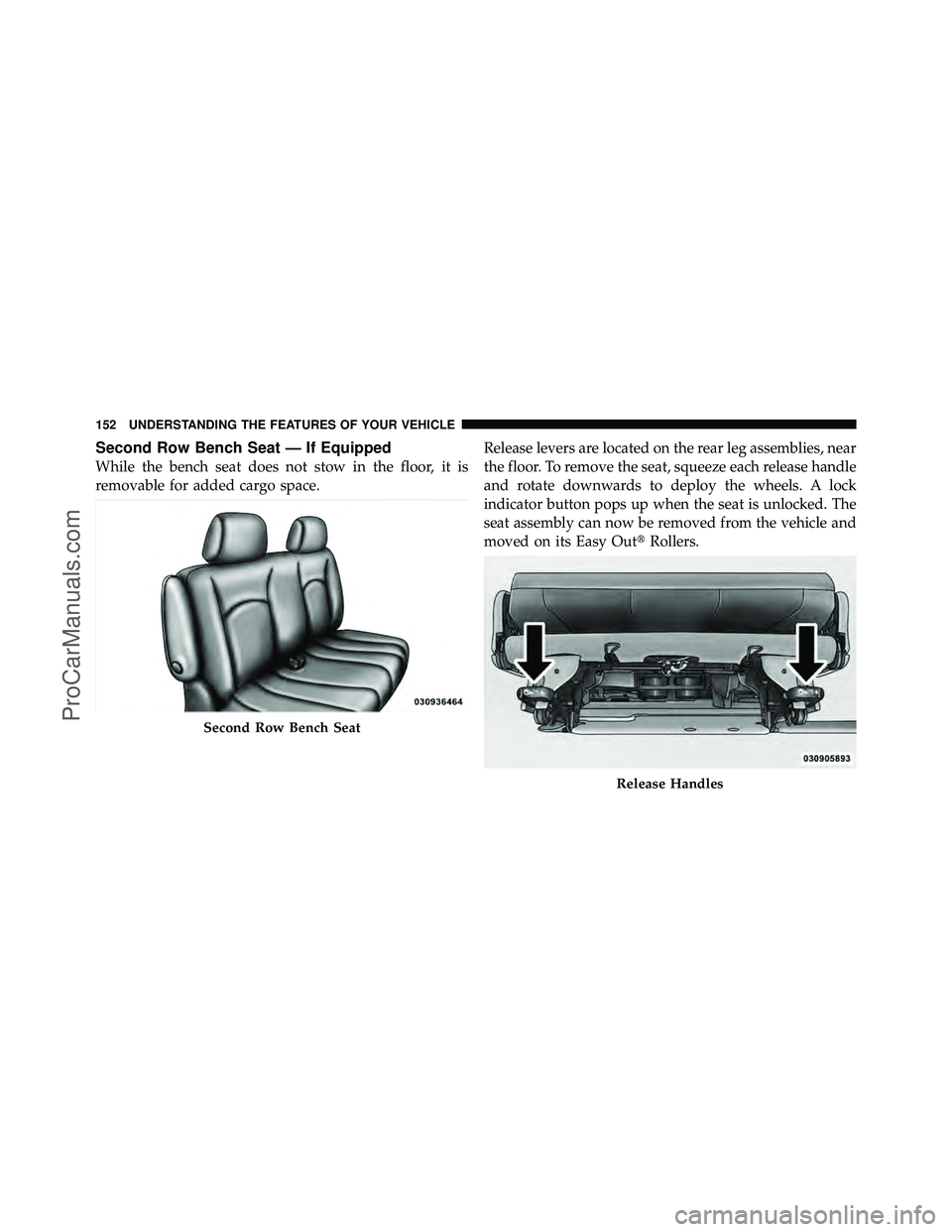

Second Row Bench Seat — If Equipped
While the bench seat does not stow in the floor, it is
removable for added cargo space.Release levers are located on the rear leg assemblies, near
the floor. To remove the seat, squeeze each release handle
and rotate downwards to deploy the wheels. A lock
indicator button pops up when the seat is unlocked. The
seat assembly can now be removed from the vehicle and
moved on its Easy Out
Rollers.
Second Row Bench Seat
Release Handles
152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

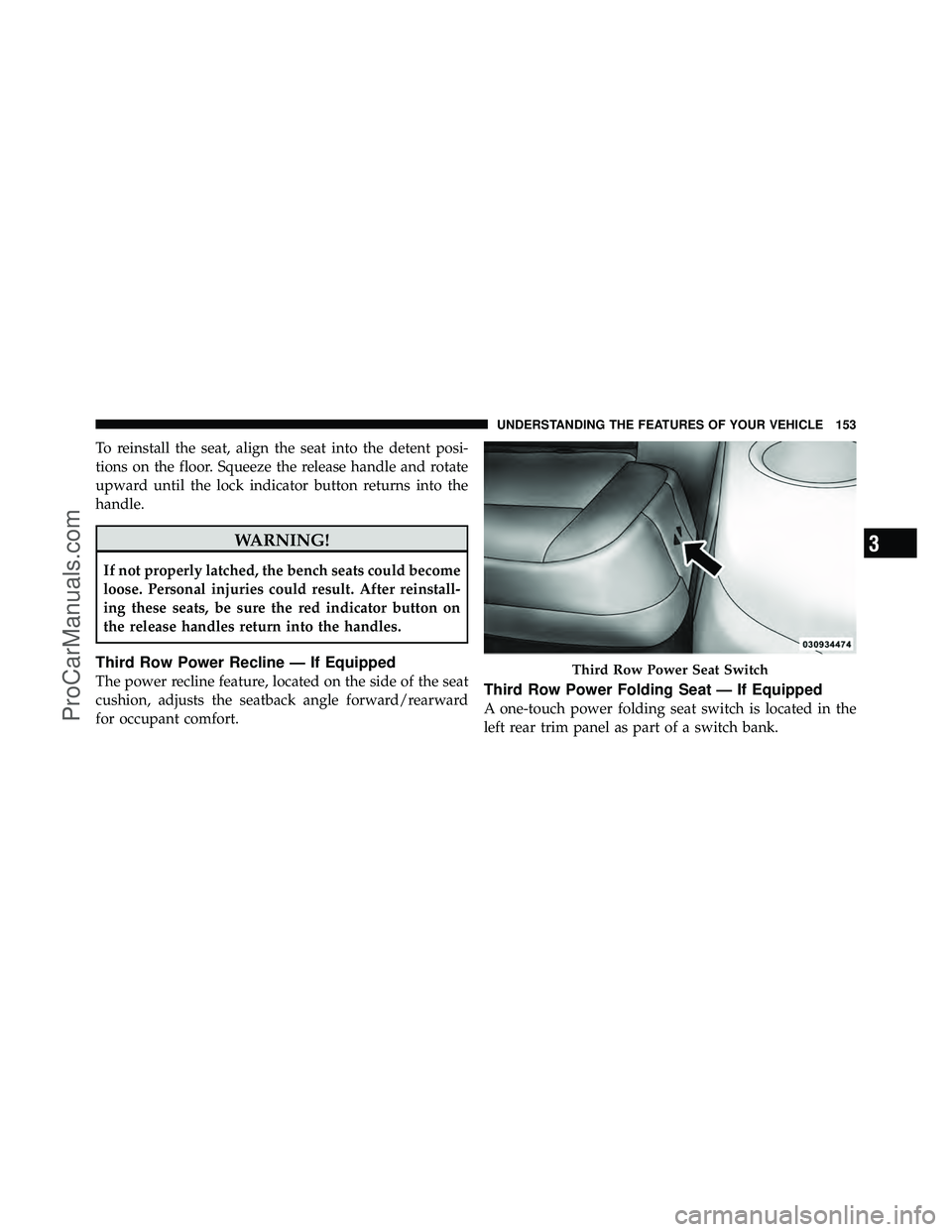

To reinstall the seat, align the seat into the detent posi-
tions on the floor. Squeeze the release handle and rotate
upward until the lock indicator button returns into the
handle.
WARNING!
If not properly latched, the bench seats could become
loose. Personal injuries could result. After reinstall-
ing these seats, be sure the red indicator button on
the release handles return into the handles.
Third Row Power Recline — If Equipped
The power recline feature, located on the side of the seat
cushion, adjusts the seatback angle forward/rearward
for occupant comfort.Third Row Power Folding Seat — If Equipped
A one-touch power folding seat switch is located in the
left rear trim panel as part of a switch bank.
Third Row Power Seat Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 153
ProCarManuals.com

NOTE:Lower the head restraint by pulling on the
release strap marked “1” located on the outboard side of
the head restraint.
The switch is only functional when the liftgate is open
and the vehicle is in PARK. The rear switch bank allows multiple power folding and
unfolding positions for the third row seats.
Head Restraint Release Strap “1”
One Touch Folding Seat Third Row
154 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

Left and right third row seats can be folded individually
or together. The third row power folding seat adjusts to
the following positions using the switch bank located on
the left rear trim panel:NOTE:
•Disconnect the center shoulder belt from the small
buckle and lower the head restraints before attempting
to fold/stow the power third row seats.
•To abort seat operation while seat is in motion, press a
different seat position selector switch to stop the seat.
Once the seat stops moving, then the desired position
can be selected.
•The third row power seat system includes obstacle
detection for safe operation. When the system detects
an obstacle, the motors will stop and reverse the
motion a short distance to move the seat away from
the obstacle. Should this occur, remove the obstacle
and press the button again, for the desired position.
Rear Panel Power Switch Bank
1 — Open to Normal
2 — Stow
3 — Tailgate/Fold Flat 4 — Right/Left Seats/Both Seats
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 155
ProCarManuals.com

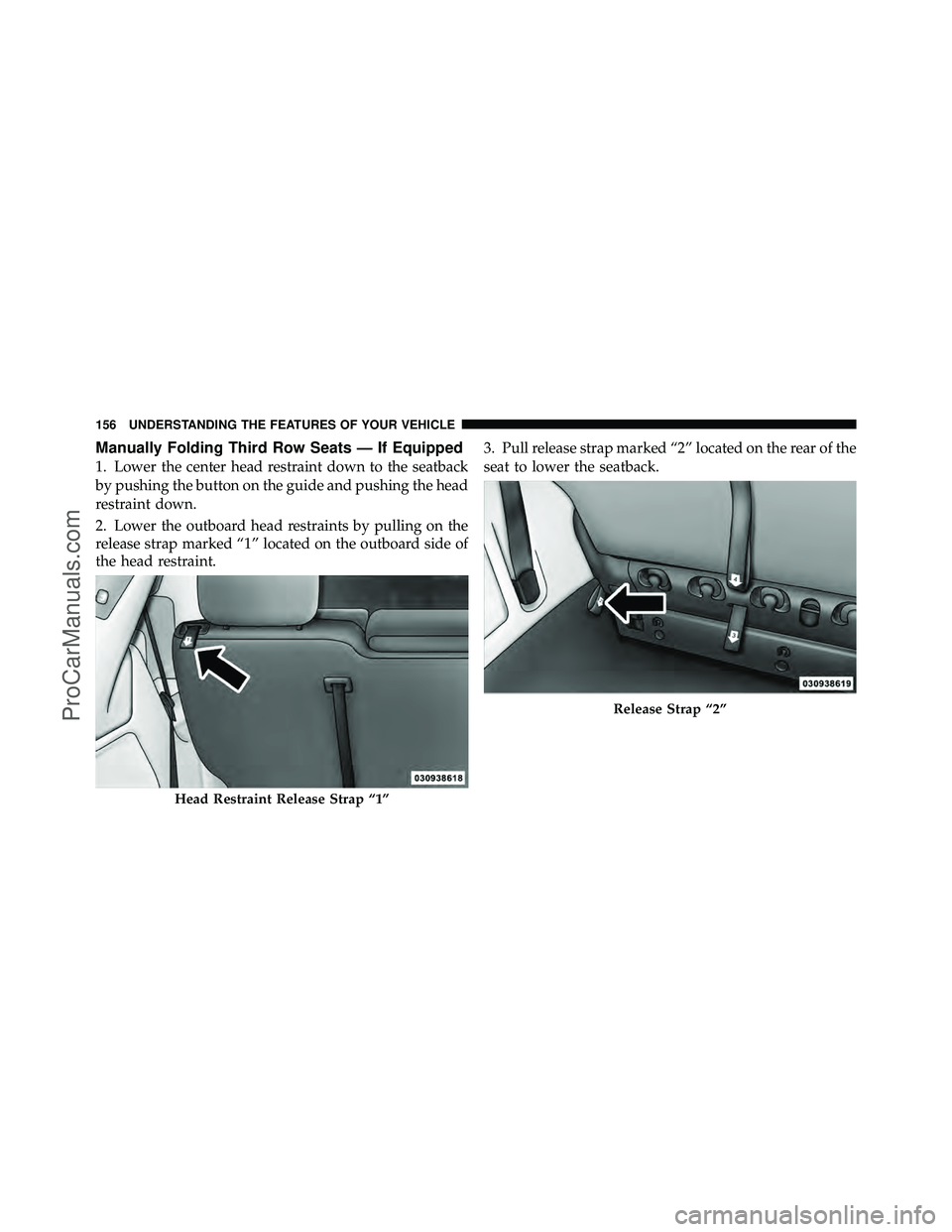

Manually Folding Third Row Seats — If Equipped
1. Lower the center head restraint down to the seatback
by pushing the button on the guide and pushing the head
restraint down.
2. Lower the outboard head restraints by pulling on the
release strap marked “1” located on the outboard side of
the head restraint.3. Pull release strap marked “2” located on the rear of the
seat to lower the seatback.
Head Restraint Release Strap “1”
Release Strap “2”
156 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

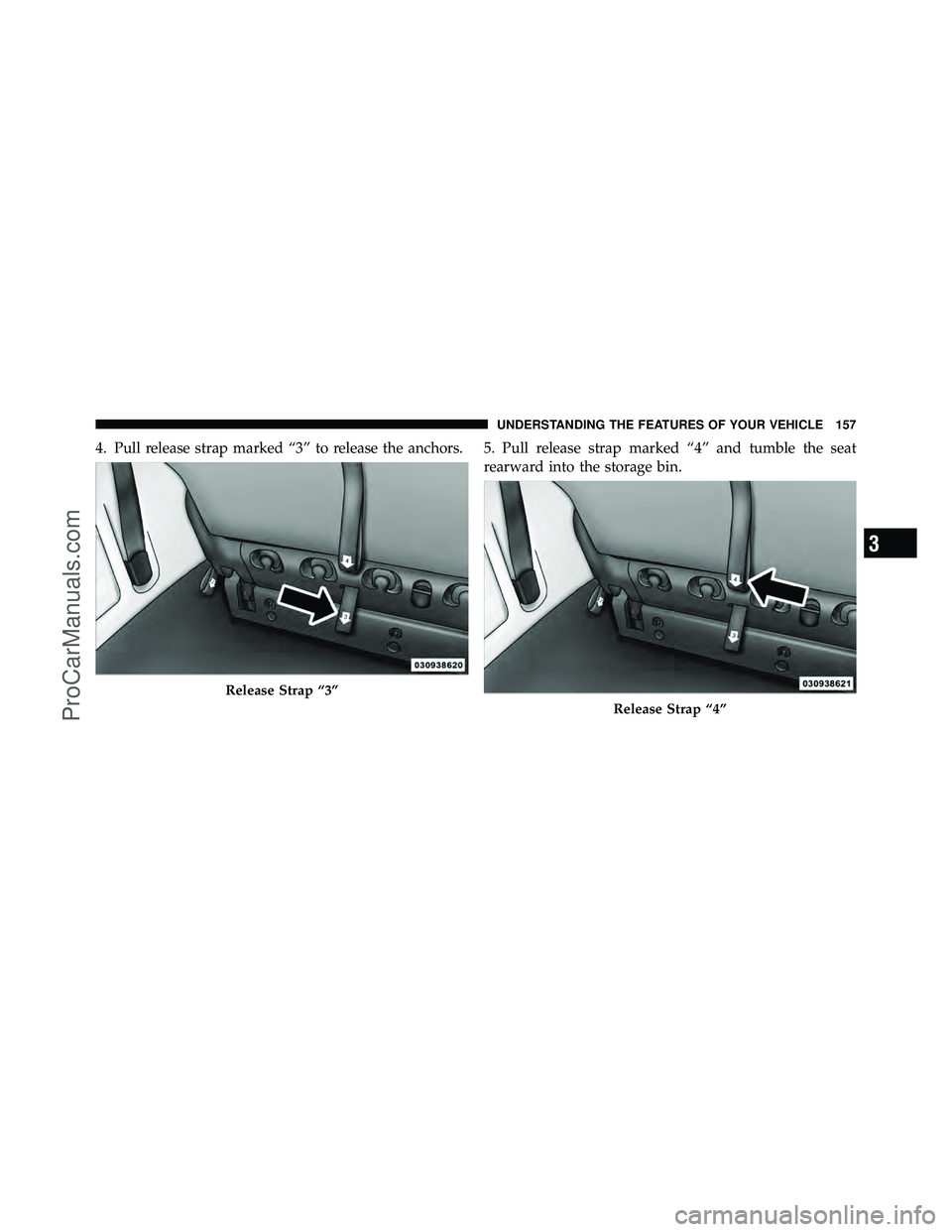

4. Pull release strap marked “3” to release the anchors. 5. Pull release strap marked “4” and tumble the seatrearward into the storage bin.
Release Strap “3”
Release Strap “4”
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 157
ProCarManuals.com

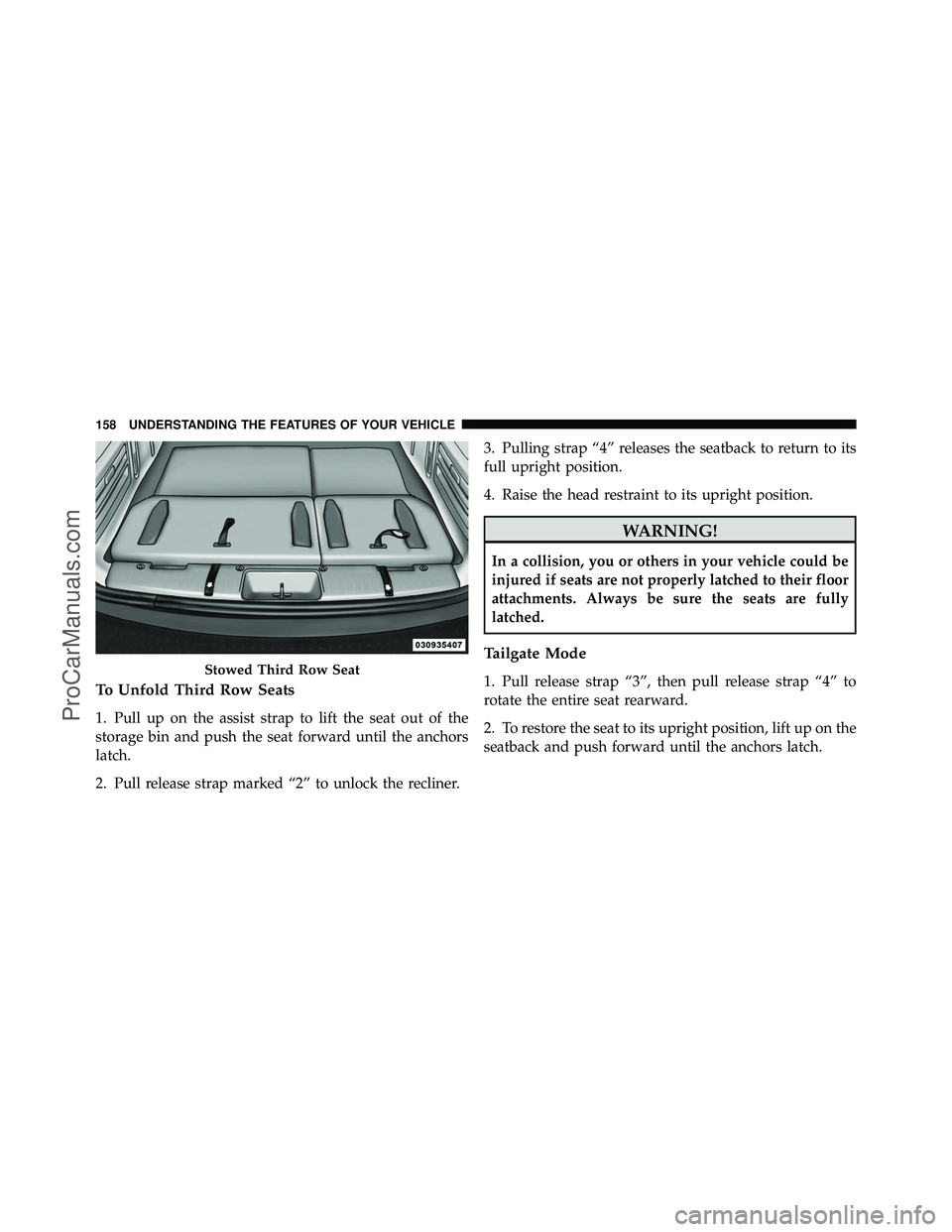

To Unfold Third Row Seats
1. Pull up on the assist strap to lift the seat out of the
storage bin and push the seat forward until the anchors
latch.
2. Pull release strap marked “2” to unlock the recliner.3. Pulling strap “4” releases the seatback to return to its
full upright position.
4. Raise the head restraint to its upright position.
WARNING!
In a collision, you or others in your vehicle could be
injured if seats are not properly latched to their floor
attachments. Always be sure the seats are fully
latched.
Tailgate Mode
1. Pull release strap “3”, then pull release strap “4” to
rotate the entire seat rearward.
2. To restore the seat to its upright position, lift up on the
seatback and push forward until the anchors latch.Stowed Third Row Seat
158 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
