Access

READY TO GO
2
DOORS

Load space

- comes on if the accesses are
locked and from the time the
ignition is switched on.




From the inside
From the outside

Use the remote control to lock/unlock the
vehicle.
Insert the metal part of the key in the lock on
the driver's side if the remote control does
not work.

Cab and load space
The first press permits central
locking of the front and rear
doors, if they are closed.
A second press permits central unlocking of
the vehicle.
The control does not work if the vehicle has
been locked using the remote control or the
key from the outside. Pressing permits locking/
unlocking of the rear doors from
the cab.
This selective accesses function
is activated on delivery. At your request,
the network can deactivate this opening
selectivity between the cab and load space,
contact a CITROËN dealer.
The doors can still be opened from
the inside.
The indicator light on the controls:


Protection against attack

When the vehicle is started, the system
automatically locks the front doors. When
you reach approximately 6 mph (10 km/h),
the system locks the rear doors.

Activation/deactivation of the function
With the ignition on, a long
press on this button activates or
deactivates the function.



Opening warning light

If this warning light comes on,
check that the cab doors and
the rear or side doors are closed
correctly.

- flashes if the accesses are
locked when stationary with
the engine off,

24
Access

SLIDING SIDE DOOR

If fitted on your vehicle, do not open the left-
hand side door while filling with fuel as you
risk damaging the fuel filler flap.

From the outside

Pull the handle towards you then towards
the rear.


Good practice

Take care not to block the guide space on
the floor to allow the door to slide correctly.
For safety and operation reasons, do not
drive with the sliding side door open.


From the inside

To unlock and open, push the handle
towards the rear. Ensure that the door opens
fully to lock the device at the base of the
door.







Operation in the event of a battery
failure

Front and side passenger doors
In the event of a malfunction of the battery
or of the central locking, use the lock to lock
the doors mechanically.


- To open the door and get out of the
vehicle, pull the interior control.

- To lock the door, insert the key in the
lock, located on the edge of the door,
then turn it one eighth of a turn
.


Driver's door


- Insert the key in the lock, then turn it to
the right to lock or to the left to unlock.

25


Access

READY TO GO
2

HINGED REAR DOORS

When parked with the rear
doors open to 90°, the doors
mask the rear lights.

To signal your position to
road users travelling in the
same direction who may
not have noticed that you
have stopped, use a warning
triangle or any other device
stipulated by the legislation
and regulations of your
country.

TAILGATE


From the outside

The two hinged doors open to 90°.
To open, pull the handle towards you then
pull the lever to open the left-hand door.
To close, start with the left-hand door then
close the right-hand door.


Opening to 180°

A retractable check strap system permits
extension of the opening from 90° to 180°.
Disengage the check strap towards you
when the door is partially open.
The check strap will re-attach automatically
on closing.

From the outside

If fitted on your vehicle, locking/unlocking is
via the remote control.
To open, press the control then raise the
tailgate.
A strap is provided to secure the tailgate in
the upper position.


From inside


Emergency control
In the event of a central unlocking operating
fault, this permits unlocking of the tailgate
from the inside.
Fold the rear seats to gain access to the lock.
Insert a small screwdriver in this opening to
unlock the tailgate.

26


Instruments and controls


INSTRUMENT PANEL



1.
Distance recorder in miles/kilometres.

2.
Screen.

3.
Fuel level, coolant temperature.

4.
Rev counter.

5.
Instrument panel lighting dimmer.

6.
Trip distance recorder/service indicator
zero reset.


Instrument panel screen



- Speed limiter/cruise control.

- Miles/kilometres travelled.

- Service indicator, engine oil level
indicator, total miles/kilometres.

- Presence of water in the Diesel filter.

- Diesel pre-heating.

- Gear shift indicator.



Warning lamp and controls in the
overhead storage unit


- Passenger's airbag deactivated warning
lamp.

- Driver/passenger heated seat controls
(version with 2 front seats).


INSTRUMENTS AND CONTROLS

27


Instruments and controls

READY TO GO
2

ADJUSTING THE TIME


- turn to the left: 24 H or 12 H is
displayed,

- turn to the right to select 24 H or 12 H,

- turn to the left to complete the time
adjustment.
After approximately 30 seconds without any
action, the display returns to the normal
display.


Centre console with display

The display - time sequence
is linked according to model
(version). The access to the Date
is only active when the model
version offers a date in words.

Centre console without display


To adjust the time of the clock
on the instrument panel, use the
left-hand button on the instrument
panel then carry out the
operations in the following order:


- turn to the left: the minutes flash,

- turn to the right to increase the minutes
(hold the button to the right for rapid
scrolling),

- turn to the left: the hours flash,

- turn to the right to increase the hours
(hold the button to the right for rapid
scrolling), To adjust the time indicated on the
display, refer to the "Adjusting the date
and time" section of chapter 9.
Instrument panel without display

Instruments and controls


Warning lamps

Each time the engine is started: a series of warning lamps comes on applying a check auto-test. They go off again almost immediately.
When the engine is running: the warning lamp becomes a warning if it remains on continuously or flashes. This initial warning may be
accompanied by an audible signal and a message in the screen.
Do not ignore these warnings.

Warning lamp
is
indicates
Solution - action

STOP on, associated
with another
warning
lamp and
accompanied by
a message in
the screen. major faults linked with the
"Brake fluid level", "Engine oil
pressure and temperature",
"Coolant temperature",
"Electronic brake force
distribution" and "Power
steering" warning lamps.
You must stop as soon as it is safe to do so, park,
switch off the ignition and call a CITROËN dealer or
a qualified workshop.

Parking brake/
Brake fluid
level/EBFD on.

parking brake applied or not released correctly.
Releasing the parking brake switches off the warning lamp.
on. low brake fluid level. Top up using a fluid recommended by CITROËN.
remains on,
even though the
level is correct
and associated
with the ABS
warning lamp. failure of the electronic brake
force distribution.
You must stop as soon as it is safe to do so, park,
switch off the ignition and call a
CITROËN dealer or
a qualified workshop.

Engine oil
pressure and
temperature on while driving. insufficient pressure or
temperature too high. Park, switch off the ignition and allow to cool. Visually
check the level. Chapter 6, "Levels" section.
remains on,
even though the
level is correct. major fault. Call a CITROËN dealer or a qualified workshop.

29


Instruments and controls

READY TO GO
2


Warning lamp
is
indicates
Solution - action

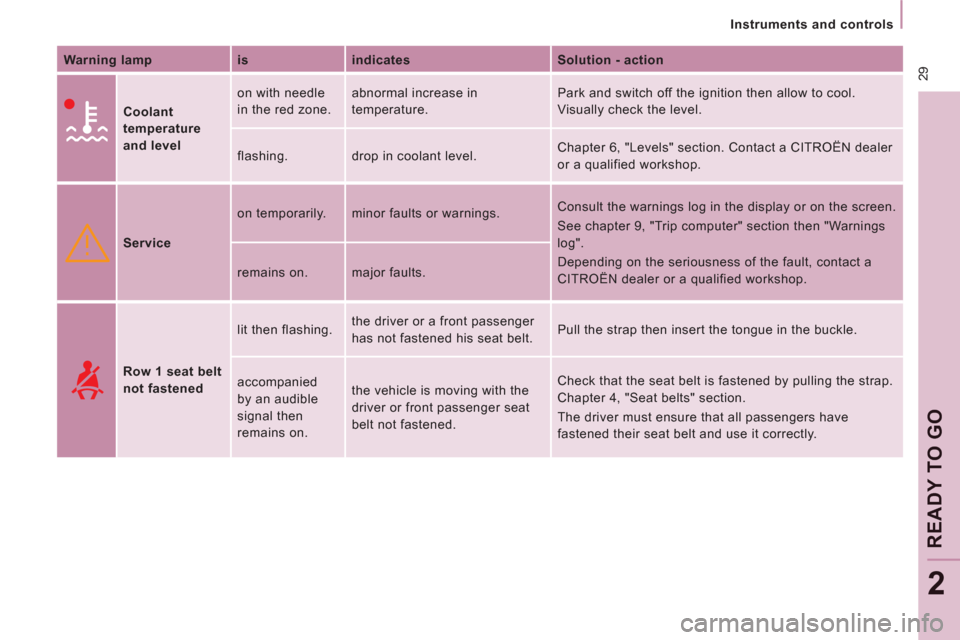

Coolant
temperature
and level on with needle
in the red zone. abnormal increase in
temperature. Park and switch off the ignition then allow to cool.
Visually check the level.
flashing. drop in coolant level. Chapter 6, "Levels" section. Contact a CITROËN dealer
or a qualified workshop.


Service on temporarily. minor faults or warnings. Consult the warnings log in the display or on the screen.
See chapter 9, "Trip computer" section then "Warnings
log".
Depending on the seriousness of the fault, contact a
CITROËN dealer or a qualified workshop. remains on. major faults.



Row 1 seat belt
not fastened lit then flashing. the driver or a front passenger
has not fastened his seat belt. Pull the strap then insert the tongue in the buckle.
accompanied
by an audible
signal then
remains on. the vehicle is moving with the
driver or front passenger seat
belt not fastened. Check that the seat belt is fastened by pulling the strap.
Chapter 4, "Seat belts" section.
The driver must ensure that all passengers have
fastened their seat belt and use it correctly.

30


Instruments and controls


Warning lamp
is
indicates
Solution - action



Front/lateral/
curtain airbag flashing or
remains on. failure of an airbag. Have the system checked by a CITROËN dealer or a
qualified workshop without delay. Chapter 4, "Airbags"
section.



Front
passenger
airbag
deactivated on. intentional deactivation of this
airbag in the presence of a
rearwards facing child seat. Chapter 4, "Airbags-children on board" section.



Low fuel level on with gauge
needle in the red
zone. that when it first comes on
approximately 8 litres
of fuel
remain. It is essential to fill the tank to avoid running out of fuel.
Never continue to drive until you run out of fuel, this
could damage the emissions control and injection
systems.
Tank capacity: approximately 80 litres. remains on each
time the ignition
is switched on. not enough fuel added.
flashing. fuel supply cut off following a
serious impact. Restore the supply. Chapter 6, "Fuel" section.



EOBD emission
control system flashing or
remains on. malfunction of the system. Have the system checked by a CITROËN dealer or
a qualified workshop as soon as possible.


Battery charge lit. fault in the charging circuit. Check the battery terminals, … Chapter 7, "Battery"
section.
flashing. placing of the active functions
on standby (economy mode). Chapter 7, "Battery" section.
remaining on,
in spite of the
checks. faulty circuit, injection or
ignition malfunction. Contact a CITROËN dealer or a qualified workshop.
