Page 5 of 324
MULTIFUNCTION
SCREENS COMFORT ACCESS VISIBILITY
52 Monochrome screen A
55 Monochrome screen C
59 16/9 colour screen (MyWay)64 Ventilation
66 Heating
67 Manual air conditioning
71 Digital air conditioning
74 Rear screen demist - defrost
75 Scented air freshener
77 Front seats
82 Rear seats
83 Steering wheel adjustment
84 Mirrors88 Remote control key
94 Window controls
96 Doors
99 Boot
100 Fuel tank
102 Misfuel prevention106 Lighting controls
111 LED lamps
111 Headlamp adjustment
112 Wiper controls
116 Courtesy lamp
117 Interior mood lighting
117 Boot lamp
004004005005002002003003
Page 11 of 324
9Familiarisation
88
Access
A.
Unfolding/Folding the key.
B.
Unlocking the vehicle.
Remote control key
Other functions...
C.
Normal locking of the vehicle
Vehicle location.
1.
Opening the fuel filler flap.
2.
Opening and hooking the fuel filler cap.
Fuel t ank
100, 102
179
Ta n k c a p a c i t y :
- approximately 50 litres (petrol),
- approximately 46 litres (Diesel).
- (depending on version: approximately
30 litres (petrol or Diesel)).
A.
Interior release lever.
B.
Exterior safety catch.
C.
Bonnet stay.
Bonnet
Page 86 of 324
Mirrors
Each fitted with an adjustable mirror glass
permitting the lateral rear ward vision necessary
for over taking or parking. They can also be
folded for parking in confined spaces.
Demisting - Defrosting
If your vehicle is fitted with heated
mirrors, the demisting-defrosting
operates with the engine running, by
switching on the heated rear screen
(refer to the "Rear screen demist-defrost"
page).
Adjustment
)
Move control A
to the right or to the left to
select the corresponding mirror.
)
Move control B
in all four directions to
adjust.
)
Return control A
to the central position.
Door mirrors
The objects obser ved are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of vehicles
approaching from behind.
Folding
)
From outside: lock the vehicle using the
remote control or the key.
)
From inside: with the ignition on, pull the
control A
in the central position rear wards.
Unfolding
)
From outside: unlock the vehicle using the
remote control or the key.
)
From inside: with the ignition on, pull the
control A
in the central position rear wards. If the mirrors are folded using control A
,
they will not unfold when the vehicle is
unlocked. Pull again on control A
.
The folding and unfolding of the door
mirrors using the remote control can be
deactivated by a CITROËN dealer or a
qualified workshop.
Never fold or unfold the electric folding
mirrors manually.
Page 88 of 324
004
Access
This section describes the functions of the remote control key, electric
windows, central locking of doors and boot and access to the fuel filler.
Page 90 of 324
Remote control key
System which permits central unlocking or locking of the vehicle using the lock or from a distance. It is also used to locate and start the vehicle, as well
as providing protection against theft.
Unlocking the vehicle
Unfolding the key
)
First press this button to unfold the key.
Unlocking using the remote
control
Unlocking using the key
)
Press the open padlock to unlock
the vehicle.
)
Turn the key to the left in the driver's door
lock to unlock the vehicle.
Unlocking is confirmed by rapid flashing of
the direction indicators for approximately
two seconds.
According to version, the door mirrors unfold at
the same time.
Page 91 of 324
89Access

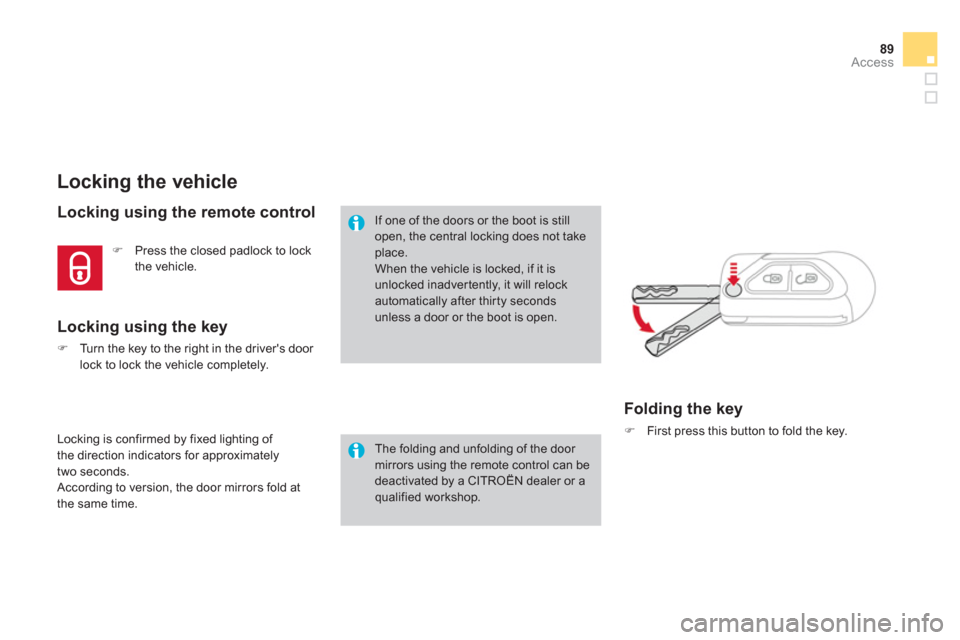

Locking the vehicle
Locking using the remote control
Locking is confirmed by fixed lighting of
the direction indicators for approximately
two seconds.
According to version, the door mirrors fold at
the same time.
)
Press the closed padlock to lock
the vehicle.
If one of the doors or the boot is still
open, the central locking does not take
place.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after thir ty seconds
unless a door or the boot is open.
The folding and unfolding of the door
mirrors using the remote control can be
deactivated by a CITROËN dealer or a
qualified workshop.
Folding the key
)
First press this button to fold the key.
Locking using the key
)
Turn the key to the right in the driver's door
lock to lock the vehicle completely.
Page 94 of 324
Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a remote control malfunction,
you can no longer unlock, lock or locate your
vehicle.
)
First of all, use the key in the lock to unlock
or lock your vehicle.
)
Then, reinitialise the remote control.
If the problem persists, contact a CITROËN
dealer as soon as possible.
Remote control problem
Reinitialisation
)
Switch off the ignition.
)
Turn the key to position 2 (Ignition)
.
)
Press the closed padlock immediately for a
few seconds.
)
Switch off the ignition and remove the key
from the ignition switch.
The remote control is fully operational again.
Changing the battery
Battery ref.: CR1620/3 volts.
)
Unclip the casing by inser ting a coin at the
notch and rotating.
)
Slide the flat battery out of its location.
)
Slide the new battery into its location
observing the original direction.
)
Clip the casing in place, then the chrome
finisher.
)
Reinitialise the remote control.
If the battery is flat, you are
informed by lighting of this warning
lamp in the instrument panel, an audible signal
and a message in the multifunction screen.
)
Unfold the key.
)
Release the chrome finisher by pressing on
lug A
.
)
Maintain pressure on lug A
and remove the
chrome finisher by sliding it off at 45°.
Page 95 of 324
93Access
Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.
Lost keys
Visit a CITROËN dealer with the vehicle's V5 registration document and your personal
identification documents.
The CITROËN dealer will be able to retrieve the key code and the transponder code
required to order a replacement key.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your
pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of
your vehicle. You run the risk of stopping it from working and the remote control would have
to be reinitialised.
The remote control does not operate when the key is in the ignition, even when the ignition
is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compar tment by the
emergency services more difficult in an emergency.
As a safety precaution (with children on board), remove the key from the ignition when you
leave the vehicle, even for a shor t time.
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could
cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure that the keys in your
possession are the only ones which can star t the vehicle.
