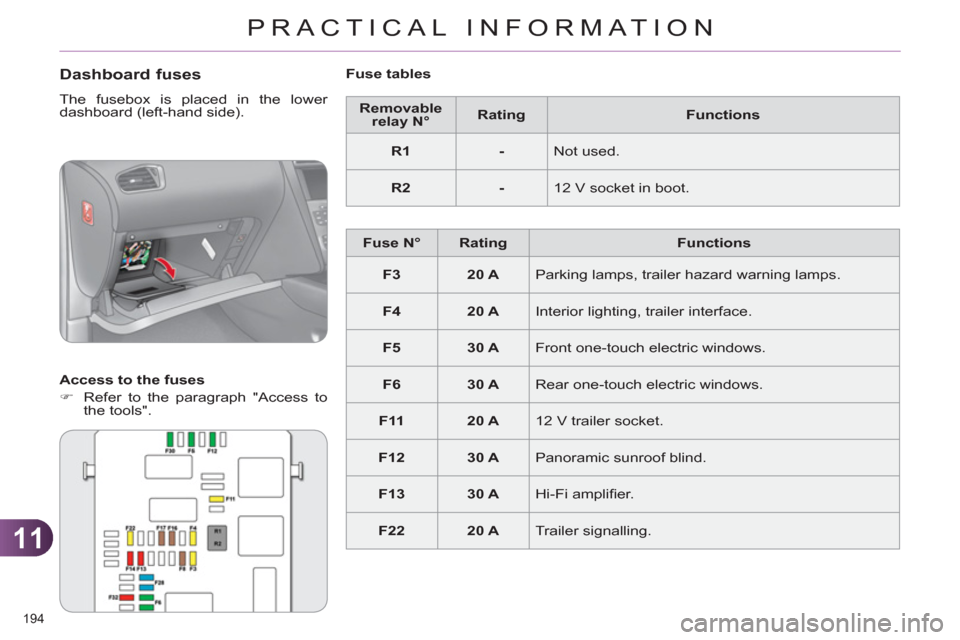

Dashboard fuses
The fusebox is placed in the lower
dashboard (left-hand side).
Access to the fuses
)
Refer to the paragraph "Access to
the tools".
Fuse tables
Removable
relay N°
Rating
Functions
R1
-
Not used.
R2
-
12 V socket in boot.
Fuse N°
Rating
Functions
F3
20 A
Parking lamps, trailer hazard warning lamps .
F4
20 A
Interior lighting, trailer interface.
F5
30 A
Front one-touch electric windows.
F6
30 A
Rear one-touch electric windows.
F11
20 A
12 V trailer socket.
F12
30 A
Panoramic sunroof blind.
F13
30 A
Hi-Fi amplifi er.
F22
20 A
Trailer signalling.
