2011 Citroen C4 RHD stop start

12
TECHNICAL DATA
211

MODELS:


ENGINES AND GEARBOXES



Model codes:
NC...


9HJ0



9HP0



9HR8



9HR8/P
9HR8/PS



RHE8



DIESEL ENGINES


HDi 90



HDi 90 PEF



HDi 110 PEF



HDi 150 PEF


Cubic capacity (cc)
1 560
1 560
1 560
1 997
Bore x stroke (mm)
75 x 88.3
75 x 88.3
75 x 88.3
85 x 88
Max power: EU standard (kW)
68
68
82
110
Max power engine speed (rpm)
-
4 000
3 600
-
Max torque: EU standard (Nm)
230
230
270
340
Max torque engine speed (rpm)
-
1 750
1 750
-
Fuel
Diesel
Diesel
Diesel
Diesel
Catalytic converter
yes
yes
yes
yes
Particle emissions fi lter (PEF)
-
yes
yes
yes

GEARBOXES

Manual
(5-speed)
Manual
(5-speed)
Manual
(6-speed)


Electronic
gearbox system
(6-speed)
Manual
(6-speed)

OIL CAPACITIES (in litres)




Engine (with fi lter replacement)
3.75
3.75
3.75
3.75
-

.../S:
model fi tted with Stop & Start.

295
08TRIP COMPUTER

Each press of the button, located at the end of the
wiper stalk, displays the different trip computer
information in succession, depending on the screen.


- th
e "vehicle
" tab with:
●
the ran
ge, the current fuel consumption and
the distance remaining to the destination or the Stop & Start time counter,

- the "1" tab
(trip 1) with:
●
t
he average speed, the average consumptionand the distance travelled calculated over
trip " 1 ",

- the "2" tab
(trip 2) with the same information for a second trip.

Z
ero reset
When the required trip is displa
yed, press the control
for more than two seconds.
Range:displays the distance which can travelled with the remaining fuel
detected in the tank, based on the average fuel consumption over the last few miles (kilometres).
This displa
yed value may vary signifi cantly following a change in the
vehicle speed or the relief of the route.
When the ran
ge falls below 20 miles (30 km), dashes are displayed.After fi lling with at least 5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).
If, whilst driving, dashes are displayed continuously in place of the digits, contact a CITROËN dealer. ,g,

A FEW DEFINITIONS
Current fuel consumption:only calculated and displayed above 20 mph (30 km/h).
Average fuel consumption:
this is the average fuel consumption since
the last trip computer zero reset.
Distance travelled:calculated since the last trip computer zero reset.
Distance remaining to the destination: calculated with reference to
the fi nal destination, entered by the user. If guidance is activated, the navigation system calculates it as a current value.
Avera
ge speed: this is the average speed calculated since the last tripcomputer zero reset (ignition on).
Sto
p & Start time counter
(minutes/seconds or hours/minutes)
I
f your vehicle is fi tted with Stop & Start, a time counter calculates
the time spent in STOP mode during a journey.
It resets to zero ever
y time the ignition is switched on with the key.

302

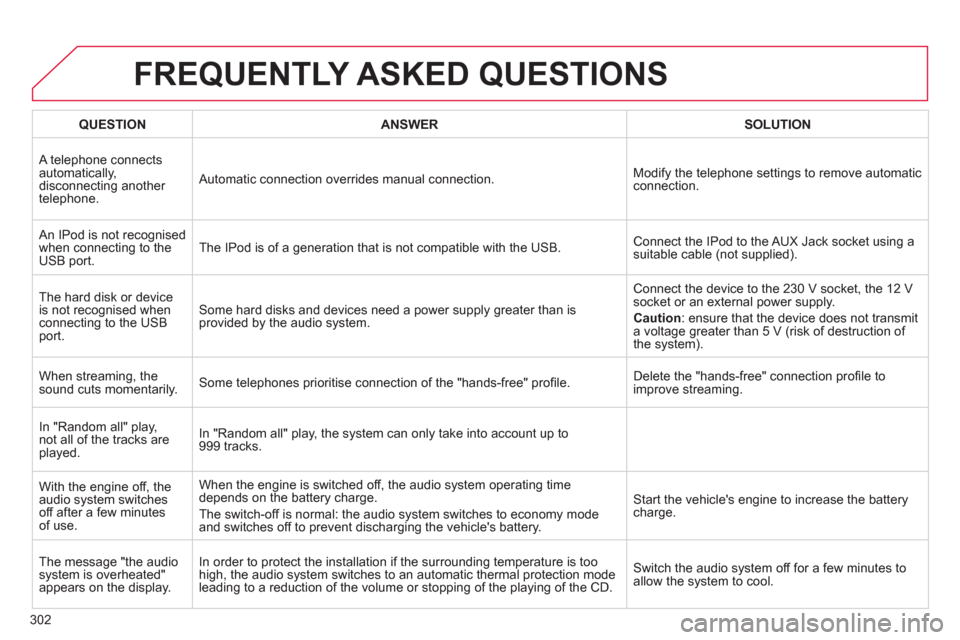

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
A telephone connects
automatically,
disconnecting another
telephone. A
utomatic connection overrides manual connection. Modify the telephone settings to remove automatic connection.

An IPod is not recognised
when connecting to theUSB port.The IPod is of a generation that is not compatible with the USB. Connect the IPod to the AUX Jack socket using a
suitable cable (not supplied).
Th
e hard disk or deviceis not recognised when connecting to the USB port. Some hard disks and devices need a power suppl
y greater than is
provided by the audio system.
Connect the device to the 230 V socket, the 12 V
socket or an external power supply.
Caution
: ensure that the device does not transmit a voltage greater than 5 V (risk of destruction of
the system).
When streaming, the
sound cuts momentarily. Some telephones prioritise connection of the "hands-free" profi le. Delete the "hands-free" connection profi le toimprove streaming.
In "Random all" pla
y, not all of the tracks areplayed.
In "Random all" play, the system can only take into account up to999 tracks.
With the en
gine off, the
audio system switchesoff after a few minutes of use.When the en
gine is switched off, the audio system operating timedepends on the battery charge.
The switch-o
ff is normal: the audio system switches to economy modeand switches off to prevent discharging the vehicle's battery.
Start the vehicle's engine to increase the batterycharge.
The message "the audio
system is overheated"appears on the display.In order to protect the installation i
f the surrounding temperature is too high, the audio system switches to an automatic thermal protection mode
leading to a reduction of the volume or stopping of the playing of the CD.Switch the audio s
ystem off for a few minutes toallow the system to cool.

305
INSTRUMENTS AND CONTROLS


Instrument panels ............ 27-31, 56-57
Warning lamps ............................ 32-42
Indicators .................................... 43-45
Manual test ...................................... 46
Setting buttons............................ 47-49


- trip distance recorder

- lighting dimmer/black panel

- customisation of dials and screens

Lighting controls ......................... 94-97
Adjusting headlamps ....................... 98

Stop & Start ............................ 154-156

Door mirrors ................................ 75-76
Electric windows ......................... 89-90
Dashboard fuses .................... 193-195

Opening the bonnet ....................... 170

Adjusting the steering wheel............ 77
Horn ............................................... 126
Audio system .......................... 269-302
Setting the date/time...................... 294
eMyWay satellite
navigation system ................... 217-268
Setting the date/time...................... 259

Manual gearbox ...................... 145-146
6-speed electronic
gearbox system ...................... 147-149
Automatic gearbox.................. 150-152
Parking brake ................. 138-144, 145
Wiper controls......................... 101-103
Trip computer ............................. 58-61
Rear view mirror .............................. 77
Emergency or assistance call ...130, 215
Seat belt and front passenger airbag
warning display screen ........... 131-132
Courtesy lamps.............................. 104

Interior mood lighting ..................... 105


Hazard warning lamps ................... 126
Central locking/unlocking
from inside .................................. 83-84
Black panel ...................................... 48
Multifunction screens .................. 50-55

Ventilation ................................... 62-63
Manual air conditioning......... 64-65, 69
Digital air conditioning .......... 66-68, 69

Demisting/Defrosting
the rear screen ................................ 69
Memorising speeds ....................... 160
Speed limiter........................... 161-162
Cruise control ......................... 163-164

310
ALPHABETICAL INDEX
S Steering mounted
controls .............................220, 271
Stopping the vehicle .....80, 147, 150
Stop Start .................. 61, 67, 69, 92,
154, 170, 176, 197, 295
Storage ........ 107, 108, 110-112, 115
Storage compartments ....... 107, 110
Storage drawer ........................... 113
Storage net ................................. 115
Stowing rings .............................. 115
Sun visor ....................................108
Synchronising
the remote control ......................81
Synthesiser, voice ......................234
Systems, ASR and ESP .............129
T Table of weights .................209, 212
Tables of engines ............... 207, 211
Tables of fuses ...........................193
Tank, fuel ......................................93
Technical data .....................207-214
Telephone ...........................240, 283
Temperature control
for heated seats .........................72
Temporary tyre repair kit ............178
Ticket holder ...............................107
Time .............................47, 259, 294
TMC (Traffi c info) .......................237
Tools ...........................................183
Torch .......................................... 117
Total distance recorder .................47
Towbar ........................................203
Towed loads .......................209, 212
Towing another vehicle ...............201
Traction control (ASR) ................129
Traffi c information
(TA) ..........................238, 251, 274T Traffi c information
(TMC) ...............................237, 238
Trip computer ..........................58-61
Trip distance recorder ..................47
Tyre pressures ...........................214
Tyre under-infl ation
detection .............................46, 127
U Under-infl ation
(detection) ................................127
Under fl oor storage .................... 117
Unlocking from the inside .............83
Unlocking the boot .................78, 88
Unlocking the doors .....................78
USB Box .............................109, 279
USB port .............................109, 279
V Ventilation ................................62-64
W Warning lamps ........................32-42
Weights ..............................209, 212
Welcome lighting ..................98, 106
Window controls ...........................89
Wipers ................................101, 102
X Xenon headlamps ......................187
