DRIVING
164
When the cruise control is
switched on, be careful if you
maintain the pressure on one of
the programmed speed chang-
ing buttons: this may result in a
very rapid change in the speed
of your vehicle.
Do not use the cruise control on
slippery roads or in heavy traffi c.
On a steep descent, the cruise
control will not be able to prevent
the vehicle from exceeding the
programmed speed.
On steep climbs or when towing,
the programmed speed may not
be reached or maintained.
To avoid any risk of jamming of
the pedals:


- ensure that the mat is posi-
tioned correctly,

- never fi t one mat on top of
another.

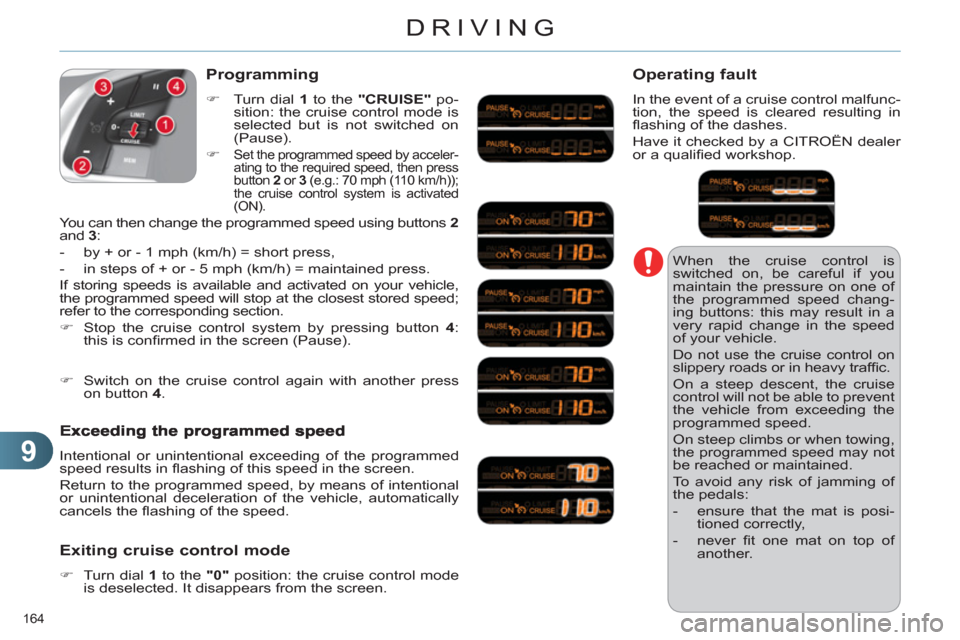

Programming



)
Turn dial 1
to the "CRUISE"
po-
sition: the cruise control mode is
selected but is not switched on
(Pause).

)


Set the programmed speed by acceler-
ating to the required speed, then press
button 2
or 3
(e.g.: 70 mph (110 km/h));
the cruise control system is activated
(ON).

You can then change the programmed speed using buttons 2

and 3
:


- by + or - 1 mph (km/h) = short press,

- in steps of + or - 5 mph (km/h) = maintained press.
If storing speeds is available and activated on your vehicle,
the programmed speed will stop at the closest stored speed;
refer to the corresponding section.


)
Stop the cruise control system by pressing button 4
:
this is confi rmed in the screen (Pause).

Intentional or unintentional exceeding of the programmed
speed results in fl ashing of this speed in the screen.
Return to the programmed speed, by means of intentional
or unintentional deceleration of the vehicle, automatically
cancels the fl ashing of the speed.

Exiting cruise control mode



)
Turn dial 1
to the "0"
position: the cruise control mode
is deselected. It disappears from the screen.

)
Switch on the cruise control again with another press
on button 4
.

Operating fault

In the event of a cruise control malfunc-
tion, the speed is cleared resulting in
fl ashing of the dashes.
Have it checked by a CITROËN dealer
or a qualifi ed workshop.

9
DRIVING
167
PARKING SENSORS
This system indicates the proximity of an
obstacle (person, vehicle, tree, gate, etc.)
which comes within the fi eld of detection
of sensors located in the bumper.
Certain types of obstacle (stake, road-
works cone, etc.) detected initially will
no longer be detected at the end of the
manoeuvre due to the presence of blind
spots.

This function cannot, in any cir-
cumstances, take the place of
the vigilance and responsibility
of the driver.
The system is switched on by engaging
reverse gear. This is accompanied by
an audible signal.
The system is switched off when you
exit reverse gear.

Audible assistance
The proximity information is given by an
intermittent audible signal, the frequency
of which increases as the vehicle ap-
proaches the obstacle.
The sound emitted by the speaker (right
or left) indicates the side on which the
obstacle is located.
When the distance between the vehicle
and the obstacle becomes less than
approximately thirty centimetres, the
audible signal becomes continuous.


Visual assistance
This supplements the audible signal
by displaying bars in the multifunction
screen which move progressively near-
er to the vehicle. When the obstacle is
near, the "Danger" symbol is also dis-
played in the screen.

10
CHECKS
174
CHECKING LEVELS
Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
If a level drops signifi cantly, have the corre-
sponding system checked by a CITROËN
dealer or a qualifi ed workshop.

When working under the bon-
net, take care, as certain areas
of the engine may be extremely
hot (risk of burns).

The reading will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 30 minutes.
The check is carried out either when the igni-
tion is switched on using the oil level indicator
in the instrument panel, or using the dipstick.

Oil level


Engine oil change
Refer to the Maintenance and Warranty
Guide for the interval for this operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.

Oil specifi cation
The oil must correspond to your engine
and conform to the manufacturer's rec-
ommendations.



Brake fluid level

The brake fl uid level should be
close to the "MAX" mark. If it is
not, check the brake pad wear.

Changing the fl uid
Refer to the Maintenance and Warranty
Guide for the interval for this operation.

Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations and
meet the DOT4 standard.



Power steering fluid level

The power steering fl uid level
should be close to the "MAX"
mark. Unscrew the cap, with the
engine cold, to check the level.
Coolant level

The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the
temperature of the coolant is regulated
by the fan. This can operate with the igni-
tion off.

On vehicles which are fi tted with a par-
ticle emission fi lter, the fan may operate
after the vehicle has been switched off,
even if the engine is cold.

In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.

Changing the coolant
The coolant does not have to be
changed.

Coolant specifi cation
The coolant must conform to the manu-
facturer's recommendations.

11
PRACTICAL INFORMATION
191
Rear lamps


1.
Brake/

sidelamp

(P21/5W).


2.
Direction

indicator


(PY21W amber)
.

3.
Reversing lamp (P21W).


4.
Rear

foglamp

(P21W).


Amber bulbs, such as those for
the direction indicators, must be
replaced by bulbs of the same
rating and colour.
The lamps on the tailgate are
dummy units. They are there for
aesthetic purposes only.
Changing bulbs
These four bulbs are changed from
inside the boot:


)
open the boot,

)
remove the access fl ap from the
corresponding side trim panel,

)
unclip the lamp unit connector,

)
As a precaution, place a cloth in the
bottom of the housing to catch the
nut if it is dropped on removal,

)
slacken the hexagonal nut using a
10 mm tube spanner then remove
the nut by hand,

)
remove the two bulb holder fi xing
screws,

)
extract the lamp unit carefully pulling
in its middle towards the outside,

)
spread the four tabs and remove
the bulb holder,

)
turn the bulb a quarter of a turn and
change it.
To r efi t, carry out these operations in
reverse order.
Take care to engage the lamp unit in its
guides, while keeping it in line with the
vehicle.
Tighten suffi ciently to ensure sealing,
but without damaging the lamp.

11
PRACTICAL INFORMATION
193
CHANGING A FUSE
Access to the tools
The extraction tweezer is fi tted to the
back of the dashboard fusebox cover.
To gain access to them:


)
open the glove box lid,

)
unclip the carrier fi tted to the fuse-
box cover by pulling on the right,

Changing a fuse

Before changing a fuse,


)
the cause of the failure must be
identifi ed and rectifi ed,

)
all electrical consumers must be
switched off,

)
the vehicle must be immobilised
with the ignition off,

)
Identify the failed fuse using the al-
location tables and illustrations on
the following pages.
Good

Failed

To replace a fuse, you must:


)
use the special tweezer to extract
the fuse from its housing and check
the condition of its fi lament.

)
always replace the failed fuse with
a fuse of the same rating (same col-
our); use of a different rating may
cause malfunctions (risk of fi re).
if the fuse fails again soon after re-
placement, have the electrical system
checked by a CITROËN dealer or a
qualifi ed workshop.
Installing electrical
accessories
Your vehicle’s electrical sys-
tem is designed to operate with
standard or optional equipment.
Before installing other electrical
equipment or accessories on
your vehicle, contact a CITROËN
dealer or a qualifi ed workshop.
CITROËN will not accept respon-
sibility for the cost incurred in
repairing your vehicle or for recti-
fying malfunctions resulting from
the installation of accessories not
supplied and not recommended
by CITROËN and not installed in
accordance with its instructions,
in particular when the combined
consumption of all of the addition-
al equipment connected exceeds
10 milliamperes.
The replacement of a fuse not
mentioned in the following ta-
bles may cause a serious mal-
function of your vehicle. Contact
a CITROËN dealer or a qualifi ed
workshop.
Tweezer


)
remove the tweezer,

)
open the fusebox cover by pulling at
top right, then left,

)
fold down the fusebox cover com-
pletely.

11
PRACTICAL INFORMATION
196

Engine compartment fuses

The fusebox is placed in the engine
compartment near the battery (left-
hand side).

Access to the fuses


)
Unclip the cover.

)
Change the fuse (see correspon-
ding paragraph).

)
When you have fi nished, close the
cover carefully to ensure sealing of
the fusebox.

Fuse table


Fuse N°



Rating


Functions



F19



30 A

Windscreen wipers slow/fast speed.


F20



15 A

Front and rear screenwash pump.


F21



20 A

Headlamp wash pump.


F22



15 A

Horn.


F23



15 A

Right-hand main beam headlamp.


F24



15 A

Left-hand main beam headlamp.


F27



5 A

Left-hand dipped headlamp.


F28



5 A

Right-hand dipped headlamp.

11
PRACTICAL INFORMATION
199

Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
disconnecting the terminals fi rst.
Do not push the vehicle to start the
engine if it is fi tted with the 6-speed
electronic gearbox system.


Before disconnecting the battery

Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.

Following reconnection of
the battery
Following reconnection of the
battery, switch on the ignition
and wait 1 minute before start-
ing to permit initialisation of the
electronic systems. However, if
problems are encountered fol-
lowing this operation, contact a
CITROËN dealer or a qualifi ed
workshop.
Referring to the corresponding
section, you must yourself reini-
tialise:


- the remote control key,

- the panoramic sunroof blind,

- the GPS satellite navigation
system.


LOAD REDUCTION MODE

System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.

When the vehicle is being driven, the
load reduction function temporarily deac-
tivates certain functions, such as the air
conditioning, the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions
permit.
ENERGY ECONOMY MODE
System which manages the period of
use of certain functions to conserve a
suffi cient level of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio
equipment, windscreen wipers, dipped
beam headlamps, courtesy lamps, etc.
for a maximum combined period of
thirty minutes.
Switching to economy mode

Once this period has elapsed, a message
appears in the screen indicating that the ve-
hicle has switched to economy mode and
the active functions are put on standby.
If the telephone is being used at
the same time on the navigation
system, it will be interrupted af-
ter 10 minutes.
A fl at battery prevents the engine
from starting (refer to the corre-
sponding paragraph).
Exiting economy mode

These functions are reactivated auto-
matically the next time the vehicle is
driven.


)
In order to resume the use of these
functions immediately, start the engine
and let it run for a few minutes.
The time available to you will then be
double the period for which the engine
is left running. However, this period will
always be between fi ve and thirty minutes.

This period may be greatly re-
duced if the battery is not fully
charged.

11
200
CHANGING A WIPER BLADE

Before removin
g a front wiper blade



)
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades verti-
cally on the windscreen.



Removing



)
Raise the corresponding wiper arm.

)
Unclip the wiper blade and remove it.



Fitting



)
Put the corresponding new wiper
blade in place and clip it.

)
Fold down the wiper arm carefully.



After fitting a front wiper blade



)
Switch on the ignition.

)
Operate the wiper stalk again to
park the wiper blades.

VERY COLD CLIMATE SCREEN *


*
According to country.


Fitting



)
Offer up the very cold climate screen
to the front of the lower section of
the front bumper.

)
Press around its edge to engage its
fi xing clips one by one.

Removal



)
Use a screwdriver as a lever to re-
lease each fi xing clip in turn.
Do not forget to remove the very
cold climate screen:


- when the ambient temperature
exceeds 10 °C,

- when towing,

- at speeds above 75 mph
(120 km/h).
Removable protective screen which
prevents the accumulation of snow at
the radiator cooling fan.
