This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.
BOOT LAMP
The lighting time varies according
to the circumstances:


- when the ignition is off, ap-
proximately ten minutes,

- in energy economy mode, ap-
proximately thirty seconds,

- when the engine is running,
no limit.
INTERIOR WELCOME LIGHTING

The remote switching on of the passen-
ger compartment lighting makes your
entry into the vehicle easier in poor
light. It is activated depending on the
light intensity detected by the sunshine
sensor.

Switching on
Switchin
g off

The interior welcome lighting switch-
es off automatically after a set time or
when one of the doors is opened.

Programming



)
Press the open padlock on
the remote control.
The side spotlamps, the footwell light-
ing and the courtesy lamps come on;
your vehicle is also unlocked. The lighting duration is select-
ed via the vehicle confi guration
menu.

8
SAFETY
127
TYRE UNDER-INFLATION DETECTION
System which automatically and continu-
ously checks the pressure of the tyres
while driving.
Sensors fi tted in each valve trigger a
warning in the event of problem (speed
above 12 mph (20 km/h)).
This warning lamp is displayed
on the instrument panel and/or a
message appears in the screen,
accompanied by an audible signal,
to identify the wheel concerned.

Under-infl ated tyre
The STOP
warning lamp
comes on and/or this warn-
ing lamp is displayed on the
instrument panel, accompa-
nied by an audible signal and
a message in the screen iden-
tifying the wheel concerned.


)
Stop as soon as it is safe to do so,
avoiding any sudden movement of
the steering wheel and the brakes.

)
Repair or change the damaged
wheel (punctured or very defl ated
tyre), and have the tyre pressure
checked as soon as possible.

Puncture

Sensor(s) not detected or faulty
A message appears in the screen, ac-
companied by an audible signal, to
identify the wheel or wheels which are
not detected or to indicate a malfunc-
tion in the system.
Contact a CITROËN dealer or a quali-
fi ed workshop to replace the faulty
sensor(s).
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired)
or when one or more wheels
without a sensor are fi tted.
If your vehicle is equipped with
a spare wheel, this is not fi tted
with a sensor. All repairs and changing of tyres
on a wheel fi tted with this sys-
tem must be carried out by a
CITROËN dealer or a qualifi ed
workshop.
If, when changing a tyre, you
install a wheel which is not de-
tected by your vehicle (example:
fi tting of snow tyres), you must
have the system reinitialised by
a CITROËN dealer or a qualifi ed
workshop.
The tyre under-infl ation detec-
tion system is an aid to driving
which does not replace the need
for the driver to be vigilant or to
drive responsibly. This system does not avoid the
need to have the tyre pressures
checked regularly (refer to the
"Identifi cation markings" sec-
tion) to ensure that the optimum
dynamic performance of the ve-
hicle is maintained and prevent
premature wear of the tyres, par-
ticularly in arduous driving condi-
tions (heavy load, high speed).
The tyre pressures must be
checked cold, at least once a
month. Remember to check the
pressure of the spare wheel.
The tyre under-infl ation detec-
tion system may experience
temporary interference due to
electro-magnetic emissions on a
frequency close to that used by
the system.


)
Check the tyre pressures as soon
as possible.
This check must be carried out when
the tyres are cold.

9
DRIVING
157
BLIND SPOT SENSORS

This driving assistance system warns
the driver of the presence of another
vehicle in the blind spot angle of their
vehicle (areas masked from the driver's
fi eld of vision), as soon as this presents
a potential danger.
Operation



)
On switching on the ignition, or en-
gine running, press this button to
activate the function; the warning
lamp comes on.

This system is designed to im-
prove safety when driving and is
in no circumstances a substitute
for the use of the interior rear
view mirror and door mirrors. It
is the driver's responsibility to
constantly check the traffi c, to
asses the distances and relative
speeds of other vehicles and
to predict their movements be-
fore deciding whether to change
lane.
The blind spot sensor system
can never replace the vigilance
and responsibility of the driver.
Sensors fi tted in the front and rear bum-
pers monitor the blind spots. A warning lamp appears in the door
mirror on the side in question:


- immediately, when being overtaken,

- after a delay of about one second,
when overtaking a vehicle slowly.

9
DRIVING
159

The system may suffer tem-
porary interference in certain
weather conditions(rain, hail...).
In particular, driving on a wet sur-
face or moving from a dry area to
a wet area can cause false alerts
(for example, the presence of a
fog of water droplets in the blind
spot angle is interpreted as a
vehicle).
In bad or wintry weather, ensure
that the sensors are not covered
by mud, ice or snow.
Take care not to cover the warn-
ing zone in the door mirrors or
the detection zones on the front
and rear bumpers with adhesive
labels or other objects; they may
hamper the correct operation of
the system.



)
To deactivate the system, press this
button again; the warning lamp goes
off.
The state of the system remains in
memory on switching off the ignition.

Operating fault

In the event of a fault, the warning lamp
in the button fl ashes then goes off.
Have it checked by a CITROËN dealer
or a qualifi ed workshop.
The system is automatically de-
activated when towing with a
towbar approved by CITROËN.

9
DRIVING
165
PARKING SPACE SENSORS

System which measures the parking
space available between two vehicles
or obstacles. It measures the size of the
space and gives you information on:


- the possibility of fi tting into a free
space, depending on the dimensions
of your vehicle and the distances
needed for manoeuvring,

- the level of diffi culty of the manoeuvre
to be performed.
The system does not measure spaces
which are clearly much smaller or larger
than the size of the vehicle.

Displays in the instrument panel



- on fi xed:
the function is selected by
a press on control A
.

- off:
the function is not selected,
The parking space sensor
function warning lamp can
have two different states:
Operation
You have identifi ed a parking space:


)
Press button A
to select the function.

)
Operate the direction indicator on
the side where the space is to be
measured; a message is displayed
to confi rm that measurement is in
progress.

)
During measurement, go forward
the length of the space, at a speed
less than 12 mph (approx. 20 km/h),
to prepare for your manoeuvre.

)
Once the measurement has been
completed, the system informs you
of the level of diffi culty of the ma-
noeuvre by a message in the multi-
function screen accompanied by an
audible signal.

9
166

The function displays the following
types of message:

Parking possible


Parking diffi cult


Parking not advised

The function deselects itself automati-
cally:


- when you engage reverse gear,

- when you switch off the ignition,

- if measuring is not requested,

- within fi ve minutes of selection of
the function,

- if the vehicle speed exceeds the
threshold of 45 mph (approx. 70 km/h)
for one minute.

If the lateral distance between your ve-
hicle and the parking space is too large,
the system may not be able to measure
the space.
If there is a fault, have the sys-
tem checked by a CITROËN
dealer or a qualifi ed workshop.

The system remains available after
each measurement and can therefore
measure several spaces in succession.
In poor or wintry weather, ensure that
the sensors are free of dirt, ice or
snow.
The parking space sensor system de-
activates the front parking sensors
when measuring forwards.

9
DRIVING
167

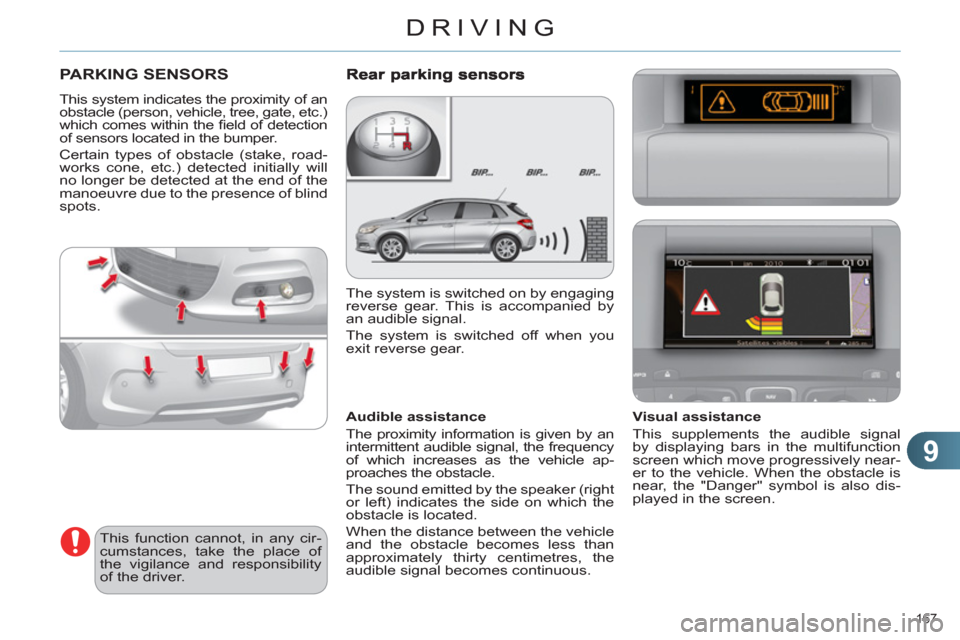

PARKING SENSORS
This system indicates the proximity of an
obstacle (person, vehicle, tree, gate, etc.)
which comes within the fi eld of detection
of sensors located in the bumper.
Certain types of obstacle (stake, road-
works cone, etc.) detected initially will
no longer be detected at the end of the
manoeuvre due to the presence of blind
spots.

This function cannot, in any cir-
cumstances, take the place of
the vigilance and responsibility
of the driver.
The system is switched on by engaging
reverse gear. This is accompanied by
an audible signal.
The system is switched off when you
exit reverse gear.

Audible assistance
The proximity information is given by an
intermittent audible signal, the frequency
of which increases as the vehicle ap-
proaches the obstacle.
The sound emitted by the speaker (right
or left) indicates the side on which the
obstacle is located.
When the distance between the vehicle
and the obstacle becomes less than
approximately thirty centimetres, the
audible signal becomes continuous.


Visual assistance
This supplements the audible signal
by displaying bars in the multifunction
screen which move progressively near-
er to the vehicle. When the obstacle is
near, the "Danger" symbol is also dis-
played in the screen.

9
DRIVING
168
In addition to the rear parking sensors,
the front parking sensors are triggered
when an obstacle is detected in front
and the speed of the vehicle is still below
6 mph (10 km/h).
The sound emitted by the speaker (front
or rear) indicates whether the obstacle
is in front or behind.
The front parking sensors are interrupted
if the vehicle stops for more than three
seconds in forward gear, if no further ob-
stacles are detected or when the speed
of the vehicle exceeds 6 mph (10 km/h).

Front parking sensors

Deactivation/Activation of the front
and rear parking sensors
The function is deactivated by pressing
this button. The indicator lamp in the
button comes on.
Pressing this button again reactivates
the function. The indicator lamp in the
button goes off.
Operating fault



The function will be deactivated
automatically if a trailer is being
towed or a bicycle carrier is fi t-
ted (vehicle fi tted with a towbar
or bicycle carrier recommended
by CITROËN).

In bad weather or in winter, en-
sure that the sensors are not
covered with mud, ice or snow.
When reverse gear is engaged,
an audible signal (long beep) in-
dicates that the sensors may be
dirty.
When the vehicle is moving at a
speed below 6 mph (10 km/h),
certain sound sources (motor-
cycle, lorry, pneumatic drill, etc.)
may trigger the audible signals
of the parking sensor system.
In the event of a malfunction
of the system, when reverse
gear is engaged this warn-
ing lamp is displayed in the
instrument panel and/or a message ap-
pears in the screen, accompanied by
an audible signal (short beep).
Contact a CITROËN dealer or a qualifi ed
workshop.
