2011 Citroen C4 RHD navigation system

2

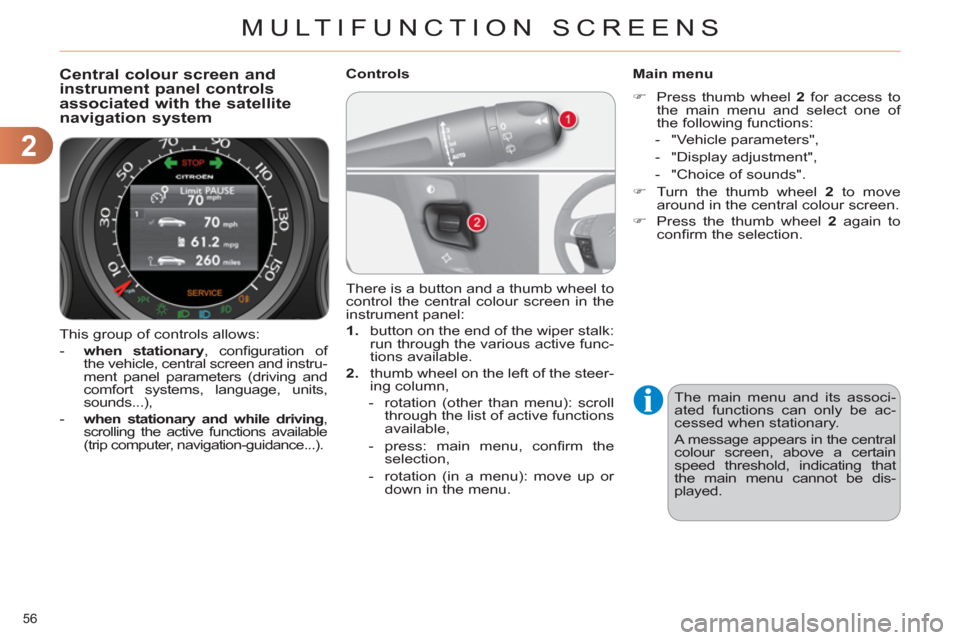

MULTIFUNCTION SCREENS
56
This group of controls allows:


- when stationary
, confi guration of
the vehicle, central screen and instru-
ment panel parameters (driving and
comfort systems, language, units,
sounds...),

- when stationary and while driving
,
scrolling the active functions available
(trip computer, navigation-guidance...).
Central colour screen and instrument panel controlsassociated with the satellite
navigation system

Controls
Main menu


)
Press thumb wheel 2
for access to
the main menu and select one of
the following functions:


- "Vehicle parameters",

- "Display adjustment",

- "Choice of sounds".

)
Turn the thumb wheel 2
to move
around in the central colour screen.

)
Press the thumb wheel 2
again to
confi rm the selection.
There is a button and a thumb wheel to
control the central colour screen in the
instrument panel:


1.
button on the end of the wiper stalk:
run through the various active func-
tions available.

2.
thumb wheel on the left of the steer-
ing column,


- rotation (other than menu): scroll
through the list of active functions
available,

- press: main menu, confi rm the
selection,

- rotation (in a menu): move up or
down in the menu.

The main menu and its associ-
ated functions can only be ac-
cessed when stationary.
A message appears in the central
colour screen, above a certain
speed threshold, indicating that
the main menu cannot be dis-
played.

2
MULTIFUNCTION SCREENS
60





Central colour screen associated with the satellite
navigation system


- Display of instantaneous informa-
tion with:


●
the range,

●
the current fuel consumption,

●
Stop & Start time counter,



- Display of trip "1"
with:


●
the distance travelled,

●
the average fuel consumption,

●
the average speed,
for the fi rst trip.



- Display of trip "2"
with:


●
the distance travelled,

●
the average fuel consumption,

●
the average speed,
for the second trip.



)
Press the button, located at the end
of the wiper stalk


or

)
turn the thumb wheel, located on
the left of the steering wheel
,
to display the following information
in turn:


●
reminder of the speed,

●
instantaneous information,

●
trip "1"
,

●
trip "2"
,

●
information on the current audio
source,

●
black screen,

●
navigation-guidance messages.


Information displays

)

When the required trip is displayed,
press the thumb wheel located on
the left of the steering wheel
or the
button on the end of the wiper stalk

for more than two seconds.

Trips "1"
and "2"
are independent but
their use is identical.
For example, trip "1"
can be used for
daily fi gures and trip "2"
for monthly
fi gures.

Trip zero reset

9
DRIVING
160
MEMORISING SPEEDS
This memorisation of speeds applies
to both the speed limiter and the cruise
control.

Operation

You can memorise up to 5 speeds in
the system.
By default, some speeds are already
memorised.
Access
Press the MEM
button to display the list
of memorised speeds.
Selection

To select a memorised speed:


)
press and hold the " +
" or " -
" but-
ton; the system stops at the nearest
memorised speed,

)
press and hold again the " +
" or " -
"
button to select another memorised
speed.
A reminder of the speed and the state
of the system (on/off) is displayed in the
instrument panel.


)
Select "Vehicle parameters" menu
and confi rm.

)
Select the "Driving assistance" line
and conform.

)
Select "Speeds memorised" line
and confi rm.

)
Modify the speed.

)
Select " OK
" and confi rm to save the
modifi cations.
For safety reasons, when using
the monochrome screen C the
driver must only carry out these
operations when stationary.
These operations are only possi-
ble when stationary, when using
the central colour screen associ-
ated with the satellite navigation
system.

- on the central colour screen asso-
ciated with the satellite navigation
system; press the thumb wheel
on the left of the steering column.

)
Go to the main menu:


-
on the monochrome screen C; press
the "MENU"
button, then select
the "Personalisation-confi guration"
menu and confi rm.

11
PRACTICAL INFORMATION
199

Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
disconnecting the terminals fi rst.
Do not push the vehicle to start the
engine if it is fi tted with the 6-speed
electronic gearbox system.


Before disconnecting the battery

Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.

Following reconnection of
the battery
Following reconnection of the
battery, switch on the ignition
and wait 1 minute before start-
ing to permit initialisation of the
electronic systems. However, if
problems are encountered fol-
lowing this operation, contact a
CITROËN dealer or a qualifi ed
workshop.
Referring to the corresponding
section, you must yourself reini-
tialise:


- the remote control key,

- the panoramic sunroof blind,

- the GPS satellite navigation
system.


LOAD REDUCTION MODE

System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.

When the vehicle is being driven, the
load reduction function temporarily deac-
tivates certain functions, such as the air
conditioning, the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions
permit.
ENERGY ECONOMY MODE
System which manages the period of
use of certain functions to conserve a
suffi cient level of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio
equipment, windscreen wipers, dipped
beam headlamps, courtesy lamps, etc.
for a maximum combined period of
thirty minutes.
Switching to economy mode

Once this period has elapsed, a message
appears in the screen indicating that the ve-
hicle has switched to economy mode and
the active functions are put on standby.
If the telephone is being used at
the same time on the navigation
system, it will be interrupted af-
ter 10 minutes.
A fl at battery prevents the engine
from starting (refer to the corre-
sponding paragraph).
Exiting economy mode

These functions are reactivated auto-
matically the next time the vehicle is
driven.


)
In order to resume the use of these
functions immediately, start the engine
and let it run for a few minutes.
The time available to you will then be
double the period for which the engine
is left running. However, this period will
always be between fi ve and thirty minutes.

This period may be greatly re-
duced if the battery is not fully
charged.

11
PRACTICAL INFORMATION
206

Installation of radio
communication transmitters
Before installing any after-market
radio communication transmitter,
you can contact a CITROËN dealer
for the specifi cation of transmitters
which can be fi tted (frequency, maxi-
mum power, aerial position, specifi c
installation requirements), in line
with the Vehicle Electromagnetic
Compatibility Directive (2004/104/EC).




Depending on the legislation in
force in the country, it may be
compulsory to have a high vis-
ibility safety vest, warning triangle
and spare bulbs and fuses avail-
able in the vehicle.
The fi tting of electrical equipment
or accessories which are not rec-
ommended by CITROËN may
result in a failure of your vehicle's
electronic system and excessive
electrical consumption.
Please note this precaution. You
are advised to contact a CITROËN
representative to be shown the
range of recommended equipment
and accessories.

"Multimedia":

audio systems, steering mounted audio
controls, speakers, Hi-Fi module, Bluetooth
hands-free system, portable satellite naviga-
tion system, semi-integral support bracket for
portable navigation system, speed camera
detector, USB Box, reversing camera, por-
table video screen, portable video support
bracket, 230 V/50 Hz socket, 230 V/50 Hz
adaptor, Wi-Fi on board...


By going to a CITROËN dealer, you
can also obtain cleaning and mainte-
nance products (interior and exterior) -
including ecological products in the
"TECHNATURE" range -, products for
topping up (screenwash...), touch-up
pens and paint aerosols for the exact
colour of your vehicle, recharges (car-
tridge for the temporary puncture repair
kit...), ...

217

The system is protected in such a way that it will onlyoperate in your vehicle. If it is to be installed in another vehicle, contact a CITROËN dealer for confi guration of py
the system.
eMyWay


01 First steps - Control panel


For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the system switches off following the activation of the energy economy mode.



CONTENTS

02 Steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Using the telephone

07 Radio

08 Music media players

09 Audio settings

10 Configuration

11 Screen menu map

Frequently asked questions p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
218
220
221
223
236
239
249
252
258
259
260
263


SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH TELEPHONE AUDIO
SYSTEM

219
01



1. Rotary control:
-
Short press engine not running: on/off.
-
Short press engine running: mute on/off.
- Rotation: volume ad
justment(each source is independant,
including TA messages and navigation
information).

2. Radio source
, access to the FM/AM band
menu and display the list of stations.

3. Access to the MEDIAmenu and display
the list of tracks.

4. A
ccess to the Navigation - guidancemenu and display the last destinations.

5. Access to the Traffi c informationmenuand display the current traffi c alerts.

6. Access to the "
Telephone " menu anddisplay the recent calls list.
2 - 3. Lon
g press: access to the Audio settings:music ambiance, bass, treble, loudness,left/right balance, front/rear fader, automatic volume adjustment. 7.
Access to the " Confi guration" menu.
Lon
g press: access to the GPS coverage and
the navigation demonstration mode.
8. MODE button:
Selection of the t
ype of permanent display.
Lon
g press: black screen (DARK).
9. ESC: abandon the operation in pro
gress,
up one level in the menu.
Long press: return to permanent display.
10.
CD eject.
Continuous press: reinitialisation of thesystem.
11. Accordin
g to context:
Selection of the previous/next line in a list or
menu.
Selection of the previous/next media folder.
Step by step selection of the previous/next
radio frequency.
Move up
/down in Move the map
mode.
12. Accordin
g to context:
Automatic selection o
f the next lower/higher radio frequency

Selection of the previous/next CD or media
track
Selection of left/ri
ght on the screen when a
menu is displayed.
Move left/ri
ght in Move the map mode.

1
3. Buttons 1 to 6:

Short press: selection of the stored radio station.
Lon
g press: store the current radio station.

14. Dial for selection and
OK confi rmation:

Selection of an item on the screen or in alist in a menu, then confi rmation with a shortpress.

Other than for menus and lists, a short press
displays a contextual menu depending on the
current screen.
Rotation with map displa
yed: zoom the mapscale in and out.
FIRST STEPS

225
1
2
04
1
2
3

SELECTING A DESTINATION
NAVIGATION - GUIDANCE


TO ONE OF THE RECENT DESTINATIONS
Press NAV
twice to open the list of
recent destinations.

Select the desired destination and confi rm to start guidance. TOWARDS A CONTACT IN THE CONTACTS DIRECTORY

Select " Select destination" andconfi rm, then select " Directory " and confi rm.

Selection the desired destination from your contacts and confi rm "OK
" to start
the guidance.
Pr
ess NAVto display the"Navigation - guidance
" menu. Navi
gation towards a contact imported from your telephone is only
possible if the address is compatible with the system.
