FAMILIARISATION
This opening gives easy access to the
boot, even if you are parked close to a
wall or to another vehicle.
Opening rear screen
Opening
)
Press control 2. The grip 4
is in line
with the rear wiper.
Closing
)
Lower the rear screen.
90
)
Press control 1
.
You cannot open the tailgate if the rear
screen is already open.
)
Lower the tailgate, using one of the
grips 3
, located on the interior tail-
gate trim.
)
Past the balancing point, allow the
tailgate to close itself (do not assist
it or slow it down).
Load: 22 kg maximum.
The Modubox is composed of a shop-
ping trolley and a fl exible bag which can
be used independently of each other
depending on your needs.
112
OPENING
Opening the tailgate
Closing the tailgate
Modubox (CITROËN
C4 Picasso)
Page 10 of 352
Downloaded from www.Manualslib.com manuals search engine 8
FAMILIARISATION
CITROËN
Grand C4 Picasso
Torch
Pneumatic rear
suspension
Allows the height of the rear
of the vehicle to be adjusted Access to
spare wheel
Temporary puncture repair kit
Depending on model, the kit is located either in the boot well or in the compartment under the left hand
second-row passenger (open the fl ap by turning the screw a quarter turn).
This kit is a complete system for a temporary repair; it is made up of a compressor and a sealant car-
tridge. Luggage cover blind Luggage cover in two
sections
Torch
111
11 2
187
171
183
116
CITROËN
C4 Picasso
BOOT
Refer also to the section "Practical information - § Changing a wheel".
186
Page 11 of 352
Downloaded from www.Manualslib.com manuals search engine 9
FAMILIARISATION
6-speed electronic gearbox system
This offers a fully automatic mode, a
manual mode and an auto-sequential
mode which combines the advan-
tages of the automatic and manual
modes, using the paddles behind the
steering wheel.
149
Speed limiter/Cruise control
These functions control the speed of
the vehicle to the value that you have
programmed.
162, 164
Electric parking brake
For holding and releasing the vehicle.
Operation is automatic with manual
operation possible using the dash-
board control.
139
Scented air freshener
This diffuses the fragrance that you
have chosen throughout the passen-
ger compartment from its location in
the ventilation system.
65
Interior mood lighting
This soft lighting of the passenger
compartment improves visibility inside
the vehicle when the light is poor.
104
INTERIOR
Page 12 of 352
Downloaded from www.Manualslib.com manuals search engine 10
FAMILIARISATION

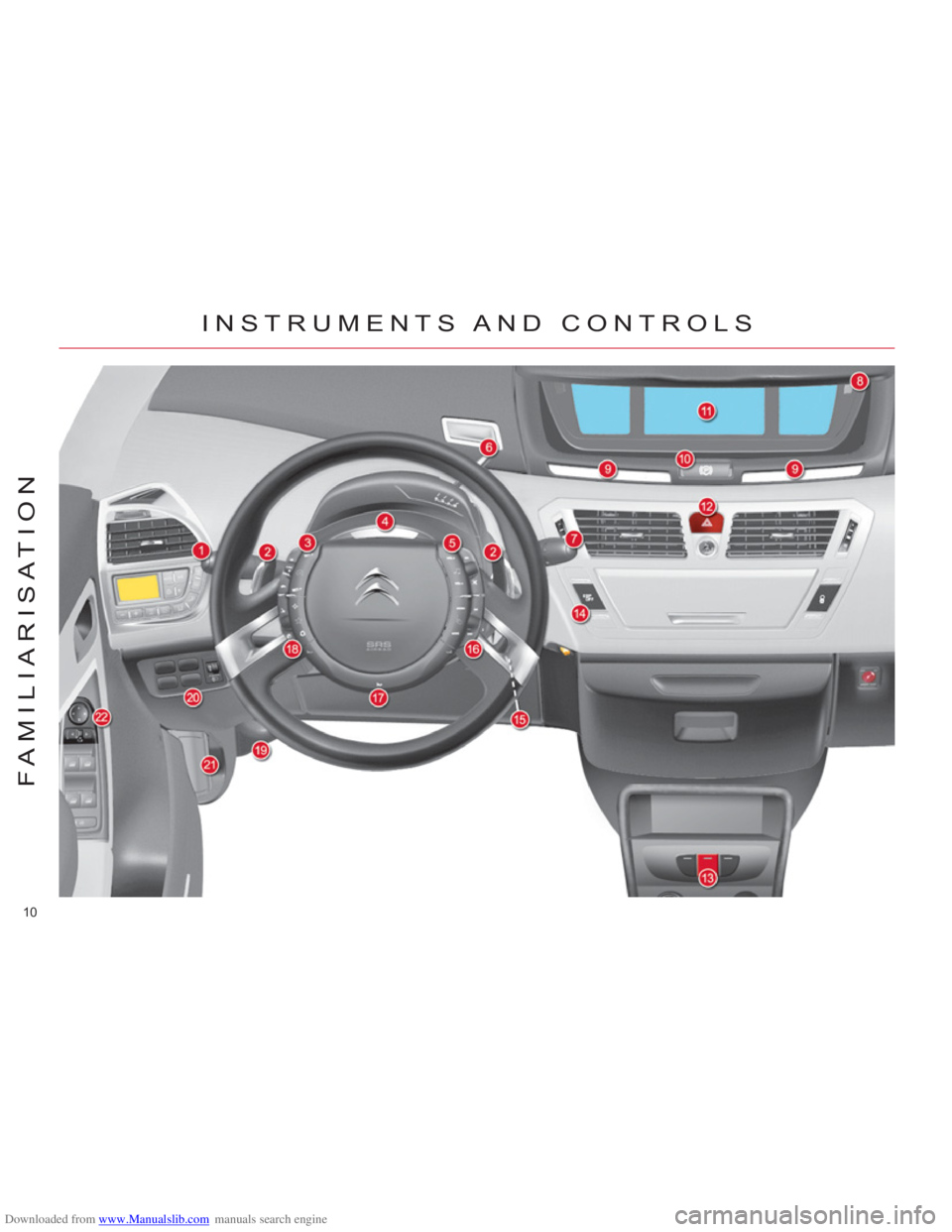

INSTRUMENTS AND CONTROLS
Page 13 of 352
Downloaded from www.Manualslib.com manuals search engine 11
FAMILIARISATION
8.
Controls:
- Trip mileage recorder reset
button
- Lighting rheostat
9.
Warning lamps display (with the
MyWay or NaviDrive multifunction
screen)
10.
Electric parking brake
11 .
Instrument panel
12.
Hazard warning lamps
13.
Switch panels:
- Emergency or assistance
- Lane departure warning system
14.
ESP deactivation button
15.
Steering lock - Ignition switch
16.
Multifunction screen steering
mounted controls
17.
Horn
1.
Controls:
- Lighting
- Direction indicators
- Front and rear foglamps
2.
Paddles for automatic gearbox or
6-speed electronic gearbox system
3.
Cruise control and speed limiter
steering mounted controls
4.
Direction indicator warning lamps
5.
Audio and telematics system
steering mounted controls
6.
Gear lever for automatic gearbox or
6-speed electronic gearbox system
7.
Controls:
- Windscreen wipe
- Screenwash
- Rear screen wipe
- Trip computer
INSTRUMENTS AND CONTROLS
18.
Optional function controls
(on steering wheel)
19.
Fusebox access cover
20.
Controls:
- Fuel fi ller fl ap
- Front and rear parking sensors
- Stop & Start
- Volumetric alarm deactivation
- Headlamp adjustment
21.
Bonnet release
22.
Mirror controls
Page 14 of 352
Downloaded from www.Manualslib.com manuals search engine 12
FAMILIARISATION
INSTRUMENTS AND CONTROLS
Page 15 of 352
Downloaded from www.Manualslib.com manuals search engine 13
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1.
Controls:
- Electric windows
- Child lock
2.
Side window demist vent
Side air vent
3.
Driver’s air conditioning controls
4.
Driver’s front airbag
5.
Left hand upper storage
6.
Central air vents
7.
Right hand upper storage
8.
Front passenger’s airbag
9.
Speaker (Tweeter) (right and left)
10.
Quarter light glass demist vent
11 .
Windscreen demist vent
12.
Sunshine sensor
13.
Passenger’s air conditioning
controls
14.
Lower glovebox:
- Air freshener clips
- Various storage
15.
Key switch:
- Front passenger’s airbag
activation/deactivation
16.
Central locking button
17.
Audio and telematics system
18.
Scented air freshener
19.
Cooled storage
20.
USB port (or blanking plug)
21.
12 V accessory socket or cigar
lighter
22.
Portable ashtray
23.
Interior mood lighting control
24.
Steering wheel adjustment lever
Page 16 of 352
Downloaded from www.Manualslib.com manuals search engine 14
FAMILIARISATION
Adjusting the steering wheel
The steering wheel can be adjusted for
height and reach.
Release the steering wheel by pulling
lever A
towards you.
Adjust the position of the steering
wheel then lock it pushing the lever fully
back.
77
It automatically and progressively
changes between day use and night
use. This operates with the ignition switched on.
From the driver’s seat, select the door
mirror by moving control 1
to the left or
right, then adjust the door mirror as re-
quired in four directions using control 2
.
Demisting-defrosting of the door mirrors
is linked to that of the rear screen.
105
76
For safety reasons, these adjust-
ments must not be carried out whilst
driving.
This additional mirror 1
allows you to
monitor the rear passengers. It can be
tilted to eliminate dazzle.
Door mirror foldback
When the vehicle is parked, the door
mirrors can be folded back either man-
ually or automatically.
SITTING COMFORTABLY
Automatic photochromic rear
view mirror
Door mirror adjustment
77
Child surveillance mirror
