6
63
SAFETY
Deactivating the passenger
airbag
To ensure the safety of your child,
it is essential to deactivate the
passenger airbag when you install a "rear-facing" child seat on the
front passenger seat. Otherwise,
the child would risk being seri-
ously injured or killed if the air bag
w e r e t o i n fl a t e .
With the ignition switched off ,
insert the key into the passenger
airbag deactivation switch 1 ,
turn it to the "OFF" position,
then remove the key keeping the
switch in this position.
In the "OFF" position, the passen-
ger airbag will not be deployed in the
event of an impact.
As soon as the child seat is removed,
turn the airbag switch to the "ON"
position to re-activate the airbag and
thus ensure the safety of your pas-
senger in the event of an impact. If the passenger airbag is de-
activated, the warning lamp
in the instrument panel re-
mains on until the passenger
airbag is reactivated.
Flashing indicates a fault
with at least one of these
airbags.
Contact a CITROËN deal-
e r o r a q u a l i fi e d w o r k s h o p
to have the system checked. The
airbags may no longer be deployed
in the event of a serious impact.
Deactivation (check)
Airbag fault
* According to version.
LATERAL AIRBAGS * AND CURTAIN AIRBAGS *
The lateral airbags are built into the
front seat backs on the door side.
The deployment of these airbags re-
quires a serious side impact applied
in the side impact zone B , perpen-
dicular to the longitudinal centreline
of the vehicle, on a horizontal plane
and from the outside of the vehicle
towards the inside. The lateral airbag
i n fl a t e s b e t w e e n t h e f r o n t o c c u p a n t
of the vehicle and the door trim panel.
It therefore limits the risk of injury to
the chest.
The rear lateral airbags afford the
rear passengers the same protection
which the front lateral airbags offer
the front passengers.
The curtain airbags are built into the
headlining. T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n
the front or rear occupant and the
windows. It therefore limits the risk
of head injuries. In the event of a
minor impact or bump on the side of
the vehicle or if the vehicle rolls over,
the airbag may not be deployed. The
airbag is not deployed in the event of
a front or rear collision.
Page 68 of 97
6
63
SAFETY
Deactivating the passenger
airbag
To ensure the safety of your child,
it is essential to deactivate the
passenger airbag when you install a "rear-facing" child seat on the
front passenger seat. Otherwise,
the child would risk being seri-
ously injured or killed if the air bag
w e r e t o i n fl a t e .
With the ignition switched off ,
insert the key into the passenger
airbag deactivation switch 1 ,
turn it to the "OFF" position,
then remove the key keeping the
switch in this position.
In the "OFF" position, the passen-
ger airbag will not be deployed in the
event of an impact.
As soon as the child seat is removed,
turn the airbag switch to the "ON"
position to re-activate the airbag and
thus ensure the safety of your pas-
senger in the event of an impact. If the passenger airbag is de-
activated, the warning lamp
in the instrument panel re-
mains on until the passenger
airbag is reactivated.
Flashing indicates a fault
with at least one of these
airbags.
Contact a CITROËN deal-
e r o r a q u a l i fi e d w o r k s h o p
to have the system checked. The
airbags may no longer be deployed
in the event of a serious impact.
Deactivation (check)
Airbag fault
* According to version.
LATERAL AIRBAGS * AND CURTAIN AIRBAGS *
The lateral airbags are built into the
front seat backs on the door side.
The deployment of these airbags re-
quires a serious side impact applied
in the side impact zone B , perpen-
dicular to the longitudinal centreline
of the vehicle, on a horizontal plane
and from the outside of the vehicle
towards the inside. The lateral airbag
i n fl a t e s b e t w e e n t h e f r o n t o c c u p a n t
of the vehicle and the door trim panel.
It therefore limits the risk of injury to
the chest.
The rear lateral airbags afford the
rear passengers the same protection
which the front lateral airbags offer
the front passengers.
The curtain airbags are built into the
headlining. T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n
the front or rear occupant and the
windows. It therefore limits the risk
of head injuries. In the event of a
minor impact or bump on the side of
the vehicle or if the vehicle rolls over,
the airbag may not be deployed. The
airbag is not deployed in the event of
a front or rear collision.
Page 75 of 97
8
71
CHECKS
Oil filter
C h a n g e t h e fi l t e r r e g u l a r l y , i n a c c o r -
dance with the servicing schedule. O n l y u s e p r o d u c t s r e c o m -
mended by CITROËN or
products of equivalent quality
a n d s p e c i fi c a t i o n .
In order to optimise the operation
of units as important as the braking
system, CITROËN selects and offers
s p e c i fi c p r o d u c t s .
In order to avoid damaging the
electrical units, high pressure washing to clean the engine compartment is
strictly prohibited.
To check the main levels and certain
components, in accordance with the
manufacturer's servicing schedule,
refer to the pages of the servicing
booklet which correspond to your
vehicle's engine.
Battery
At the start of winter, have your
battery checked by a CITROËN
d e a l e r o r a q u a l i fi e d w o r k s h o p .
Air filter and passenger
compartment filter
H a v e t h e fi l t e r e l e m e n t s r e p l a c e d
regularly.
If you drive in dusty
conditions, change them twice as
often.
Brake pads
Brake pad wear depends on the style
of driving, in particular for vehicles
which are used in town, over short
distances. Disc and drum wear
For information on disc and drum
surface wear, contact a CITROËN
d e a l e r o r a q u a l i fi e d w o r k s h o p .
Manual gearbox
H a v e t h e l e v e l c h e c k e d i n a c c o r d -
a n c e w i t h t h e m a n u f a c t u r e r ' s s e r v i c -
ing schedule.
It may be necessary to check
the thickness of the pads,
even between services. Parking brake
Where the parking brake travel is
too great or there is a reduction in
the performance of the system, the
parking brake should be adjusted,
even between services.
Have the system checked by a
C I T R O Ë N d e a l e r o r a q u a l i fi e d
workshop.
Page 76 of 97
9
72
PRACTICAL INFORMATION
Parking the vehicle
As far as possible, immobilise
the vehicle on level, stable, non-
slippery ground.
Apply the parking brake, switch
o f f t h e i g n i t i o n a n d e n g a g e fi r s t
gear or reverse for the manual
gearbox, position N for the
"SensoDrive" gearbox. Tools
The following tools are installed in a
carrier, located in the centre of the
spare wheel:
1. Wheelbrace
2. Jack with handle
3. Removable towing eye
Access to the spare wheel and
the jack in the boot
Remove the carpet then the
plastic cover using the handle. Tyre pressures
These are indicated on the label po-
sitioned on the inner pillar of the left
d o o r , s e e " I d e n t i fi c a t i o n m a r k i n g s " .
CHANGING A WHEEL
If necessary, chock the wheel
diagonally opposite the wheel to
be changed.
It is imperative that you ensure
that the occupants get out of
the vehicle and wait in a safe
location.
Page 81 of 97
9
77
PRACTICAL INFORMATION
DIRECTION INDICATOR SIDE REPEATERS (WY 5 W AMBER)
Push the repeater forwards or
rearwards and detach it by pulling
towards you.
Disconnect the bulb holder and
change it.
CHANGING A FUSE
The fuseboxes are located under the
instrument panel trim and next to the
battery in the engine compartment.
Good
Removing and fitting a fuse
Before changing a fuse, the cause of
the incident must be found and recti-
fi e d .
Use the tweezer A located in the
fusebox under the bonnet.
Failed
Tweezer A Instrument panel fuseboxes
These are located on each side of
the instrument panel under the trim.
Turn the steering wheel to the left,
remove bolt B .
Turn the steering wheel to the
right (do not forget to release the
steering wheel using the key),
remove bolt C .
Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Page 84 of 97
9
77
PRACTICAL INFORMATION
DIRECTION INDICATOR SIDE REPEATERS (WY 5 W AMBER)
Push the repeater forwards or
rearwards and detach it by pulling
towards you.
Disconnect the bulb holder and
change it.
CHANGING A FUSE
The fuseboxes are located under the
instrument panel trim and next to the
battery in the engine compartment.
Good
Removing and fitting a fuse
Before changing a fuse, the cause of
the incident must be found and recti-
fi e d .
Use the tweezer A located in the
fusebox under the bonnet.
Failed
Tweezer A Instrument panel fuseboxes
These are located on each side of
the instrument panel under the trim.
Turn the steering wheel to the left,
remove bolt B .
Turn the steering wheel to the
right (do not forget to release the
steering wheel using the key),
remove bolt C .
Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Page 85 of 97
9
77

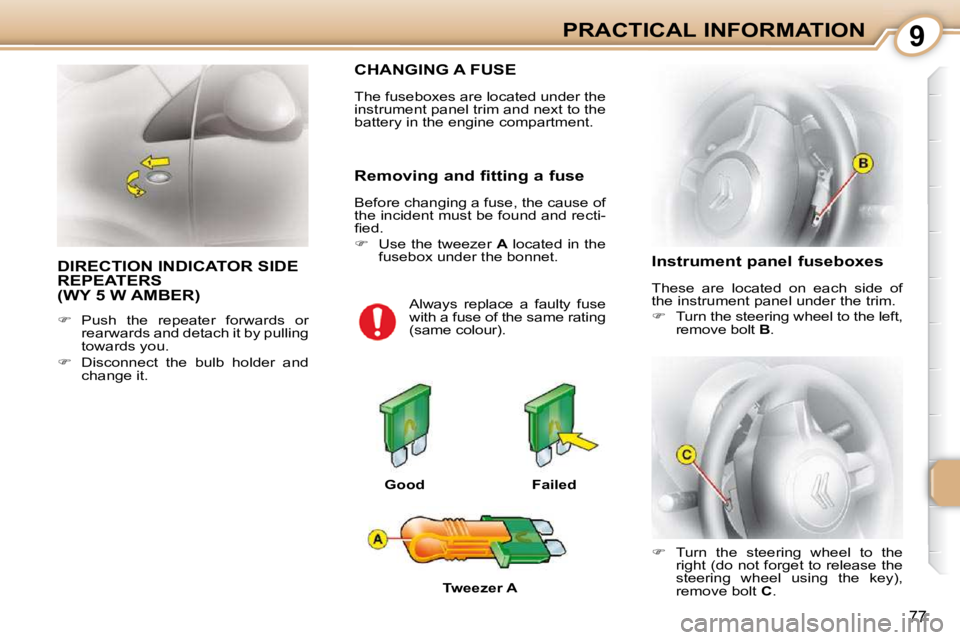

PRACTICAL INFORMATION
DIRECTION INDICATOR SIDE REPEATERS (WY 5 W AMBER)
Push the repeater forwards or
rearwards and detach it by pulling
towards you.
Disconnect the bulb holder and
change it.
CHANGING A FUSE
The fuseboxes are located under the
instrument panel trim and next to the
battery in the engine compartment.
Good
Removing and fitting a fuse
Before changing a fuse, the cause of
the incident must be found and recti-
fi e d .
Use the tweezer A located in the
fusebox under the bonnet.
Failed
Tweezer A Instrument panel fuseboxes
These are located on each side of
the instrument panel under the trim.
Turn the steering wheel to the left,
remove bolt B .
Turn the steering wheel to the
right (do not forget to release the
steering wheel using the key),
remove bolt C .
Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Page 92 of 97
9
84
PRACTICAL INFORMATION
TOWING THE VEHICLE
Your vehicle can only be towed at
the front.
Lifting (2 wheels only
on the road)
Never use the radiator crossmember.
Towing with fours wheels on the road
must be carried out at very low speed
over a very short distance (in accor-
dance with the legislation in force).
In all other cases, your vehicle must
be transported on a trailer.
Without lifting
(4 wheels on the road)
The removable towing eye is stored
in the spare wheel, under the boot
carpet.
Unclip the bottom of the cover,
Screw in the towing eye until it locks.
Place the gear lever in posi-
tion N for the "SensoDrive"
gearbox.
FITTING ROOF BARS
Please refer to national legis-
lation in order to comply with
the regulations concerning the
transportation of objects which
are longer than the vehicle.
Vehicles fitted with a manual
gearbox
I n t h e c a s e o f v e h i c l e s fi t t e d w i t h a
manual gearbox, the gear lever must
be in the neutral position.
Failure to observe this special con-
dition may result in damage to cer-
tain braking components and the
absence of braking assistance the
next time the engine is started.
W h e n fi t t i n g t r a n s v e r s e r o o f b a r s ,
use the accessories recommended
by CITROËN and follow the manu-
f a c t u r e r ' s fi t t i n g i n s t r u c t i o n s .
For more information, contact a
C I T R O Ë N d e a l e r o r a q u a l i fi e d w o r k -
shop.
Maximum weight authorised on
the bars, for a loading height not
exceeding 40 cm (except bicycle
carrier): 50 kg.
If the height exceeds 40 cm, adapt
the speed of the vehicle to the pro-
fi l e o f t h e r o a d t o a v o i d d a m a g i n g
the roof bars.
General
recommendations
Observe the legislation in
force in your country.
Ensure that the weight of the towing
vehicle is higher than that of the towed
vehicle.
The driver must stay at the wheel of
the towed vehicle.
Driving on motorways and fast roads
is prohibited when towing.
When towing a vehicle with all four
wheels on the ground, always use an
approved towing bar; rope and straps
are prohibited.
When towing a vehicle with the en-
gine off, there is no longer any power
assistance for braking or steering.
In the following cases, you must al-
ways call on a professional recovery
service:
- vehicle broken down on a motorway or fast road,
- when it is not possible to put the gearbox into neutral, unlock the
steering, or release the parking
brake,
- towing with only two wheels on the ground,
- where there is no approved towing bar available...
