2011 Citroen C ZERO RHD ESP

i
!
Access
34
1.Driver's electric window switch.2.Passenger's electric window switch.3.Rear right electric window switch.4. Rear left electric window switch.5.Deactivating the passenger and rear
electric window switches.








Electric windows


Operation

Deactivating the passenger and
rear electric window switches
)For the safety of your children, press switch 55to prevent operation of the passenger and rear electric windows irrespective of their position.
When the button is pressed down, the switches
are deactivated.
When the button is raised, the switches are activated.
System which opens or closes a window manually or automatically. It is fitted with a deactivation system to prevent misuse of the rear controls.
The electric window switches remain operational for approximately 30 seconds after the ignition isswitched off. The windows can no longer be opened or closed after the driver's door is closed. With the i
gnition on: )
Press the switch gently to open or pull it gently to close. The window stops as soonas the switch is released.
-Automatic one-touch mode (driver's side))
Press the switch fully to open. The
driver's window opens completely when
the switch is released. ) Pressing the switch again stops the
movement of the window.

Always remove the key from the ignition when leaving the vehicle, even for a short time.
In the event of contact during operationof the windows, you must reverse the movement of the window. To do this,press the switch concerned.
When the driver operates the passenger electric window switches, they mustensure that no one is preventing correct closing of the windows.
The driver must ensure that passengersuse the electric windows correctly.
Be aware of children when operating the windows.

!
Comfort
42

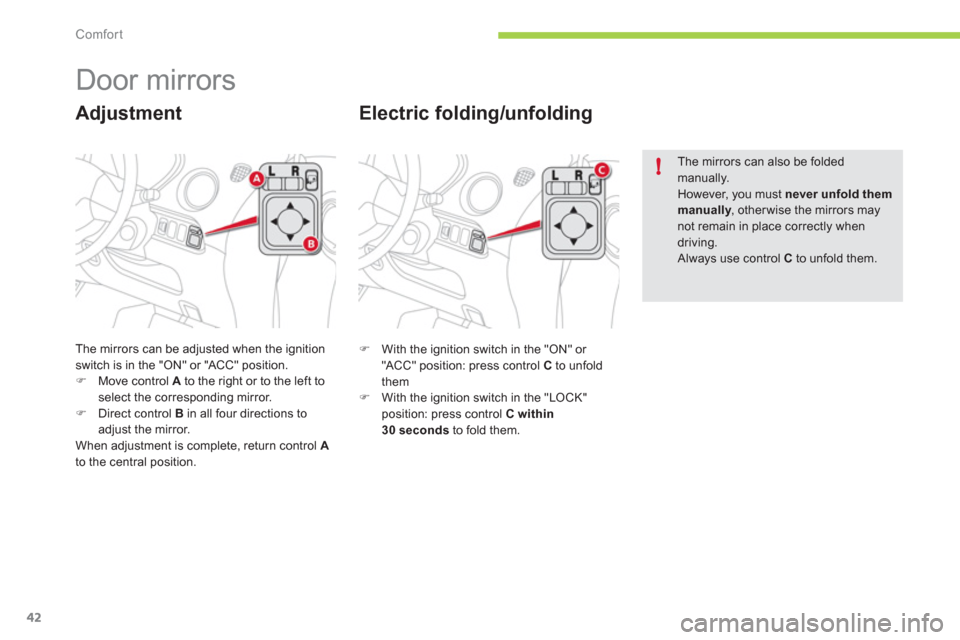

Door mirrors
The mirrors can be adjusted when the ignitionswitch is in the "ON" or "ACC" position. )Move control A
to the right or to the left to
select the corresponding mirror.)Direct control B in all four directions to adjust the mirror.
When adjustment is complete, return control Ato the central position.
Adjustment


The mirrors can also be foldedmanually.
However, you must never unfold them manually, other wise the mirrors may ynot remain in place correctly whendriving.
Always use control C
to unfold them.

)
With the ignition switch in the "ON" or "ACC" position: press control Cto unfold
them ) With the ignition switch in the "LOCK"
position: press control C within
30 secondsto fold them.
Electric folding/unfolding

Comfort
50
4. Air intake/Air recirculation





5. Air conditioning On/Off

Switchin
g on
)
Press the "A/C"button, the associated indicator lamp comes on. The air conditioning does not operate when
the air flow adjustment is set to off.

Switching off
)
Press the "A/C"button again, the
associated indicator lamp goes off.
Switching off may result in some discomfort (humidity, misting).

6. "MAX" button
The intake of exterior air prevents the formationof mist on the windscreen and side windows.
The recirculation of interior air isolates the passenger compar tment from exterior odours and smoke.
Return to exterior air intake as soon as possible
to prevent deterioration of the the air qualit
y and the formation of mist.
) Press this button to recirculatethe interior air. The indicator
lamp comes on to confirm this.
) Press the button again to permit
the intake of exterior air. Theindicator lamp switches off to
confirm this.


The air conditioning is designed to
operate effectively in all seasons,
with the windows closed.
It enables
you to:


- lower the temperature, in summer,

- increase the effectiveness of the demistin
gin winter, above 3 °C.
This button allows the passenger compartment
to be quickly heated or cooled. It only works
when the air flow control is not in the "OFF"position.
Press this button. The correspondin
g
indicator lamp comes on.

The place the temperature control in the
desired position:


- on "●" for maximum ventilation,

- between "●" and "H" for maximum heating,

- between "C" and "●" for maximum air conditioning.

Driving
54
P. Park.
This position is used for star tingthe vehicle.
To come out of the P
position, you must have your foot on the brake. R.Reverse.N.
Neutral.D.
Drive (For ward).












Drive selector
Selector positions

When you move the drive selector through the grille to select a position, the correspondingindicator is displayed in the instrument panel.


Displays in the instrument panel

With the motor running, Pappears in
the instrument panel screen.
)Press the brake pedal to come out of position P.P)Select for ward (D) or reverse ( R ) gear. R)Release the parking brake. )Ta k e your foot off the brake pedal, the
vehicle then moves off slowly to facilitatemanoeuvring. )Accelerate to go forwards or backwards. )"D"
or "R"
appears in the instrument panelscreen.


Moving off

Visibility
56





Lighting stalk
Main lighting
The various front and rear lamps of the vehicleare designed to adapt the lighting progressivelyin relation to the climatic conditions and so ensure the best visibility for the driver:
- sidelamps, to be seen,
- dipped beam headlamps to see without
dazzling other drivers,
- main beam headlamps to see clearl
y when
the road is clear.

Additional lighting
Other lamps are provided to fulfil therequirements of particular driving conditions:
- a rear foglamp to be seen from a distance,
- front foglamps for even better visibility,
- daytime running lamps to be seen during
the day.


Selection ring for main lightingmode

Turn the ring to position the symbol required
facing the mark.


Automatic illumination of headlamps.
Sidelamps only.

Di
pped or main beam headlamps.


Stalk for switching headlamp beam

Pull the stalk to switch the lighting between
dipped/main beam headlamps.

In the li
ghting off and sidelamps modes, the driver can switch on the main beam headlamps
temporaril
y ("headlamp flash") by maintaininga pull on the stalk.


Displays

Illumination of the corresponding indicator lamp
in the instrument panel confirms the lightingswitched on.

Li
ghting off.

!
Safety
72
Anti-slip regulation (ASR)
and electronic stability
programme (ESP)














Trajectory control systems



Deactivation

In exceptional conditions (starting a vehicle
which is bogged down, stuck in snow, on soft ground, ...), it may be advisable to deactivate
the ASR and ESP systems, so that the wheels can move freely and regain grip. ) Press this button button, located on the
dashboard to the right of the steeringwheel, until the corresponding symbol
appears in the instrument panel screen.
Activation
These systems are activated automatically each time the vehicle is started.
They come into operation in the event of a grip
or trajectory problem.
The displa
y of this symbol indicates
that the ASR and ESP systems are deactivated.

Reactivation

These systems are not reactivated automatically.
)Press this button again to reactivate themmanually.
The symbol going off in the instrument panel indicates
the reactivation of the ASR and ESP systems. The anti-slip regulation (also known as Traction Control) optimises traction to prevent skidding
of the wheels, by acting on the brakes of the
driving wheels and on the engine.
The electronic stability programme acts on the
brake of one or more wheels and on the engine
to keep the vehicle on the trajectory requiredby the driver, within the limits of the laws of physics.
This is indicated b
y flashing of this
warning lamp in the instrument panel.


The ASR/ESP systems offer exceptional safety in normal driving, butthis should not encourage the driver to take extra risks or drive at high speed.
The correct functioning of these systems depends on obser vation of the manufacturer’s recommendationsregarding the wheels (tyres and rims),the braking components, the electronic components and the assembly and repair procedures used by theCITROËN dealer network.
After an impact, have these systems checked by a CITROËN dealer or a qualified workshop.



Operating fault
The display of this message in the instrument panel indicates a malfunction of
these systems.
Contact a CITROËN dealer or a
qualified workshop
to have the ASR /ESP systems checked.

!
Safety
78
Lateral airbags
Deployment
The lateral airbags are deployed unilaterally in
the event of a serious side impact applied to all
or par t of the side impact zone B, perpendicular
to the longitudinal centreline of the vehicle on a horizontal plane and directed from the outside
towards the inside of the vehicle.
The lateral airbag inflates between the hip andshoulder of the front occupant of the vehicle and the corresponding door trim panel.
System which protects the driver and frontpassenger in the event of a serious side impact
in order to limit the risk of injury to the chest,
between the hip and the shoulder.
Each lateral airba
g is fitted in the seat backrest frame, door side.

Impact detection zones
A.
Front impact zone.
B. Side impact zone.


Curtain airbags
System which protects the driver and
passengers in the event of a serious side
impact in order to limit the risk of injury tothe head.
Each curtain airbag is fitted in the pillars
and the upper section of the passenger compartment.
In the event of a minor impact or bump on the side of the vehicle or if the vehicle rolls over, the airbag may not be triggered.
In the event of a rear or front collision, the airbag is not triggered.


Deployment

Each curtain airbag is deployed at the same
time as the corresponding lateral airbag in the event of a serious side impact applied to all or par t of the side impact zone B, perpendicular
to the longitudinal centreline of the vehicle on
a horizontal plane and directed from the outside
towards the inside of the vehicle.
The cur tain airbag inflates between the front or
rear occupant of the vehicle and the windows.

I
f this warning lamp comes on in
the instrument panel, contact a
CITROËN dealer or a qualified workshop to have the systemchecked. The airbags may no longer be deployed in the event of a seriousimpact.



Operating fault

8
i
!
Practical information
105











Changing a fuse

The extraction tweezer is fitted to the back of
the fusebox cover in the dashboard (right hand side).
For access: )Unclip the cover and remove it completely by pulling it towards you.)Remove the tweezer.



Access to tools
Before changing a fuse, the cause of the failure
must be identified and rectified. ) Check that the ignition switch is in
the "LOCK " position.)
Identify the failed fuse by checking
the condition of its filament.
Changing a fuse
Good Failed
)
Use the special tweezer to extract the fuse from its location.)
Always replace the failed fuse with a fuse
of the same rating. ) Check that the number marked on the box,
the rating marked on the top of the fuse
and the tables below all agree.

CITROËN will not accept responsibility for the cost incurred in repairing your vehicle or for rectifying the malfunctionsresulting from the installation of accessories not supplied and not recommended by CITROËN andnot installed in accordance with itsinstructions, in par ticular when the consumption of all of the additional equipment connected exceeds 10 milliamperes.

Yo u r v e h i c l e’s electrical system isdesigned to operate with standard or optional equipment.
Before installing other electrical equipment or accessories in your vehicle, contact a CITROËN dealer or a qualified workshop.
