2011 Citroen BERLINGO DAG Owner's Manual

3
3
33
3
14

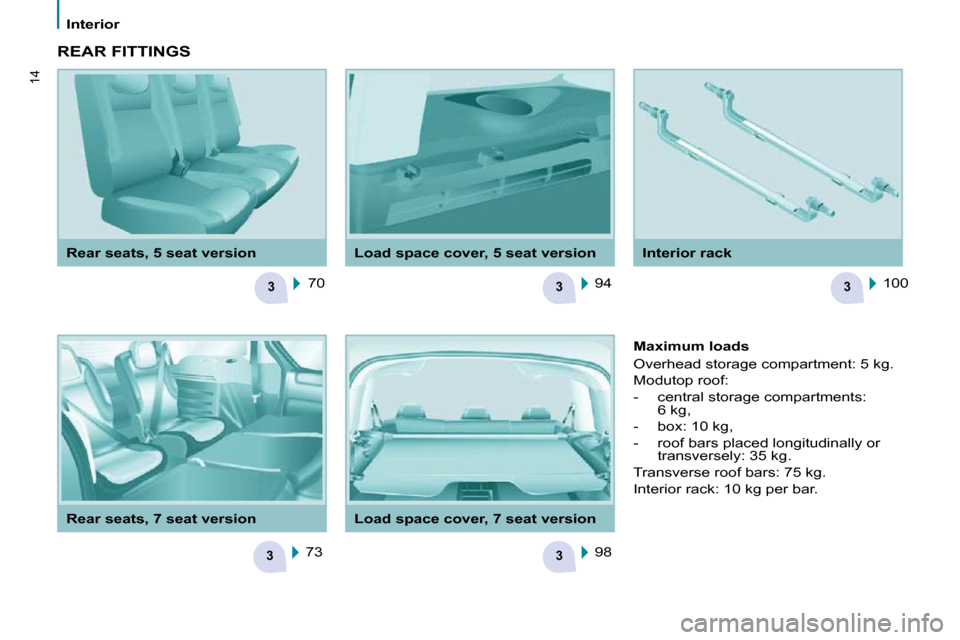

Interior Interior rack
Load space cover, 5 seat version
Rear seats, 5 seat version
REAR FITTINGS
70
73 94
100
98 Maximum loads
Overhead storage compartment: 5 kg.
Modutop roof:
- central storage compartments:
6 kg,
- box: 10 kg,
- roof bars placed longitudinally or transversely: 35 kg.
Transverse roof bars: 75 kg.
Interior rack: 10 kg per bar.
Load space cover, 7 seat version
Rear seats, 7 seat version

3
3
5
5
5
15
1
FAMILIARISATION
Interior

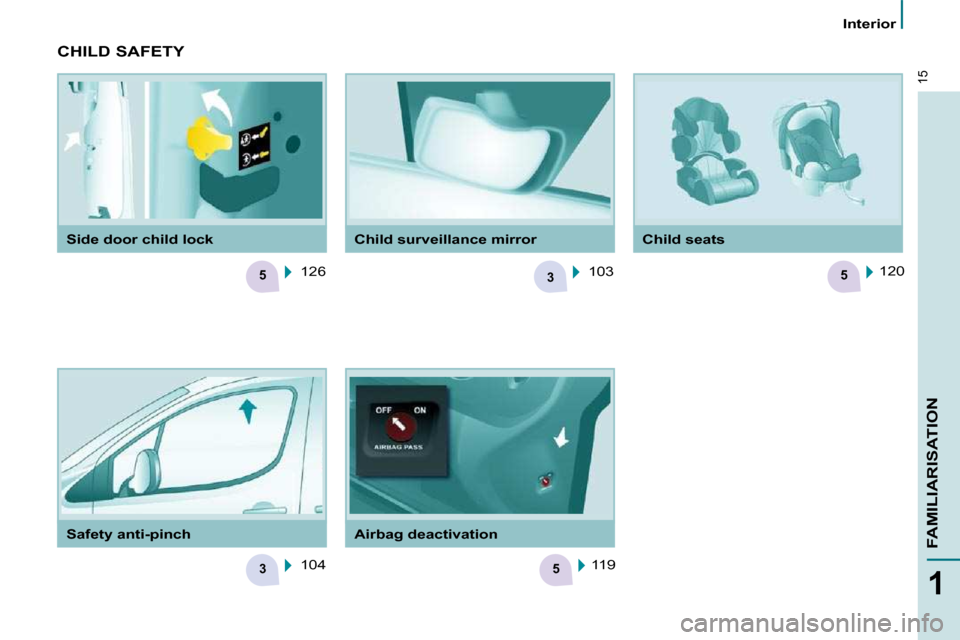

Safety anti-pinch Airbag deactivation Child seats
Side door child lock Child surveillance mirror
CHILD SAFETY
126
104 103
120
119

3
3
3
3
16
Interior

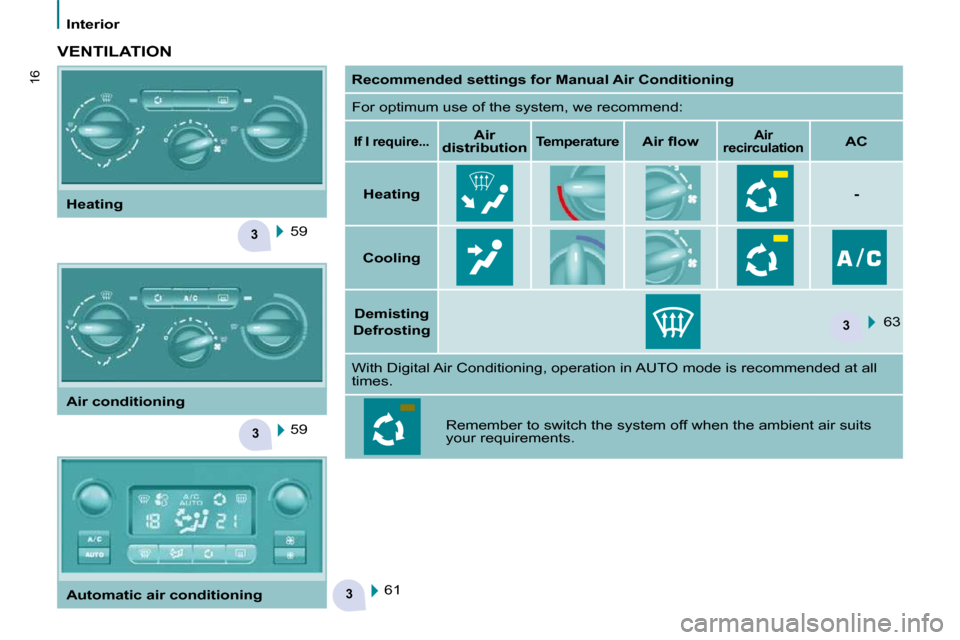

VENTILATION
Recommended settings for Manual Air Conditioning
For optimum use of the system, we recommend:

If I require...
Air
distribution
Temperature
Air fl ow
Air
recirculation
AC

Heating
-

Cooling

Demisting

Defrosting 63
With Digital Air Conditioning, operation in AUTO mode i s recommended at all
times.

Remember to switch the system off when the ambient air suits
your requirements.
61
Heating
Air conditioning
Automatic air conditioning
59
59

17
Access
READY TO GO
2
KEY
This locks and unlocks the locks on the
vehicle and starts the engine.
ACCESS
REMOTE CONTROL
Central unlocking
Central locking
Press this button to lock all of
your vehicle's doors.
The direction indicators fl ash once.
If one of the doors is open or is not
closed correctly, the central locking will
not work. Deadlocking

A second press on the closed padlock
on the remote control within fi ve
seconds after locking changes the
locking to deadlocking.
This is confi rmed by fi xed lighting
of the direction indicators for
approximately two seconds.
Deadlocking renders the exterior
and interior door opening handles
inoperative: do not leave anyone inside
the vehicle when it is deadlocked.
If deadlocking is activated from inside
the vehicle using the remote control, it
will change to normal locking when the
vehicle is started.
Press this button to unlock all
of your vehicle's doors.
The direction indicators fl ash twice.

18
Access
Good practice
Take care not to allow the remote
control to come into contact with
grease, dust, rain or a damp
environment.
A heavy object attached to the key
(keyring, ...) weighing on the shaft of
the key in the switch, may cause a
malfunction.
REMOTE CONTROL
Programming the remote
control
Following changing of the remote
control battery or disconnection of the
vehicle battery, the remote control may
have to be reprogrammed.
Wait at least one minute before using
the remote control.
Insert the key in the ignition switch with
the buttons (padlocks) of the remote
control facing you.
Switch on the ignition.
Press the locking padlock for at least
fi ve seconds within the next ten
seconds.
Switch off the ignition.
Wait at least one minute before using
the remote control.
The remote control is now working
again.
Use only identical batteries or
batteries of an equivalent type to those
recommended by CITROËN dealers.
Do not discard the remote control
batteries, they contain metals which
are harmful to the environment.
Deposit them at a CITROËN
dealership, or at any other approved
collection point.
Folding/unfolding the key
Changing the battery
Battery ref.: CR1620/3 volts.
The information "battery fl at" is given
by an audible signal, accompanied by
a message on the display.
To replace the battery, unclip the
casing using a coin at the ring.
If the remote control does not work
after the battery has been changed,
re-programme the remote control.
There is a risk of damage if the
replacement battery does not conform. Press this button to release
the key from its housing.
To fold the key, press this
chromed button then fold
the key into the housing.
If you do not press the button, the
mechanism may be damaged.

19
Access
READY TO GO
2

When purchasing a second-hand
vehicle:
- have the keys memorised by a CITROËN dealer to ensure that
the keys in your possession are
the only ones which can start
the vehicle.
Good practice
Do not make any modifi cations to the
electronic immobiliser system.
Operating the remote control, even
when it is in your pocket, may result in
involuntary unlocking of the doors.
The simultaneous use of other
high frequency equipment (mobile
telephones, domestic alarms…), may
interfere with the operation of the
remote control temporarily.
ELECTRONIC IMMOBILISER
All of the keys contain an electronic
immobiliser device.
This device locks the engine supply
system. It is activated automatically
when the key is removed from the
ignition.
After the ignition is switched on, a
dialogue is established between the
key and the electronic immobiliser
system.
The metal part of the key must be
unfolded correctly for correct dialogue
to take place.
If you lose your keys
Visit a CITROËN dealer with the
vehicle's V5 registration document and
your identifi cation document.
A CITROËN dealer will be able
to retrieve the key code and
the transponder code so that a
replacement key can be ordered. The remote control does not operate
while the key is in the ignition, even if
the ignition is off.
As a safety precaution (with children
on board), remove the key from the
ignition when leaving the vehicle, even
for a short time.

20
Access
SLIDING SIDE DOORS
From the outside
Pull the handle towards you then
towards the rear and open the side
door guiding the rearward sliding to
beyond the point of resistance to hold
it open.
A mechanical system prevents opening
of the left-hand side door when the fuel
fi ller fl ap is open.
FRONT DOORS
From the inside
Use the door opening control to unlock
and open the door concerned.
From the outside
Use the remote control to lock/unlock
the vehicle.
Insert the metal part of the key in the
lock on the driver's side if the remote
control does not work.

21
Access
READY TO GO
2
From the inside
Unlock the side door using this handle
and open it, guiding the rearward
sliding to the point of resistance. Pass
this point to hold the door open.
Close the side door using the handle
to start the sliding and pass the point
of resistance. Then, use the shaped
recess at the top of the door pillar to
guide the door until it locks.
Do not use the grab handle to slide the
door. Good practice
Take care not to block the guide space
on the fl oor to allow the door to slide
correctly.
If your vehicle is parked on a slope,
guide the sliding of the side door. In
fact, the door could open or close more
rapidly due to the slope of the ground
and could cause injury.
For safety and operation reasons, do
not drive with the sliding side doors
open. Operation in the event of a
battery failure
Front and side passenger doors
In the event of a malfunction of the
battery or of the central locking, use
the lock to lock the doors mechanically.

 To open the door and get out of the
vehicle, pull the interior control.

 To lock the door, insert the key in
the lock, located on the edge of the
door, then turn it one eighth of a
turn .
Driver’s door

 Insert the key in the lock, then turn
it to the right to lock or to the left
to unlock.
