In Brief 1-3
Fuel Economy Gauge
United States
CanadaThis gauge shows when the vehicle
is operating at a fuel efficient point.
By modifying driving behavior to
increase the economy time during
driving, fuel mileage will be
improved.
See
Fuel Economy Gauge on
page 5‑6.
Automatic Engine Start/
Stop Feature
Start the engine as you would any
other engine. See “Starting the
Engine” in the owner manual for
more information on starting. The
hybrid system provides very quiet
engine starting. If pulling a trailer
with trailer brakes, see Trailer
Towing on page 9‑16 for more
information.
Auto Stop
The vehicle has an Auto Stop
feature. After a successful engine
start, the engine may turn off and
operate in the Auto Stop mode.
Keep your foot firmly on the brake
pedal until you are ready for the
vehicle to move.
Engine OFF and AUTO STOP
modes are indicated on the
tachometer display. When the
tachometer needle indicates OFF,
the engine is not running and will
remain off until the ignition key is
placed in the START position or a
remote vehicle start is performed.
When the tachometer needle
indicates AUTO STOP, the hybrid
system is on, the engine is not
running, but may Auto Start at any
time without notice. See Tachometer
on page 5‑4 for more information.

Black plate (1,1)Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2011
Instruments and Controls 5-1
Instruments and
Controls
Controls
Power Outlets . . . . . . . . . . . . . . . . . 5-2
Warning Lights, Gauges, and
Indicators
Instrument Cluster . . . . . . . . . . . . 5-3
Tachometer . . . . . . . . . . . . . . . . . . . 5-4
Fuel Gauge . . . . . . . . . . . . . . . . . . . 5-4
Fuel Economy Gauge . . . . . . . . . 5-6
Engine Oil Pressure Gauge . . . 5-6
Engine Coolant TemperatureGauge . . . . . . . . . . . . . . . . . . . . . . . 5-8
Charging System Light . . . . . . . . 5-8 Brake System Warning
Light . . . . . . . . . . . . . . . . . . . . . . . . . 5-9
Antilock Brake System (ABS) Warning Light . . . . . . . . . . . . . . 5-10
StabiliTrak
®OFF Light . . . . . . . 5-10
Engine Oil Pressure Light . . . . 5-11
Information Displays
Driver Information Center (DIC) . . . . . . . . . . . . . . . . 5-11
Vehicle Messages
Vehicle Messages . . . . . . . . . . . 5-12
Battery Voltage and ChargingMessages . . . . . . . . . . . . . . . . . . 5-12
Brake System Messages . . . . 5-12
Door Ajar Messages . . . . . . . . . 5-13
Engine Oil Messages . . . . . . . . 5-13
Service Vehicle Messages . . . 5-13
Transmission Messages . . . . . 5-13

Black plate (6,1)Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2011
5-6 Instruments and Controls

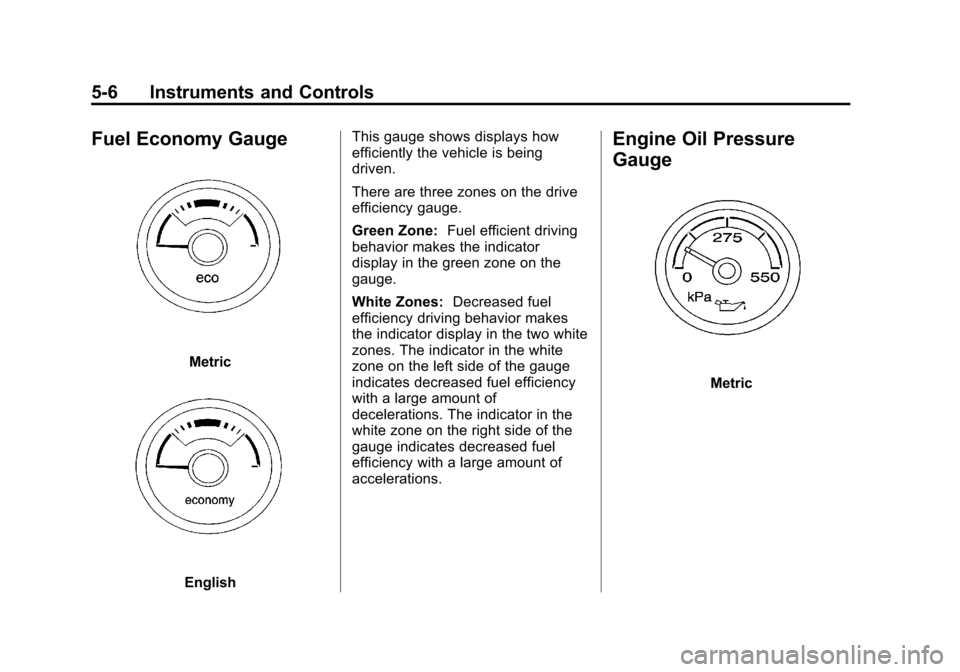

Fuel Economy Gauge
Metric
EnglishThis gauge shows displays how
efficiently the vehicle is being
driven.
There are three zones on the drive
efficiency gauge.
Green Zone:
Fuel efficient driving
behavior makes the indicator
display in the green zone on the
gauge.
White Zones: Decreased fuel
efficiency driving behavior makes
the indicator display in the two white
zones. The indicator in the white
zone on the left side of the gauge
indicates decreased fuel efficiency
with a large amount of
decelerations. The indicator in the
white zone on the right side of the
gauge indicates decreased fuel
efficiency with a large amount of
accelerations.
Engine Oil Pressure
Gauge
Metric

Black plate (7,1)Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2011
Instruments and Controls 5-7
English
The oil pressure gauge shows the
engine oil pressure in psi (pounds
per square inch) when the engine is
running. Canadian vehicles indicate
pressure in kPa (kilopascals).
Oil pressure should be 200 to
550 kPa (29 to 80 psi). In certain
situations, such as long extended
idles on hot days, it could read as
low as 105 kPa (15 psi) and still be
considered normal. A reading in the low pressure zone
may be caused by a dangerously
low oil level or some other problem
causing low oil pressure. Check the
oil as soon as possible.
{WARNING
Do not keep driving if the oil
pressure is low. The engine can
become so hot that it catches fire.
Someone could be burned. Check
the oil as soon as possible and
have the vehicle serviced.
Notice: Lack of proper engine oil
maintenance can damage the
engine. The repairs would not be
covered by the vehicle warranty.
Always follow the maintenance
schedule for changing engine oil.
AUTO STOP
When the engine goes into
Automatic Engine Stop, the oil
pressure gauge drops to zero when
the tachometer is at the AUTO
STOP position. This is normal and
oil pressure returns to the normal
operating range once the engine
starts.
See Starting the Vehicle on
page 9‑2 for more information.
AUTO STOP displays in the Driver
Information Center (DIC) when the
vehicle speed is zero. See Driver
Information Center (DIC) on
page 5‑11 for more information.

Black plate (11,1)Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2011
Instruments and Controls 5-11
Engine Oil Pressure Light
{WARNING
Do not keep driving if the oil
pressure is low. The engine can
become so hot that it catches fire.
Someone could be burned. Check
the oil as soon as possible and
have the vehicle serviced.
Notice: Lack of proper engine oil
maintenance can damage the
engine. The repairs would not be
covered by the vehicle warranty.
Always follow the maintenance
schedule for changing engine oil.
This light comes on briefly as a
check it works, when the ignition is
in ON/RUN. If it does not, have the
vehicle serviced.
If the light comes on and stays on, it
means that oil is not flowing through
the engine properly. The vehicle
could be low on oil and might have
some other system problem.
During an AUTO STOP there is zero
oil pressure, but this light will not
come on.
Information Displays
Driver Information
Center (DIC)
Trip/Fuel Menu Items
Press the trip/fuel button to display
the Trip/Fuel Menu items. For more
items see “Driver Information Center
(DIC)” in the owner manual.
BATTERY VOLTAGE
This display shows the current
battery voltage. If the voltage is in
the normal range, the value will
display. For example, the display
may read BATTERY VOLTAGE
13 VOLTS. Your vehicle's charging
system regulates voltage based on
the state of the battery. The battery
voltage may fluctuate when viewing
this information on the DIC. This is
normal. See “Charging System
Light” in the owner manual for more
information. If there is a problem
with the battery charging system,

Black plate (12,1)Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2011
5-12 Instruments and Controls
the DIC will display a message. See
Battery Voltage and Charging
Messages on page 5‑12.
INST ECON (Instantaneous
Economy)
This display normally shows
instantaneous fuel economy. When
the vehicle is in Auto Stop mode
AUTO STOP or IFE = 0 L/100km or
IFE = 99 MPG will be displayed.
SeeStarting the Vehicle on
page 9‑2 for more information.Vehicle Messages
Messages displayed on the DIC
indicate the status of the vehicle or
some action may be needed to
correct a condition. Multiple
messages may appear one after
another.
The messages that do not require
immediate action can be
acknowledged and cleared by
pressing
V(Set/Reset).
The messages that require
immediate action cannot be cleared
until that action is performed.
All messages should be taken
seriously. Clearing the message
does not correct the problem.
The following are the possible
messages for the Hybrid and some
information about them. For
information on other DIC messages,
see “Vehicle Messages” in the
owner manual.
Battery Voltage and
Charging Messages
SERVICE BATTERY
CHARGING SYSTEM
If the 12V battery system faults or
fails this message will appear on the
DIC. The battery/charging system
light will appear in the instrument
panel cluster. See “Battery Warning
Light” in the owner manual. Driving
with this message on could drain
the battery. Have the electrical
system checked as soon as
possible.
Brake System Messages
SERVICE BRAKE SYSTEM
This message may be displayed if
there is a problem with the brake
system. You will still be able to
brake, but it will be noticeably more
difficult. Pull off the road to a safe
location and have your vehicle
towed to the nearest dealer for
service. See “Brakes,” “Brake

Black plate (13,1)Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2011
Instruments and Controls 5-13
System Warning Light,”and“ABS
Brake System Warning Light” in the
owner manual.
This message may also come on
when you are towing a trailer. See
“Trailer Brakes” underTrailer Towing
on page 9‑16 for more information.
Door Ajar Messages
HOOD OPEN
If the hood is not fully closed or
there is a problem with the hood
switch, this message will be
displayed. Close the hood to clear
the message. If the HOOD OPEN
message continues to be displayed
after verifying the hood is closed,
you should have the hood switch
serviced. Failure to service the hood
switch properly can result in an Auto
Start condition.
Auto Stops will be disabled when
this message is displayed. If the
vehicle is in auto stop mode when
this message appears, the engine
will instantly start.
Engine Oil Messages
OIL PRESSURE LOW STOP
ENGINE
If engine oil pressure is low, this
message will be displayed on the
DIC. Stop the vehicle as soon as
safely possible and do not operate it
until the cause of the low oil
pressure has been corrected. Check
your oil level as soon as possible
and have your vehicle serviced. See
“Engine Oil”in the owner manual.
Service Vehicle Messages
SERVICE HYBRID SYSTEM
If this message is displayed on the
DIC, the vehicle may continue to
operate, but you need to have it
serviced as soon as possible.
SERVICE POWER STEERING
This message displays if a problem
has been detected with the electric
power steering. Have your vehicle
serviced by your dealer immediately.
Transmission Messages
SERVICE 4 WHEEL DRIVE
This message may display if a
problem occurs with the
four-wheel-drive system. If this
message appears, stop as soon as
possible and turn off the vehicle.
Make sure the key is in the LOCK/
OFF position for at least one minute
and then restart the vehicle and
check for the message on the DIC
display. If the message is still
displayed or appears again
when you begin driving, the
four-wheel-drive system needs
service. See your dealer.
