4.Engage transmission position N.
5.Switch the engine off. In this way, the igni‐
tion remains switched on, and a Check-Con‐
trol message is displayed.
Transmission position P with the igni‐
tion off
When the ignition is switched off, position P
is engaged automatically. When in an auto‐
matic car wash, for example, ensure that the
ignition is not switched off accidentally.◀
The vehicle cannot be locked from the outside
when in transmission position N.
A signal is sounded when an attempt is made to
lock the vehicle.
Transmission position
Transmission position P is engaged automati‐
cally:
▷When the ignition is switched off.
▷After approx. 15 minutes.
Headlamps
▷Do not rub dry and do not use abrasive or
caustic cleansers.
▷Soak areas that have been soiled e.g. due to
insects, with shampoo and wash off with
water.
▷Thaw ice with deicing spray; do not use an
ice scraper.
After washing the vehicle
After washing the vehicle, apply the brakes
briefly to dry them; otherwise, braking action can
be reduced and corrosion of the brake discs can
occur.
Vehicle care
Car care products
BMW recommends using cleaning and care
products from BMW, since these have been
tested and approved.
Car care and cleaning products
Follow the instructions on the container.
When cleaning the interior, open the doors or
windows.
Only use products intended for cleaning vehi‐
cles.
Cleansers can contain substances that are dan‐
gerous and harmful to your health.◀
Vehicle paint
Regular care contributes to driving safety and
value retention.
Environmental influences can act on the vehicle
paint. Tailor the frequency and extent of your car
care to these influences.
Leather care
Remove dust from the leather often, using a
cloth or vacuum cleaner.
Otherwise, particles of dust and road grime
chafe in pores and folds, and lead to increased
wear and premature degradation of the leather
surface.
To guard against discoloration, such as from
clothing, provide leather care roughly every two
months.
Clean light-colored leather more frequently be‐
cause soiling on such surfaces is substantially
more visible.
Use leather care products; otherwise, dirt and
grease will gradually break down the protective
layer of the leather surface.
Suitable care products are available from the
service center.
Seite 297
CareMobility
297Online Edition for Part no. 01 40 2 608 633 - 11 09 490

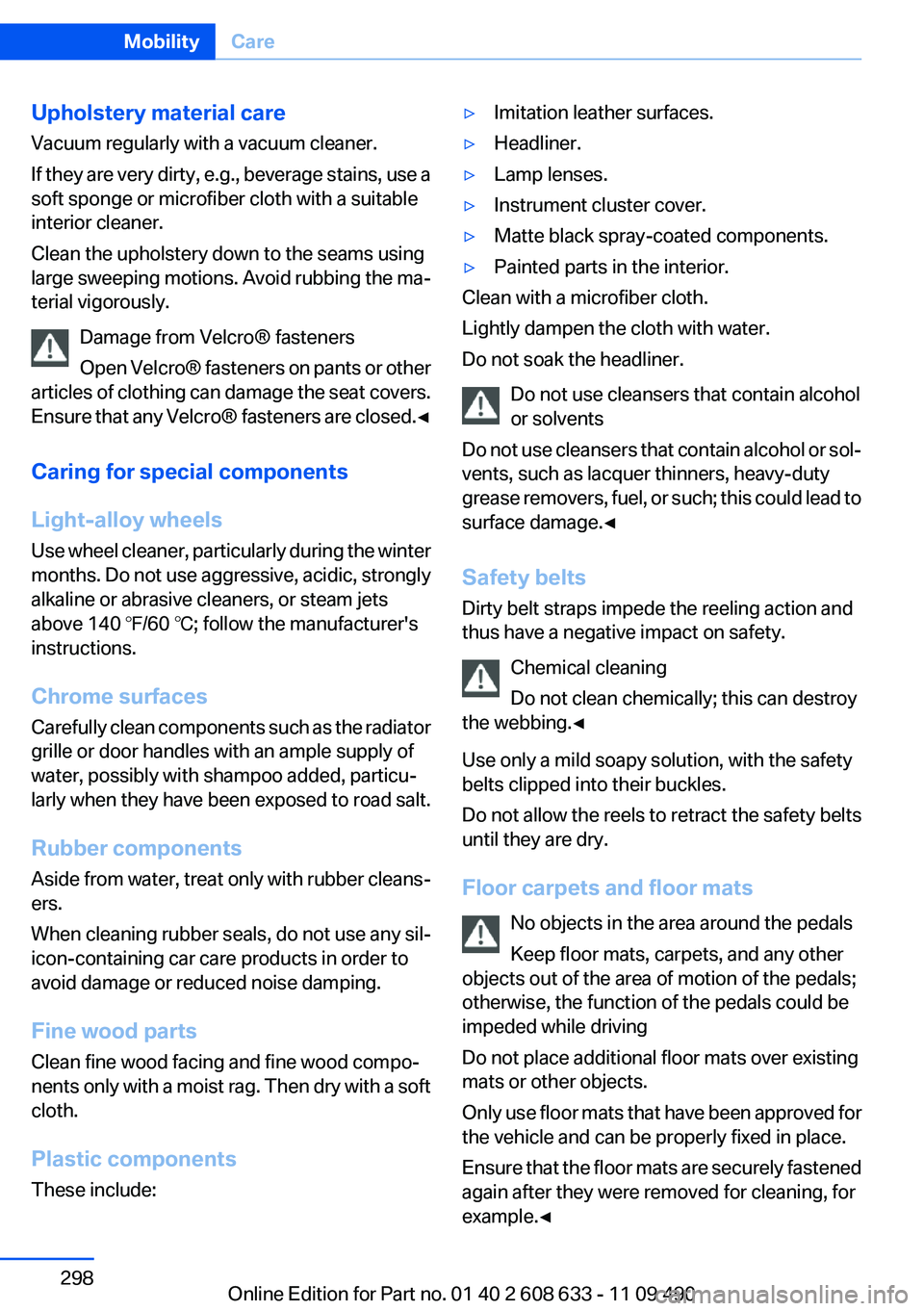

Upholstery material care
Vacuum regularly with a vacuum cleaner.
If they are very dirty, e.g., beverage stains, use a
soft sponge or microfiber cloth with a suitable
interior cleaner.
Clean the upholstery down to the seams using
large sweeping motions. Avoid rubbing the ma‐
terial vigorously.
Damage from Velcro® fasteners
Open Velcro® fasteners on pants or other
articles of clothing can damage the seat covers.
Ensure that any Velcro® fasteners are closed.◀
Caring for special components
Light-alloy wheels
Use wheel cleaner, particularly during the winter
months. Do not use aggressive, acidic, strongly
alkaline or abrasive cleaners, or steam jets
above 140 ℉/60 ℃; follow the manufacturer's
instructions.
Chrome surfaces
Carefully clean components such as the radiator
grille or door handles with an ample supply of
water, possibly with shampoo added, particu‐
larly when they have been exposed to road salt.
Rubber components
Aside from water, treat only with rubber cleans‐
ers.
When cleaning rubber seals, do not use any sil‐
icon-containing car care products in order to
avoid damage or reduced noise damping.
Fine wood parts
Clean fine wood facing and fine wood compo‐
nents only with a moist rag. Then dry with a soft
cloth.
Plastic components
These include:
▷Imitation leather surfaces.
▷Headliner.
▷Lamp lenses.
▷Instrument cluster cover.
▷Matte black spray-coated components.
▷Painted parts in the interior.
Clean with a microfiber cloth.
Lightly dampen the cloth with water.
Do not soak the headliner.
Do not use cleansers that contain alcohol
or solvents
Do not use cleansers that contain alcohol or sol‐
vents, such as lacquer thinners, heavy-duty
grease removers, fuel, or such; this could lead to
surface damage.◀
Safety belts
Dirty belt straps impede the reeling action and
thus have a negative impact on safety.
Chemical cleaning
Do not clean chemically; this can destroy
the webbing.◀
Use only a mild soapy solution, with the safety
belts clipped into their buckles.
Do not allow the reels to retract the safety belts
until they are dry.
Floor carpets and floor mats
No objects in the area around the pedals
Keep floor mats, carpets, and any other
objects out of the area of motion of the pedals;
otherwise, the function of the pedals could be
impeded while driving
Do not place additional floor mats over existing
mats or other objects.
Only use floor mats that have been approved for
the vehicle and can be properly fixed in place.
Ensure that the floor mats are securely fastened
again after they were removed for cleaning, for
example.◀
Seite 298
MobilityCare
298Online Edition for Part no. 01 40 2 608 633 - 11 09 490

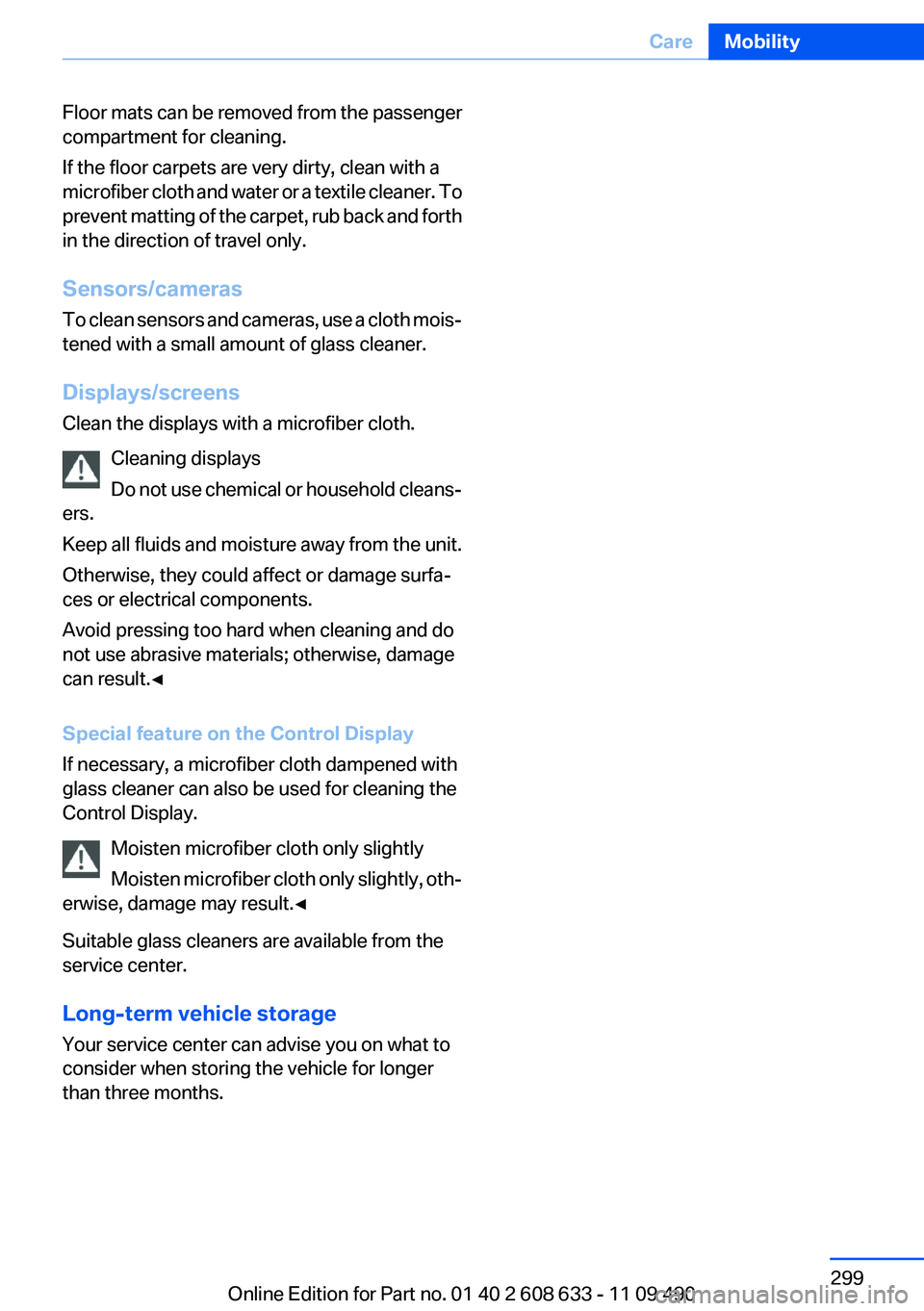

Floor mats can be removed from the passenger
compartment for cleaning.
If the floor carpets are very dirty, clean with a
microfiber cloth and water or a textile cleaner. To
prevent matting of the carpet, rub back and forth
in the direction of travel only.
Sensors/cameras
To clean sensors and cameras, use a cloth mois‐
tened with a small amount of glass cleaner.
Displays/screens
Clean the displays with a microfiber cloth.
Cleaning displays
Do not use chemical or household cleans‐
ers.
Keep all fluids and moisture away from the unit.
Otherwise, they could affect or damage surfa‐
ces or electrical components.
Avoid pressing too hard when cleaning and do
not use abrasive materials; otherwise, damage
can result.◀
Special feature on the Control Display
If necessary, a microfiber cloth dampened with
glass cleaner can also be used for cleaning the
Control Display.
Moisten microfiber cloth only slightly
Moisten microfiber cloth only slightly, oth‐
erwise, damage may result.◀
Suitable glass cleaners are available from the
service center.
Long-term vehicle storage
Your service center can advise you on what to
consider when storing the vehicle for longer
than three months.
Seite 299
CareMobility
299Online Edition for Part no. 01 40 2 608 633 - 11 09 490

Online Edition for Part no. 01 40 2 608 633 - 11 09 490

Reference
This chapter contains technical data, short
commands for the voice activation system, and an
index that will quickly take you to the information
you need.
Online Edition for Part no. 01 40 2 608 633 - 11 09 490

Technical data
Vehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equipment
is also described that is not available in a vehicle,
e. g., because of the selected optional equip‐
ment or country variant. This also applies for
safety-related functions and systems.
Dimensions
Width, height
1Vehicle height without roof-mounted aerial:
56.3 inches/1,430 mm
Vehicle height with roof-mounted aerial:
56.7 inches/1,442 mm
2Vehicle width, without mirrors: 71.3 inches/
1,811 mm
3Vehicle width with mirrors: 79.9 inches/
2,031 mm
Seite 302
ReferenceTechnical data
302Online Edition for Part no. 01 40 2 608 633 - 11 09 490

Length, wheel base
1Wheel base: 110.6 inches/2,810 mm2Vehicle length: 182 inches/4,624 mm
Smallest turning circle
Dia.: 37 ft/11.3 m
Engine specifications
The rated power outputs are established on the
basis of fuel grade AKI 91.
328i
Displacementcu in/cm³ 121.8/1,997
No. of cylinders4
Maximum output
at engine speed
hp
rpm
245
5,000–6,500
Maximum torque
at engine speed
lb ft/Nm
rpm
258/350
1,250–4,800
Seite 303
Technical dataReference
303Online Edition for Part no. 01 40 2 608 633 - 11 09 490

335i
Displacementcu in/cm³ 181.7/2,979
No. of cylinders6
Maximum output
at engine speed
hp
rpm
306
5,800–6,000
Maximum torque
at engine speed
lb ft/Nm
rpm
295/400
1,200–5,000
Weights
The values preceding the slash apply to vehicles
with manual transmission; the values following
the slash apply to vehicles with automatic trans‐
mission.
328i
Approved gross vehicle weightlbs
kg
4,409/4,453
2,000/2,020
Loadlbs/kg 903/410
Approved front axle loadlbs/kg 2,061/935
Approved rear axle loadlbs/kg 2,513/1,140
Approved roof load capacitylbs/kg 165/75
Trunk capacitycu ft/l 16.9/480

335i
Approved gross vehicle weightlbs
kg
4,541/4,563
2,060/2,070
Loadlbs/kg 903/410
Approved front axle loadlbs/kg 2,160/980
Approved rear axle loadlbs/kg 2,524/1,145
Approved roof load capacitylbs/kg 165/75
Cargo area capacitycu ft/l 16.9/480
Seite 304
ReferenceTechnical data
304Online Edition for Part no. 01 40 2 608 633 - 11 09 490
